Abtus ABT5200 Bedienungsanleitung

5200-1 Issue 04

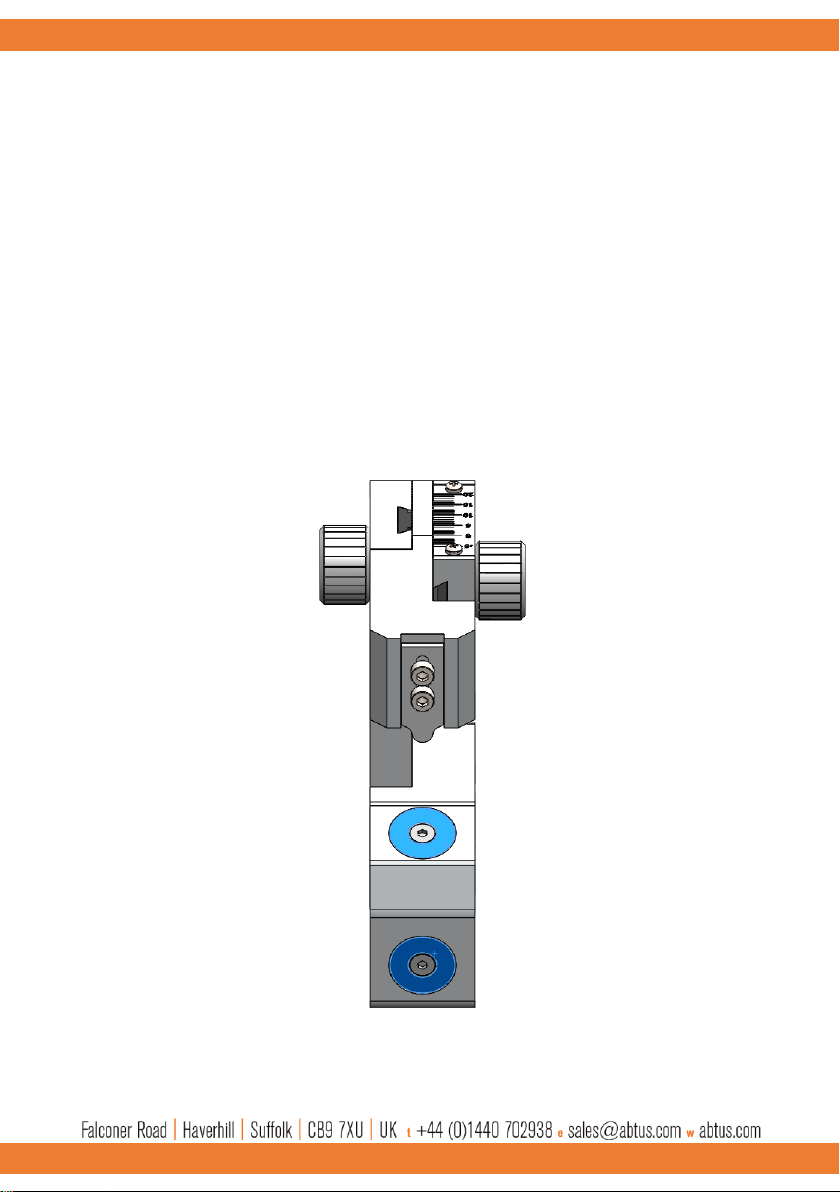

ABT5200

Sidecut Gauge

Instruction Manual

5200-1 Issue 04

1.0 Index

1.0 Index 1

2.0 Overview 1

3.0 Specification 1

4.0 Getting Started 2

4.1 Measuring Sidewear 4

4.2 Measuring Headwear 5

5.0 Maintenance 7

5.1 User Advice 7

5.2 Every 3 Months 7

5.3 Annual 7

2.0 Overview

Constructed from a combination of hard-wearing stainless steel and

lightweight aluminium, the ABT5200 Sidecut Gauge is a compact

solution to measuring side and headwear.

The side and headwear are measured mechanically on a pair of

linear stainless steel scales via a horizontal and vertical slide

respectively.

The gauge measures the following parameters:

Sidewear

Headwear

3.0 Specification

Weight

0.36kg

Size

112mm x 80mm x 49mm

Sidewear

Range: -5mm/ + 20mm

Accuracy: ±1mm

Resolution: 1mm

Headwear

Range: -3mm/ + 20mm

Accuracy: ±1mm

Resolution: 1mm

5200-1 Issue 04

4.0 Getting Started

When picking a measurement point, it is important to consider the

following points as they can cause an inaccuracy;

Location of welds or branding marks.

Excess loose rust, dirt and grease.

Once a suitable measuring position has been chosen, the gauge can

be attached to the rails. The gauge has 2 locating magnets, as shown

in Figure 1, which will allow it to stay connected to the rail; leaving the

user’s hands free to take the measurements.

Figure 1

5200-1 Issue 04

Figure 2 shows the mating faces of the rail and the gauge. Once

the magnets have adhered themselves to the faces on the rail, the

gauge will hold itself in the measuring position, as shown in figure

Figure 2

Figure 3

5200-1 Issue 04

4.1 Measuring Sidewear

The sidewear measurement is the amount of wear caused on the

side of the profile by the contact of the wheel on the running rail.

To measure the sidewear, ensure the gauge is fully in contact with

the rail as shown previously then the horizontal measuring slide can

be adjusted as shown in figure 4.

Figure 4

Once the lower corner of the measuring pin is in contact with the

worn edge of the profile, the measurement can be taken from the

sidewear scale on the top of the gauge, as shown in figures 5 and 6.

The sidewear measurement is given as mm worn since the rail was

new.

5200-1 Issue 04

Figure 5 Figure 6

4.2 Measuring Headwear

Headwear is the deterioration of the top of the profile as a result of

the friction between moving wheel and the rail.

To measure headwear, again ensure the gauge is fully in contact

with the rail, please push the knob or the sliding mechanism

directly and not the body of the gauge as this can cause the gauge

lockup, then the vertical headwear slide can be adjusted until the

measuring pin is touching the top of the rail. The headwear scale

on the side of the gauge will display the measurement for that

position.

Headwear is also displayed in mm worn since the rail was new.

5200-1 Issue 04

Figure 7

Figure 8 Figure 9

5200-1 Issue 04

5.0 Maintenance

5.1 User Advice

The ABT5200 is a precise measurement equipment. Whilst it has

been designed for use in an engineering environment, due care

should be taken not to cause damage to the equipment when in

operation, storage or transit. Excessive trauma to the moving parts

of the gauge may invalidate the calibration and lead to possible

measurement inaccuracies.

5.2 Every 3 Months

Visually inspect the ABT5200 for signs of damage. If necessary,

contact your local distributor for help.

5.3 Annual

The ABT5200 must be returned annually for re-calibration to ensure

measurements are within specification.

The condition of all components will be checked at this time and

replaced as required.
