Access Lighting SQUARE 20399LEDMG Bedienungsanleitung

IMPORTANT

Before assembling your ACCESS LIGHTING fixture, please make sure that

you carefully read through these instruction sheets. Consider having

your fixture installed by a qualified licensed electrician.

NOTE: The important safeguards and instructions that appear in this

manual are not meant to cover all possible conditions and situations

that may occur. It must be understood that common sense, caution and

care, are factors that can’t be built into any product. These factors must

be supplied by the person(s) caring for and operating the fixture.

STEP BY STEP INSTRUCTIONS

Before starting your installation disconnect the Power by turning off the

Circuit Breaker or by removing the fuse at the fuse box. Just turning the

light off at the light switch is not sufficient to prevent electrical shock.

PREPARE FIXTURE AND CONNECT THE WIRES

If there is an existing fixture remove it. Gently pull the supply

wires out of the J-box.

Mount the crossbar to the J-box with

the supplied screws.

Connect the black supply wire to the

black fixture wire. Secure with the supplied wire nuts.

Connect the white supply wires to the white fixture wire.

Secure with the supplied wire nuts. Either wrap the green

wire around one of the protruding screws or connect it to the

supply ground wire. Secure all wires with U.L. Certified

electrical tape (not supplied). Tuck all wires carefully into

the J-Box.

GENERAL INFORMATION

All electrical connections must be in accordance with all ordinances,

Local and National Electrical Codes. These fixtures are intended for

mounting to a standard 4” x 2 1/2”metal octagon outlet box. The box

must be directly supported by the building structure and U.L. Recognized.

WHAT YOU NEED

• Screwdriver

• Wire Cutters

• Wiring Supplies as Specified

by Electrical Code

INSTALLATION INSTRUCTIONS

WHAT WE PROVIDE

•

Crossbar

•

Mounting Hardware

•

LED

COLLECTION

CERTIFICATION: ETL WET NO. 20399LEDMG

20399LEDMG

APPLICATION MODEL NO.

Wall FixtureSQUARE

CERTIFICATION: ETL WET NO. 20399LEDMG

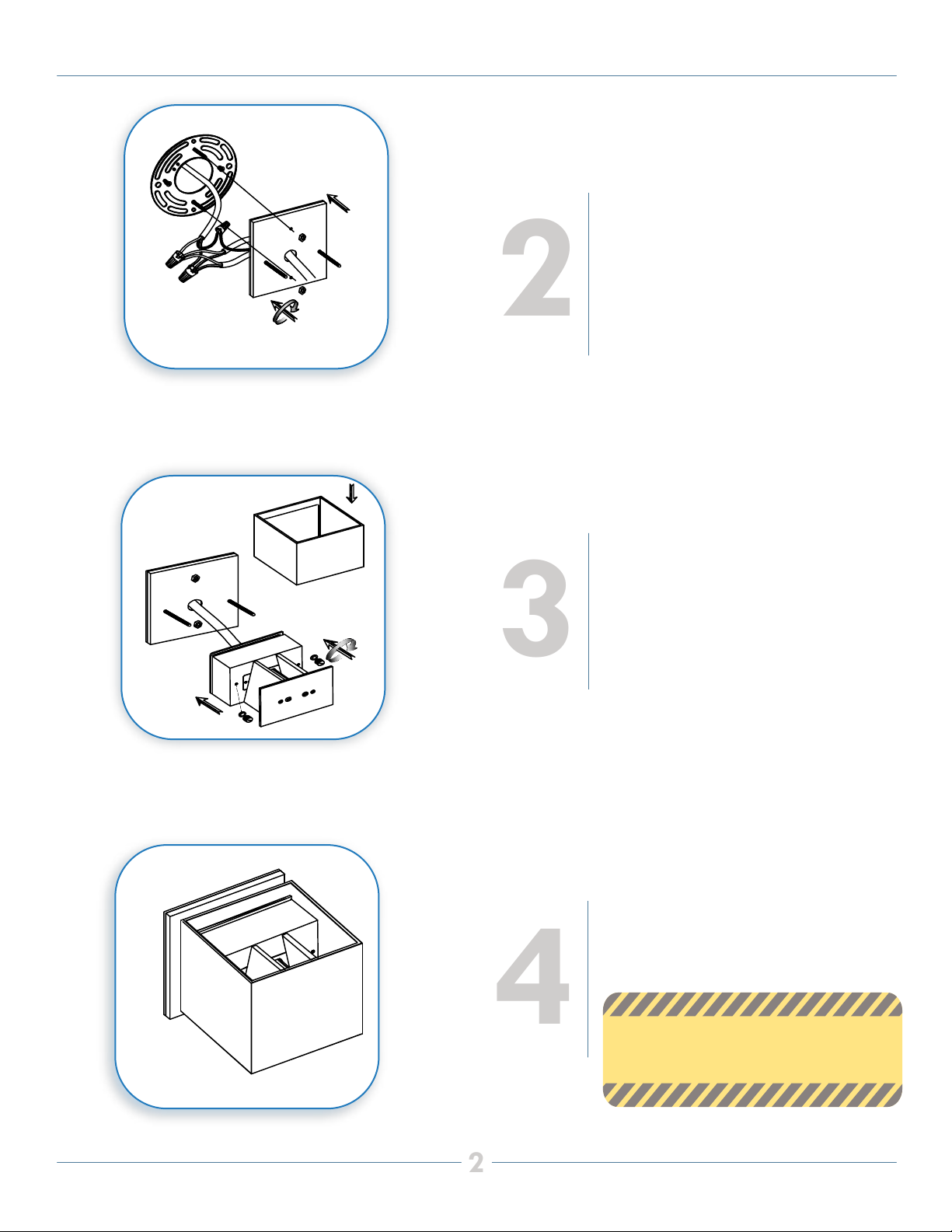

MOUNT THE BACKPLATE

Fit the backplate up to the crossbar.

Align the holes of backplate and secure with

the supplied screw nuts.

MOUNT THE FIXTURE AND COVER THE SHADE

Align the fixture holes with the backplate screw and

secure with the supplied screw knobs (with screw gaskets)

Slide the cover shade into its designated slot from the top.

* This fixture is wet location rated. In order to ensure

that moisture does not enter the outlet box and cause

a short circuit, clear caulking should be used to seal the

space between the fixture mounting bracket and the

wall. Ensure that a space is left at the bottom to allow

for the escape of moisture. It is recommended that

Indoor/Outdoor Silicon Sealant be used for that purpose**

RESTORE THE ELECTRICITY AND

CHECK THE OPERATION OF YOUR

NEW ACCESS LIGHTING FIXTURE

If the fixture is to be removed or replaced,

please ensure that the electricity is

switched off and that the fitting is cool

before touching it.

CAUTION
