DIGITAL ANGLE GAUGE
USER’SGUIDE
Model 7434 v1.1
Setting 0° Calibration
Note: The device is calibrated in the
factory for maximum accuracy.
User can re-calibrate if necessary.
1. Turn off the device and place it on
a flat, smooth surface.
2. While the device is still off,
press the ON/OFF and HOLD
buttons together until the display
reads “CAL”.
3. Press the HOLD button again and
the display will now read “CAL1”.
4. Without picking up the device,
rotate it 180° and press the HOLD
button again. The display will
now read “CAL2”. The 0°
calibration is now complete.
Inclination Icon
As shown in the drawings, the
inclination icon shows you in what
direction you need to move an object
to get to level. The direction is
measured relative to the right side of
the gauge.
If the short line is above the longer
line, the right side is high and needs to
be lowered. Note that the arrow points
down, the direction which the right side
of the gauge should be rotated.
If the short line is below the longer line,
the right side needs to be raised. Note
that the arrow points up, the direction
which the right side of the gauge
should be rotated.
One large line indicates level, 0.0°.
180°
DIGITAL ANGLE GAUGE
With the AccuMASTER 2-in-1 Digital
Level and Angle Gauge you can find true
level and precisely check angles on saw
blades, jointer fences, drill press and
band saw tables, bevels and many more
precision tools. The AccuMASTER is
also useful for welders, fabricators,
installers or anyone who needs to find
true level and precise angle settings.
• Accuracy: ±0.2°
• Large, bright StayGlow™ display
stays on as long as you’re using it
• Magnetically attaches to blades,
tables and more
• Finds both true level and
relative angles
• Reversible display (reads
upside down)
• IP54 certified – dust and water
resistant
• INCLUDES: 2-year warranty, 2
long-life AAA batteries and a
protective pouch
Operation
1. Remove plastic battery tab before
use. Two AAA batteries are included.
2. Press ON/OFF button to power the
device. The display backlight stays
on until the device is turned off.
Press and hold ON/OFF button to
turn off. The device will turn off
after 3 minutes of inactivity.
3. To measure an angle, turn on and
put the device on the surface
being measured.
4. Press MODE to switch between
degrees, %, mm/m or in/ft.
5. If a surface isn’t level, but you want
it to be your level starting point, you
can manually set it to 0° by pressing
SET 0. The icon will display. Press
SET 0 again to cancel the function.
6. If you need to move the device to
read the display, press the HOLD
button to freeze the measurement.
The icon will display. Press HOLD
again to return to measuring mode.
HOLD – save measurement
ÀMODE – shows degrees, %, IN/FT, mm/m
ÃIndicates tilt direction
ÕSET O – set current level to 0°
ŒBattery life
Incorrect*
Correct

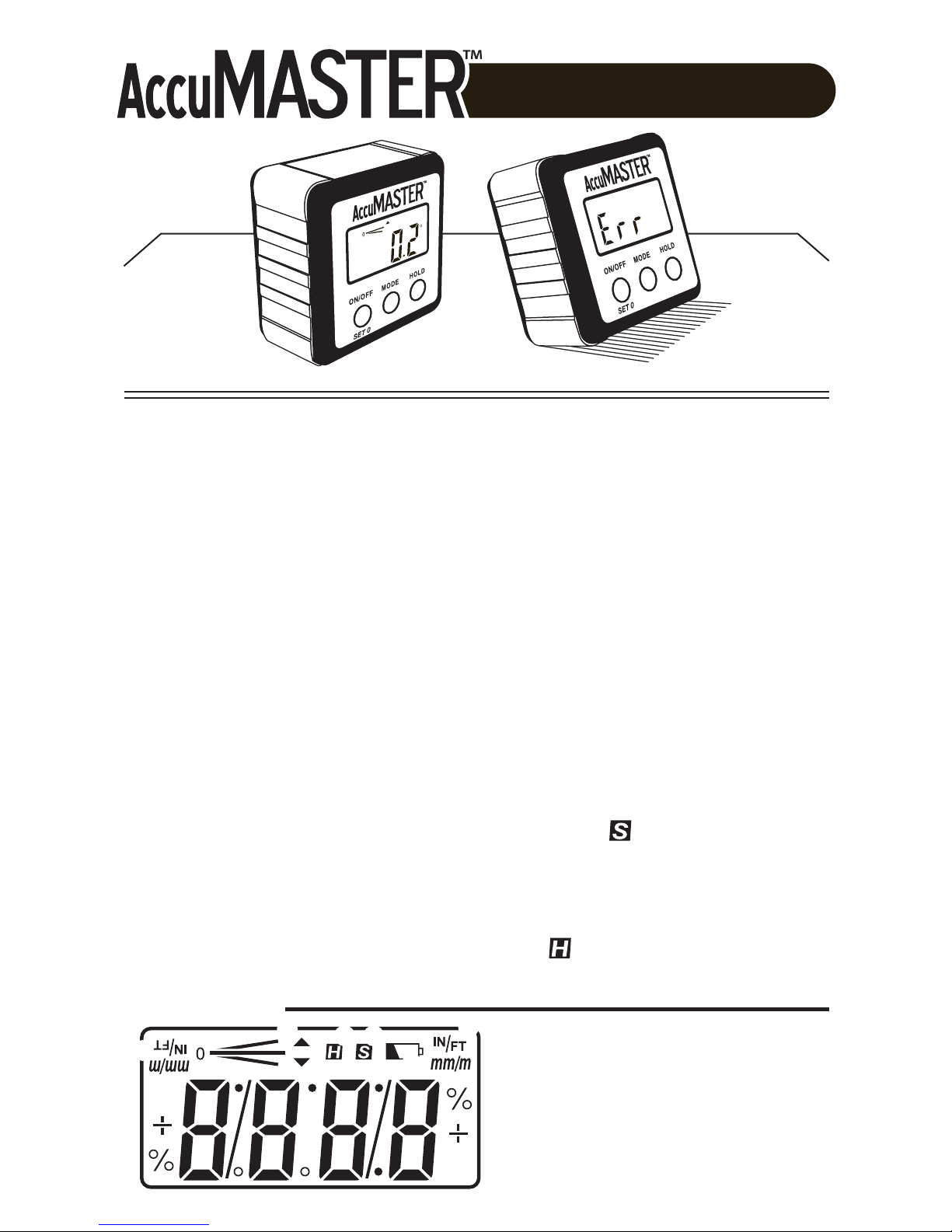

The LCD Display
À
À
ÃÕ
Œ
*If the angle gauge is
tipped back more
than 45 degrees, the
display will show Err.
