Acer Extensa 5630G Bedienungsanleitung

Extensa 5630 Series

Quick Guide

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

This company makes no representations or warranties, either express or implied, with respect

to the contents hereof and specifically disclaims the implied warranties of merchantability or

fitness for a particular purpose. Although care has been taken to ensure accuracy, this

company shall not be liable for any errors (including, but not limited to, typos, factual errors,

etc.) contained in this publication.

Changes may be made periodically to the information in this publication without obligation

to notify any person of such revisions or changes. Such changes will be incorporated in new

editions of this manual or supplementary documents and publications. This company makes

no representations or warranties, either expressed or implied, with respect to the contents

hereof and specifically disclaims the implied warranties of merchantability or fitness for a

particular purpose.

Record the model number, serial number, purchase date and place of purchase information in

the space provided below. The serial number and model number are recorded on the label

affixed to your computer. All correspondence concerning your unit should include the serial

number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in

any form or by any means, electronically, mechanically, by photocopy, recording or otherwise,

without the prior written permission of Acer Incorporated.

Extensa 5630 Series Quick Guide

Original Issue: 08/2008

Extensa 5630 Series Notebook PC

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies'

product names or trademarks are used herein for identification purposes only and belong to

their respective companies.

CE Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan

Contact person: Mr. Easy Lai

Tel: 886-2-8691-3089, Fax: 886-2-8691-3120

Email: easy_la[email protected]

Hereby declare that:

Is compliant with the essential requirements and other relevant provisions of the following

EC directives, and that all the necessary steps have been taken and are in force to assure

that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized

standards:

-. EN55022: 2006, AS/NZS CISPR22: 2006, Class B

-. EN55024: 1998 + A1: 2001 + A2: 2003

-. EN55013: 2001 + A1: 2003 + A2:2006

(Applicable to product built with TV tuner module)

-. EN55020:2007 (Applicable to product built with TV tuner module)

-. EN61000-3-2: 2006, Class D

-. EN61000-3-3: 1995 + A1: 2001+A2: 2005

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized

standard:

-. EN60950-1: 2001 + A11: 2004

-. EN60065: 2002 + A1: 2006 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21) for pan- European single terminal connection to the

Public Switched Telephone Network (PSTN).

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in

Electrical and Electronic Equipment.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized

standards:

•Article 3.1(a) Health and Safety

-.EN60950-1:2001 + A11:2004

-.EN50371:2002

•Article 3.1(b) EMC

-.EN301 489-1 V1.6.1

-.EN301 489-3 V1.4.1 (Applicable to non-bluetooth wireless keyboard mouse set)

-.EN301 489-17 V1.2.1

•Article 3.2 Spectrum Usages

-.EN300 440-2 V1.1.2 (Applicable to non-bluetooth wireless keyboard mouse set)

-.EN300 328 V1.7.1

-. EN301 893 V1.4.1 (Applicable to 5GHz high performance RLAN).

CE marking affixed starting from 2008

Product: Notebook Computer Trade name: Acer

Model number: MS2231 Machine type: Extensa 5630

SKU number: Extensa 5630-xxxxx ("x" = 0-9, a - z, or A - Z)

Easy Lai / Manager Date

4 Aug 2008

Regulation Center, Acer Inc.

Federal Communications Commission

Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) This device must

accept any interference received, including interference that may cause undesired

operation.

The following local manufacturer/importer is responsible for this declaration:

Product name: Notebook PC

Brand name Acer

Model number: MS2231

Machine type: Extensa 5630

SKU number: Extensa 5630-xxxxx

("x" = 0 - 9, a - z, or A - Z)

Name of responsible party: Acer America Corporation

Address of responsible party: 333 West San Carlos St., San Jose, CA 95110 USA

Contact person: Acer Representative

Tel: 1-254-298-4000

Fax: 1-254-298-4147

First things first

We would like to thank you for making an Acer notebook your choice for

meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides*:

First off, the Just for Starters...helps you get started with setting up your

computer.

For more on how your computer can help you to be more productive, please

refer to the AcerSystem User Guide. This guide contains detailed information on

such subjects as system utilities, data recovery, expansion options and

troubleshooting. In addition it contains warranty information and the general

regulations and safety notices for your notebook. It is available in Portable

Document Format (PDF) and comes preloaded on your notebook. Information

for your safety and comfort.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is

not installed on your computer, clicking on AcerSystem User Guide

will run the Adobe Reader setup program first. Follow the

instructions on the screen to complete the installation. For

instructions on how to use Adobe Reader, access the Help and

Support menu.

Please understand that due to its nature, the Quick Guide as well as the

Application Manual will occasionally refer to functions or features which are

only contained in certain models of the series, but not necessarily in the model

you purchased. Such instances are marked in the text with language such as

"only for certain models".

* IMPORTANT NOTICE: Please note that the guides mentioned

herein, whether in printed or electronic form, are for your

reference only and except as provided in the specific warranty

information contained in the AcerSystem User Guide nothing

contained in these guides shall constitute a representation or

warranty by Acer with regard to the product you purchased. Acer

expressly disclaims any liability for errors contained in the guides.

English

Your Acer notebook tour

After setting up your computer as illustrated in the Just for Starters... poster,

let us show you around your new Acer notebook.

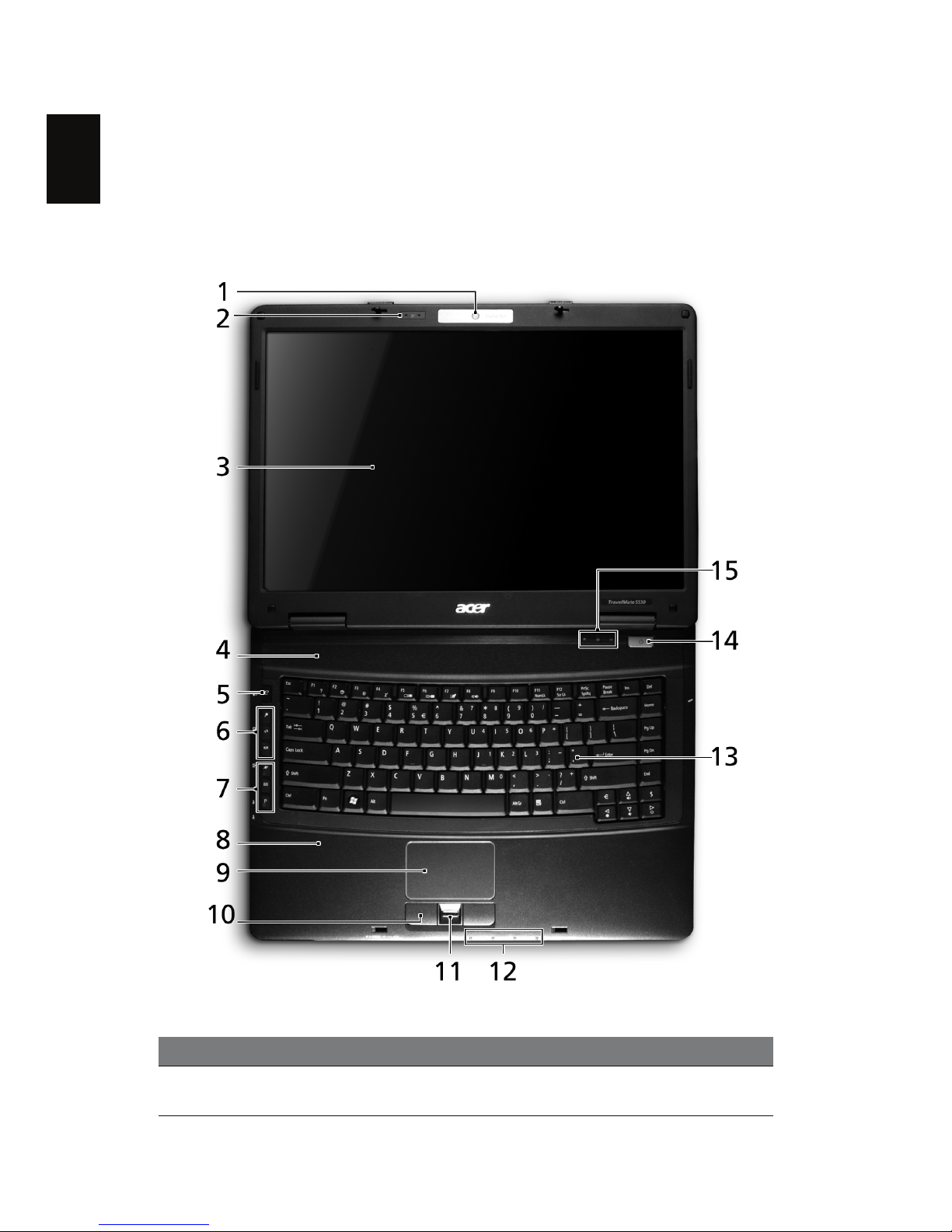

Top view

#Item Description

1 Acer Crystal Eye Web camera for video communication

(only for certain models).

English

2 Acer PureZone Two internal stereo microphones for sound

recording.

3 Display screen Also called Liquid-Crystal Display (LCD), displays

computer output.

4 Speakers Left and right speakers deliver stereo audio

output.

5 Empowering key Launch Acer Empowering Technology

6 Productivity keys Three productivity keys give users one-touch

access to protection and manageability features

for a more secure, smarter and easier way to

work. Please refer to "Generic User Guide" for

more details.

7 Easy-launch buttons Buttons for launching frequently used programs.

Please refer to "Generic User Guide" for more

details.

8 Palmrest Comfortable support area for your hands when

you use the computer.

9 Touchpad Touch-sensitive pointing device which functions

like a computer mouse.

10 Click buttons (left,

center* and right)

The left and right buttons function like the left

and right mouse buttons.

*The center button serves as Acer BioProtect

fingerprint reader supporting Acer FingerNav 4-

way control function (manufacturing option).

11 Acer Bio-Protection

fingerprint reader

The center button serves as Acer Bio-Protection

fingerprint reader supporting Acer FingerNav 4-

way control function (only for certain models).

12/15 Status indicators Light-Emitting Diodes (LEDs) that light up to

show the status of the computer's functions and

components. Please refer to "Generic User

Guide" for more details.

13 Keyboard For entering data into your computer.

14 Power button Turns the computer on and off.

#Item Description

English

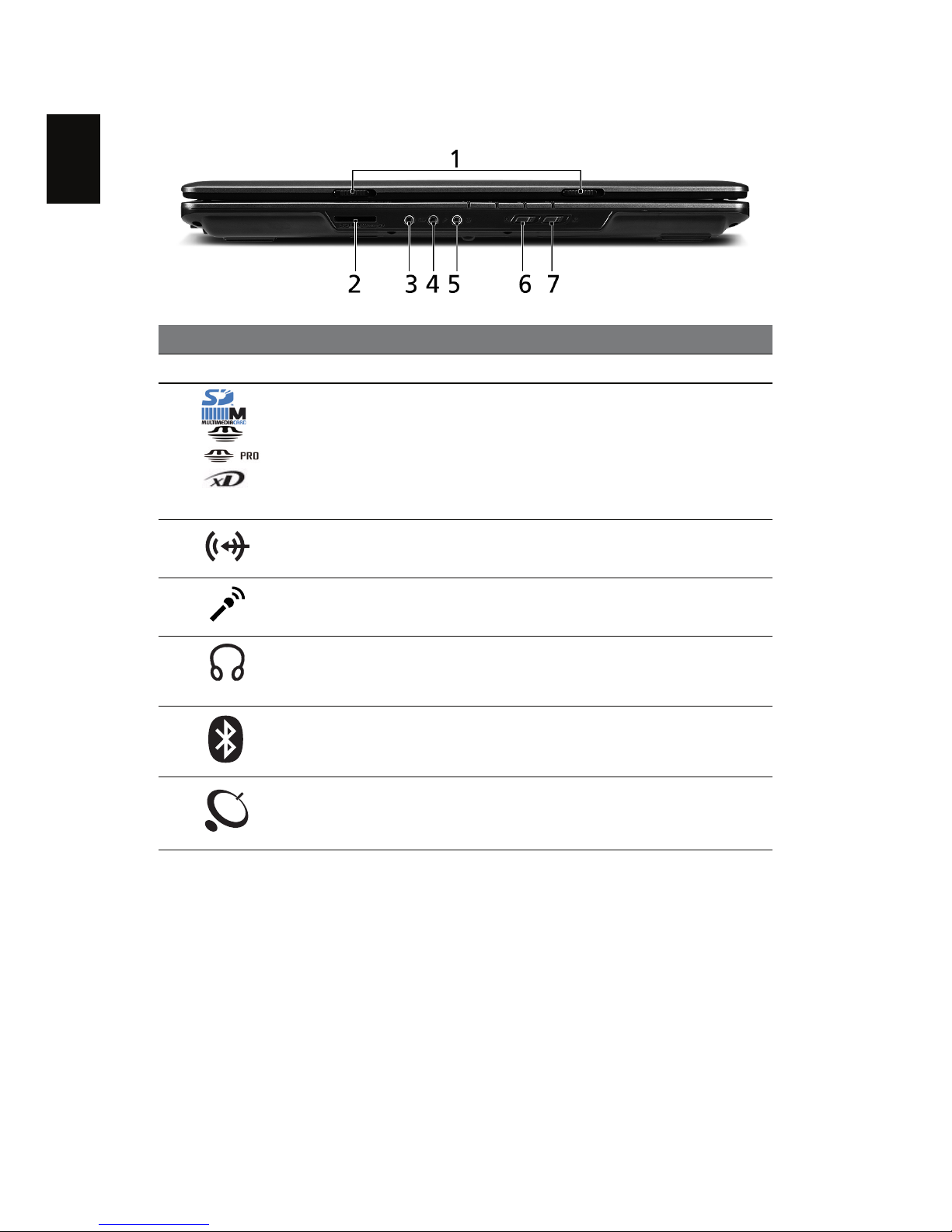

Closed front view

#Icon Item Description

1 Latch Locks and releases the lid.

2 5-in-1 card reader Accepts Secure Digital (SD),

MultiMediaCard (MMC), Memory Stick

(MS), Memory Stick Pro (MS PRO), and xD-

Picture Card.

Note: Only one card can operate at any

given time.

3 Line-in jack Accepts audio line-in devices (e.g., audio

CD player, stereo walkman, mp3 player)

4Microphone jack Accepts inputs from external

microphones.

5 Headphones/

speaker/line-out

jack.

Connects to audio line-out devices

(e.g., speakers, headphones).

6Bluetooth

communication

switch

Enable/disable the Bluetooth function.

7 Wireless

communication

switch

Enable/disable the wireless function.

English

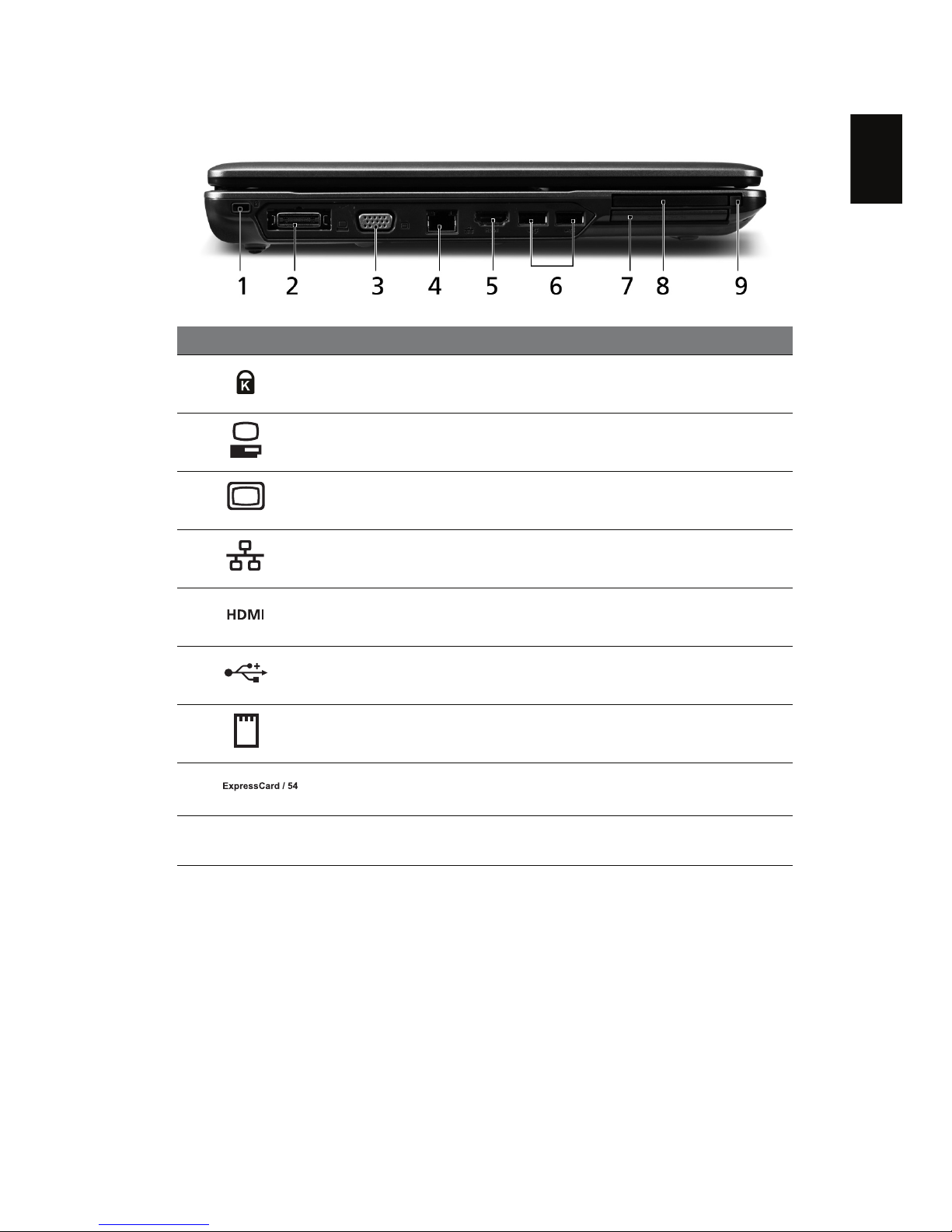

Left view

#Icon Item Description

1 Kensington lock

slot

Connects to a Kensington-compatible

computer security lock.

2 Acer EasyPort IV

connector

Connects to Acer EasyPort IV.

3 External display

(VGA) port

Connects to a display device (e.g.,

external monitor, LCD projector).

4 Ethernet (RJ-45)

port

Connects to an Ethernet 10/100/1000-

based network.

5 HDMI port Supports high definition digital video

connections.

6 Two USB 2.0 ports Connect to USB 2.0 devices (e.g., USB

mouse, USB camera).

7 PC Card slot Accepts one Type II PC Card.

8 ExpressCard/54

slot

Accepts one ExpressCard/54 module.

9 PC Card slot eject

button

Ejects the PC Card from the slot.

English

Right view

#Item Description

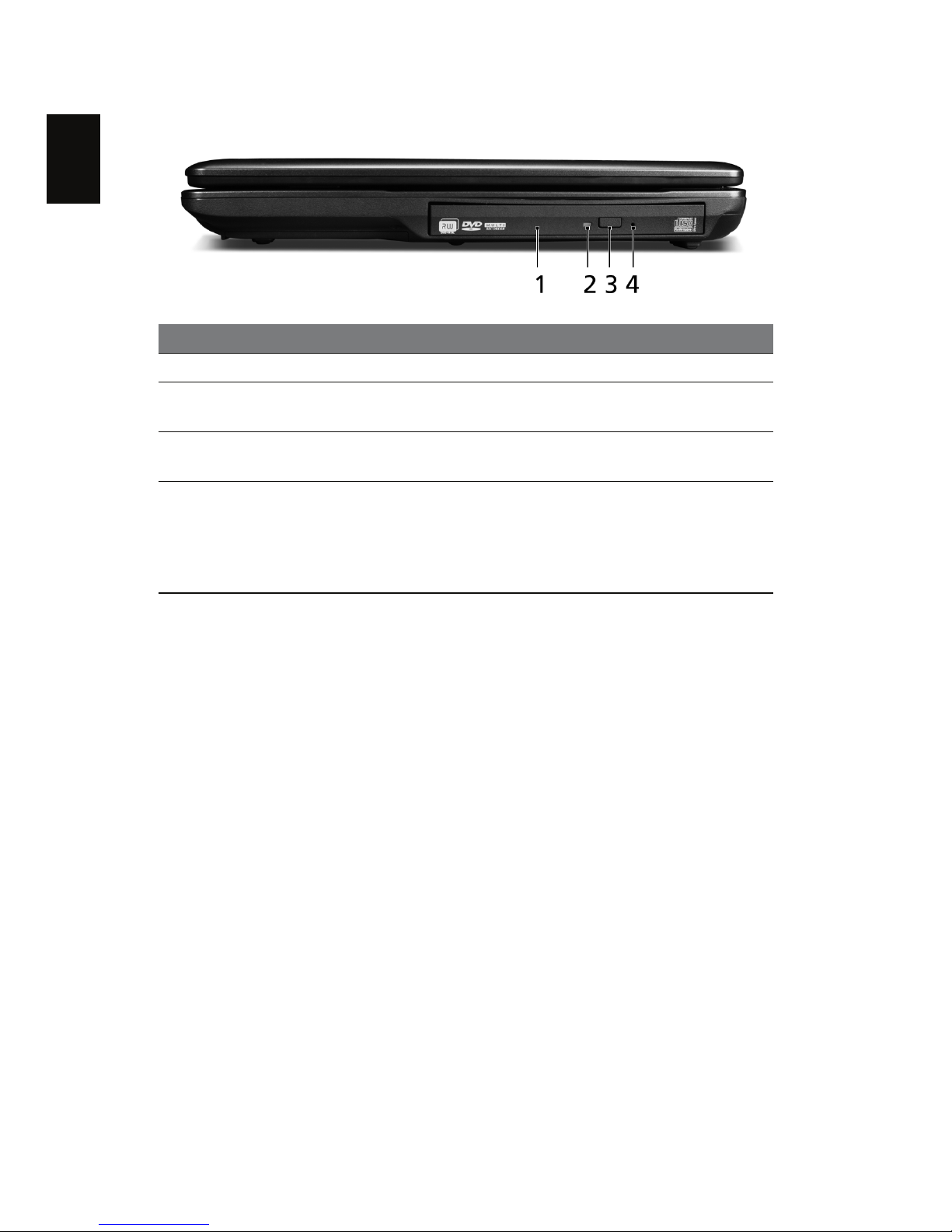

1 Optical drive Internal optical drive; accepts CDs or DVDs.

2 Optical disk access

indicator

Lights up when the optical drive is active.

3 Optical drive eject

button

Ejects the optical disk from the drive.

4 Emergency eject hole Ejects the optical drive tray when the computer

is turned off.

Note: Insert a paper clip to the emergency eject

hole to eject the optical drive tray when the

computer is off.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Acer Laptop Handbücher

Acer

Acer TravelMate 660 series Bedienungsanleitung

Acer

Acer Aspire One AOA150 Bedienungsanleitung

Acer

Acer Aspire 4935 Series Bedienungsanleitung

Acer

Acer 5710 6013 - TravelMate Einrichtungshandbuch

Acer

Acer A315-23 Bedienungsanleitung

Acer

Acer Chromebook 311 Bedienungsanleitung

Acer

Acer Aspire 1670 Series Bedienungsanleitung

Acer

Acer Aspire V5-132 Technisches Dokument

Acer

Acer 2450 Bedienungsanleitung

Acer

Acer Aspire 3000 Series Einrichtungshandbuch

Acer

Acer 9410-2829 - Aspire Bedienungsanleitung

Acer

Acer TravelMate 630 series Konfigurationshandbuch

Acer

Acer Aspire Notebook Series Bedienungsanleitung

Acer

Acer TravelMate 8572 Bedienungsanleitung

Acer

Acer ConceptD 3 Ezel Bedienungsanleitung

Acer

Acer Predator PO5-640 Bedienungsanleitung

Acer

Acer Aspire 7741 Bedienungsanleitung

Acer

Acer Aspire Notebook Series Bedienungsanleitung

Acer

Acer Aspire E1-522 Bedienungsanleitung

Acer

Acer Aspire 6530 Series Bedienungsanleitung

Acer

Acer TravelMate P245-M Bedienungsanleitung

Acer

Acer Liquid Z500 Bedienungsanleitung

Acer

Acer Aspire 1610 series Bedienungsanleitung

Acer

Acer Aspire 1690 Series Bedienungsanleitung

Beliebte Laptop Handbücher anderer Marken

HP ze2401xt - Pavilion Notebook PC Bedienungsanleitung

Velocity

Velocity NoteMagix M10 Bedienungsanleitung

Dell

Dell Alienware 17 R2 Bedienungsanleitung

Toshiba

Toshiba A105-S2236 Bedienungsanleitung

HP ENVY 17 Handbuch

Winbook

Winbook LM Bedienungsanleitung

Dell

Dell Inspiron 1464 Bedienungsanleitung

Dell

Dell Inspiron 15R 5537 Bedienungsanleitung

HP PROBOOK 4520S Handbuch

Dell

Dell Latitude ATG D620 Bedienungsanleitung

Sony

Sony VAIO PCG-FX270 Bedienungsanleitung

Dell

Dell Latitude 7310 Bedienungsanleitung

Dell

Dell Precision GU806 Bedienungsanleitung

Sony

Sony VAIO PCG-R505JLK Bedienungsanleitung

Lenovo

Lenovo THINKPAD X32 Bedienungsanleitung

HP Compaq tc4200 Kurzanleitung

Toshiba

Toshiba mini NB300 Bedienungsanleitung

Lenovo

Lenovo ThinkPad X201 Tablet Handbuch
