Acnodes KDH81712 Bedienungsanleitung

For lastest product information, please visit Acnodes’ website at www.acnodes.com

14628 Central Ave. Chino, CA 91710 Tel: 909.597. 7588 Fax: 909. 597.1939

Legal Information

First English printing, October 2002

Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the

contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from

the use of this equipment.

Safety Instructions

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with

temperatures not exceeding 40º Celsius (104º Fahrenheit).

■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing

damage to other equipment or injury to persons nearby.

■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the

power supply. Proper air convection is necessary to keep it from overheating.

■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current

labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed

on the equipment’s ratings label.

■Observe all precautions and warnings attached to the equipment.

■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being

damaged by transient over-voltage.

■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power

supply or on other hardware may cause damage, fire or electrical shock.

■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and

invalidate its warranty.

■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.

What the warranty does not cover

■ Any product, on which the serial number has been defaced, modified or removed.

■Damage, deterioration or malfunction resulting from:

□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or

failure to follow instructions supplied with the product.

□Repair or attempted repair by anyone not authorized by us.

□Any damage of the product due to shipment.

□Removal or installation of the product.

□Causes external to the product, such as electric power fluctuation or failure.

□Use of supplies or parts not meeting our specifications.

□Normal wear and tear.

□Any other causes which does not relate to a product defect.

■Removal, installation, and set-up service charges.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

■Re-position or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Contents

< Part. 1 > KDH81712/81912

1.1 Package Content

1.2 Structure Diagram & Dimension

1.3 Installation

P.1

P.1 - 2

P.3 - 5

< Part. 2 > Specifications / OSD

2.1 Product Specifications

2.2 Keyboard / Mouse Specifications

2.3 On-screen Display Operation ( OSD )

P.6 - 7

P.8

P.9 - 10

< Part. 3 > Options

3.1 Audio

3.2 48V, 24V or 12VDC power P.11

P.12

< Part. 4 > KVM Integration

Contents

DVI-D

KVM Local Remote IP 12-port

1 0 0 KVD1201

4.1 KVM port connection

4.2 Specifications

4.3 KVM Button

4.4 KVM Hotkey

4.5 DC power 12V, 24V, 48V Input

P.13

P.14

P.15

P.16

P.17

Before Installation

■It is very important to mount the equipment in a suitable cabinet or on a stable surface.

■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive

dust, dirt, heat, water, moisture and vibration.

Unpacking

The equipment comes with the standard parts shown in package content. Check and make sure they are

included and in good condition. If anything is missing, or damaged, contact the supplier immediately.

How To Clean Your LCD Monitor

Caution :

■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or

plugging your monitor into an electrical outlet.

■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can

scratch or damage your display. Pressure damage is not covered under warranty.

■Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to

clean monitors and monitor screens can scratch the LCD display or strip off the finish.

■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly

onto the screen or case can cause damage which is not covered under warranty.

■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based

paper product such as paper towels can scratch your LCD screen.

Cleaning Your Monitor

To clean your LCD safely, please follow these steps :

1 Disconnect the power cord.

2 Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.

Cleaning Tough Marks and Smudges

To remove tough marks and smudges, please follow these steps :

1 Disconnect the power cord.

2 Spray a small amount of non-abrasive cleanser on a microfiber cloth.

Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the

solution to your microfiber cloth first, not directly on the parts you are cleaning.

3 Gently wipe the surface. Use as little pressure as possible.

4 Wait until your monitor is completely dry before plugging it in and powering it up.

< Part 1 >

< 1.1 > Package Content

KDH81712/81912 unit X 1

- 6ft Combo KVM cable X 1

- Power cord X 1

- M6 screw, cage nut & cup washer X 8

< 1.2 > Structure Diagram

2 8

3 9

1 LCD interchangeable module kit

2 Installation Slides

3 LCD membrane

4 Membrane switch (KVM option)

5 Micro switch for screen auto power off

6 Keyboard interchangeable module kit

7 Mouse interchangeablemodule kit

8 Blue Power LED

9 Front USB port for device access ( USB Hub KVM only )

10 Molded front handle

< 1.2 > Dimension

Front View

Side View UNIT :

1mm = 0.03937 inch

Top View

Model

Product

Dimension

(W x D x

Packing

Dimension

(W x D x

Net

Weight

Gross

Weight

KDH81712

441.6 x 580 x 44

17.4 x 22.8 x

1.73"

590 x 823 x 140

23.2 x 32.4 x

5.5”

12 kg

26 lb

16.5

KDH81912

441.6 x 620 x 44

17.4 x 24.4 x

1.73"

590 x 823 x 140

23.2 x 32.4 x

5.5”

13 kg

29 lb

17.5

< 1.3 > Installation - How to install Installation Slides

Step 1

¦ Insert the left and right rear mounting bracketsinto

the LCDconsole drawer.

Step 2

¦ Measure the depth of the front and rear mounting rails.

¦ Align each rear mounting bracketto a suitable length.

Step 3

Complete the installation

¦ Fix the LCD console drawer into the rack.

M6 screw, cage nut & cup washerx 8 are provided.

< 1.3 > Installation - How to install

2 post rack brackets

Rear mounting

Front mounting

Step 1

¦ Release front mountingears before applying 2

post

ack brackets.

¦ Insert rear mounting brackets into the LCD console

drawer.

Opt

ion

Model :

MB-751-12

Step 2

¦ Align each rear mounting bracketto a suitable length.

Step 3

Complete the installation

¦ Fix the LCD console drawerintothe2 postrack.

M6 screw,cage nut & cup washer x 8

are not provided.

< 1.3 > Installation- How to use the drawer

¦ Hold the handle and slide out the

drawer.

¦ Flip up the LCD toa suitable angle.

¦ Operate the LCD console drawer.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Acnodes LCD-Schublade Handbücher

Acnodes

Acnodes KDS 6170 Series Bedienungsanleitung

Acnodes

Acnodes RK121 Bedienungsanleitung

Acnodes

Acnodes RP 1172 Bedienungsanleitung

Acnodes

Acnodes KD 5170 Einrichtungshandbuch

Acnodes

Acnodes KD 8191 Bedienungsanleitung

Acnodes

Acnodes PKD 8170 Bedienungsanleitung

Acnodes

Acnodes MKD6017U Bedienungsanleitung

Acnodes

Acnodes MKDH8170U Bedienungsanleitung

Acnodes

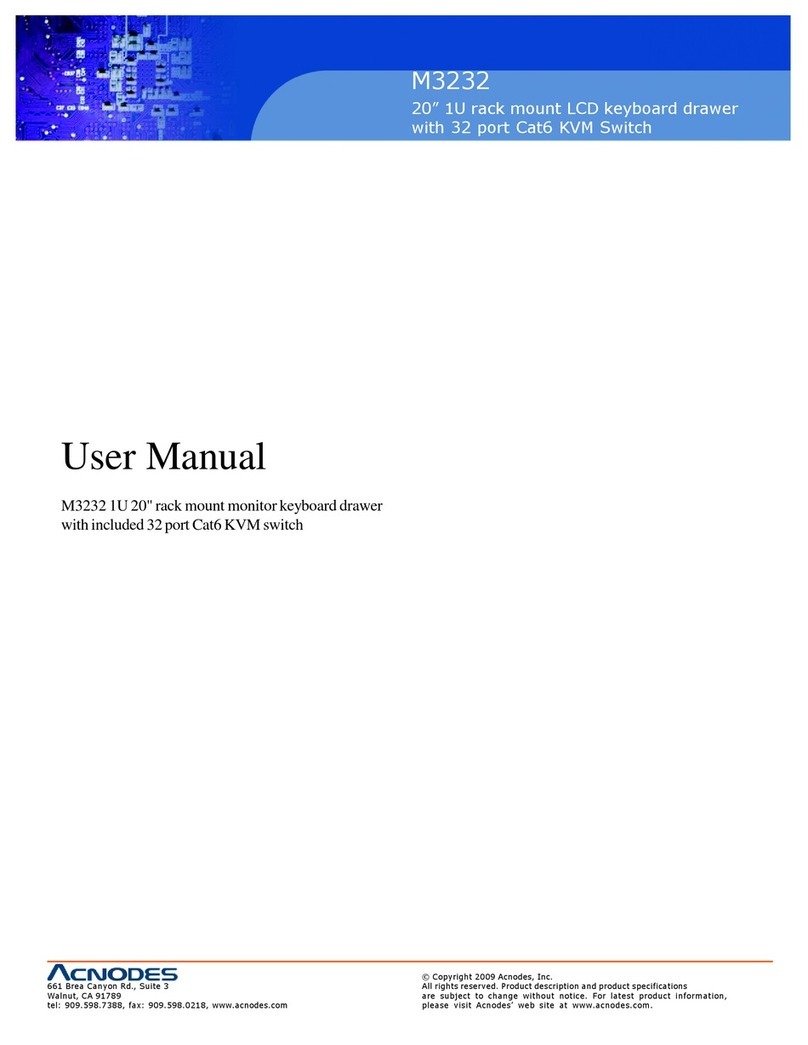

Acnodes M3232 Bedienungsanleitung
