MegaPixel IP Outdoor IR Bullet Camera

(with DC 12V / PoE / AC24V)

ACM-1230 series

Ver. 080122

Quick Installation Guide

0-1

0Getting Started

1.1 PACKAGE CONTENTS

ACM-1230 series Power Adaptor (Option)

(DC12V / PoE / AC24V)

Product CD Terminal Block for Power

Warranty Card

1

0-2

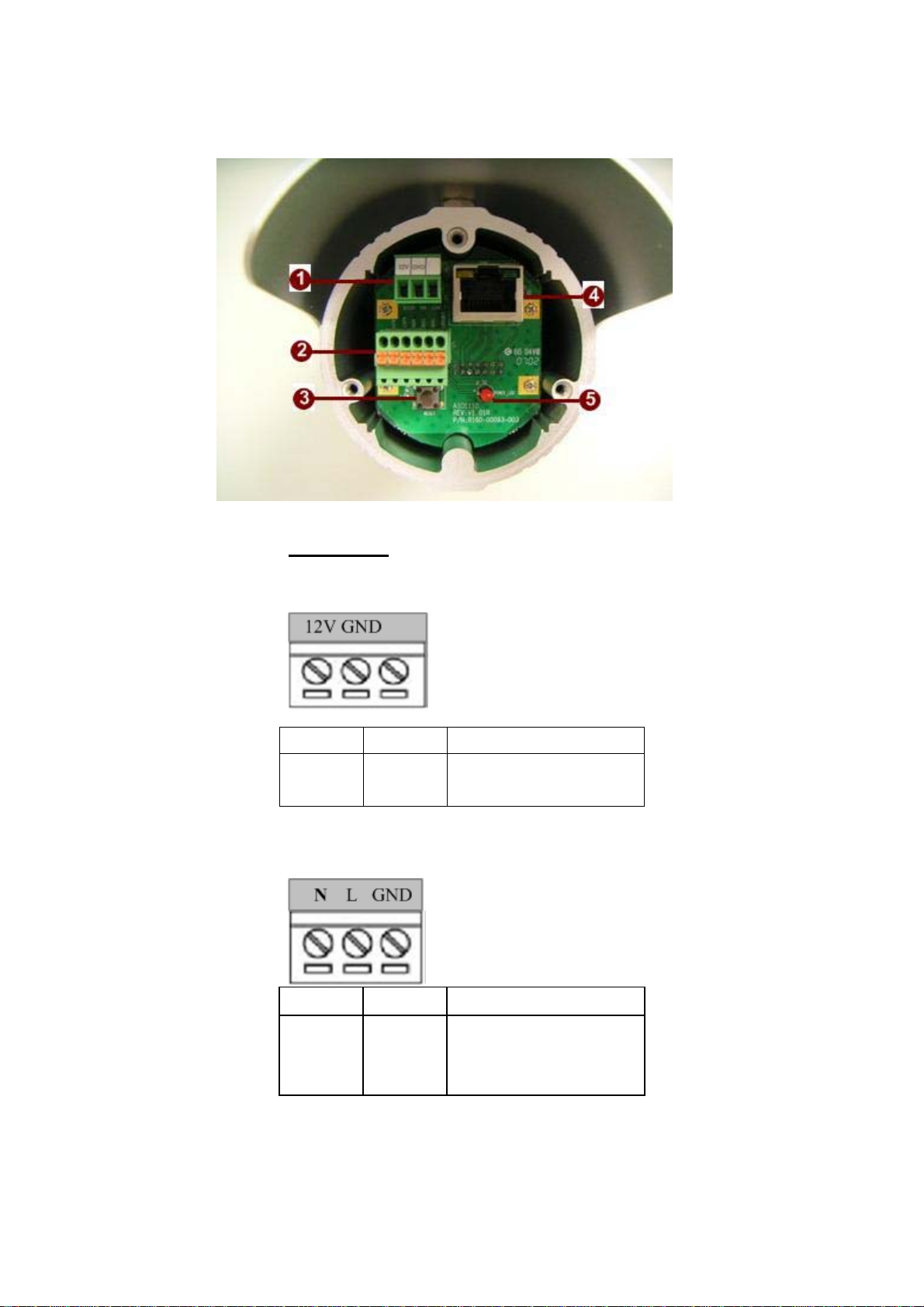

1.2 PHYSICAL DESCRIPTION

1. Power Input

If your power input is DC12V. Please follow the description on

the connector to connect to power.

If your power input is AC24V. Please follow the description on

the connector to connect to power.

PIN NAME DESCRIPTION

1 N

2 L

AC Power Input

3 GND E-Ground of power

PIN NAME DESCRIPTION

1 12V DC Power Input

2 GND Ground Pin

0-3

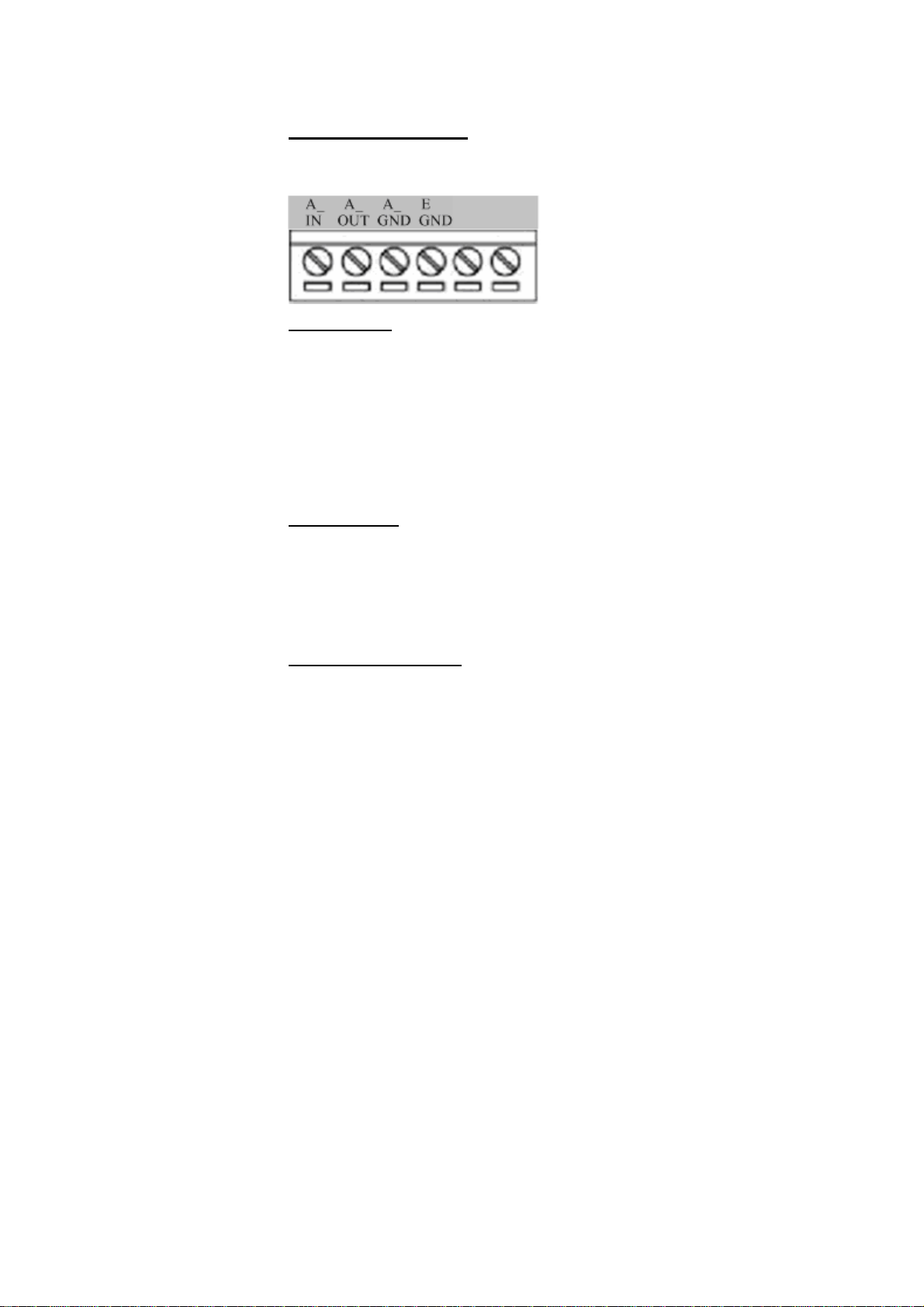

2. Audio Input / Output

The IP device supports audio input and output, with terminal

block.

3. Reset Button

Step 1: Switch off IP device by disconnecting the power cable

Step 2: Press and continue to hold the Reset Button. Reconnect the

power cable while continuing to hold the reset button.

Step 3: Keep holding the reset button depressed for a while,

release the reset button. The unit will start up with factory default

settings.

4. Ethernet Port

The IP device connects to the Ethernet via a standard RJ45

connector. Supporting NWAY, this IP device can auto detect the

speed of local network segment (10Base-T/100Base-TX

Ethernet).

5. Power LED Indicator

The LED indicator lights up one time upon power up. It will

lights up again when this IP device is fully booted up.

0-4

1.3 BASIC CONNECTIONS

Follow the procedures below to connect the IP device to the respective

apparatuses.

1. Connect an analog monitor to IP device video out (BNC connector).

2. Connect the power adaptor to IP device

3. Connect IP device’s ethernet port to an Ethernet (RJ45 connectors). If your

IP device has PoE built-in, you can regard it as a PD and connect it

directly to a PSE device like PoE switch.

4. Connect a PC to the Ethernet hub (RJ45 connectors)

1

NOTE: You may find a support package for help you getting familiar

with PoE. Please visit our web site, and get the support document

TS-00040.

0-5

1.4 Installation Procedure

1-6

1Quick Tour

This section guides you with a quick tour on this IP device.

2.1 Configure this IP Device

2.1.1 Make sure network environment

Default IP of this IP device is 192.168.0.100. Please make sure this IP device and

your PC are on the same network segment before running the installation.

2.1.2 Open Internal Explorer with IP address

2

Please set the settings as below.

IP address: 192.168. 0.xxx

Subnet mask: 255.255.255. 0

(NOTE: xxx should be a number

from 1 to 254, but 100 is

excepted.)

1-7

NOTE: If your web browser is earlier than IE6, then download IE6 is

recommended.

NOTE: This IP device default IP address is set to 192.168.0.100

2.1.3 Login with default administrator’s account & password

NOTE: Default administrator account is set to Admin, password is set to

123456, and click button.

2.1.4 Preview the video

1-8

2.1.5 Set the new IP address

*IP Address : The default IP address is 192.168.0.100.

*Subnet Mask : The default subnet mask is 255.255.255.0

*Click button

NOTE: In your Client PC, please make sure the setting of Network

Connections Type is set to Auto Negotation, since this IP device follows

MII standard. Otherwise, you might not see the live image.

IMPORTANT: After the IP address is changed, please record this IP

address. There’s no way to connect to the IP device if user forgets the

new IP address.

1-9

2.1.6 Check Default Video Setting

NOTE: Please make sure the TV Input (NTSC / PAL) is meet your

requirement, and click button.

2.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds

for system reboot.
