Q51 Configuration Guide

with RAS

2019/05/28

www.acti.com

CONFIGURATION GUIDE

2

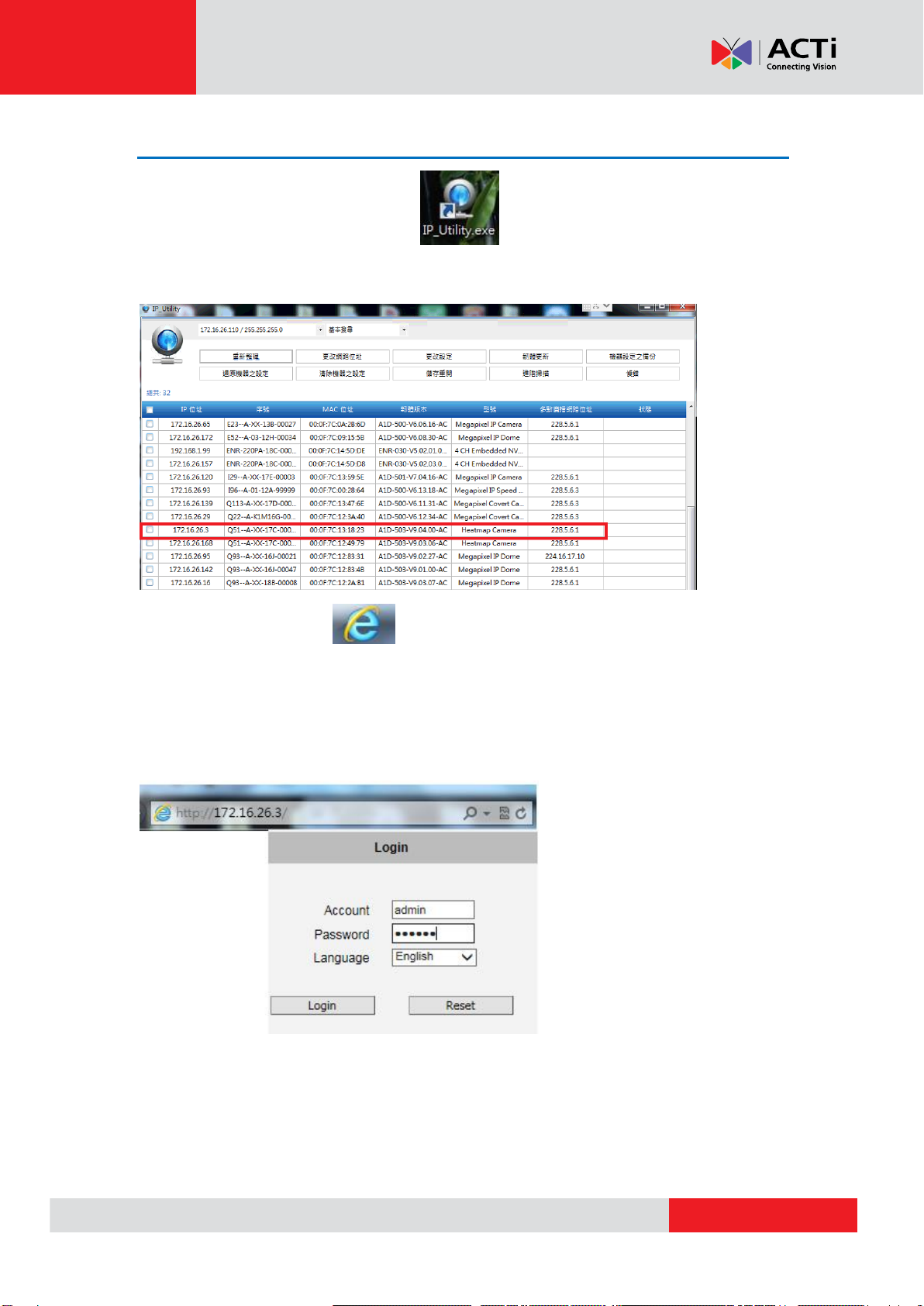

Part one: Access the Camera

1. Open IP Utility on the desktop.

2. Find the Q51 camera you would like to install.

3. Open IE browser. (Please be sure to use IE browser.)

4. Enter the IP address of Q51 to connect by using IE browser.

5. Enter the account / password (admin/123456) and login to the web

configurator of Q51.

www.acti.com

CONFIGURATION GUIDE

3

6. Click on the camera icon to take a snapshot of the camera view,

name the picture file as “eMap”and save it on the desktop.

Note: This step will be used in Part two “(Step 5) –Heat Map, Increase eMap

settings”.

7. Click on the tool icon to enter the settings page of Q51.

www.acti.com

CONFIGURATION GUIDE

4

8. Adjust the camera to the correct time according to the figure below.

8.1 Click “Date & Time”

8.2. Click “Set Manually” and then adjust the time

8.3 Click “Apply” to save.

9. Please set the network parameters according to the following figure.

9.1. Click “IP Setting”

9.2. Click “Connection Type”

9.3. Click “Static IP Address”

9.4. Configure the related IP parameters

9.5. Click “Apply” to save the settings.

www.acti.com

CONFIGURATION GUIDE

5

10. Please set the parameters according to the following figure.

10.1. Click “Video”

10.2. Click “Intelligent Video”

10.3. Click “Reporting Server”

10.4. Configure the related server parameters (Please follow the example

shown below)

- Server 1 :Please tick

- NetworkAddress: Please enter the IP address set by the installed

Server (MGB Server)

- Network Port: Please enter “8082”

- Account: Please enter “admin”

- Password: Please enter “123456”

10.5. Click “Apply” to save the settings.

www.acti.com

CONFIGURATION GUIDE

6

11. Please set the Location parameters according to the following figure.

11.1. Click “Location”

11.2. IVS Server Name: Please fill in the store name, Ex: ACTi)

Note: This will be used in Part two (Settings of adding device). Write

down the name you have set on a piece of paper.)

11.3. Store: Please fill in the installation position of the Camera, Ex: Gate)

Note: This will be used in Part two (Settings of adding device). Write

down the name you have set on a piece of paper.)

11.4. Click “Apply” to save the settings.

www.acti.com

CONFIGURATION GUIDE

7

12. Please set the HeatMap parameters according to the following figure.

12.1 Click “Intelligent video”

12.2 Click “Heatmap” on the setting page

12.3 After entering the setting page, click “Setup” to start

12.4 Draw the analysis range as shown in the following figure, you can draw

polygons to avoid the range that does not need to be detected, please try to

avoid the light or screen.

www.acti.com

CONFIGURATION GUIDE

8

12.5 Click “Setup”, then click “Get” to confirm the screenshot of the live

environment.

12.6 Refer to the illustration and the following text to set

1. Check “Enabled”

2. Active on -> Tick all

3. Start Time: 00:00

4. End Time: 24:00

5. Reporting Server: All

12.7 Click “Apply” to save the settings.

www.acti.com

CONFIGURATION GUIDE

9

13. Please set the HeatMap parameters according to the following figure.

13.1 Click “Intelligent video”

13.2 Click “Dwell time” on the setting page

13.3 After entering the setting page, click “Setup” to start.

www.acti.com

CONFIGURATION GUIDE

10

13.4 Draw the analysis range as shown in the following figure, you can draw

polygons to avoid the range that does not need to be detected, please try to

avoid the light or screen.

13.5 Click “Setup”, then click “Get” to confirm the screenshot of the live

environment.

13.6 Refer to the illustration and the following text to set

1.Check ”Enabled”

2.Active on -> Tick all

3.Start Time:00:00

4.End Time:24:00

5.Reporting Server:All

13.7 Click “Apply” to save the settings.
