ADA INSTRUMENTS Robot Mini Bedienungsanleitung

Operating manual

Laser distance meter

Model: Robot Mini

Manufacturer: ADAINSTRUMENTS Address: WWW.ADAINSTRUMENTS.COM

Robot Mini

Table of contents

1. Permitted use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. Prohibited use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4. Laser classication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

5. Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

6. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

7. Operation and setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

8. Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

9. Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

10. Exceptions from responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Appendix 1 - “Certicate of acceptance and sale”

Appendix 2 - “Warranty card”

Robot Mini

Congratulations on the purchase of laser distance meter ADA Robot Mini!

Permitted use

· Measuring distances

The safety regulations and instructions along with the operating manual should be read carefully

before initial operation.The person responsible for the instrument must ensure that equipment is

used in accordance with the instructions. This person is also accountable for the deployment of

personnel and for their training and for the safety of the equipment when in use.

Safety instructions

Please follow up instructions given in operators’ manual.

Do not stare into beam. Laser beam can lead to eye injury (even from greater distances).

Do not aim laser beam at persons or animals.

The laser plane should be set up above eye level of persons.

Use the instrument for measuring jobs only.

Robot Mini

Do not open instrument housing. Repairs should be carried out by authorized workshops only. Please contact

your local dealer.

Do not remove warning labels or safety instructions.

Keep instrument away from children.

Do not use instrument in explosive environment.

Prohibited use

- Using the instrument without instruction

- Using outside the stated limits

- Using the instrument in explosive environment (gas station, gas equipment, chemical industry and so on)

- Deactivation of safety systems and removal of explanatory and hazard labels

- Opening of the equipment by using tools (screwdrivers, etc.), as far as not specically permitted for

certain cases

- Carrying out modication or conversion of the product

- Don’t shoot at others with the laser intentionally

Robot Mini

- Don’t stare at the laser directly.

- Aiming directly into the sun

- Inadequate safeguards at the surveying site (e.g. when measuring on roads, construction sites, etc.)

- Using the instrument on the plane, near manufacturers, technological objects

Laser classication

The instrument is a laser class 2 laser product with power < 1 mW

and wavelength 650 nm.

Keypad

1 ON/Measuring

2 Clear/OFF

Robot Mini

TECHNICAL DATA

Range 0.05-30 m

Accuracy ±2 mm

Unit M

Continuous measurement YES

Display 2 Line display

Display illumination YES

Buzzer indication YES

Dust protection/Splash proof IP54

Battery type Type AAA 2 x 1.5V

Battery life Up to 5000 times

Laser class Class 2M II

Laser type 650 nm, < 1mW

Operating temperature 0°C to + 40°C

Storage temperature -10 °C to + 50°C

Auto laser switch-off After 30 seconds

Auto instrument switch-off After 3 min

Dimension 100x40x24 mm

Weight 75 g

Robot Mini

OPERATION AND SETTING

Switching on and off

Long press ON/DIST to switch on the device and laser.

Long press CLEAR/OFF to switch off the device when it’s on.

Clear

Press CLEAR/OFF once to cancel the last action or clear the historical data, while taking measurements.

Measuring

Press ON/DIST to activate the laser. Press again to trigger the distance measurement. The measured value is

displayed immediately.

Continious measurements

Press and Hold ON/DIST button more than 2 seс. The instrument will enter into the mode of continious

measurements. To quit this mode, press button CLEAR/OFF.

Robot Mini

PRECAUTIONS

Please, handle the instrument with care. Avoid viabrations and hits. During transportation put the instrument

into the soft bag. Note: the instrument should be dry!

Care and cleaning

Do not immerse the instrument in water. Wipe off dirt with a damp, soft cloth. Do not use aggressive cleaning agents

or solutions.

Specic reasons for erroneous measuring results

1) Measurements through glass or plastic windows; 2) Dirty laser emitting window; 3) After instrument has

been dropped or hit. Please check the accuracy. 4) Large uctuation of temperature: if instrument will be used

in cold areas after it has been stored in warm areas (or the other way round) please wait some minutes before

carrying out measurements.

Electromagnetic acceptability (EMA)

It cannot be completely excluded that this instrument will disturb other instruments (e.g. navigation systems);

Robot Mini

will be disturbed by other instruments (e.g. intensive electromagnetic radiation nearby industrial facilities

or radio transmitters).

Laser classication

The instrument is a laser class 2 laser product accortding to DIN IEC 60825-1:2007. It is allowed to use unit

without further safety precautions.

Warranty

This product is warranted by the manufacturer to the original purchaser to be free from defects in material

and workmanship under normal use for a period of two (2) years from the date of purchase.

During the warranty period, and upon proof of purchase, the product will be repaired or replaced (with the

same or similar model at manufactures option), without charge for either parts of labour.

In case of a defect please contact the dealer where you originally purchased this product. The warranty will

not apply to this product if it has been misused, abused or altered. Without limiting the foregoing, leakage of

the battery, bending or dropping the unit are presumed to be defects resulting from misuse or abuse.

Robot Mini

Exceptions from responsibility

The user of this product is expected to follow the instructions given in operators’ manual.

Although all instruments left our warehouse in perfect condition and adjustment the user is expected to carry

out periodic checks of the product’s accuracy and general performance.

The manufacturer, or its representatives, assumes no responsibility of results of a faulty or intentional usage or

misuse including any direct, indirect, consequential damage, and loss of prots.

The manufacturer, or its representatives, assumes no responsibility for consequential damage, and loss of

prots by any disaster (earthquake, storm, ood ...), re, accident, or an act of a third party and/or a usage in

other than usual conditions.

The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of prots due to

a change of data, loss of data and interruption of business etc., caused by using the product or an unusable

product.

The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of prots caused

by usage other thsn explained in the users’ manual.

The manufacturer, or its representatives, assumes no responsibility for damage caused by wrong movement or

action due to connecting with other products.

Inhaltsverzeichnis

Sprachen:

Andere ADA INSTRUMENTS Messgerät Handbücher

ADA INSTRUMENTS

ADA INSTRUMENTS Cosmo 70 Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS TOPLINER 3-360 Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS WHEEL 100M Bedienungsanleitung

ADA INSTRUMENTS

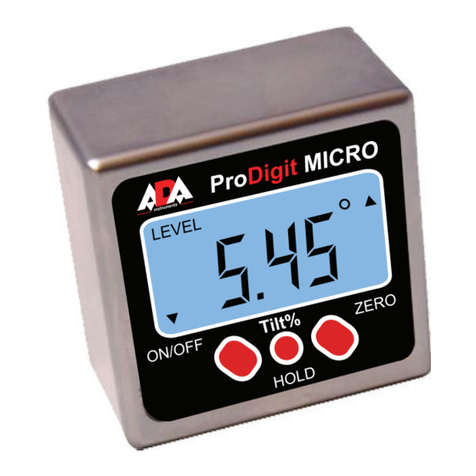

ADA INSTRUMENTS ProDigit MICRO Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS ProDigit MICRO Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS WHEEL 100 DIGITAL Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS DigiTeo-2 Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS Cosmo 40 Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS COSMO 70eter Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS Schmidt Hammer 225 Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS LASERMARKER 70 Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS PROF X2 Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS CUBE 360 Bedienungsanleitung

ADA INSTRUMENTS

ADA INSTRUMENTS Ruber-X32 Bedienungsanleitung

ADA INSTRUMENTS

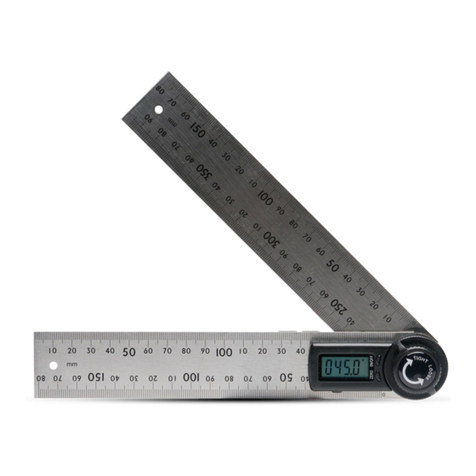

ADA INSTRUMENTS AngleRuler Bedienungsanleitung
