Adam Equipment AZplus Series Bedienungsanleitung

Adam Equipment

AZplus SERIES

South Africa

(P.N. 4266 Rev. B8, October 2007)

Software rev.: 1.71 & above

CONTENTS

1. INTRODUCTION....................................................................................................3

1.1 FEATURES..................................................................................................3

1.2 SPECIFICATIONS.......................................................................................4

2. INSTALLATION......................................................................................................4

2.1 LOCATING THE SCALES............................................................................4

2.2 SETTING UP THE SCALES.........................................................................5

2.3 DISPLAY WINDOWS...................................................................................5

2.4 BATTERY CHARGING ................................................................................6

2.4 KEY DESCRIPTIONS..................................................................................7

3. OPERATION ...................................................................................................8

3.1 ZEROING THE DISPLAY.............................................................................8

3.2 TARING .......................................................................................................8

3.3 DETERMINING VALUE OF APRODUCT BY WEIGHT ...............................9

3.4 USING ASTORED PLU VALUE FOR UNIT PRICE .....................................9

3.5 ENTERING VALUES FOR THE PLU S.......................................................10

3.6 AUTO CLEAR KEY ....................................................................................11

3.7 AUTO SLEEP FUNCTION .........................................................................12

3.8 BACKLIGHT OPERATION.........................................................................13

4.0 CALIBRATION...............................................................................................14

4.1 CALIBRATION PROCEDURE ...................................................................14

4.2 SECURITY SEALS ....................................................................................14

5.0 REPLACEMENT PARTS AND ACCESSORIES ...........................................15

6.0 SERVICE INFORMATION.............................................................................15

1. INTRODUCTION

The AZplus series of digital price-computing scales provide an accurate,

fast and versatile method of computing price by weight.

1.1 FEATURES

•Stainless steel weighing platform

•Level indicator

•Adjustable levelling feet

•Colour coded, sealed keypad

•Large liquid crystal displays

•Displays for Mass, Unit Price and Total Price

•Displays on both front and back panels (Optional user

display on pillar)

•Battery operated for portability

•70+ hours battery life when fully charged

•43 Prices (PLU) stored for easy access

1.2 SPECIFICATIONS

AZplus 6 AZplus 15 AZplus 30

Capacity, Max.= 6 kg 15 kg 30 kg

Resolution, d=e= 2 g 5 g 10 g

Tare, T= -6 kg -15 kg -30 kg

Working Temperature -10ºC to 40ºC

Platform 225 x 275 mm / 8.9 x 10.8”

Overall 315 x 355 x 110mm / 12.4” x 14” x 4.3”.

Battery Life 70+ hours typical*

Power mains power to an internal transformer

Net Weight 4.3 kg / 9.5 lb

*Battery Life is less when the backlight is used.

2. INSTALLATION

2.1 LOCATING THE SCALES

•The scales should not be placed in a location

that will reduce the accuracy.

•Avoid extremes of temperature. Do not place

in direct sunlight or near air conditioning vents.

•Avoid unsuitable tables. The table or floor

must be rigid and not vibrate.

•Avoid unstable power sources. Do not use

near large users of electricity such as welding

equipment or large motors.

•Do not place near vibrating machinery.

•Avoid high humidity that might cause

condensation. Avoid direct contact with water.

Do not spray or immerse the scales in water.

•Avoid air movement such as from fans or

opening doors. Do not place near open

windows or air-conditioning vents.

•Keep the scales clean. Do not stack material

on the scales when they are not in use.

2.2 SETTING UP THE SCALES

•The scales come with a stainless steel platform, packed

separately.

•Place the platform in the receptacles on the top cover.

•Do not press with excessive force as that could damage the

load cell inside.

•If an optional scoop has been supplied, place it on top of the

platform.

•If an optional display on Pillar is supplied, install the pillar in

the upright position into the socket at the rear of the scale by

carefully pushing the cable inside the pillar rod. Secure the

pillar rod to the socket by using two M4 screws. A black

plastic cap is provided to seal the socket from the bottom to

avoid damaging of the cable.

•Level the scale by adjusting the four feet. The scale should

be adjusted such that the bubble in the spirit level is in the

centre of the level and the scale is supported by all four feet.

•Turn the power ON using the switch located on the right side

of the base.

•The unit will display the software revision number in the

“Mass”window and count down while performing a self-test.

•When ready all three displays will show zero.

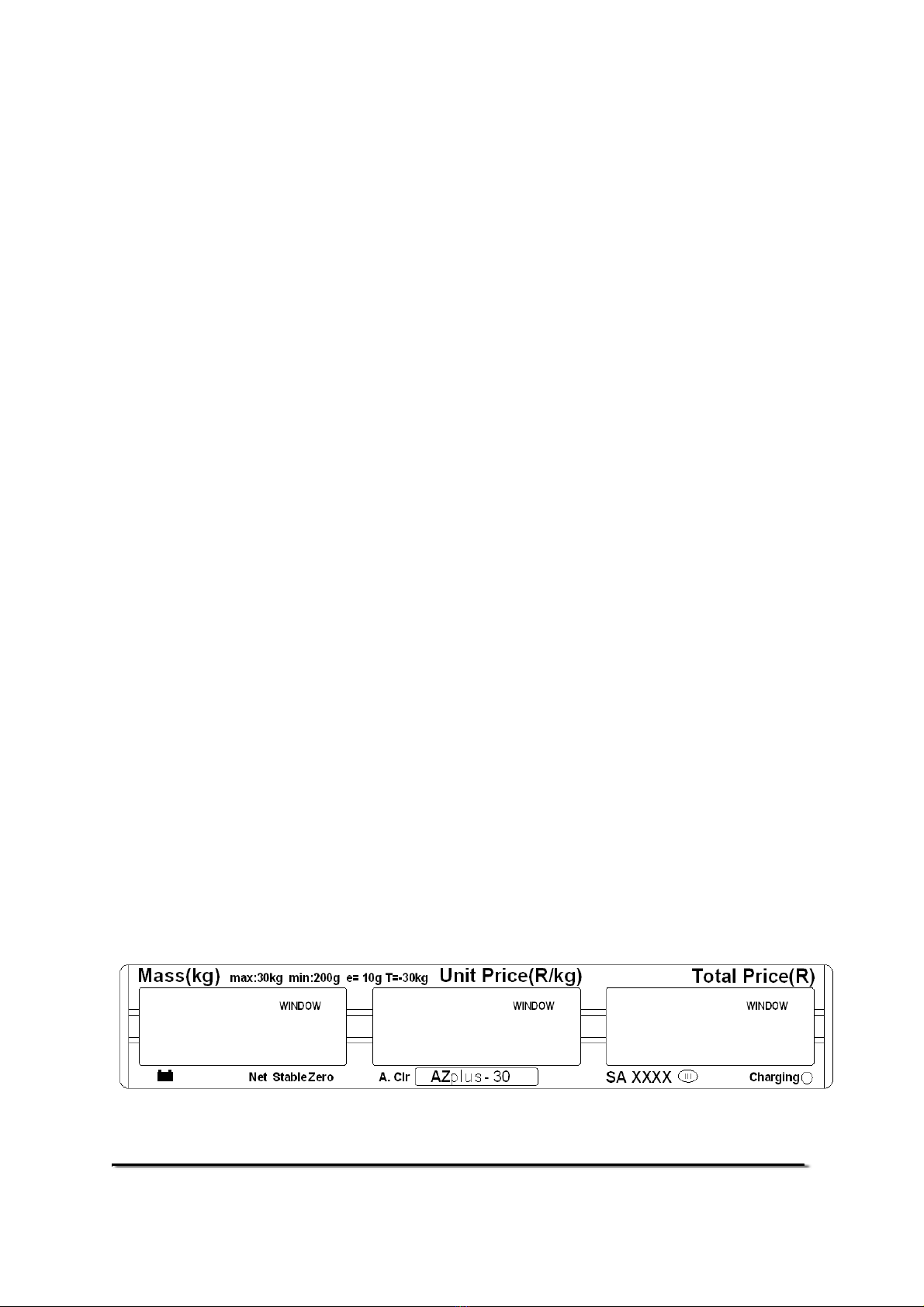

2.3 DISPLAY WINDOWS

The window for the “Mass”has arrows to indicate when the scale is at

zero or if the scale is displaying a net weight (if a tare value has been

entered). It also indicates when the scale is stable.

The window for “Unit Price” has arrows to show when Auto Clear

function is active.

The window for the “Total Price” displays the price of the items on the

scale. Below this window is a LED to show the status of the battery

charger.

The above display panel is also available with French, German, Spanish,

Dutch and Italian text or with symbols for Weight, Unit Price and Total Price.

2.4 BATTERY CHARGING

•The scale has an internal rechargeable lead acid battery.

This battery will make the scale operate for more than 70

hours when fully charged or less if the backlight is on.

•When the battery needs charging the arrow above the low

battery symbol under the “Mass” display will be on. The

battery should be charged immediately. The scale will still

operate for about 10 hours after which it will automatically

switch off to protect the battery from getting damaged.

•To charge the battery, simply switch the main power ON. The

scale does not need to be turned on.

•The battery should be charged for 12 hours for full capacity.

•Just under the “Total Price” display is an LED to indicate the

status of battery charging. When the scale is plugged into

the main power, the internal battery will be charged. If the

LED is green the battery is fully charged. If it is red the

battery is nearly discharged and yellow indicates the battery

should be charged longer, preferably overnight.

2.4 KEY DESCRIPTIONS

[0-9] keys

Numeric entry keys to set the unit price.

[ . ] key

The decimal point key is used to enter the whole value. For example,

to enter 2 Rands press [2] and [ . ]. The display will show “2.00”.

[CE] key

Used to clear an erroneous entry or return to normal operation.

[PLU1] to [PLU4] keys

Used to store or recall one of the PLU values. [PLU1] to [PLU3] are

immediately used, [PLU4] will also select one of the 39 additional

values.

[Tare] key

It tares the scale to display zero weight when an empty container is

placed on the platform or removed again.

[Zero] key

It sets the zero of the scale when the platform is empty and no tare value

is entered.

[Auto Clear] key

It enables the user to automatically reset the unit price to zero, when the

weight is removed.

3. OPERATION

3.1 ZEROING THE DISPLAY

•You can press the [Zero] key when no tare is entered to set

the zero point from which all other weighing is measured.

This will usually be necessary when the platform is empty.

•When the zero point is obtained the “Mass” display will show

an arrow next to the Zero legend under the Weigh display.

This Zero arrow indicates the scale is at the centre of zero

condition.

•The scale has an automatic re-zeroing function to account for

minor drifting or accumulation of material on the platform.

However you may need to press the [Zero] key to re-zero

the scale if small amounts of weight are shown when the

platform is empty.

3.2 TARING

•Taring is used to eliminate the weight of a container so that

only the net weight is displayed.

•Zero the scale by pressing [Zero] if necessary. The zero

indicator will be on.

•Place an empty container on the platform, a value for its

weight will be displayed.

•Press [Tare] to zero the scale. The weight that was

displayed is stored as the tare value and that value is

subtracted from the display, leaving zero on the display. The

Net indicator will be on. As product is added, only the weight

of the product will be shown.

•When the product and container are removed the weight

display will show a negative value. If a different container is

to be used, remove this negative tare value by pressing the

[Tare] once more.
