T E C H N O L O G I E S

User Guide

1:3 Blu-Ray / DVD Duplicator

(DDU3SAS)

www.addonics.com

Technical Support

If you need any assistance to get your unit functioning properly, please have your

product information ready and contact Addonics Technical Support at:

Hours: 8:30 am - 6:00 pm PST

Phone: 408-453-6212

Email: http://www.addonics.com/support/query/

v3.1.11

www.addonics.com

Phone: 408-573-8580

Fax: 408-573-8588

Email: http://www.addonics.com/sales/query/

ENT

ESC

1 10

Technical Support:

Hours: 8:30 am - 6:00 pm PST

Phone: 408-453-6212

Email: http://www.addonics.com/support/query/

Diagram

ENT

ESC

Duplicator Panel

LCD

Scroll Up

Scroll Down

Executes Function

Cancels Function

ENT

ESC

3 Destination

SATA Ports

Source

SATA Port

(top port)

15-pin SATA

Power Connector

Mounting Holes

(2 on each side)

Technical Support:

Hours: 8:30 am - 6:00 pm PST

Phone: 408-453-6212

Email: http://www.addonics.com/support/query/

Quick Guide

Installing the 1:3 optical duplicator

Step 1

Insert the 1:3 Blu-Ray / DVD Duplicator into standard 5.25” drive bay.

Step 2

Connect the power cable from you system to the 4-pin floppy power connector.

Step 3

Connect the source drive to the source SATA port via SATA cable and the target

drives to the destination SATA port via SATA cable.

Step 4

Screw the duplicator into the drive bay with 4 screws (2 on each side).

Duplicating drive(s)

Make sure the source and target drives are connected to the proper ports.

When the duplicator is on, it will go through the steps below.

Step 1

Duplicator LED will light up and the device will beep.

Step 2

LCD will display initial steps:

1. Duplicator Ver: - Displays duplicator version

2. Initializing SDRAM

3. Detect Source/Target - Will detect the type of source/targets

4. Copy - Defaults to the first function which is to copy

Step 3

Once the duplicator gets to the copy menu, press ENT to begin copying. The

duplicator will auto-detect the drive and display its information on the LCD. Make

sure that the power LEDs of the flash reader are blinking, the blinking indicates

drive activity.

You can find the complete user manual of the 1:3 Blu-Ray / DVD Duplicator panel

on the driver disk under user guides. You can also download it from our website at

www.addonics.com/support/user_guides/

12.19 Quick Compare

Quick Compare is related to function#5 Compare. Once compare error byte reach to the setting

figures, compare process will stop.

12.20 Link Mode Select (Select Models)

Now press ESC and ▼ to enter the following screen. Press ENT to enter the “Link Mode Select”

screen. Use ▲ ▼ to choose between the Stand Alone, Middle Tower or Last Tower modes as

appropriate.

Attention: Once a tower has been set as Middle Tower or Last Tower and the J14 jumper is also set

to Target mode, the LCD will show that it is in Target mode.

12.21 Re-Scan (Select Models)

Now press ESC and ▼ to enter the following screen. Press ENT to enter the “Re-Scan” screen. By

default this is set to No. Use ▲ ▼ to choose Yes then press ENT to scan the chosen connected

tower.

12.22 Tray-In/Out

Lets you control the drive tray ejecting. The default is All Once and there have Divide 2 Times for

selection. The default is 5 second, more option is up to 99 seconds.

12.23 BootTime Delay

To set the device scanning time during the system booting.

12.24 Start Tray Eject

To set if do eject all tray after system boot up. The default is On. Press ▼ to select Off.

12.25 Disc Redetect

The function is designed specially for bad quality disc, the system will detect the disc one more

time if disc recognition error occurred. The default is Off. Press ▼ to select On.

12.26 Show Burn Speed

Now press ESC and ▼ to enter the following figure. This function lets LCD shows the burning

speed of CD/DVD/BD writers. The default is On. Press ▼ to select Off.

3 8

Technical Support:

Hours: 8:30 am - 6:00 pm PST

Phone: 408-453-6212

Email: http://www.addonics.com/support/query/

Panel Functions

ENT

ESC

Duplicator Panel

LCD

Scroll Up

Scroll Down

Executes Function

Cancels Function

The Duplicator has 6 functions to choose from:

1. Copy

2. Test

3. Test & Copy

4. Verify

5. Compare

6. Prescan

7. Disc Info

8. Select Source

9. Image

10. Edit Track

11. Lightscribe

12. Setup

7.1 Source

7.2 Target

9.1 Load

9.2 Delete Image

9.3 Image Info

9.4 Compare Image

9.5 Select Image

9.6 Image Src Drvie

9.7 ImageFormat Info

9.8 Edit

9.9 Format HDD

9.10 LoadImage Method

10.1 CD to CD Edit

10.2 CD to HDD Edit

10.3 Close Session

11.1 Print

11.2 Load LSI to HDD

11.3 Select LSI File

11.4 Delete LSI File

11.5 Load LSI Drive

11.6 Coypright Info

12.1 Language

12.2 Burn Speed

12.3 Read Speed

12.4 Auto Start Drive

12.5 Startup Menu

12.6 Auto Verify

12.7 Auto Compare

12.8 Auto Prescan

12.9 Eject Disc

12.10 Burn On The Fly

12.11 Burn Mode

12.12 Display Time

12.13 Button Sound

12.14 Device Info

12.15 System Info

12.16 Quick Erase

12.17 Full Erase

12.18 Auto Close Tray

12.19 Quick Compare

12.20 Link Mode Select

12.21 Re-Scan

12.22 Tray-In/Out

12.23 BootTime Delay

12.24 Start Tray Eject

12.25 Disc Redetect

12.26 Show Burn Speed

To select any function from #1 to # 13 as the first item appears on the screen whenever system is

turned on.

12.6 Auto Verify

To set if auto verify target disc's readability after copy function. The default is Off. Press ▼ to select On.

12.7 Auto Compare

To set if auto do comparison after copy function to check if source and target disc are identical.

The default is Off. Press ▼ to select On.

12.8 Auto Prescan

To set if auto scan source disc before copy function. The default is Off. Press ▼ to select On.

12.9 Eject Disc

There are 3 kinds of tray behavior when copy process is completed.

Eject Good Only: Only good disc will be ejected after burning.

Eject All Disc : All discs will be ejected after burning.

Do Not Eject : All discs stay in after burning.

The default is Eject Good Only.

12.10 Burn On The Fly

Burn On The Fly means data will be copied directly from the source disc to the target disc. When

the setting is Off, the data will be loaded into temporary partition of HDD first, then copy from HDD

to disc. The default is On. Press ▼ to select Off.

12.11 Burn Mode

There are two modes: DAO (Disc At Once) and TAO (Track At Once). The default is DAO. Press ▼ to

select TAO.

12.12 Display Time

To set if display a timer while copying. The default is On. Press ▼ to select Off.

12.13 Button Sound

To enable or disable beep sound while press a key.

12.14 Device Info

To show the writer information.

12.15 System Info

To show system Information.

12.16 Quick Erase

To erase data on the DVD rewriteable discs quickly.

12.17 Full Erase

To erase data on the DVD rewriteable discs completely. Compared with Quick Erase, Full Erase

takes longer time to do the job.

12.18 Auto Close Tray

All tray will be closed in selected time and if disc is ready, system will auto start copy, test or both

functions, depends on which function is stay on the LCD screen.

The default is Off, press ▼ to select 1 Byte, 1 KB, 10 KB, 100KB, 1 MB, 10MB, 100MB etc.

7 4

Technical Support:

Hours: 8:30 am - 6:00 pm PST

Phone: 408-453-6212

Email: http://www.addonics.com/support/query/

1. Copy

Function#1 Copy, instant copy source (disc/image) to the target drives (optical writes). Use Function#8

to select source drive before copying. Select function#1. place a source disc into source drive and blank

disc into the target drives. A rewriteable disc can be used as target media, however all data will be

erased before copying.

Press ENT to start copy function when all discs are ready. After complete, system will show spent time

and the amount of OK disc on the screen, the OK disc will be ejected.

2. Test

Function#2, copy simulation, no data will be written to the write once media (DVD+R is not supported

for this function).

Press ENT to start simulation. If rewriteable disc is used, all contained data will be erased before

simulation.

3. Test & Copy

Function#3, will do copy simulation before copy function. Press ENT to start simulation and copy.

Note, only passed test disc will do the copy.

4. Verify

Function#4, check readability of the burned disc.

5. Compare

Function#5, to check if target disc is identical to source disc.

Compare result :

OK: Source and target disc are identical

Fail: TOC not match, compare skipped due to contains do not match.

Diff: Shows how many bytes are different.

6. Prescan

Function#6, to check if source disc is readable and without read error.

7. Disc Info

Function#7, to report disc information, disc type and capacity.

8. Select Source

Function#8, to set which drive as source device. The drive on CH01 will be chosen as source device.

Press ENT, and then press ▲ ▼ to select the source.

Assume that HDD is selected as the source device and selected partition contains no data, an error

message “Source Drive Not Ready” will show on LCD while trying copy function. In that case, go to

Function#9 Image to load the data into the chosen partition first.

10.3 Close Session

Single session format is used for Audio CD, and commercial audio player is not able to play open

session audio CD, therefor session must be closed to max. playback compatibility. However, no

more tracks can be added once session is closed.

11 LightScribe (Optional Function)

LightScribe is an optical disc recording technology that uses specially coated recordable CD and

DVD media to produce laser-etched labels with text or graphics, as opposed to stick-on labels and

printable discs. This function includes 6 sub-functions: Print, Load LSI to HDD, Select LSI File,

Delete LSI File, Load LSI Drive and Coypright Info.

11.1 Print

Use optical drive's laser to print loaded LSI file. Disc should placed up side down.

11.2 Load LSI to HDD

Load LSI to hard disk.

11.3 Select LSI File

Select LSI file from hard disk for laser printing.

11.4 Delete LSI File

Delete a LSI File stored in a particular partition. Use ▲ ▼ to confirm Yes or No.

11.5 Load LSI Drive

This function is to select source drive in order to load LSI File into a particular partition.

11.6 Coypright Info

This function is to see the LightScribe copyright information.

12 Setup

To change the default setting. However, it is suggested to use the default for the optimal operation.

There are 24 sub-functions: Language, Burn Speed, Read Speed, Auto Start Drive, Startup Menu,

Auto Verify, Auto Compare, Auto Prescan, Eject Disc, Burn On The Fly, Burn Mode, Display Time,

Button Sound, Device Info, System Info, Quick Erase, Full Erase, Auto Close Tray, Quick

Compare, Tray-In/Out, BootTime Delay, Start Tray Eject, Disc Redetect and Show Burn Speed.

12.1 Lanuage

Now press ENT, and you will enter the following figure. The function Language lets you select a

language in which messages can be shown on LCD.

12.2 Burn Speed

Now press ESC and ▼ to enter the following figure. This function lets you control the burning

speed of CD writers. DVD Burn Speed is defaulted to 16X, BD Burn Speed default is 4X, CD Burn

Speed default is 32X and Audio Burn Speed is is defaulted to 16X.

12.3 Read Speed

To change default reading speed of source disc. The default is Off. Press ▼ to select 1 or 2 (blank

disc).

12.4 Auto Start Drive

System will auto start to copy or test once blank disc is ready.

12.5 Start Up Menu

5 6

Technical Support:

Hours: 8:30 am - 6:00 pm PST

Phone: 408-453-6212

Email: http://www.addonics.com/support/query/

9. Image

Function#9 Image is valid only when a hard disk is installed. Disc is loaded to hard disk as an

image file.

9.1 Load

Load function loads whole disc data from any writers into the current partition of the hard disk.

“P:A” means current partition is A.

9.2 Delete Image

If you want to delete an image file stored in a particular partition, you can use this function to

delete image. Press ENT , the system will confirm with you for the action, use ▲ ▼ to select Yes or

No, then press ENT for confirmation.

9.3 Image Info

To check selected image information. First, enter into the function and press ▼ for more

information.

9.4 Compare Image

This function is used to check if created image is identical to source disc.

When result shows on LCD, press ENT for more detail information.

Compare result :

OK: Source and target disc are identical

Fail: TOC not match, compare skipped due to contains not match.

Diff: shows how many bytes are different.

9.5 Select Image

This function is to select a partition as source image from the hard disk. Pressing ▲ ▼ to select a

partition, LCD will show image name and capacity.

9.6 Image Src Drive

This function is used to set the image source drive for loading disc data into a particular partition.

Enter into the function and use ▲ ▼ to select image source drive.

9.7 ImageFormat Info

This function shows which format is used for current hard disk. It is related to function#12.4 Format

HDD.

9.8 Edit

This function is to edit selected image's title, sub1 title and sub2 title. Only valid when the current

partition contains an image file can title. A title should be composed of 1 to 13 characters. The

character can be alphabet, number or the combination of both. Use ▲ ▼ to select the number or

alphabet. After selecting a desired one, press ENT for next character, the end of key in, press and

hold ENT for 2 sec and release for next title.

9.9 Format HDD

Hard disk must be formatted by the system for the very first time. Hard disk will be partitioned into

the chosen partition format. If no hard disk is installed, LCD will show the message as No Valid HDD!

All data on the hard drive will be erased after the hard disk format. After the hard drive is formatted

correctly, LCD will show “ Format HDD ok!.”, Press ENT to verify HDD or press ▼ and choose No return

back to menu.

9.10 LoadImage Method

This function is to change the way to save Image. There are 2 formats for choice: Auto and Manual.

Auto means system auto assign partition for loaded image. Manual let you to choose which partition to

load image to.

10 Edit Track (for Audio CD only)

Function#10 Edit Track is exclusively designed for editing a collection of favorite songs from CDs. In

other words, you can collect songs on a number of CDs and merge them into a single CD. There are 3

sub-functions: CD to CD, CD to HDD and Close Session.

10.1 CD to CD Edit

To select songs from source CD, and then burn into a blank CD-R/RWs.

You can press ▼ to see the rest of tracks. If you want to select the track, press ENT then a “+” will

shows up, press ENT again will cancel the selection. After selection, use ▲▼ move to the “End” which

is between 1st track and last track. Press ENT to end of selection, and use ▲ ▼ to confirm Yes or No.

Press ENT after burning, system will ask if you want to continue edit, use ▲ ▼ to confirm Yes or No. If

you want to continue edit, the current source CD will be ejected and ask you to insert next disc. Repeat

the above process for editing.

After editing, system will show ''Close all disc's session ? Yes”, use ▲ ▼ to confirm Yes or No.

Once session is closed, no more tracks can be added.

Attention:

Commercial audio player might not able to play open session disc, close session is suggested for

max. compatibility.

10.2 CD to HDD Edit

To select tracks from single or multi-audio CD and create image to specific partition of HDD

The basic operation method is same as CD to CD Edit, system still ask you to insert empty disc

even the target drive is HDD. If burning successful, system will show ''Image load OK'', which

means the selected tracks are written to temporary partition.

Press ENT after burning, system will ask if you want to continue edit, use ▲ ▼ to confirm Yes or No.

If you want to continue edit, the current source CD will be ejected and ask you to insert next disc.

Repeat the above process for editing. If ''No'' is selected, system will show ''Burn or Move to partition

?'', use ▲ ▼ to confirm Burn or Move.

Burn : Burn the selected tracks to CD

Move to partition : Create an image for selected tracks.

Inhaltsverzeichnis

Andere Addonics Technologies Disc-Duplikator Handbücher

Addonics Technologies

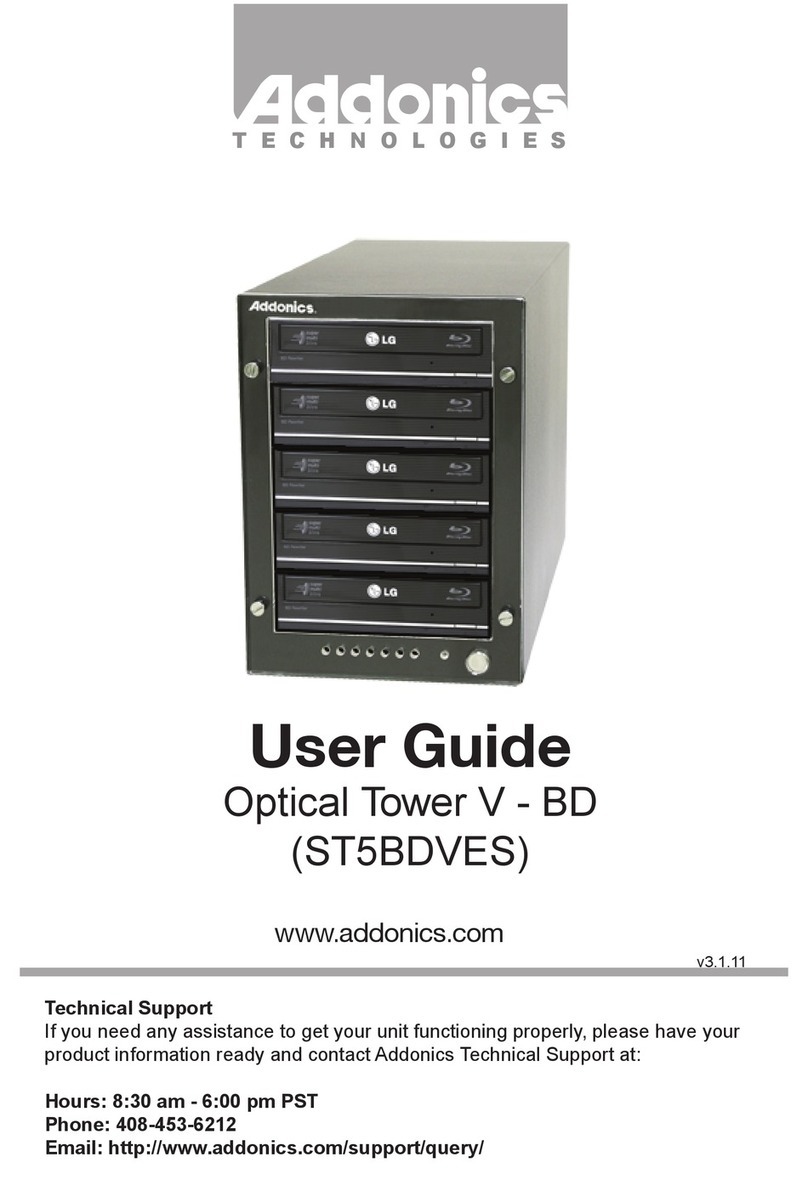

Addonics Technologies ST5BDVES Bedienungsanleitung

Addonics Technologies

Addonics Technologies HDUS4SNDX-A Bedienungsanleitung

Addonics Technologies

Addonics Technologies HD4SNH Bedienungsanleitung

Addonics Technologies

Addonics Technologies DDU7SAS Bedienungsanleitung

Addonics Technologies

Addonics Technologies HDU11SITDR Bedienungsanleitung

Addonics Technologies

Addonics Technologies HDUSI325-A Bedienungsanleitung

Addonics Technologies

Addonics Technologies ST5DVRE Bedienungsanleitung

Addonics Technologies

Addonics Technologies HDUSI325 Bedienungsanleitung

Addonics Technologies

Addonics Technologies CFASTD5 Bedienungsanleitung

Addonics Technologies

Addonics Technologies MSHDU11T Bedienungsanleitung

Addonics Technologies

Addonics Technologies HDUS325DX Bedienungsanleitung

Addonics Technologies

Addonics Technologies JD2-3SN25 Bedienungsanleitung

Addonics Technologies

Addonics Technologies HDUS11NB Bedienungsanleitung

Addonics Technologies

Addonics Technologies HDMU3 Bedienungsanleitung

Addonics Technologies

Addonics Technologies DGBRC7 Bedienungsanleitung

Addonics Technologies

Addonics Technologies ST55HPMXA Bedienungsanleitung

Addonics Technologies

Addonics Technologies AEDVDCOPPM4U Bedienungsanleitung

Addonics Technologies

Addonics Technologies M2MSHD9H-2S Bedienungsanleitung

Addonics Technologies

Addonics Technologies HDUS11325DX Bedienungsanleitung

Addonics Technologies

Addonics Technologies UDFH15-C Bedienungsanleitung

Addonics Technologies

Addonics Technologies UDFUDD7 Bedienungsanleitung

Addonics Technologies

Addonics Technologies Jasper II SID Bedienungsanleitung

Addonics Technologies

Addonics Technologies DGBRC3 Bedienungsanleitung

Addonics Technologies

Addonics Technologies HDUSI325AES Bedienungsanleitung

Beliebte Disc-Duplikator Handbücher anderer Marken

Riso

Riso CV Series Handbuch

MicroBoards Technology

MicroBoards Technology GX-2 Bedienungsanleitung

Carry

Carry Pro118 Bedienungsanleitung

CopyPro

CopyPro PowerPro II Bedienungsanleitung

Primera

Primera Max Bedienungsanleitung

Logicube

Logicube EchoPlus-NG Bedienungsanleitung

Silca

Silca Delta 2000 SA Bedienungsanleitung

Reflex7

Reflex7 Daisy Chain Series Bedienungsanleitung

Vinpower Digital

Vinpower Digital SharkCopier DC Bedienungsanleitung

Codonics

Codonics Virtua E Bedienungsanleitung

Octave

Octave Copy Master II Bedienungsanleitung

Kanguru

Kanguru U2-DVDDUPE-S Bedienungsanleitung

StarTech.com

StarTech.com 8STSATDUP11 Bedienungsanleitung

DUPLO SEIKO CORPORATION

DUPLO SEIKO CORPORATION Duprinter DP-460 Bedienungsanleitung

Vinpower Digital

Vinpower Digital MiniLoader VDX-1 Bedienungsanleitung

MicroBoards Technology

MicroBoards Technology Quic Disc QD-2 Bedienungsanleitung

Telex

Telex SpinWise Bedienungsanleitung

Aleratec

Aleratec 260206 Bedienungsanleitung
