ADF Web HD67225-A1 Bedienungsanleitung

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA2000 / Modbus TCP Slave

Document code: MN67225_ENG Revision 1.1 Page 1 of 3

User Manual

Revision 1.1

English

NMEA 2000 / Modbus TCP Slave

- Converter

(Order Code: HD67225-A1, HD67225-B2)

for Website information:

www.adfweb.com?Product=HD67225-A1

www.adfweb.com?Product=HD67225-B2

for Price information:

www.adfweb.com?Price=HD67225-A1

www.adfweb.com?Price=HD67225-B2

Benefits and Main Features:

Very easy to configure

Low cost

32mm Rail DIN mount

Wide supply input range

Temperature range: -4 °C/+85°C (-4 °F/+185°F)

For others Gateways / Bridges:

NMEA2000 to Modbus

See also the following links:

www.adfweb.com?Product=HD67 11 (Modbus RTU Slave)

www.adfweb.com?Product=HD67 12 (Modbus RTU Master)

www.adfweb.com?Product=HD67514 (Modbus TCP Slave)

www.adfweb.com?Product=HD67515 (Modbus TCP Master)

Do you have an your customer protocol?

See the following links:

www.adfweb.com?Product=HD67 3

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA2000 / Modbus TCP Slave

Document code: MN67225_ENG Revision 1.1 Page 2 of 3

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 7

CONFIGURATION 7

POWER SUPPLY 8

FUNCTION MODES 9

LEDS 1

ETHERNET 11

NMEA 2 12

USE OF COMPOSITOR SW67225 13

NEW PROJECT / OPEN PROJECT 14

SOFTWARE OPTIONS 15

SET COMMUNICATION 16

RECEIVE NMEA 2 18

DEFINE RECEIVE NMEA 2 2

TRANSMIT NMEA 2 21

DEFINE TRANSMIT NMEA 2 23

UPDATE DEVICE VIA SERIAL 24

UPDATE DEVICE VIA UDP 25

MECHANICAL DIMENSIONS 27

ORDER CODE 28

ACCESSORIES 28

DISCLAIMER 29

OTHER REGULATIONS AND STANDARDS 29

WARRANTIES AND TECHNICAL SUPPORT 3

RETURN POLICY 3

Pagina 2 di 30

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that you

need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code” that

appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/ and

search for the corresponding code on the page. Click on the proper “Document

Code” and download the updates.

REVISION LIST:

Revision Date Author Chapter Description

1. 6/ 7/2 1 Dp All First release version

1. 2 11/ 2/2 13 Nt All Added new chapters

1.1 26/ 8/2 15 Ff All New hardware version

WARNING:

ADFweb.com reserves the right to change information in this manual about our

product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA2000 / Modbus TCP Slave

Document code: MN67225_ENG Revision 1.1 Page 3 of 3

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for

each individual application, legal and safety regulation. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e. independent limit

switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and who

have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated

by personnel untrained. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is danger for people to serious injury or death and / or the

possibility of damage.

CONFORMITY

The declaration is made by us. You can send an email to support@adfweb.com or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA2000 / Modbus TCP Slave

Document code: MN67225_ENG Revision 1.1 Page 4 of 3

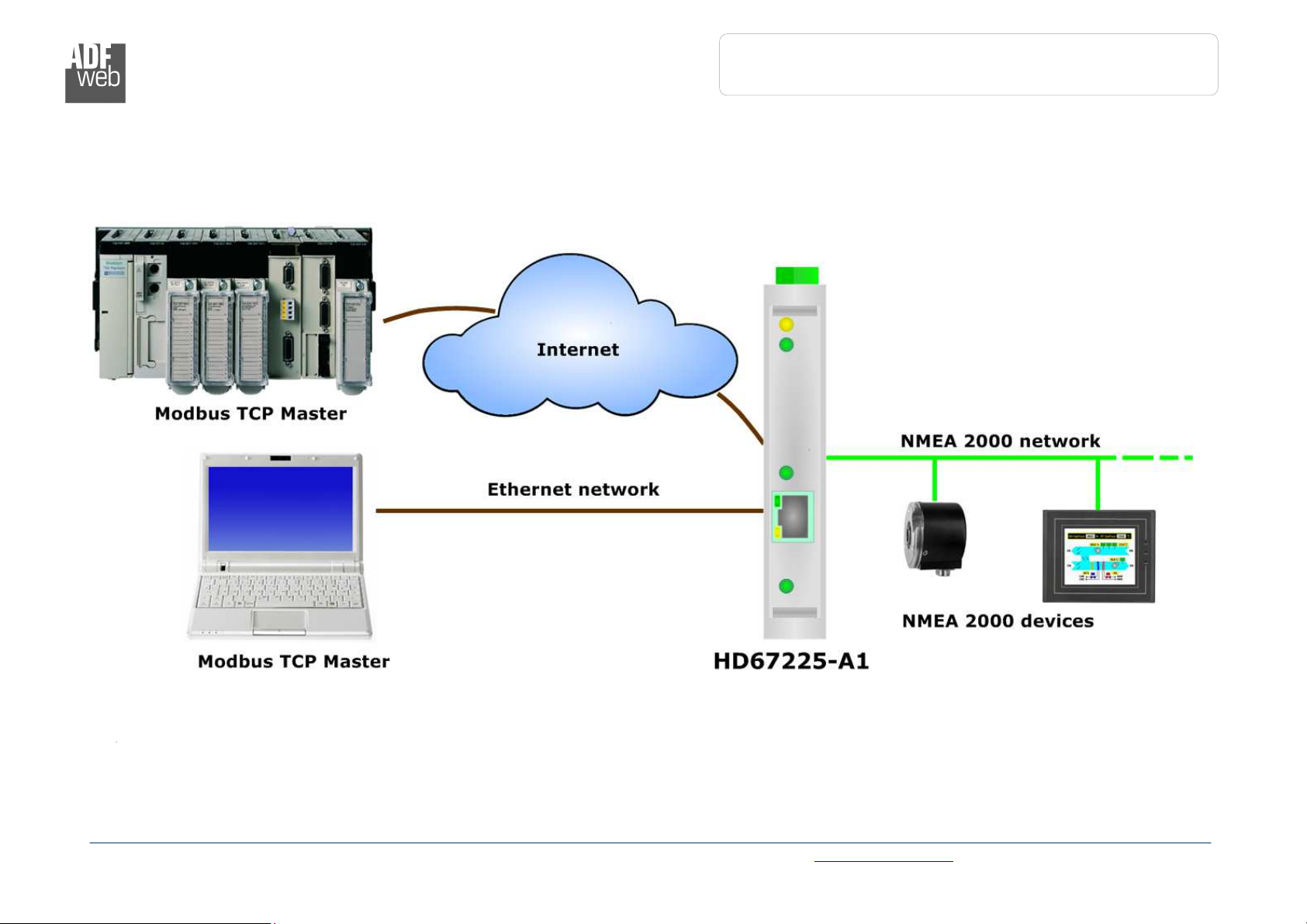

EXAMPLES OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA2000 / Modbus TCP Slave

Document code: MN67225_ENG Revision 1.1 Page 5 of 3

CONNECTION SCHEME:

Figure

Connection scheme for HD67225

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA2000 / Modbus TCP Slave

Document code: MN67225_ENG Revision 1.1 Page 6 of 3

Figure

Connection scheme for HD67225

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA2000 / Modbus TCP Slave

Document code: MN67225_ENG Revision 1.1 Page 7 of 3

CHARACTERISTICS:

The “NMEA 2 / Modbus TCP Slave – Converter” allows the following characteristics:

two-directional information between networks NMEA 2 and Modbus;

electrical isolation between two Buses;

to read NMEA 2 frame from Modbus word;

to write NMEA 2 frame from Modbus word;

Mountable on Rail DIN;

Temperature range from -4 °C to +85°C.

This device is able to manage a maximum of four simultaneous connections at Modbus TCP side.

CONFIGURATION:

You need Compositor SW67225 software on your PC in order to perform the following:

Define the parameter of NMEA 2 ;

Define the parameter of Modbus TCP;

Define which NMEA 2 frames are read by the Modbus;

Define which NMEA 2 frames are write by the Modbus.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA2000 / Modbus TCP Slave

Document code: MN67225_ENG Revision 1.1 Page 8 of 3

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67225-A1 3.5

HD67225-B2 3.5

Caution: Not reverse the polarity power

HD67225

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA2000 / Modbus TCP Slave

Document code: MN67225_ENG Revision 1.1 Page 9 of 3

FUNCTION MODES:

The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’:

The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the Project and/or Firmware.

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.

According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.

Warning:

Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

NMEA2000 / Modbus TCP Slave

Document code: MN67225_ENG Revision 1.1 Page 1 of 3

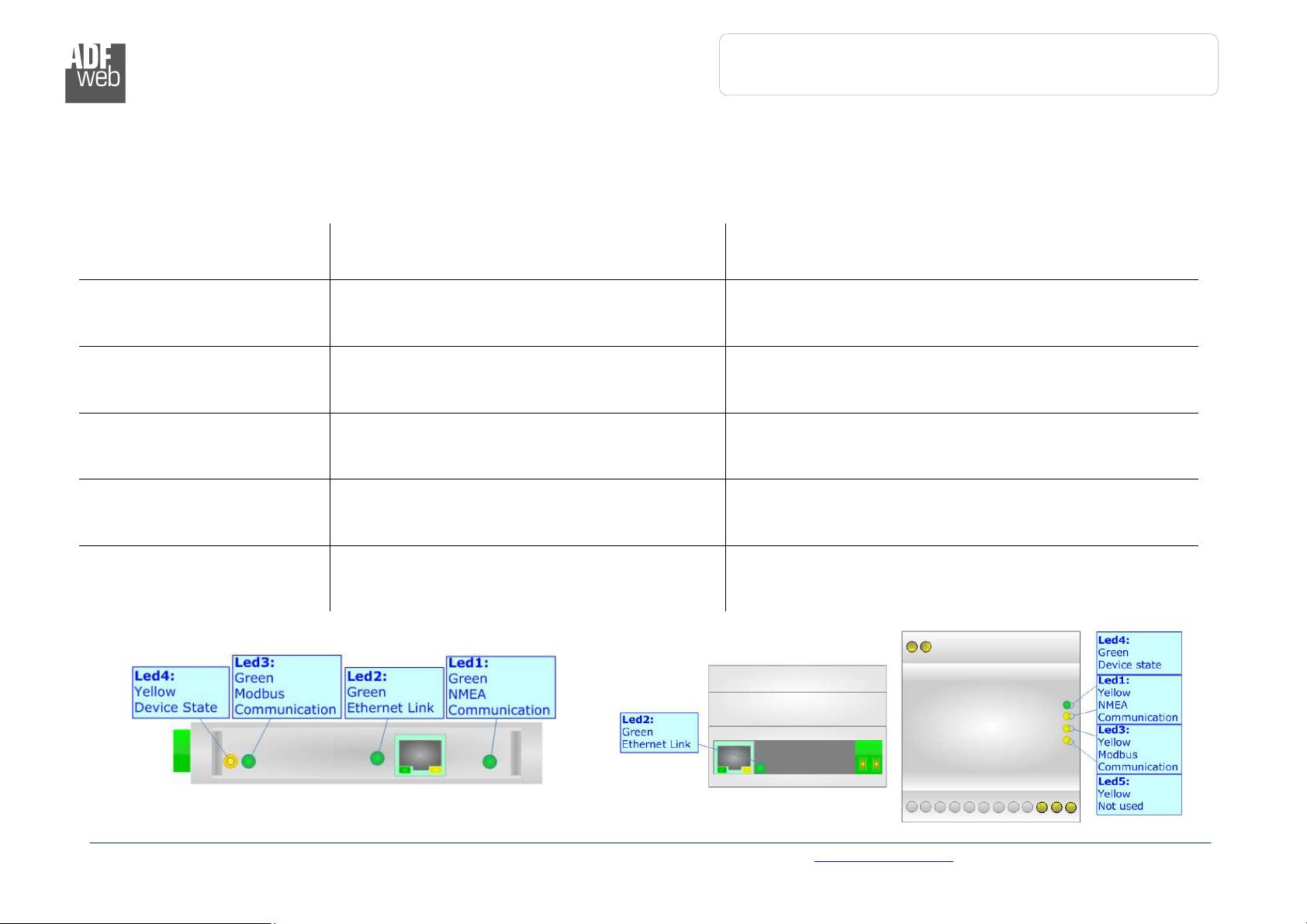

LEDS:

The devices has got four (five for HD67225-B2) LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: NMEA Communication

(green)

Blinks when configured NMEA frames are

received

Blinks quickly: Boot state

Blinks very slowly (~0 5Hz): update in progress

2: Ethernet Link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

3: Modbus Communication

(green) Blinks when Modbus TCP requests are received Blinks quickly: Boot state

Blinks very slowly (~0 5Hz): update in progress

4: Device State (yellow) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0 5Hz): update in progress

5: Not used (yellow) (Present

only on HD67225-B2) OFF Blinks quickly: Boot state

Blinks very slowly (~0 5Hz): update in progress
