User Manual
Modbus TCP Slave
/ HART Master
Document code: MN67909_ENG Revision 1.001 age 1 of 30
User Manual
Revision 1.001
English
Modbus TCP Slave / HART Master - Converter
(Order Code: HD67909-A1)
For Website information:
www.adfweb.com? roduct=HD67909
For rice information:
www.adfweb.com? rice=HD67909-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
For other HART products see also the following link:
Converter HART Master to
www.adfweb.com? roduct=HD67900 (Serial)
www.adfweb.com? roduct=HD67901 (BACnet Slave)
www.adfweb.com? roduct=HD67902 (CAN)
www.adfweb.com? roduct=HD67903 (CANo en)
www.adfweb.com? roduct=HD67904 (DeviceNet Slave)
www.adfweb.com? roduct=HD67905 (Ethernet)
www.adfweb.com? roduct=HD67906 (EtherNet/IP Slave)
www.adfweb.com? roduct=HD67907 (J1939)
www.adfweb.com? roduct=HD67908 (Modbus Slave)
www.adfweb.com? roduct=HD67910 (MQTT)
www.adfweb.com? roduct=HD67911 (PROFIBUS Slave)
www.adfweb.com? roduct=HD67912 (PROFINET Slave)
www.adfweb.com? roduct=HD67913 (SNMP Agent)
Do you have your customer protocol? Then go to:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Manual
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/ HART Master
Document code: MN67909_ENG Revision 1.001 age 2 of 30
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
HART 10
ETHERNET 11
USE OF COM OSITOR SW67909 12
NEW CONFIGURATION / O EN CONFIGURATION 13
SOFTWARE O TIONS 14
SET COMMUNICATION 16
HART VARIABLES 17
U DATE DEVICE 19
SCAN FUNCTION 21
WEBSERVER INTERFACE 23
MECHANICAL DIMENSIONS 27
ORDERING INFORMATIONS 28
ACCESSORIES 28
DISCLAIMER 29
OTHER REGULATIONS AND STANDARDS 29
WARRANTIES AND TECHNICAL SU ORT 30
RETURN OLICY 30
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision
Date Author Cha ter
Descri tion
1.000 18/06/2019
Tf All First Release
1.001 27/04/2020
Ff All Added web pages for HART conf.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/ HART Master
Document code: MN67909_ENG Revision 1.001 age 3 of 30
SECURITY ALERT:
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I
NTENDED
U
SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q
UALIFIED
P
ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R
ESIDUAL
R
ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE
CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/ HART Master
Document code: MN67909_ENG Revision 1.001 age 4 of 30

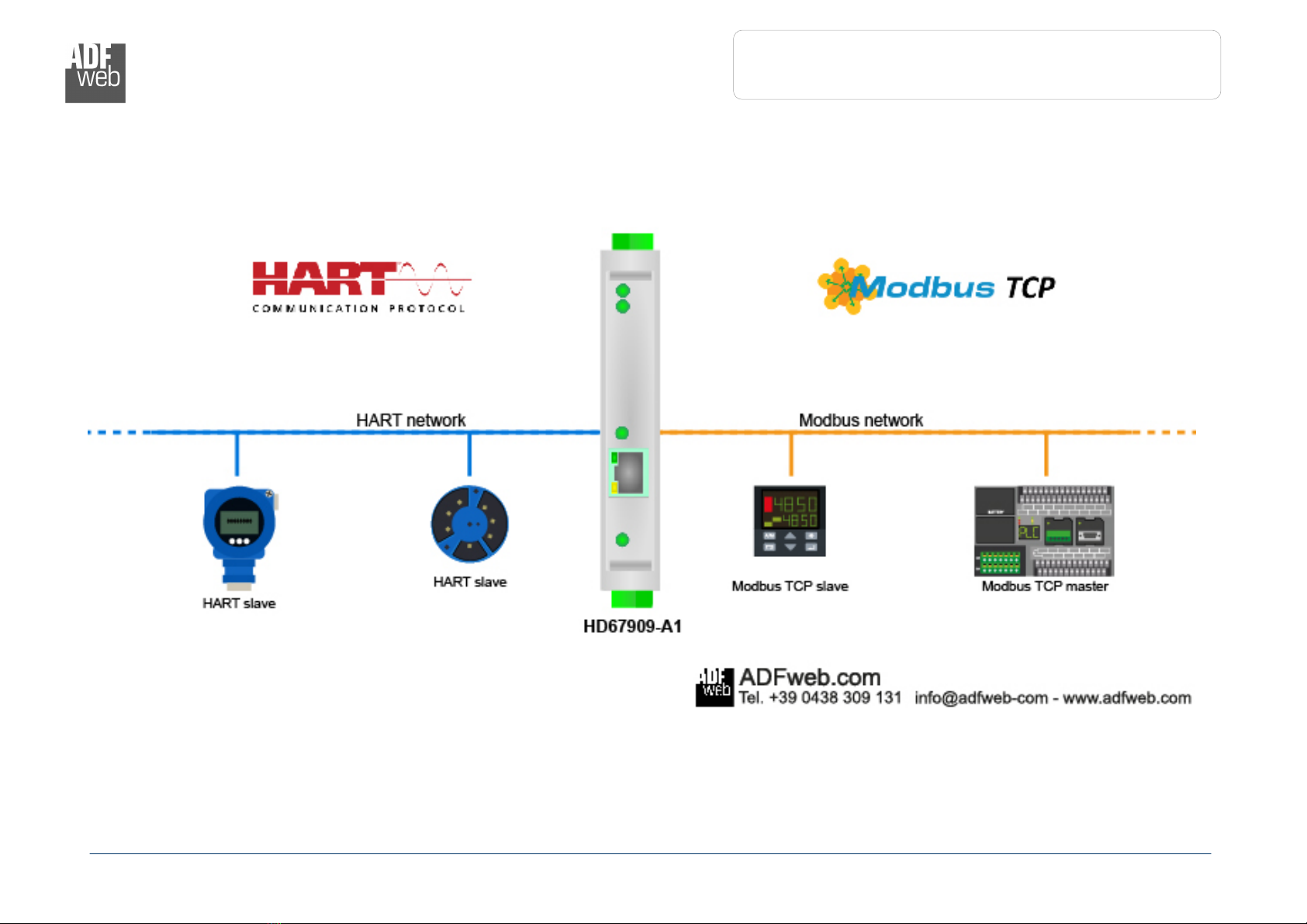

EXAMPLES OF CONNECTION:
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/ HART Master
Document code: MN67909_ENG Revision 1.001 age 5 of 30
CONNECTION SCHEME:

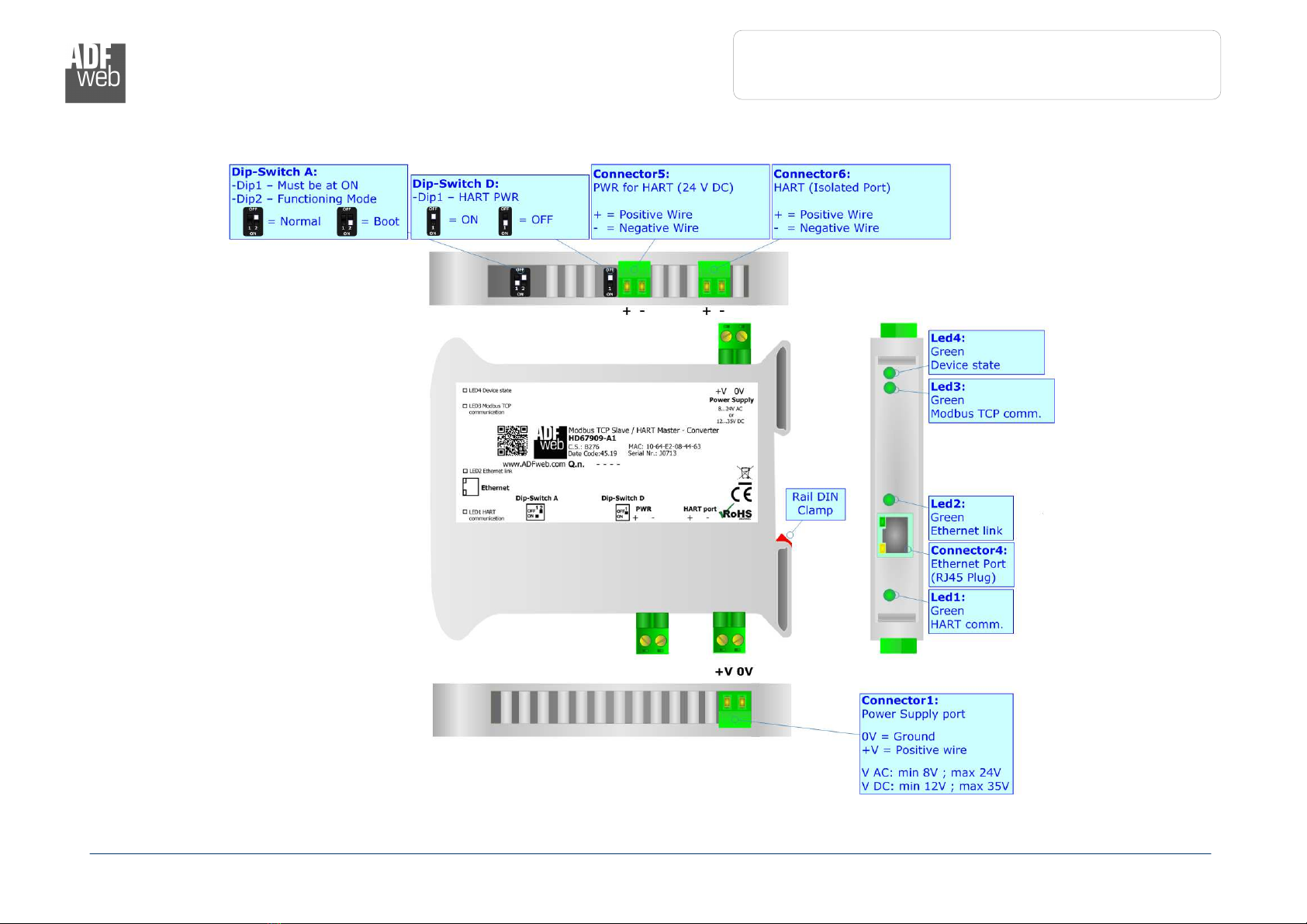

Figure 1a: Connection scheme for HD67909 A1
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/ HART Master
Document code: MN67909_ENG Revision 1.001 age 6 of 30
CHARACTERISTICS:
The HD67909-A1 are Modbus TC Slave / HART Master - Converters.
It allows for the following characteristics:
Triple isolation between Ethernet - ower Supply, Ethernet - HART, HART - ower Supply;
Two-directional information between Ethernet bus and HART bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67909 software on your C in order to perform the following:
Define the parameters of Modbus TC line;
Define the parameters of HART line;
Define HART variables in read/write;
Define HART rules for gateway functions;
Scan and configure HART devices by integrated webserver;
Update the device.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/ HART Master
Document code: MN67909_ENG Revision 1.001 age 7 of 30
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consum tion [W/VA]
HD67909-A1 3.5
HD67909-A1
Caution:
Do n
ot reverse the olarity ower
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/ HART Master
Document code: MN67909_ENG Revision 1.001 age 8 of 30
FUNCTION MODES:

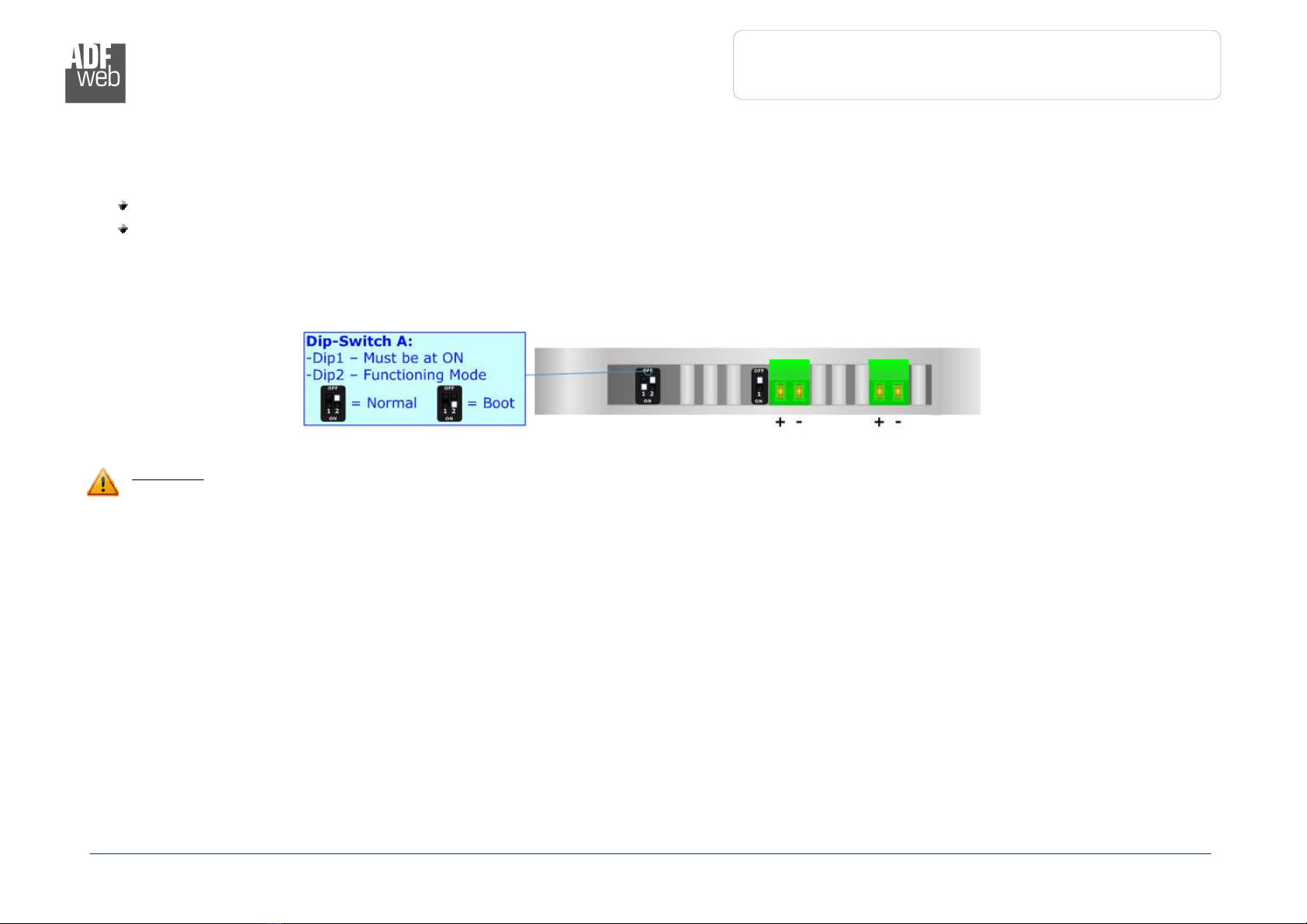

The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.
Warning:
Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/ HART Master
Document code: MN67909_ENG Revision 1.001 age 9 of 30
LEDS:
The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: HART communication
(green) It blinks when HART communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Ethernet link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
3: Modbus TC
communication (green) It blinks when an Ethernet command is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4 : Device State
(green) Blinks slowly (~1Hz)
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): u date in
rogress
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/ HART Master
Document code: MN67909_ENG Revision 1.001 age 10 of 30
HART:
“HART” is an acronym for Highway Addressable Remote Transducer. The HART rotocol makes uses Frequency Shift Keying (FSK) standard
to superimpose digital communication signals at a low level on top of the 4-20mA. This enables two-way field communication to take place
and makes it possible for additional information beyond just the normal process variable to be communicated to/from a smart field
instrument.

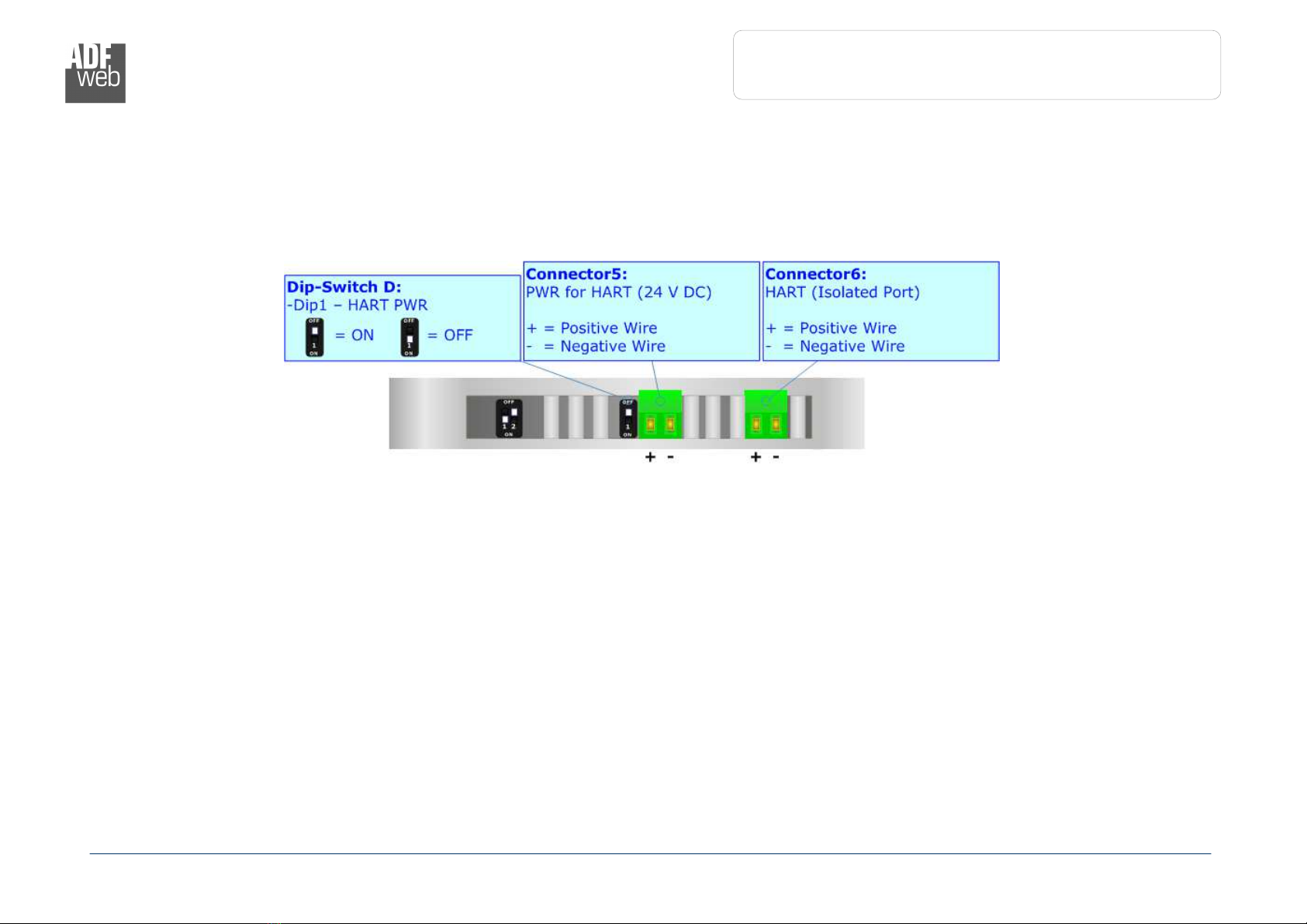

It is possible to provide the current loop for HART communication and an additional low power supply @ 24 V DC for feeding HART devices
by setting Dip-Switch D at ON position.
Current loop for HART is required when there is not an external device in the bus that provides it.
