ADF Web HD67911-A1 Bedienungsanleitung

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFIBUS / HART Master

Document code: MN67911_ENG Revision 1.000 age 1 of 31

User Manual

Revision 1.000

English

PROFIBUS / HART Master - Converter

(Order Code: HD67911-A1)

For Website information:

www.adfweb.com? roduct=HD67911

For rice information:

www.adfweb.com? rice=HD67911-A1

Benefits and Main Features:

Very easy to configure

Triple Electrical isolation

Temperature range: -40°C/+85°C (-40°F/+185°F)

For other HART products see also the following link:

Converter HART Master to

www.adfweb.com? roduct=HD67900 (Serial

www.adfweb.com? roduct=HD67901 (BACnet Slave

www.adfweb.com? roduct=HD67902 (CAN

www.adfweb.com? roduct=HD67903 (CANopen

www.adfweb.com? roduct=HD67904 (DeviceNet Slave

www.adfweb.com? roduct=HD67905 (Ethernet

www.adfweb.com? roduct=HD67906 (EtherNet/IP Slave

www.adfweb.com? roduct=HD67907 (J1939

www.adfweb.com? roduct=HD67908 (Modbus Slave

www.adfweb.com? roduct=HD67909 (Modbus TCP Slave

www.adfweb.com? roduct=HD67910 (MQTT

www.adfweb.com? roduct=HD67912 (PROFINET Slave

www.adfweb.com? roduct=HD67913 (SNMP Agent

Do you have your customer protocol? Then go to:

www.adfweb.com? roduct=HD67003

Do you need to choose a device? Do you want help?

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFIBUS / HART Master

Document code: MN67911_ENG Revision 1.000 age 2 of 31

INDEX:

age

INDEX 2

U DATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAM LE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

OWER SU LY 7

FUNCTION MODES 8

LEDS 9

HART 10

ROFIBUS 11

ETHERNET 12

USE OF COM OSITOR SW67911 13

NEW CONFIGURATION / O EN CONFIGURATION 14

SOFTWARE O TIONS 15

SET COMMUNICATION 17

HART VARIABLES 18

ROFIBUS GSD 19

U DATE DEVICE 20

MECHANICAL DIMENSIONS 22

SCAN FUNCTION 23

WEBSERVER INTERFACE 25

ORDERING INFORMATION 29

ACCESSORIES 29

DISCLAIMER 30

OTHER REGULATIONS AND STANDARDS 30

WARRANTIES AND TECHNICAL SU ORT 31

RETURN OLICY 31

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Revision

Date Author Chapter

Description

1.000 18/06/2021

Ff All First Release

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFIBUS / HART Master

Document code: MN67911_ENG Revision 1.000 age 3 of 31

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFIBUS / HART Master

Document code: MN67911_ENG Revision 1.000 age 4 of 31

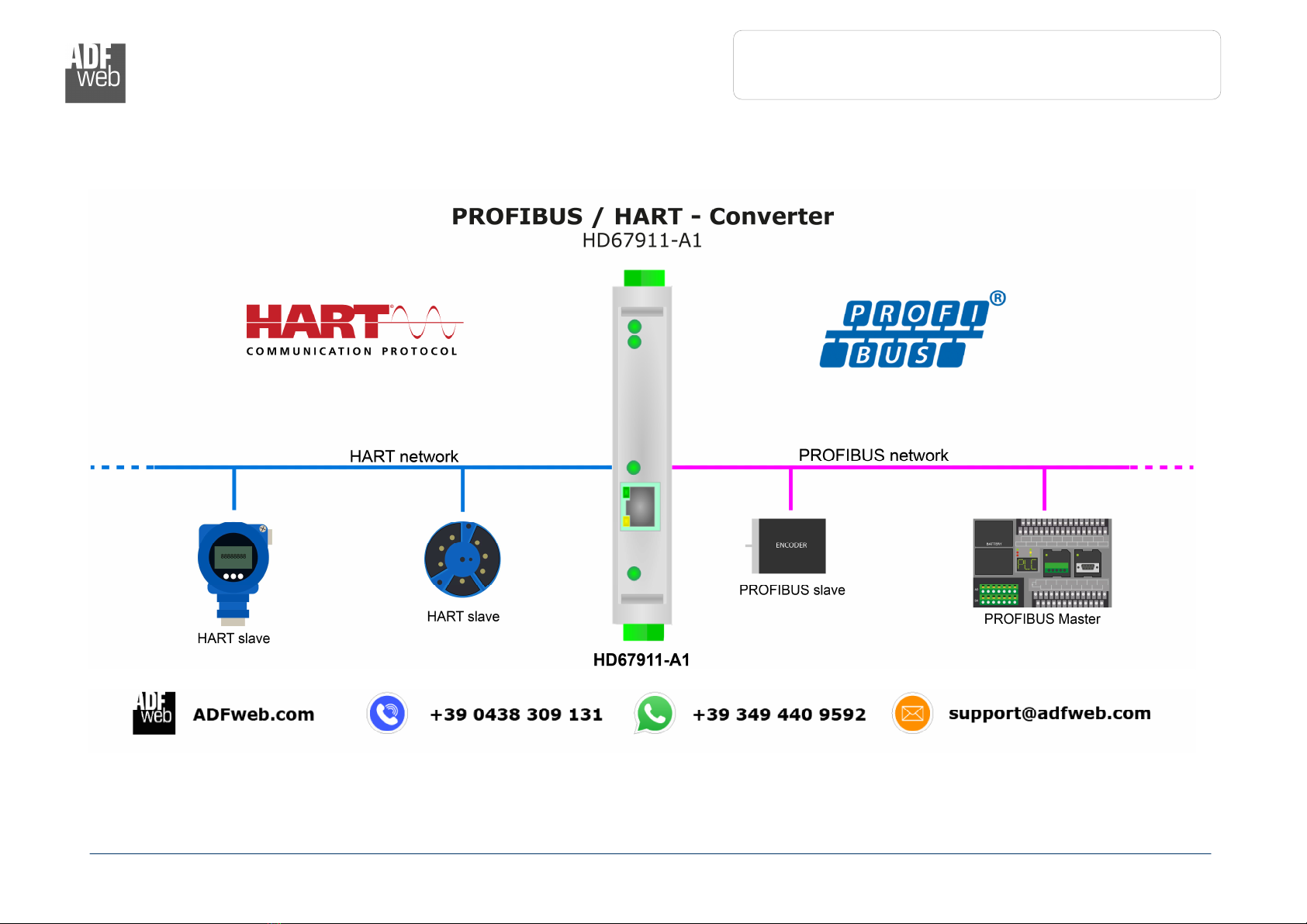

EXAMPLES OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFIBUS / HART Master

Document code: MN67911_ENG Revision 1.000 age 5 of 31

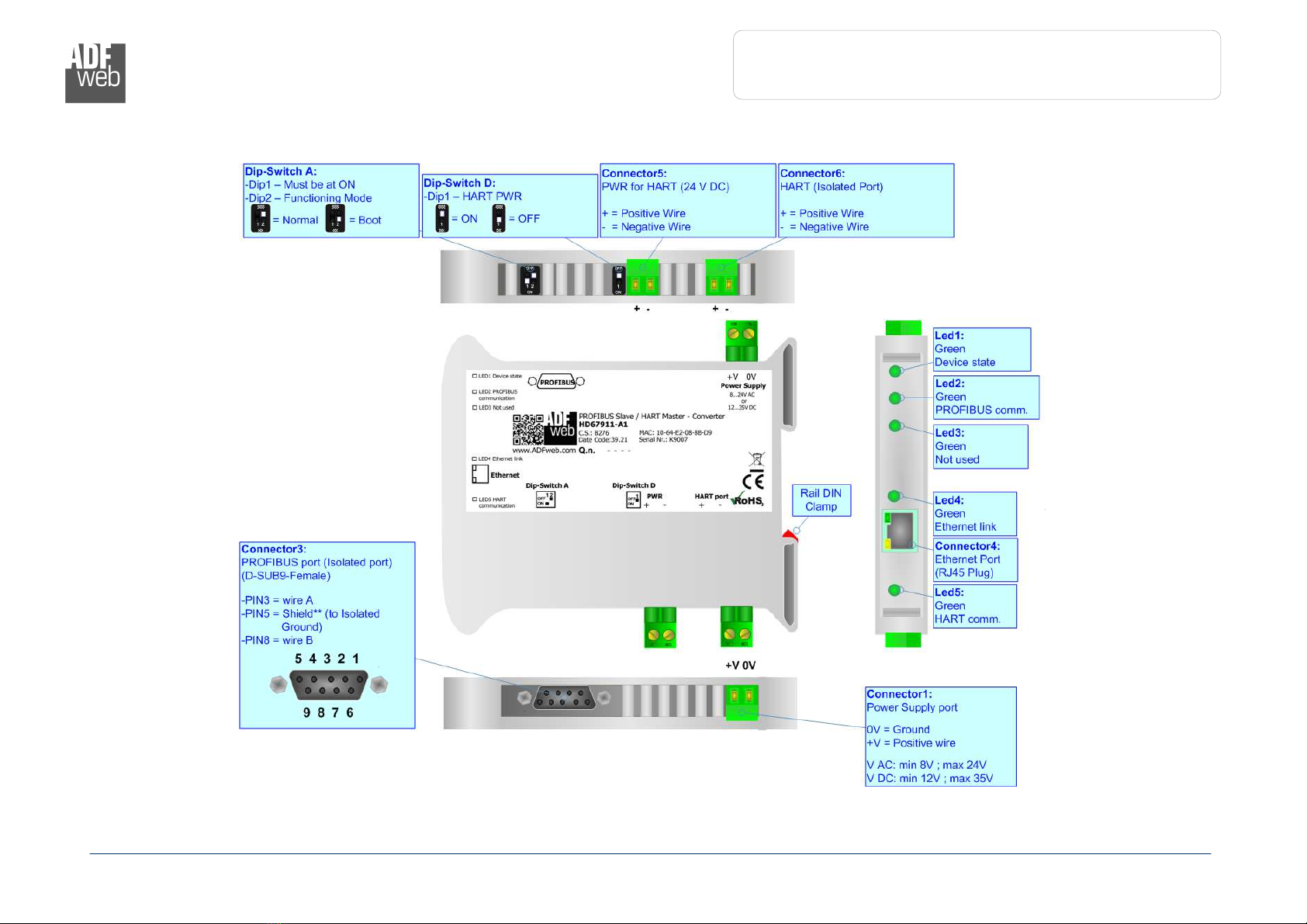

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67911-A1

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFIBUS / HART Master

Document code: MN67911_ENG Revision 1.000 age 6 of 31

CHARACTERISTICS:

The HD67911-A1 are ROFIBUS / HART Master - Converters.

It allows for the following characteristics:

Triple isolation between ROFIBUS - ower Supply, ROFIBUS - HART, HART - ower Supply;

Two-directional information between Ethernet bus and HART bus;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -40°C / 85°C [-40°F / +185°F].

CONFIGURATION:

You need Compositor SW67912 software on your C in order to perform the following:

Define the parameters of ROFINET line;

Define the parameters of HART line;

Define HART variables in read/write;

Define HART rules for gateway functions;

Update the device.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFIBUS / HART Master

Document code: MN67911_ENG Revision 1.000 age 7 of 31

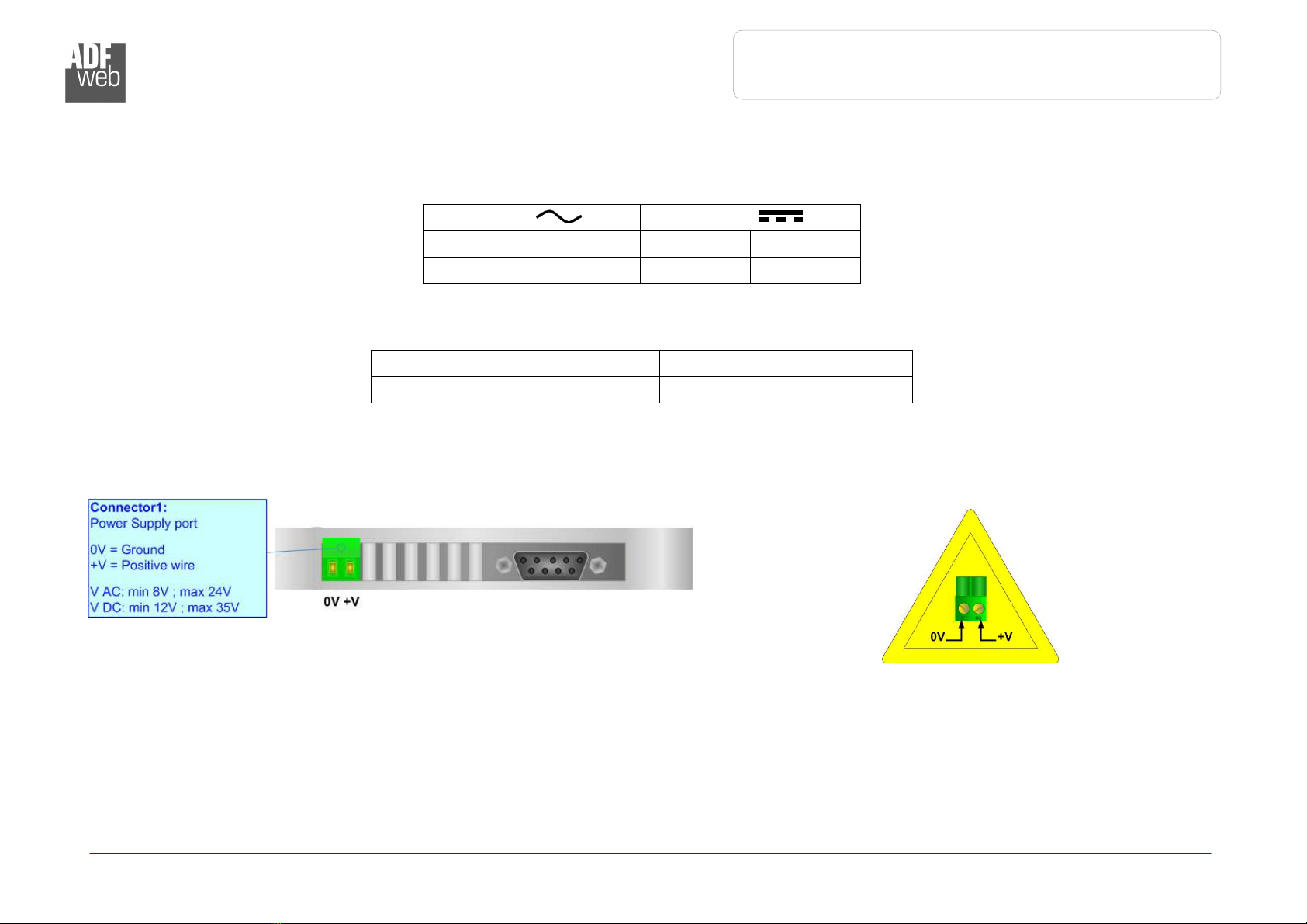

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67911-A1 3.5

HD67911-A1

Caution:

Do n

ot reverse the polarity power

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFIBUS / HART Master

Document code: MN67911_ENG Revision 1.000 age 8 of 31

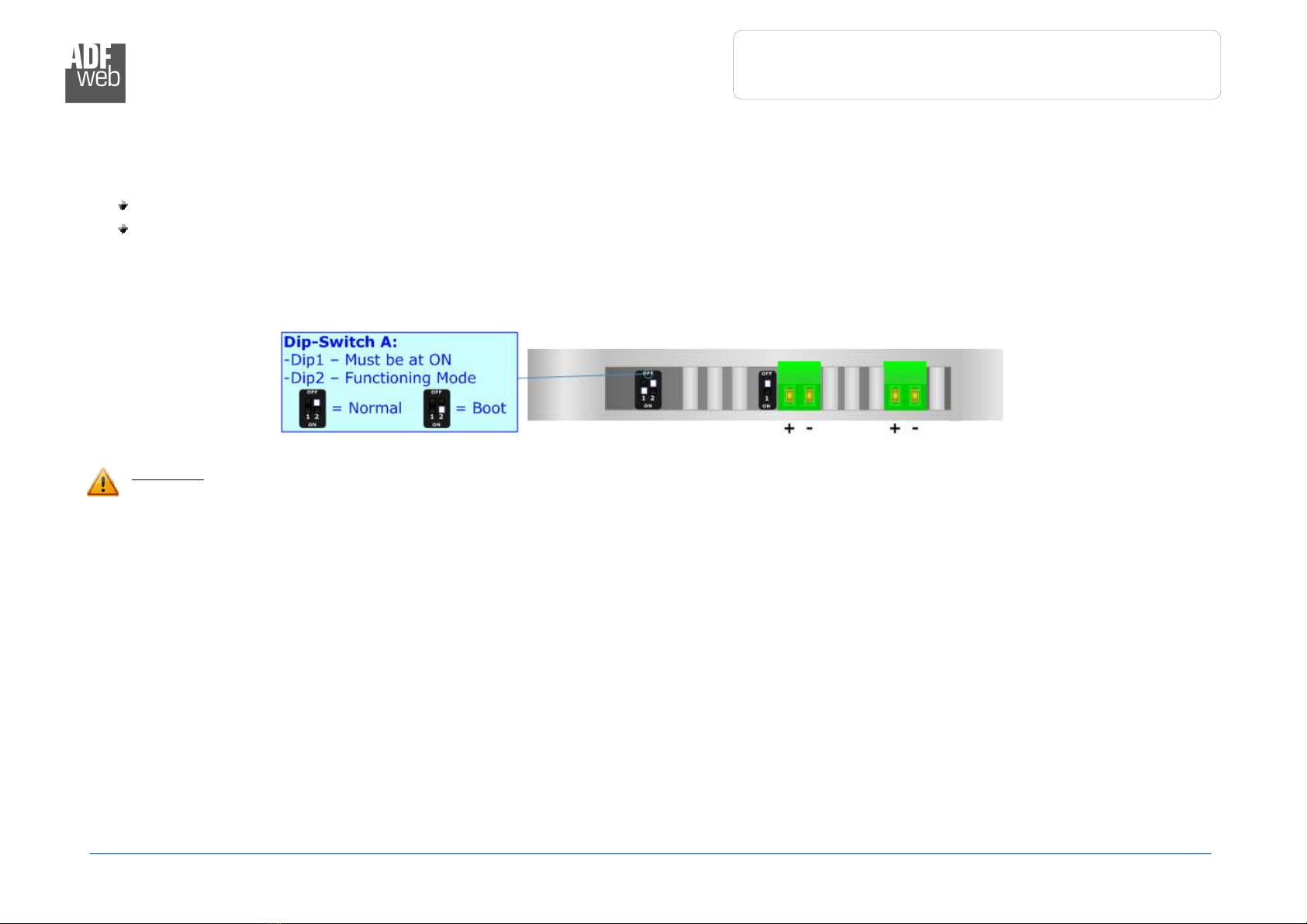

FUNCTION MODES:

The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’:

The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.

For the operations to follow for the updating, see ‘U DATE DEVICE’ section.

According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.

Warning:

Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFIBUS / HART Master

Document code: MN67911_ENG Revision 1.000 age 9 of 31

LEDS:

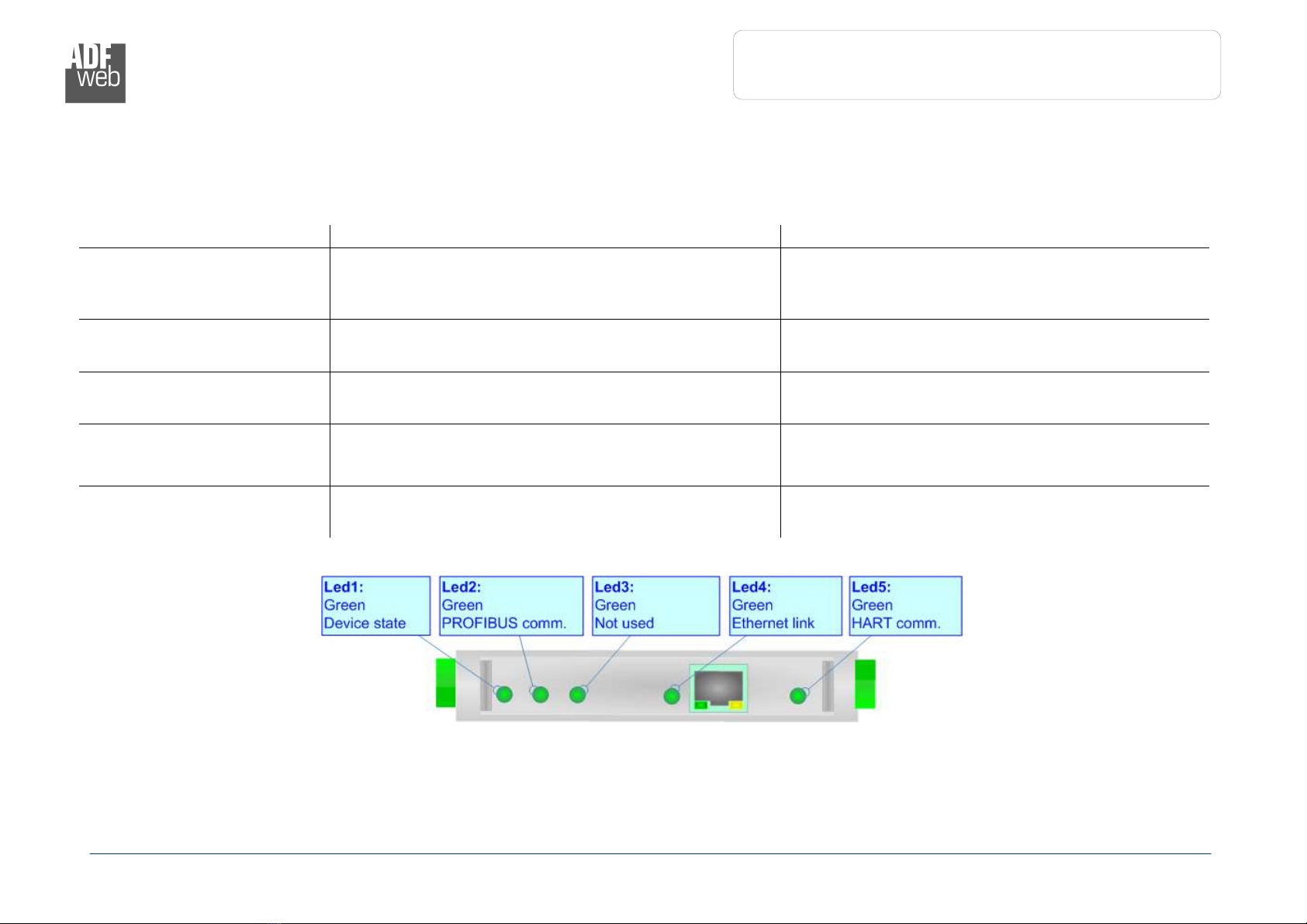

The device has got six LEDs that are used to give information about the functioning status.

The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: Device State

(green) Blinks slowly (~1Hz)

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz : update in

progress

2: ROFIBUS communication

(green) It blinks when ROFIBUS communication is running Blinks quickly: Boot state

Blinks very slowly (~0.5Hz : update in progress

3: Not used (green) OFF Blinks quickly: Boot state

Blinks very slowly (~0.5Hz : update in progress

4: Ethernet link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

5: HART communication

(green) It blinks when HART communication is running Blinks quickly: Boot state

Blinks very slowly (~0.5Hz : update in progress

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFIBUS / HART Master

Document code: MN67911_ENG Revision 1.000 age 10 of 31

HART:

“HART” is an acronym for Highway Addressable Remote Transducer. The HART rotocol makes uses Frequency Shift Keying (FSK) standard

to superimpose digital communication signals at a low level on top of the 4-20mA. This enables two-way field communication to take place

and makes it possible for additional information beyond just the normal process variable to be communicated to/from a smart field

instrument.

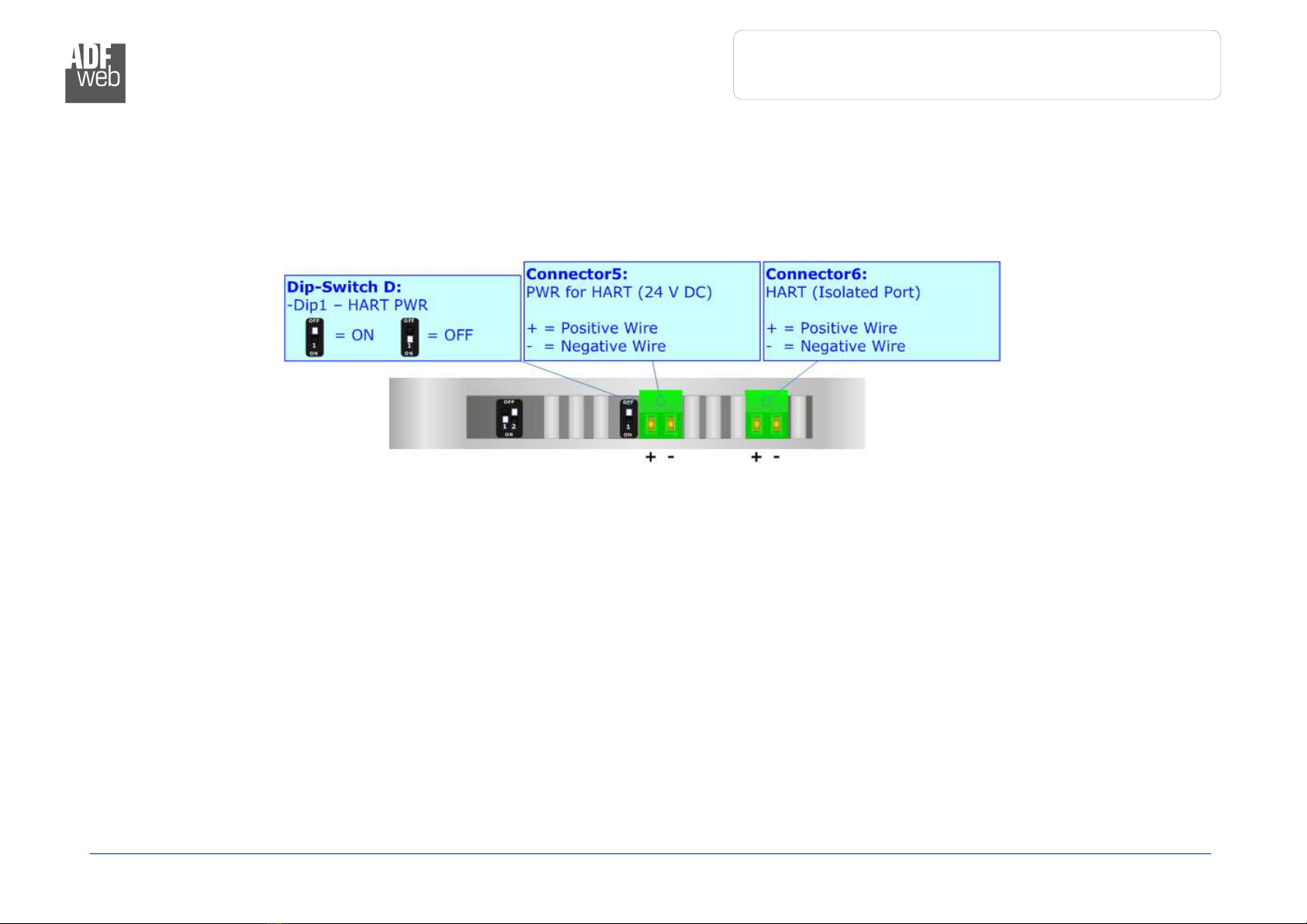

It is possible to provide the current loop for HART communication and an additional low power supply @ 24 V DC for feeding HART devices

by setting Dip-Switch D at ON position.

Current loop for HART is required when there is not an external device in the bus that provides it.
