ADF Web HD67D18-B2 Series Bedienungsanleitung
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Ethernet
Document code: MN67D18_ENG Revision 1.000 age 1 of 28
User Manual
Revision 1.000
English
LoRaWAN / Ethernet - Converter
(Order Code: HD67D18-B2-xxxMHz)
For Website information:
www.adfweb.com? roduct=HD67D18-B2
For rice information:
www.adfweb.com? rice=HD67D18-B2-868MHz
Benefits and Main Features:
Very easy to configure
ower Supply 18…35V DC and 8…24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others LoRaWAN products, see also the following links:
Converter LoRaWAN to
www.adfweb.com? roduct=HD67D01 (LoRaWAN)
www.adfweb.com? roduct=HD67D02 (LoRaWAN)
www.adfweb.com? roduct=HD67D03 (Modbus TC Master)
www.adfweb.com? roduct=HD67D04 (Modbus TC Slave)
www.adfweb.com? roduct=HD67D05 (Serial)
www.adfweb.com? roduct=HD67D15 (M-Bus)
www.adfweb.com? roduct=HD67D16 (BACnet Master)
www.adfweb.com? roduct=HD67D17 (BACnet Slave)
www.adfweb.com? roduct=HD67D19 (CAN)
www.adfweb.com? roduct=HD67D20 (CANopen)
www.adfweb.com? roduct=HD67D21 (DeviceNet Master)
www.adfweb.com? roduct=HD67D22 (DeviceNet Slave)
www.adfweb.com? roduct=HD67D23 (DMX)
www.adfweb.com? roduct=HD67D24 (EtherNet/I Master)
www.adfweb.com? roduct=HD67D25 (EtherNet/I Slave)
www.adfweb.com? roduct=HD67D26 (J1939)
www.adfweb.com? roduct=HD67D27 (KNX)
www.adfweb.com? roduct=HD67D28 (NMEA 0183)
www.adfweb.com? roduct=HD67D29 (NMEA 2000)
www.adfweb.com? roduct=HD67D30 ( ROFIBUS Master)
www.adfweb.com? roduct=HD67D31 ( ROFIBUS Slave)
www.adfweb.com? roduct=HD67D32 ( ROFINET Master)
www.adfweb.com? roduct=HD67D33 ( ROFINET Slave)
www.adfweb.com? roduct=HD67D34 (IEC61850 Client)
www.adfweb.com? roduct=HD67D35 (IEC61850 Server)
www.adfweb.com? roduct=HD67D36 (MQTT)
www.adfweb.com? roduct=HD67D37 (O C UA Client)
www.adfweb.com? roduct=HD67D38 (O C UA Server)
www.adfweb.com? roduct=HD67D39 (S7comm)
www.adfweb.com? roduct=HD67D40 (SNM Manager)
www.adfweb.com? roduct=HD67D41 (SNM Agent)
User Manual
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Ethernet
Document code: MN67D18_ENG Revision 1.000 age 2 of 28
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
LORAWAN 10
ETHERNET 11
USE OF COM OSITOR SW67D18 12
NEW CONFIGURATION / O EN CONFIGURATION 13
SOFTWARE O TIONS 14
SET COMMUNICATION 16
LORAWAN ACCESS 18
U DATE DEVICE 20
LORAWAN AYLOAD 22
ETHERNET ROTOCOL 23
MECHANICAL DIMENSIONS 25
ORDERING INFORMATIONS 26
ACCESSORIES 26
DISCLAIMER 27
OTHER REGULATIONS AND STANDARDS 27
WARRANTIES AND TECHNICAL SU ORT 28
RETURN OLICY 28
U DATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision
Date Author Chapter
Description
1.000 09/2/2023 Ln All First release version
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Ethernet
Document code: MN67D18_ENG Revision 1.000 age 3 of 28
SECURITY ALERT:
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I
NTENDED
U
SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q
UALIFIED
ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R
ESIDUAL
R
ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE
CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Ethernet
Document code: MN67D18_ENG Revision 1.000 age 4 of 28

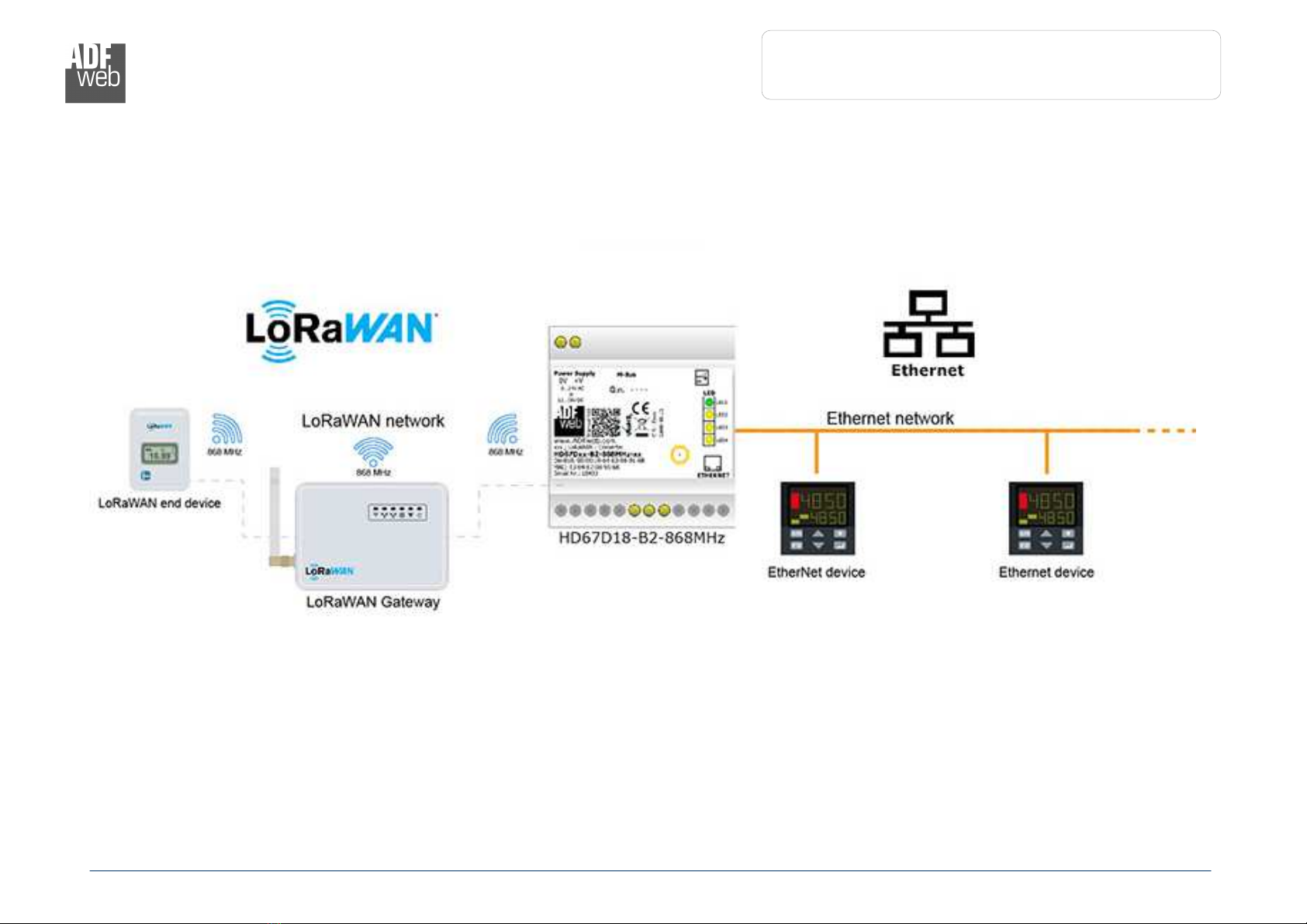

EXAM LE OF CONNECTION:
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Ethernet
Document code: MN67D18_ENG Revision 1.000 age 5 of 28

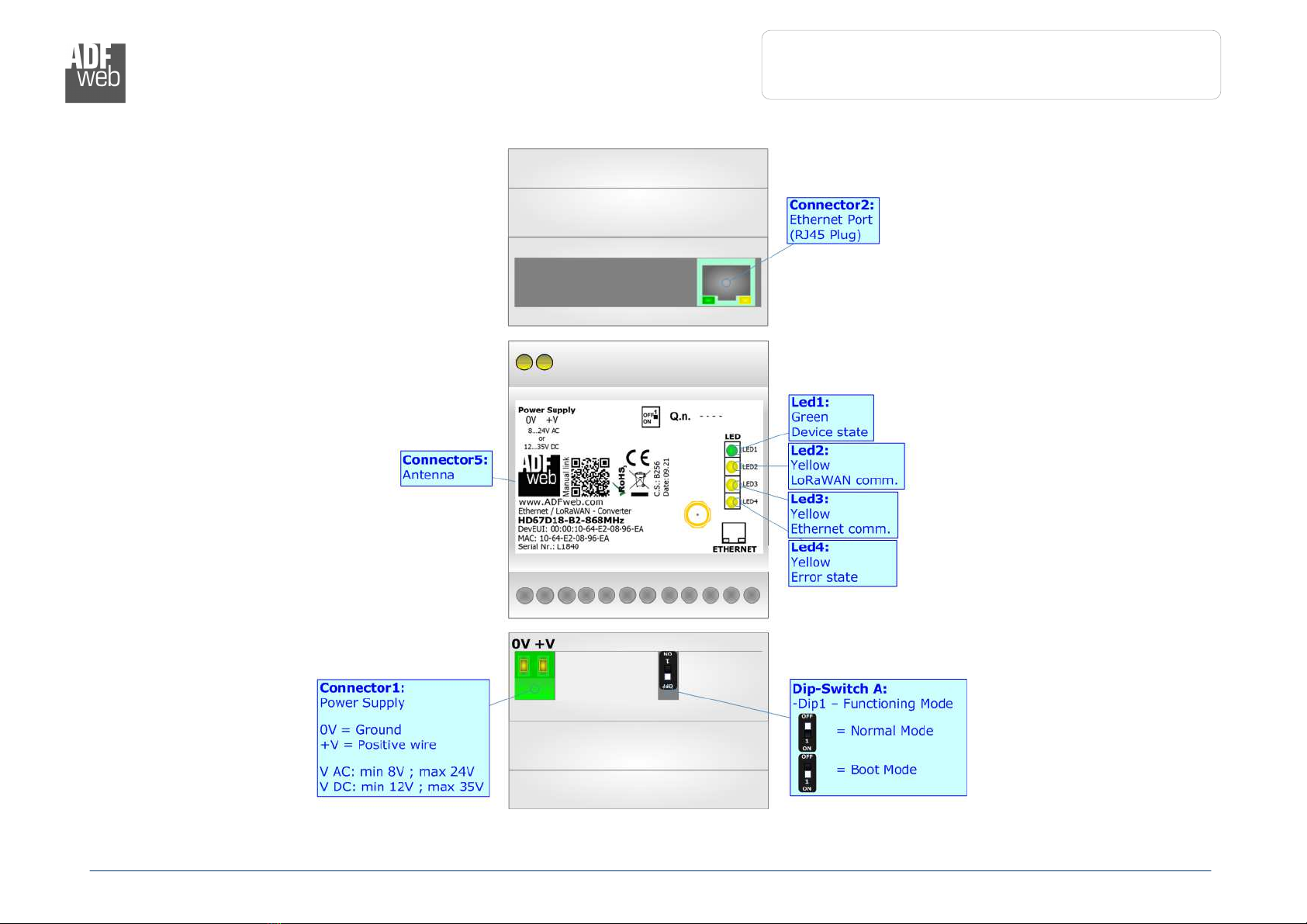

CONNECTION SCHEME:
Figure 1: Connection scheme for HD67D18-B -xxxMHz
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Ethernet
Document code: MN67D18_ENG Revision 1.000 age 6 of 28
CHARACTERISTICS:
The HD67D18-B2 is a LoRaWAN / Ethernet Converter.
It allows the following characteristics:
Electrical isolation between LoRaWAN and ower Supply;
Mountable on 35mm Rail DIN;
Wide power supply input range: 12…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67D18 software on your C in order to perform the following:
Define the parameter of Ethernet line;
Define the parameter of LoRaWAN line;
Define the list of LoRaWAN messages in uplink and downlink to the LoRaWAN gateway;
Update the device.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Ethernet
Document code: MN67D18_ENG Revision 1.000 age 7 of 28

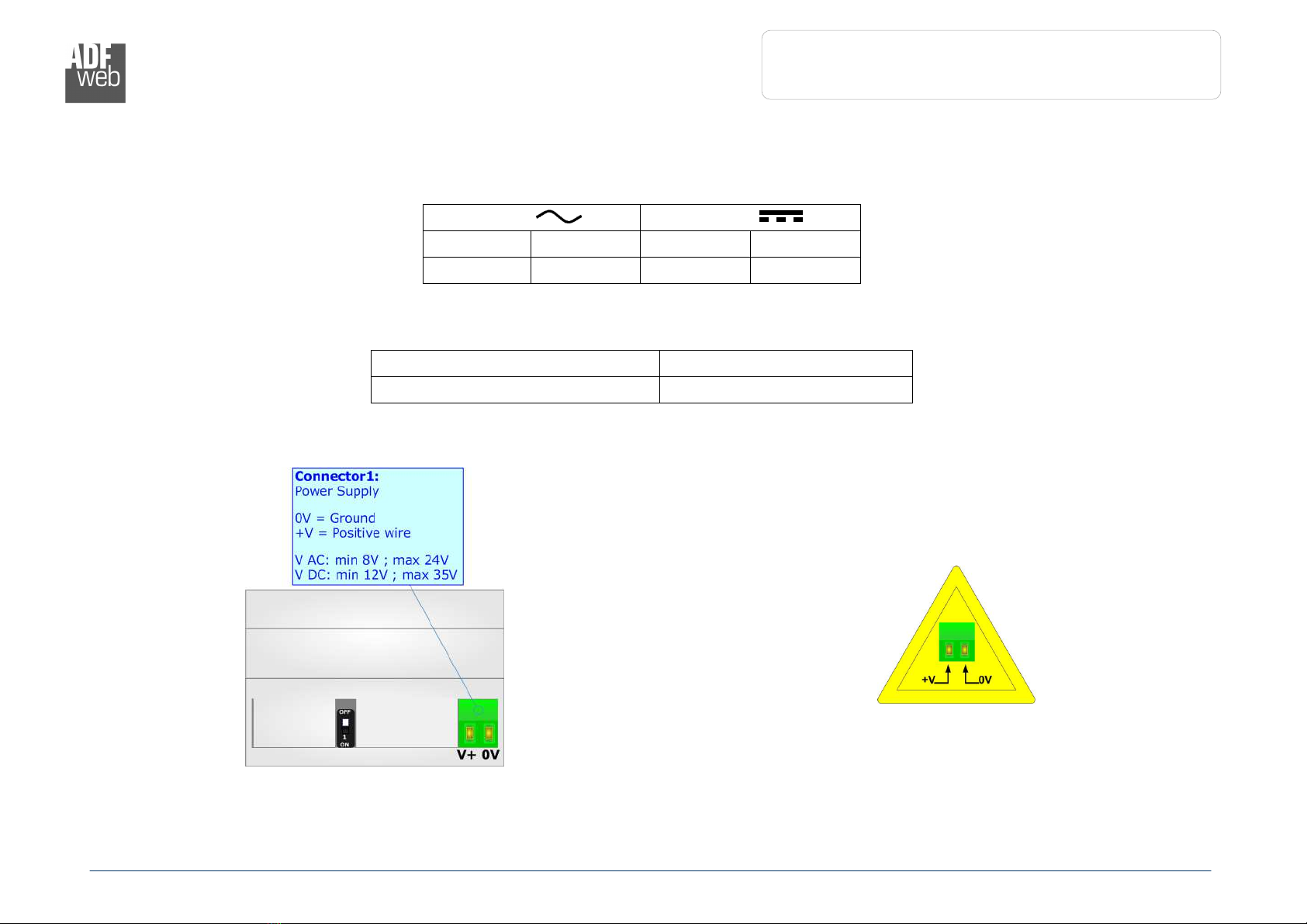

OWER SU LY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67D18-B2-xxxMHz 3.5
HD67D18
-
B2
-
xxxMHz
Caution: Not reverse the polarity power
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Ethernet
Document code: MN67D18_ENG Revision 1.000 age 8 of 28
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Ethernet
Document code: MN67D18_ENG Revision 1.000 age 9 of 28
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: LoRaWAN communication
(yellow) Blinks when LoRaWAN data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Ethernet communication
(yellow) Blinks when a Ethernet request is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / Ethernet
Document code: MN67D18_ENG Revision 1.000 age 10 of 28

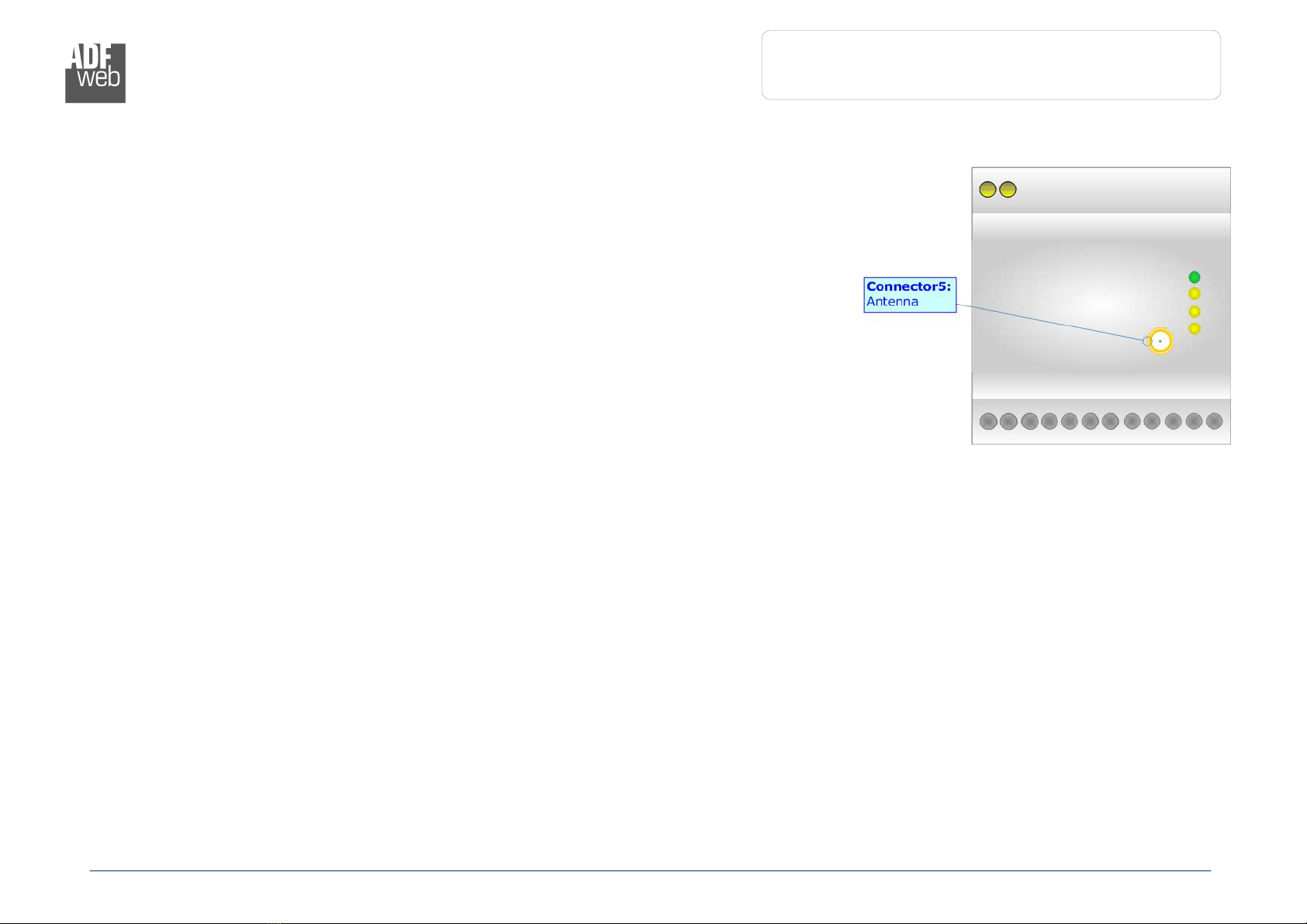

LORAWAN:
The LoRaWAN® specification is a Low ower, Wide Area (L WA) networking protocol designed to
wirelessly connect battery operated ‘things’ to the internet in regional, national or global
networks, and targets key Internet of Things (IoT) requirements such as bi-directional
communication, end-to-end security, mobility and localization services.
LoRaWAN® network architecture is deployed in a star-of-stars topology in which gateways relay
messages between end-devices and a central network server.
The wireless communication takes advantage of the Long Range characteristics of the LoRa
physical layer, allowing a single-hop link between the end-device and one or many gateways. All
modes are capable of bi-directional communication, and there is support for multicast
addressing groups to make efficient use of spectrum during tasks such as Firmware Over-The-
Air (FOTA) upgrades or other mass distribution messages.
Converters from HD67D18 serie act as end-devices and they can communicate with one or more
LoRwaWAN Gateways.
The converters support all the standard datarates and they work both on public and private
networks.
