Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

LoRaWAN Gateway / MQTT

Document code: MN67F36_ENG Revision 1. Page 1 of 35

User Manual

Revision 1.

English

LoRaWAN Gateway / MQTT - Converter

(Order Code: HD67F36-B2-xxxMHz)

For Website information:

www.adfweb.com?Product=HD67F36-B2

For Price information:

www.adfweb.com?Price=HD67F36-B2-xxxMHz

Benefits and Main Features:

Very easy to configure

Power Supply 12…35V DC and 8…24 V AC

Temperature range: -4 °C/+85°C (-4 °F/+185°F)

For others LoRaWAN products, see also the following links:

Converter LoRaWAN to

www.adfweb.com?Product=HD67F 1 (Mod us Master)

www.adfweb.com?Product=HD67F 2 (Mod us Slave)

www.adfweb.com?Product=HD67F 3 (Mod us TCP Master)

www.adfweb.com?Product=HD67F 4 (Mod us TCP Slave)

www.adfweb.com?Product=HD67F 5 (Serial)

www.adfweb.com?Product=HD67F15 (M-Bus)

www.adfweb.com?Product=HD67F16 (BACnet Master)

www.adfweb.com?Product=HD67F17 (BACnet Slave)

www.adfweb.com?Product=HD67F18 (Ethernet)

www.adfweb.com?Product=HD67F19 (CAN)

www.adfweb.com?Product=HD67F2 (CANopen)

www.adfweb.com?Product=HD67F21 (DeviceNet Master)

www.adfweb.com?Product=HD67F22 (DeviceNet Slave)

www.adfweb.com?Product=HD67F23 (DMX)

www.adfweb.com?Product=HD67F24 (EtherNet/IP Master)

www.adfweb.com?Product=HD67F25 (EtherNet/IP Slave)

www.adfweb.com?Product=HD67F26 (J1939)

www.adfweb.com?Product=HD67F27 (KNX)

www.adfweb.com?Product=HD67F28 (NMEA 0183)

www.adfweb.com?Product=HD67F29 (NMEA 2000)

www.adfweb.com?Product=HD67F3 (PROFIBUS Master)

www.adfweb.com?Product=HD67F31 (PROFIBUS Slave)

www.adfweb.com?Product=HD67F32 (PROFINET Master)

www.adfweb.com?Product=HD67F33 (PROFINET Slave)

www.adfweb.com?Product=HD67F34 (IEC61850 Client)

www.adfweb.com?Product=HD67F35 (IEC61850 Server)

www.adfweb.com?Product=HD67F37 (OPC UA Client)

www.adfweb.com?Product=HD67F38 (OPC UA Server)

www.adfweb.com?Product=HD67F39 (S7comm)

www.adfweb.com?Product=HD67F4 (SNMP Manager)

www.adfweb.com?Product=HD67F41 (SNMP Agent)

User Manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

LoRaWAN Gateway / MQTT

Document code: MN67F36_ENG Revision 1. Page 2 of 35

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

LORAWAN 1

ETHERNET 11

USE OF COMPOSITOR SW67F36 12

NEW CONFIGURATION / OPEN CONFIGURATION 13

SOFTWARE OPTIONS 14

SET COMMUNICATION 16

LORAWAN ACCESS 23

MQTT SET TOPIC 27

UPDATE DEVICE 29

TEMPLATE STRING: DEFINITION OF MQTT

PAYLOAD

MECHANICAL DIMENSIONS 32

ORDERING INFORMATIONS 33

ACCESSORIES 33

DISCLAIMER 34

OTHER REGULATIONS AND STANDARDS 34

WARRANTIES AND TECHNICAL SUPPORT 35

RETURN POLICY 35

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Revision

Date Author Chapter

Description

1. 3/12/2 21

Ff All First release version

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

LoRaWAN Gateway / MQTT

Document code: MN67F36_ENG Revision 1. Page 3 of 35

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

LoRaWAN Gateway / MQTT

Document code: MN67F36_ENG Revision 1. Page 4 of 35

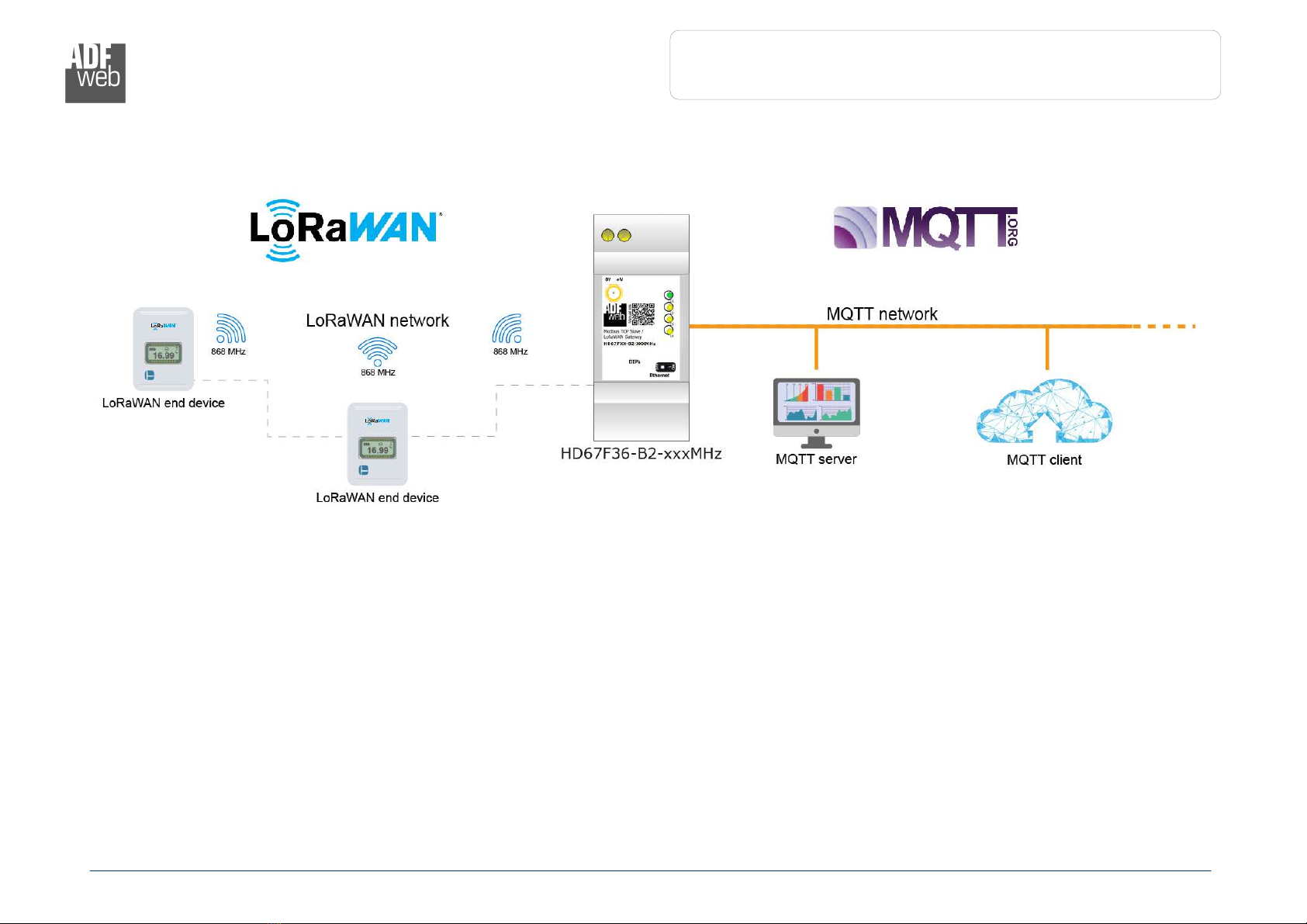

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

LoRaWAN Gateway / MQTT

Document code: MN67F36_ENG Revision 1. Page 5 of 35

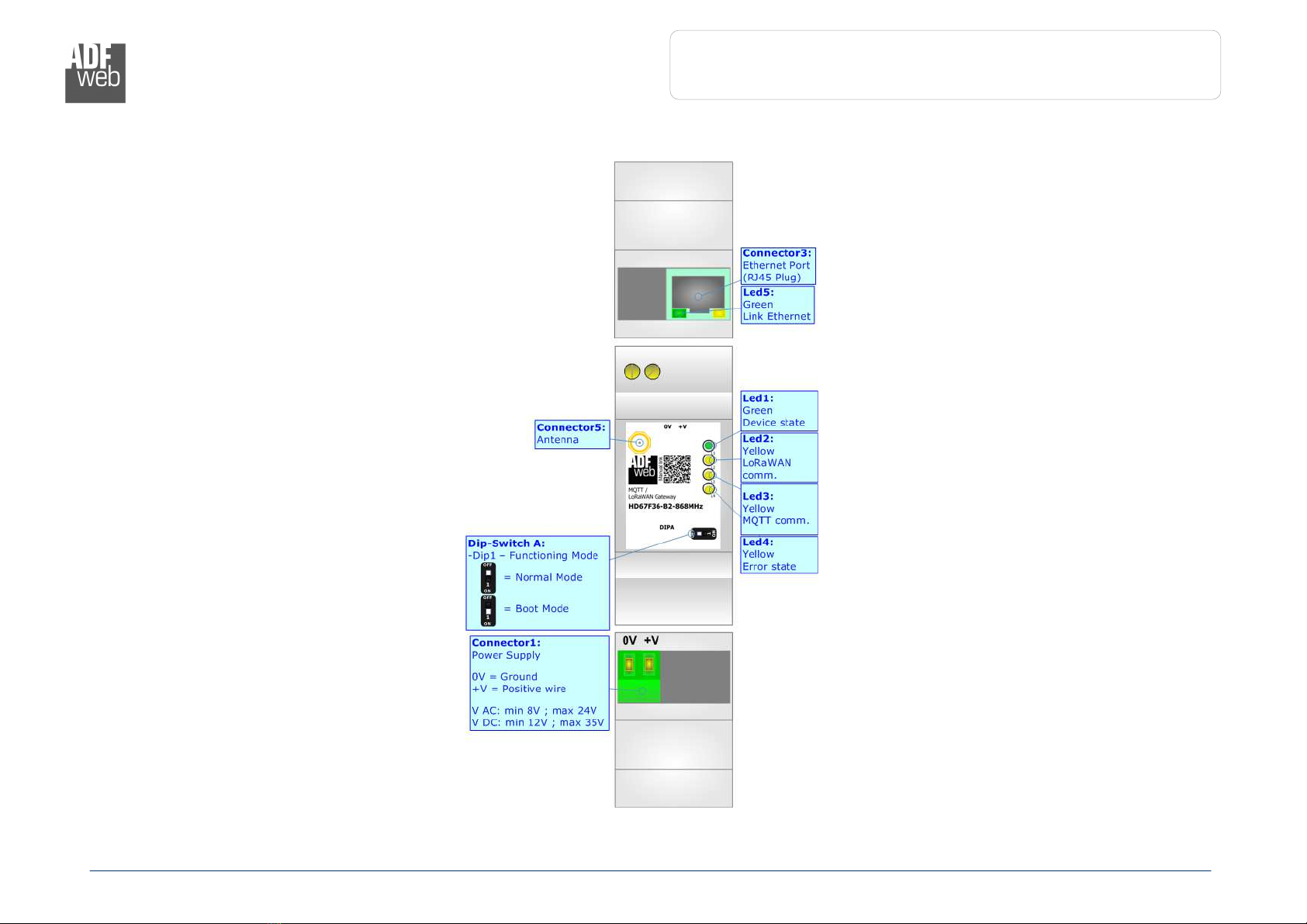

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67F36-B -xxxMHz

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

LoRaWAN Gateway / MQTT

Document code: MN67F36_ENG Revision 1. Page 6 of 35

CHARACTERISTICS:

The HD67F36-B2 is a LoRaWAN Gateway / MQTT.

It allows the following characteristics:

Electrical isolation between MQTT and Power Supply;

Mountable on 35mm Rail DIN;

Wide power supply input range: 12…35V DC and 8…24V AC;

Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].

CONFIGURATION:

You need Compositor SW67F36 software on your PC in order to perform the following:

Define the parameter of MQTT line;

Define the parameter of LoRaWAN line;

Define the list of LoRaWAN end-devices to connect;

Define the LoRaWAN messages to send/receive from each LoRaWAN end-device;

Define the MQTT topics in publish and subscribe;

Update the device.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

LoRaWAN Gateway / MQTT

Document code: MN67F36_ENG Revision 1. Page 7 of 35

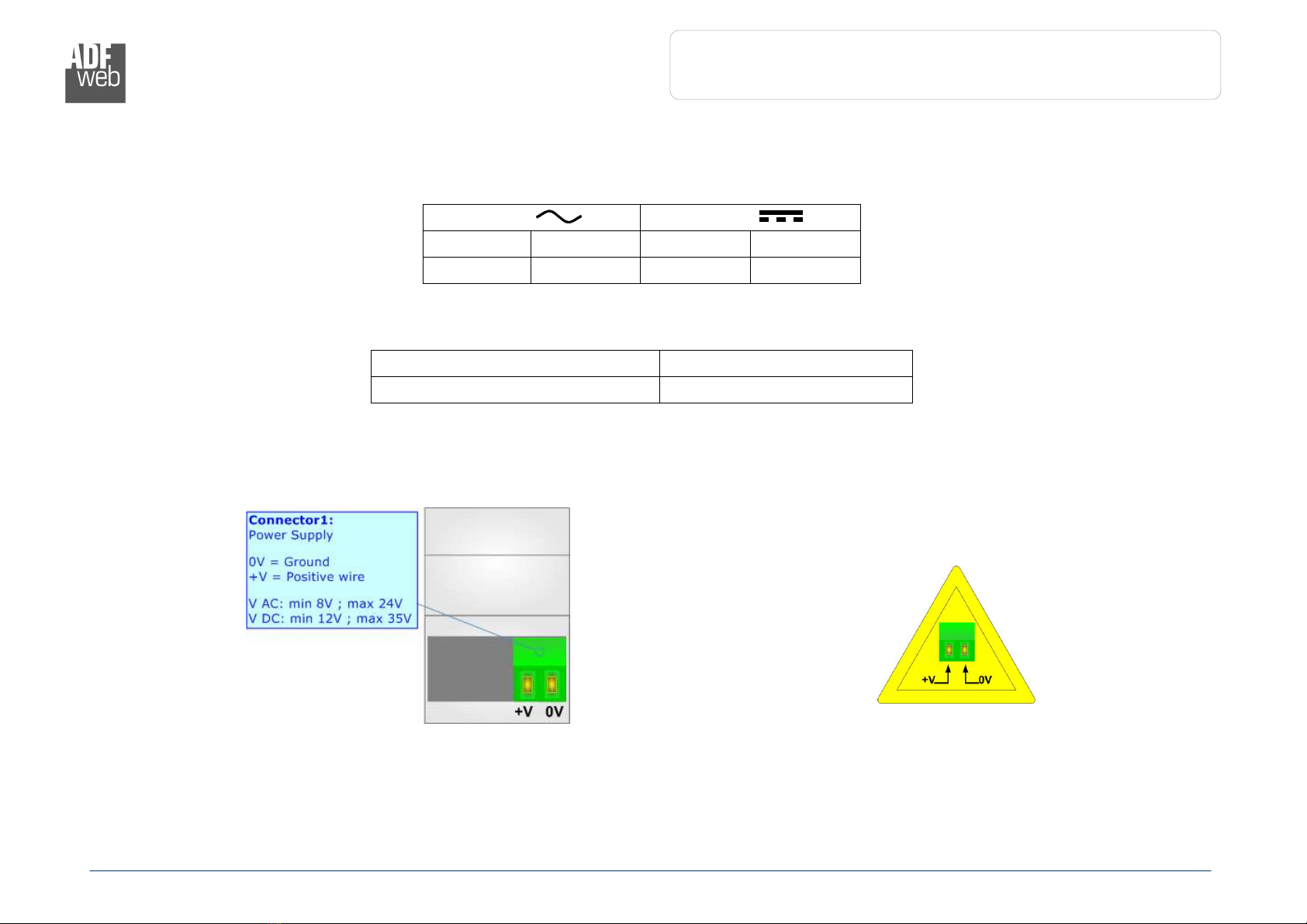

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67F36-B2-xxxMHz 3.5

HD67F36

xxxMHz

Caution: Not reverse the polarity

power

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

LoRaWAN Gateway / MQTT

Document code: MN67F36_ENG Revision 1. Page 8 of 35

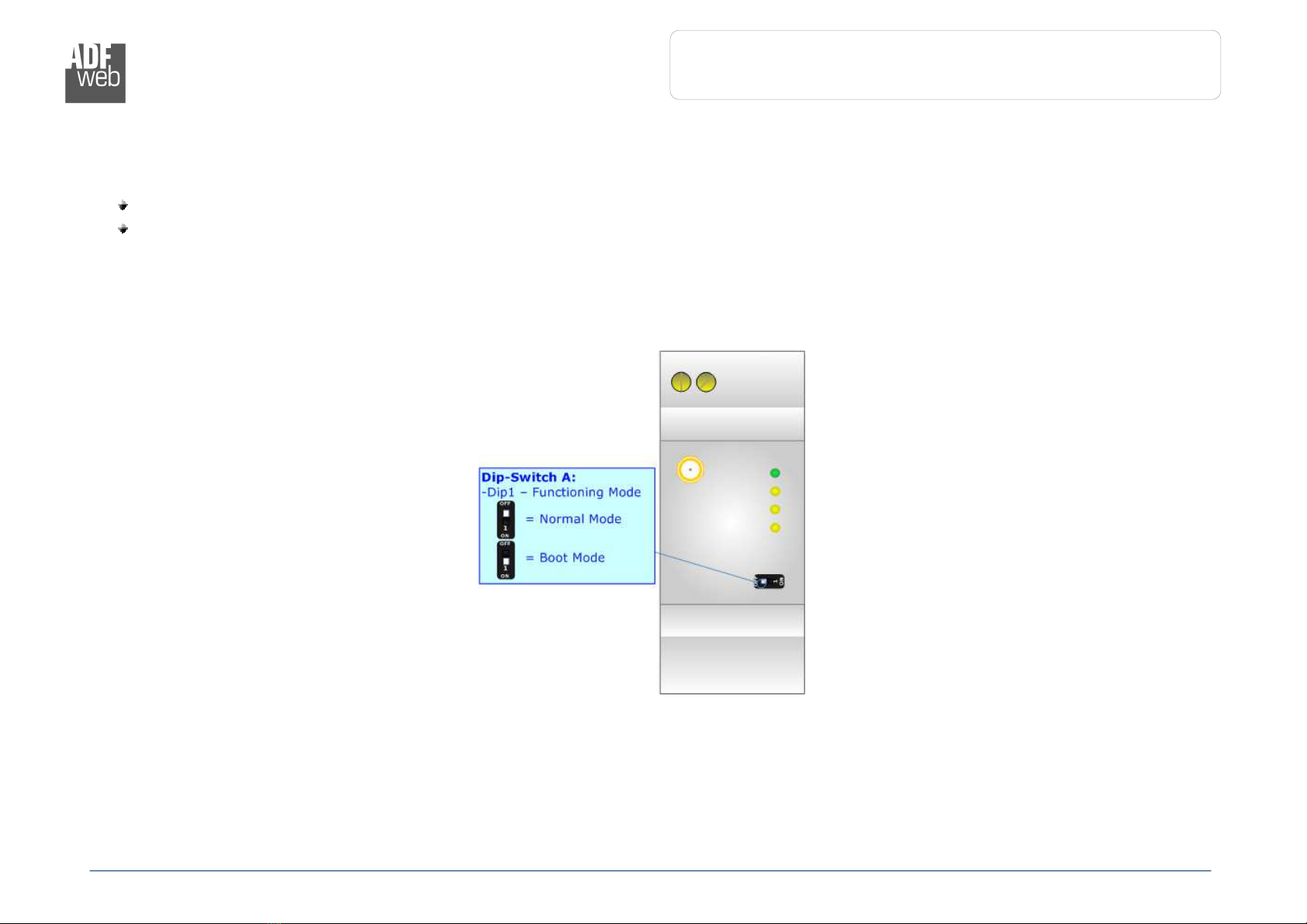

FUNCTION MODES:

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

LoRaWAN Gateway / MQTT

Document code: MN67F36_ENG Revision 1. Page 9 of 35

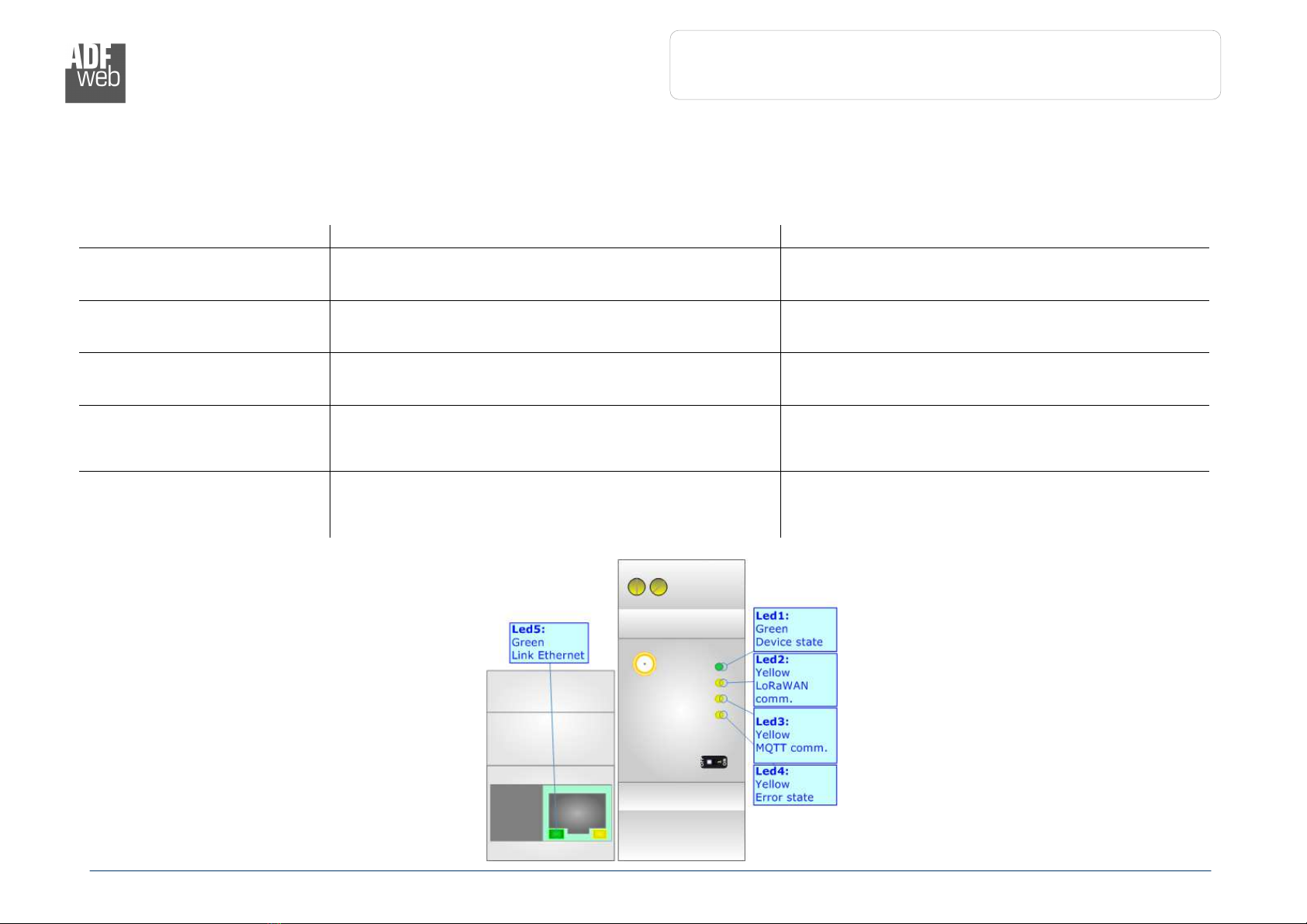

LEDS:

The device has got five LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: LoRaWAN communication

(yellow) Blinks when a LoRaWAN message is received Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: MQTT communication

(yellow) Blinks when a MQTT message is received Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: Error state (yellow) ON: An error in the communication busses occurs

OFF: No errors are present

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

5: Link Ethernet (Green) ON: Ethernet cable inserted

OFF: Ethernet cable not inserted

ON: Ethernet cable inserted

OFF: Ethernet cable not inserted

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

LoRaWAN Gateway / MQTT

Document code: MN67F36_ENG Revision 1. Page 1 of 35

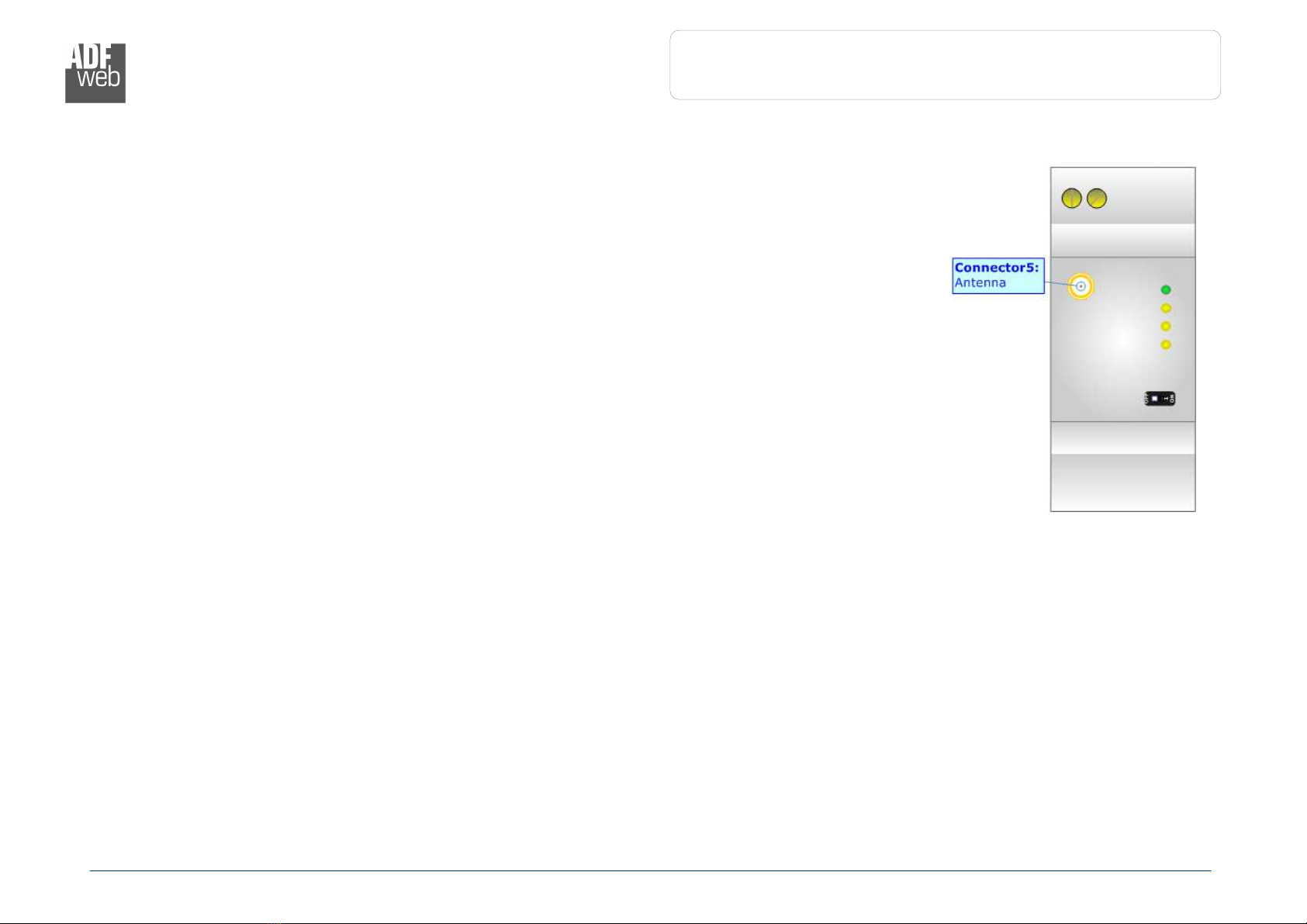

LORAWAN:

The LoRaWAN® specification is a Low Power, Wide Area (LPWA) networking protocol designed to wirelessly

connect battery operated ‘things’ to the internet in regional, national or global networks, and targets key

Internet of Things (IoT) requirements such as bi-directional communication, end-to-end security, mobility

and localization services.

LoRaWAN® network architecture is deployed in a star-of-stars topology in which gateways relay messages

between end-devices and a central network server.

The wireless communication takes advantage of the Long Range characteristics of the LoRa physical layer,

allowing a single-hop link between the end-device and one or many gateways. All modes are capable of bi-

directional communication, and there is support for multicast addressing groups to make efficient use of

spectrum during tasks such as Firmware Over-The-Air (FOTA) upgrades or other mass distribution

messages.

The converters support all the standard datarates and they work both on public and private networks.
