ADLINK Technology EPS-4008 Bedienungsanleitung

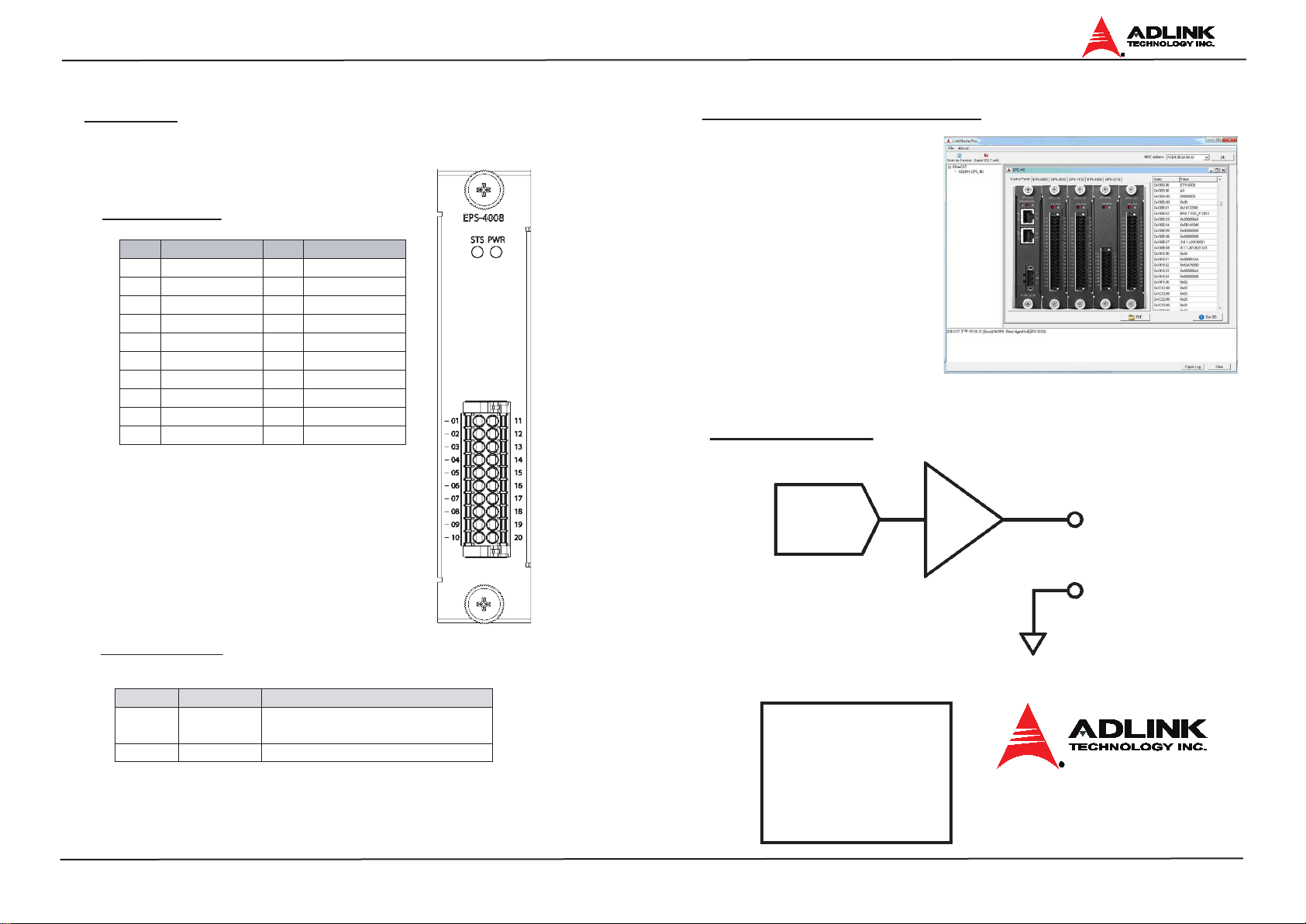

EPS-4008 Quick Start Guide Rev. 2.00

EPS-4008

Remote 8-CH ±10V Analog Output Module for EtherCAT

Getting Started

Features

• 8CH 100kS/s ±10V

single-ended analog output

• IEC 61131 compliant

• Compact 100 (L) x 100 (H)

mm size

• Loopback circuitry for output

monitoring

• Operable in -20°C to 60°C

environments

• Hot swappable under

sustained power

• Module temperature

self-diagnostics

P/N 50-40294-5000 May 8, 2015

Specifications

Slide the EPS-4008 module into

any vacant slot (from Slots 1 to 4) along

the guide groove until firmly seated

Ensure the EPS-9905 and EPS-6000

are configured and operational

Tighten the thumbscrew and

complete signals wiring

Power up the EPS system

Configure and generate the ESI file

with LinkMasterPro™

Channels

8 Single-ended

Output Range ±10V

Resolution 16 bit

Sampling Rate 100KHz

Offset Error ±0.2mV

GainError ±0.05% of FSR

Offset Drift ±0.0075mV /°C

GainDrift ±0.00025% /°Cof FSR

Output Current Capacity5mA

Power On State Relayoff

Voltage Protection ±24V/Relayoff

Whenerror voltage occurs

Power Consumption

from Chassis< 450mW (max.)

ThermalDissipation

(at maxtemp.)

< 2.55W (max.)

@ EVCC=24V+10%

Operating Temperature -20 - 60°C

Isolation (Channel-to-

DGND)2kV(DC)

Isolation (Channel-to-

Chassis) 2kV(DC)

EPS-4008 Quick Start Guide Rev. 2.00

P/N 50-40294-5000 May 8, 2015

Advance Technologies

Automate the World

Web: http://www.adlinktech.com

Service: [email protected]

Tel: +886-2-8226-5877

Fax: +886-2-8226-3337

Contents and specifications subject to change

without notice.

Contact ADLINK

Connector

Signal Connection

Configuration & ESI Generation

LinkMasterPro™ is a

Windows-based utility from

ADLINK, helping configuration

of the entire EPS system and

generating corresponding

EtherCAT slave information

(referred to ESI) in XML format.

LinkMasterPro™ automatically

detects installed EPS modules

and evaluates functionality of

the EPS system.

Connector: Phoenix Contact, DFMC series, 1787195,

pitch=3.5mm, 1x20pin, AWG 16-24 gauge

Pin Definitions

LED Indicators

Name

Status

Function

STS Blinking Temperature Protection

Module Present

PWR Lit Module Power Status

Description

01NC 11 NC

02 AO0112 AGND

03AO02 13 AGND

04 AO0314 AGND

05AO04 15 AGND

06AO0516 AGND

07 AO0617 AGND

08 AO07 18 AGND

09AO08 19 AGND

10 NC 20 NC

DAC

16-bit AMP AO[0:7]

AGND
