ADTRAN T1 CSU ACE Bedienungsanleitung

Compact T1 Network Facility Interface

Product Features

■ T1 line-conditioning and

jitter tolerance per ANSI

T1.403, T1.102 and AT&T

TR 62411

■ Supports PRI

pass through

■ Supports framed (B8ZS

or AMI) or unframed

signal formats

■ Transmits unframed

“all 1s” during signal loss

from DTE or T1 network

■ Bantam test jacks

■ Front panel status LEDs

■ 12 VDC powered

■ Desktop or wallmount

■ Industry-leading five-year

North American warranty

The ADTRAN®T1 CSU ACE™is a compact,

full-featured T1 channel service unit used to

connect T1 data terminal equipment (DTE)

and T1 facilities. The unit is designed to

provide alarms, loopbacks, signal regenera-

tion, line build out, and surge protection.

The transport signal maintains the framing

format for both the WAN and customer inter-

faces and enables ISDN PRI pass through.

The unit is suitable for wallmounting

or desktop use. Five LEDs on the front of

the unit (POWER, SYNC, NETWORK LOS,

NETWORK MANUAL and REMOTE LB,

EQ LOS, EQ MANUAL and REMOTE LB)

display the status of the unit. On the back of

the unit an eight position dip switch provides

settings for customer premises equipment

and network line build out (LBO) distances

as well as manual loopback operation. The

two network LBO switches provide four

combination settings from 0 to 22.5dB in

7.5dB increments. The three switches allotted

for the equipment LBO offer five combination

settings for PBX termination at distances up

to 655 feet. Two additional switches provide

for manual loopback (LB) in both the Equip-

ment (EQ) and Network (NET) directions.

The last switch is a spare.

The unit provides three bantam jack

pairs for testing purposes. Two pairs provide

interruptive transmit and receive access

toward the T1 network or the Data Terminal

Equipment (DTE) device. The third pair is a

non-interruptive connection for monitoring

data flowing in either direction. Two RJ-48C

modular jacks provide the network and DTE

connections. A 12 VDC wallmount power

supply that plugs into a receptacle is included

with the unit. The T1 CSU ACE also supports

wallmount applications via integrated

keyholes in the base.

For additional T1 applications, ADTRAN

provides several versions of the T1 CSU

offering various features and mounting

options. ADTRAN T1 CSU products include

the T1 ESF CSU and the rackmounted

T1 ESF CSU Smart 16 Card.

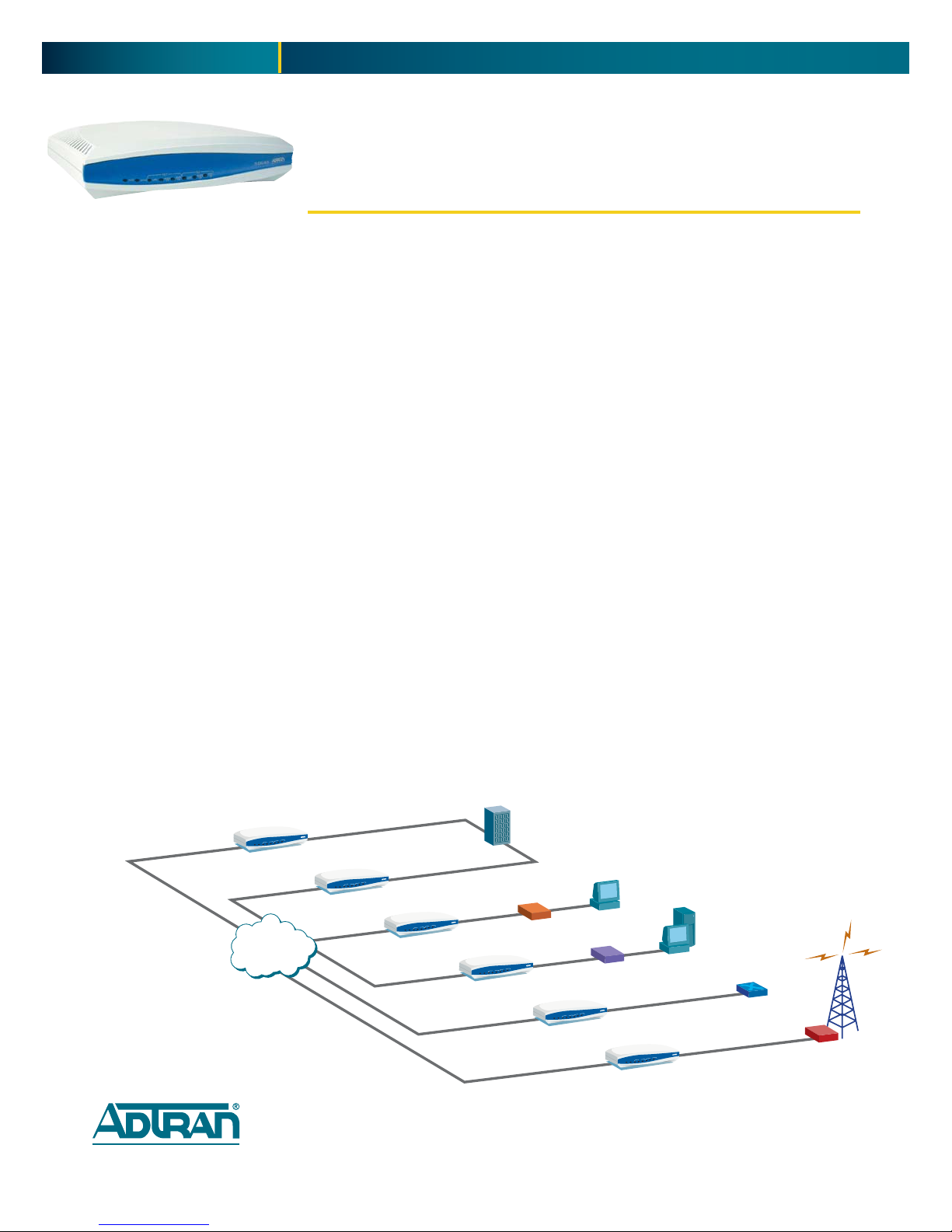

T1 CSU ACE

DSX-1

T1/FT1

Router

T1 CSU ACE

Network

PBX

Host/FEP

T1/FT1

T1 CSU ACE

T1/FT1

T1 CSU ACE

T1/FT1

Dial Backup

Channel Bank

Microwave

Radio

T1 CSU ACE

T1CSUACE

NET

SYNC

PWR

LOS

MAN

RMT

LOS

MAN

RMT

T1CSUACE

NET

SYNC

PWR

LOS

MAN

RMT

LOS

MAN

RMT

T1CSUACE

NET

SYNC

PWR

LOS

MAN

RMT

LOS

MAN

RMT

T1CSUACE

NET

SYNC

PWR

LOS

MAN

RMT

LOS

MAN

RMT

T1CSUACE

NET

SYNC

PWR

LOS

MAN

RMT

LOS

MAN

RMT

T1CSUACE

NET

SYNC

PWR

LOS

MAN

RMT

LOS

MAN

RMT

T1 CSU ACE

Compact T1 Network Facility Interface

LED Indicators

■ Power

■ Sync

■ Network Loss of Signal

■ Network Manual and Remote Loopback

■ Equipment Loss of Signal

■ Equipment Manual and Remote Loopback

Mounting

■ Desktop or Wallmount

Compliance

■ FCC Part 15, Class B

■ FCC Part 68

■ Industry Canada CS03

■ UL 1950, third edition

■ CUL

Environment

Operating Temperature

■ 0° to 50°C, (32° to 122°F)

Storage Temperature

■ -20° to 70°C, (-4° to 158°F)

Relative Humidity

■ Up to 95%, non-condensing

Physical

Dimensions

■ 1.45" H, 4" D, 6.7" W

Weight

■ 12.8 oz

Power

■ 12 VDC

Product Includes

■ 115 VAC to 12 VDC power supply

■ RJ-45 cable

■ User manual

Ordering Information

Equipment Part #

T1 CSU ACE 1203022L1

12 VDC Replacement Power Supply 1903022L1

19” Rackmount Shelf for Two Units 1200412L1

Product Specifications

Network Interface

Line Rate

■ T1/FT1 (1.544 Mbps)

Physical Interface

■ RJ-48C: 8-pin modular

Specifications

■ AT&T TR62411

■ ANSI T1.403

Framing

■ D4 (SF)/ESF

Line Code

■ AMI/B8ZS

ESF Format

■ Transparent

Input Signal

■ 0 to -36dB, Auto sensitivity setting

Transmission Type

■ Regenerative transparent toward

network and toward DTE

■ Transparent mode enables PRI pass through

Equipment Interface

Electrical

■ DSX-1

Compliance

■ ANSI T1.102

Receiver Performance

■ Line build out for 0 –655 ft

Keep Alive Signal

■ Unframed all 1s on loss of signal from DTE

User Options

Option Switches

■ Network loopback

■ Equipment loopback

■ Network Line Build Out (0, 7.5, 15, 22.5dB)

■ Equipment Line Build Out (0 –133, 134–265,

266–399, 400–533, 534–655 ft)

Test Jacks

■ Interruptive test signal access network and DTE

■ Non-interruptive signal receive monitor for

network and DTE

ADTRAN, Inc.

Attn: Enterprise Networks

901 Explorer Boulevard

Huntsville, AL 35806

P.O. Box 140000

Huntsville, AL 35814-4000

256 963-8000 voice

256 963-8699 fax

General Information

800 9ADTRAN

[email protected]

www.adtran.com

Pre-Sales

Technical Support

800 615-1176 toll-free

[email protected]

www.adtran.com/support

Where to Buy

877 280-8416 toll-free

[email protected]

www.adtran.com/where2buy

Post-Sales

Technical Support

888 423-8726

[email protected]

www.adtran.com/support

ACES Installation &

Maintenance Service

888 874-ACES

[email protected]

www.adtran.com/support

International Inquiries

256 963 8000 voice

256 963-6300 fax

[email protected]

www.adtran.com/international

For the regional office

nearest you, visit:

www.adtran.com/where2buy

61203022L1-8C February 2006

2006 ADTRAN, Inc.

ADTRAN is an ISO 9001, ISO 14001,

and a TL 9000 certified supplier

Specifications subject to change without notice. T1 CSU ACE is a trademark of ADTRAN, Inc.

ADTRAN is a registered trademark of ADTRAN, Inc. All registered trademarks and trademarks

mentioned in this publication are the property of their respective owners.
