ADTRAN ATLAS 550 Bedienungsanleitung

An easy, step-by-step procedure for

configuring an ATLAS™550 for WAN emulation

of ISDN (PRI, E1/PRA, BRI‘U’, BRI ‘S/T’),

analog POTS, and Frame Relay circuits.

Cisco Academy ATLAS 550

Configuration Guide

An ADTRAN Quick Start Guide

For Frame Relay WAN emulation, both fully meshed and hub-and-

spoke networks can be configured using the RFC 1490/IETF protocol.

The ATLAS 550 supports 1–10 Frame Relay circuits (300 DLCIs).

As an ISDN switch, the ATLAS 550 can emulate both BRI and PRI

dial-up networks. Both BRI and PRI support multiple switch types

like the DMS 100, Lucent 5E and National ISDN, with additional

support for the Lucent 4E switch with PRI. The ATLAS 550 can also

emulate EuroISDN switches using the Net 5 Protocol for E1/PRA

circuits and the Net 3 Protocol for BRI ‘S/T’ and ‘U’ circuits.

Supporting analog FXS circuits, the ATLAS 550 can provide 1–32

loop start lines.

ADTRAN offers CCNA®and CCNP®instructors this guide in configur-

ing the ATLAS 550 for WAN emulation. For more information about

the ATLAS product series or additional instructions, call ADTRAN

application engineer at 800 615-1176.

Router

V.35

Router

BRI S/T

POTS

SPIDs (Net 3)

SPIDless (Net 3)

BRI S/T

Videoconference

Equipment

Frame Relay

Analog POTS

EuroISDN

ISDN

ATLAS

ATLAS550

1234

STA

TUS

ONLINE

TES

MODULES

NETWORK

TEST

ERROR

ALARM

POWER

ETH

ERNET

REMOTE

SYSTEM

CRAFT

ACO

Router

PRI

BRI

Router

BRI

Router

E1/PRA

(Net 5)

Router

Modem

POTS

Phone

RAS

Acting like a central office switch, the ATLAS 550 can emulate Frame Relay,

ISDN and analog circuits. Network engineers, design and test engineers

and classroom instructors can easily stage real-world circuits and “what if ”

scenarios, test new technologies, or configure equipment without purchasing

live circuits or incurring toll charges from a carrier.

Introduction

Cisco Academy ATLAS 550 Configuration Guide •10

12•Cisco Academy ATLAS 550 Configuration Guide

ATLAS 550 ISDN BRI Switch Emulation

Step 1 – Create the

Dial Plan User

Termination for the

BRI line and select

Slot/Port

Step 3 – Assign

the ISDN switch

type for the

BRI line

Step 2 – Assign the

phone numbers for

the BRI line in the

“Incoming Number

Accept” list

Step 4 – Assign

the LDNs (phone

numbers) and

SPIDs for the

BRI line

Step 1 – Create the

Dial Plan User

Termination, select

Slot/Port, and PRI

Signaling

Step 3 – Assign the

ISDN switch type

for the PRI line

Step 2 – Assign the

phone number(s) for

the PRI line in the

“Incoming Number

Accept” list

ATLAS 550 ISDN PRI Switch Emulation

Cisco Academy ATLAS 550 Configuration Guide •31

Step 1 – Create

Packet Endpoints

and select Frame

Relay Protocol

for each Frame

Relay Link

Step 3 – Create

DLCIs for the PVCs

to other locations

(Orlando to Atlanta,

Orlando to Houston)

Step 2 – Assign

Signaling Role to

“Network” and

Signaling Type

(Annex D)

Step 4 – Create the

PVCs by connecting

Packet Endpoints/

Sublinks together in

“Packet Cncts”

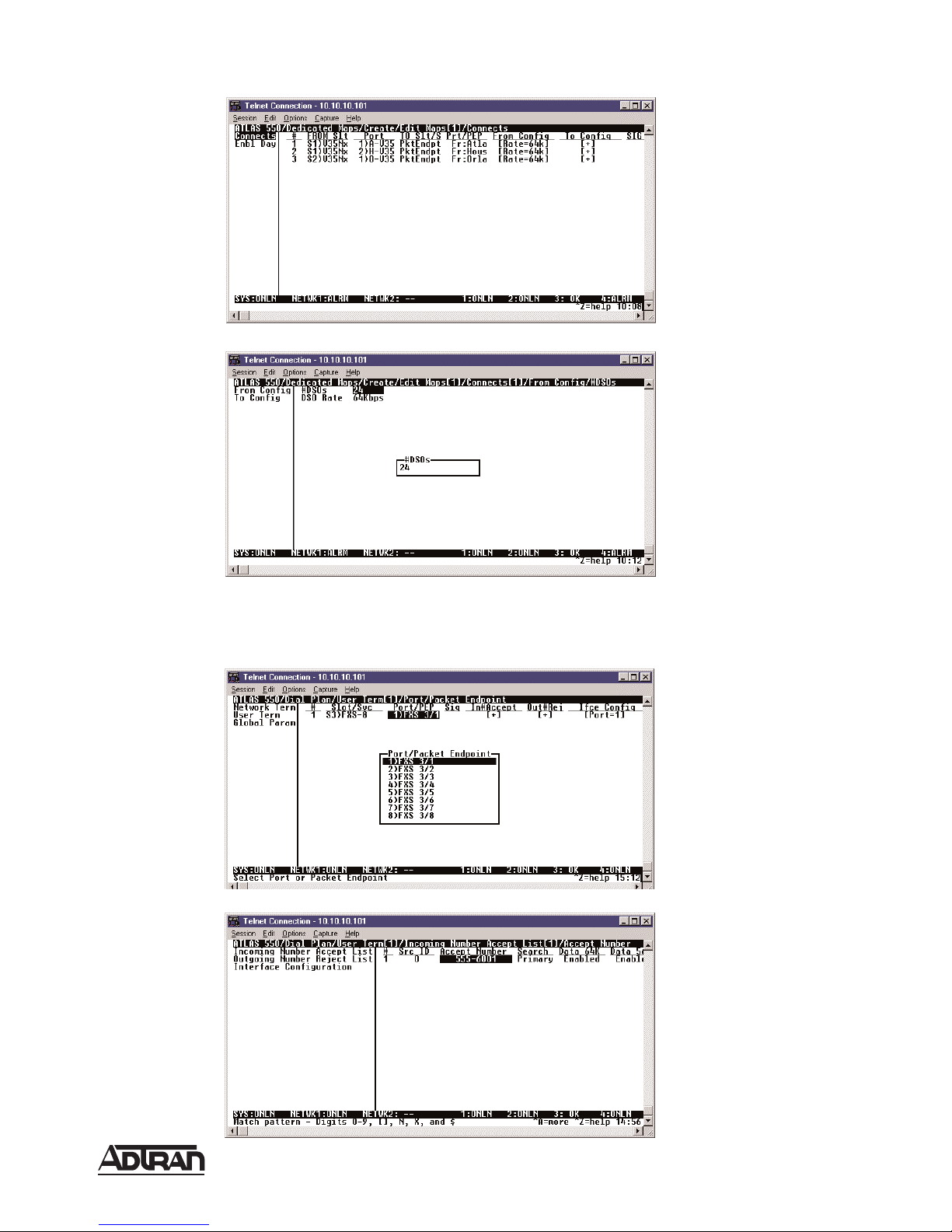

ATLAS 550 Frame Relay Switch Emulation

14 •Cisco Academy ATLAS 550 Configuration Guide 0

Step 5 – Map each

Packet Endpoint

(Frame Relay Link)

to a V.35 Slot/Port

Step 1 – Create

the Dial Plan User

Termination for the

Analog line and

select Slot/Port

Step 6 – Assign

bandwidth to

each V.35 Slot/Port

for each Frame

Relay Link

Step 2 – Assign the

phone number for

the Analog line

in the “Incoming

Number Accept” list

AT LAS 550 Analog POTS Switch Emulation

Cisco Academy ATLAS 550 Configuration Guide •51

16 •Cisco Academy ATLAS 550 Configuration Guide 0

Step 1 – Create

the Dial Plan User

Termination and

select Slot/ Port ;

PRA Signaling is

auto-configured

Step 3 – Note the

ISDN Switch Type

of “TSI/DSS1” is

automatically

configured

Step 2 – Assign the

phone number(s) for

the PRA circuit in the

"Incoming Number

Accept" list

ATLAS 550 E1/PRA (EuroISDN) Switch Emulation

Cisco Academy ATLAS 550 Configuration Guide •71

Step 1 – Create the

Dial Plan User

Termination for the

BRI circuit and

select Slot/Port

Step 3 – Assign the

ISDN Switch Type

(such as EuroISDN)

for the BRI circuit

Step 2 – Assign the

phone numbers for

the BRI circuit in the

“Incoming Number

Accept” list

Step 4 – Assign the

phone numbers for

the BRI circuit

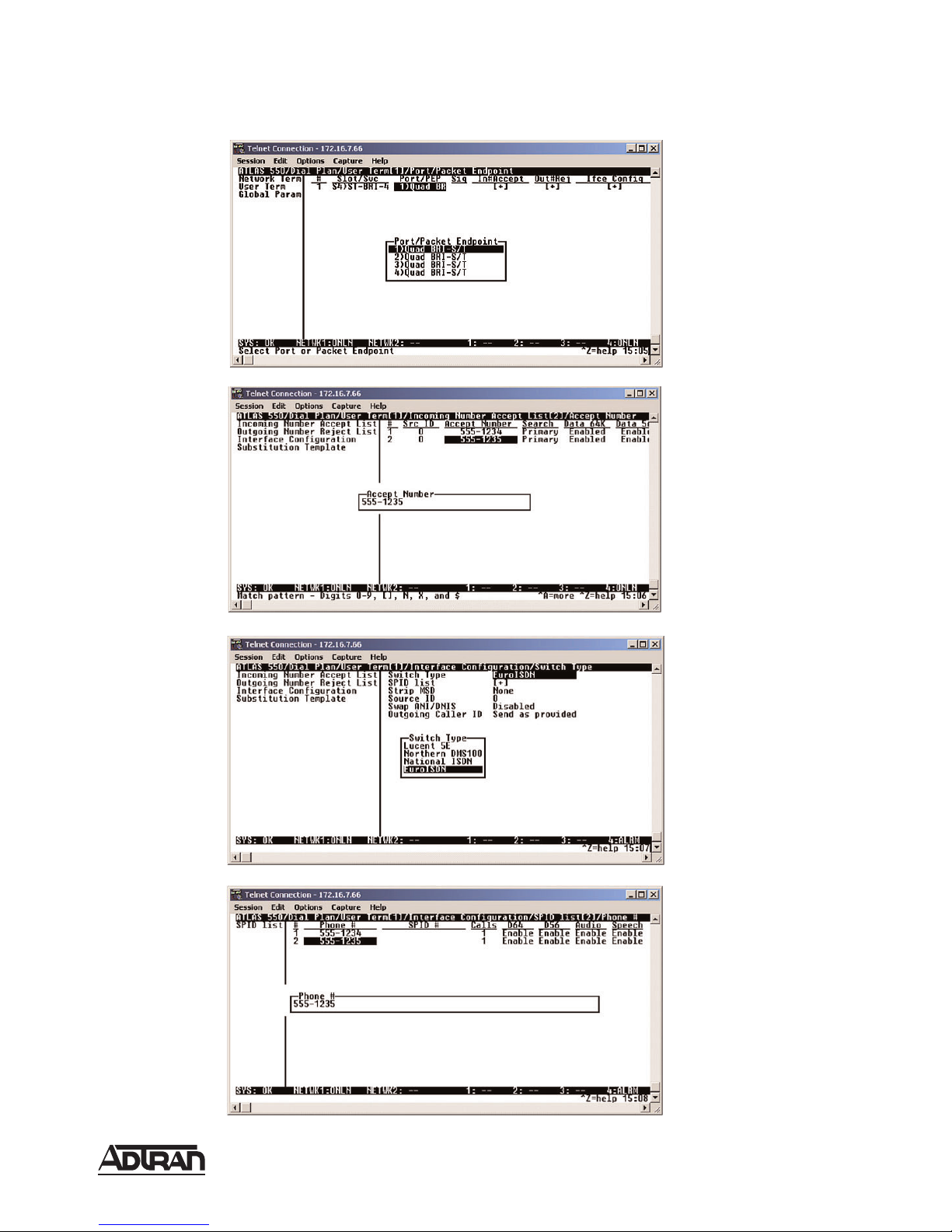

ATLAS 550 ISDN BRI S/T (EuroISDN) Switch Emulation

•Cisco Academy ATLAS 550 Configuration Guide 0

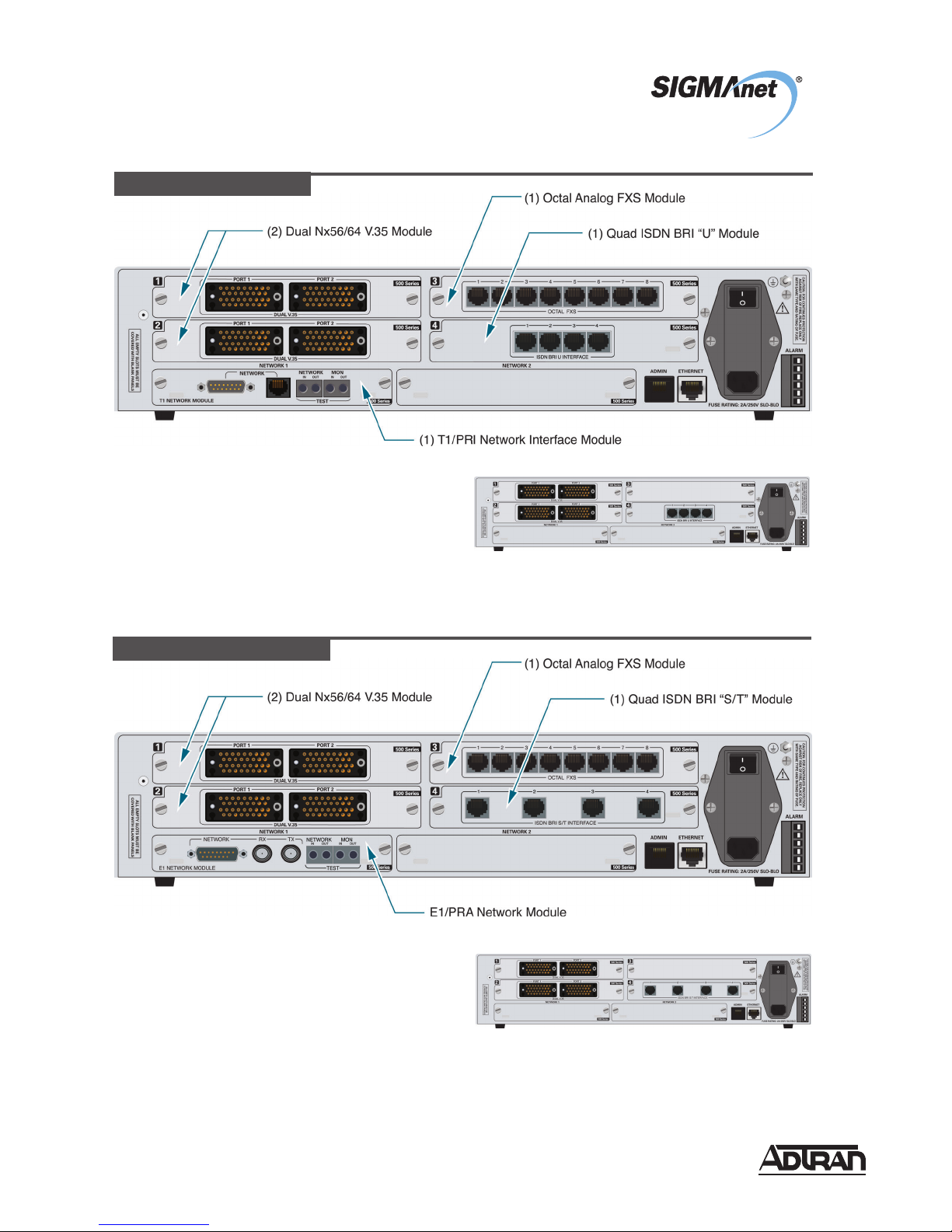

ATLAS 550 – WAN Emulation

Configuration Options

Domestic Bundles

International Bundles

CCNP Domestic

CCNA Domestic: Same as CCNP bundle without the T1/PRI

Network Interface Module and Octal Analog FXS Module.

CCNP International

CCNA International: Same as CCNP bundle without the E1/PRA

Network Interface Module and Octal Analog FXS Module.

Cisco Academy ATLAS 550 Configuration Guide •

SIGMAnet Brent Knox

732 N. Diamond Bar Blvd. Tel: (909) 396-4278

Diamond Bar, CA 91765 [email protected]

Toll-Free: (866) 554-5535

Tel: (909) 861-7500

Fax: (909) 861-8106

[email protected]

www.networkingacademy.adtran.com

ATLAS 550 Dual Nx56/64

V.35 Module

ATLAS 550 E1/PRA

Network Interface Module

ATLAS 550 Quad BRI “U”

Module

ATLAS 550 Octal FXS

Module

ATLAS 550 T1/PRI

Network Interface Module

At SIGMAnet, we serve as the exclusive ADTRAN supplier to all of Cisco’s

Networking Academies worldwide, providing:

• Professional and Responsive Salespeople

• Pre-Negotiated Volume Pricing Structure

• Bundle Stocking

• Free Shipping within the U.S.

For any additional ADTRAN parts, please contact:

ATLAS 550 Quad BRI “S/T”

Module

ATLAS 550
