PCE-5B09-06 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. PCE-5B09-06 Startup Manual

2. M4*6*0.7 Round Screws (20 pcs) p/n: 1939000410

3. 2 Year Quality Warranty Card p/n: 2190000902

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Standard Functions

• PICMG 1.3 slots:

PCE-5B09-06 supports PCE-5xxx & PCE-7xxx CPU

boards

• PCIe slots:

PCE-5B09-06 supports one PCIe x 16 slot and one PCIe

x 4 slot

• 32-bit PCI:

Six 32 Bit / 33 MHz PCI slots

• USB (2.0) support:

Four USB 2.0 ports pin headers

Mechanical and Environment

• Dimensions: 222.35 mm x 327.61mm

• Power supply voltage: +12 V, +5 V, -12 V, -5 V, +3.3 V,

+5 V SBY

• Power requirements: Refer to the CPU Board, add-on

Card & Peripherals

• Operating temperature: 0 ~ 60° C

• Weight: 0.43 KG (weight of board)

The table below lists the function of each of the jumpers and

connectors:

PCE-5B09-06 Backplane: 9-slot BP for 10-slot

Chassis, 1 PICMG 1.3, 2 PCIe, 6 32-bit PCI

Startup Manual

Connectors

Label Function

SHBA1 ~ SHBD1 PICMG1.3 CPU board slot

PPCIEX4_1 PCIe x 4 slot

PPCIEX16_2 PCIe x 16 slot

PPCI1 ~ PPCI3 32 Bit / 33 MHz PCI Bus slot

P1PCI1 ~ P1PCI3 32 Bit / 33 MHz PCI Bus slot

EATXPWR1 ATX 2.0 24-pin Power Connector

ATX12V1 ATX 12V 4-pin Power Connector

PWR3V1 Extension 3.3 V 6-pin Power

Connector for PCI slots

EATX12V1 Extension ATX 12 V 8-pin Power

Connector

VOLT1 Alarm board / CMM Power Connector

FAN1 ~ FAN7 FAN Connector

FANDEC1 FAN speed detector Connector

SMBUS1 SMBus Connector for chassis monitor

SMBUS2 SMBus Connector for chassis monitor

JFP1 Power and Reset button Connector

IPMB1 IPMB Connector

USB12 Two USB port pin header

USB34 Two USB port pin header

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/ePlatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the PCE-5B09-06 series Rev.A1

Part No. 20065B0910

Printed in China

1st Edition

March 2012

Connectors & Jumpers

Specications

2 PCE-5B09-06 Startup Manual

EATXPWR1

21 5 V

22 5 V

23 5 V

24 GND

ATX12V1

Pin Name

1 GND

2 GND

3 12 V

4 12 V

PWR3V1

Pin Name

1 3.3 V

2 3.3 V

3 3.3 V

4 GND

5 GND

6 GND

VOLT1

Pin Name

1 5 V SBY

2 GND

3 GND

4 -5 V

5 5 V

6 3.3 V

7 -12 V

8 12 V

FAN1 ~ FAN7

Pin Name

1 GND

2 12 V

3 FANIO1 ~ FANIO7

Jumpers

Label Function

PSON1 ATX / AT Mode Selection

1-2 closed pins

AT Mode

2-3 closed pins

ATX Mode (Default)

JP1 & JP2 PCI Bridge Voltage Selection

Setting 5 V voltage to PCI slot

Setting 3.3 V voltage to PCI slot

(Default)

EATXPWR1

Pin Name

1 3.3 V

2 3.3 V

3 GND

4 5 V

5 GND

6 5 V

7 GND

8 Power OK

9 5 V SBY

10 12 V

11 12 V

12 3.3 V

13 3.3 V

14 -12 V

15 GND

16 PSON#

17 GND

18 GND

19 GND

20 N/C

Connectors & Jumpers (Con.)

1 2 3

123

1 2 3

123

PCE-5B09-06 Startup Manual 3

Connectors & Jumpers (Con.)

FANDEC1

Pin Name

1 FANIO1

2 FANIO2

3 FANIO3

4 FANIO4

5 FANIO5

6 FANIO6

7 FANIO7

SMBUS1 ~ SMBUS2

Pin Name

1 5 V

2 C-SMBBUS

3 C-SMBDAT

4 GND

IPMB1

Pin Name

1 IPMB_CLK

2 IPMB_DAT

3 GND

USB12

Pin Name

1 USBV0

2 USBV0

3 USBD0-

4 USBD1-

5 USBD0+

6 USBD1+

7 GND

8 GND

9 Null

10 GND

USB34

Pin Name

1 USBV1

2 USBV1

3 USBD2-

4 USBD3-

5 USBD2+

6 USBD3+

7 GND

8 GND

9 Null

10 GND

JFP1

Pin Name

1 PWRBTN

2 GND

3 RESET

4 GND

EATX12V1

Pin Name

1 GND

2 GND

3 GND

4 GND

5 12 V

6 12 V

7 12 V

8 12 V

4 PCE-5B09-06 Startup Manual

Locating Connectors & Jumpers

Figure 1: Locating Connectors

PCE-5B09-06 Startup Manual 5

Board Dimensions

Figure 2: Mechanical Drawing

6 PCE-5B09-06 Startup Manual

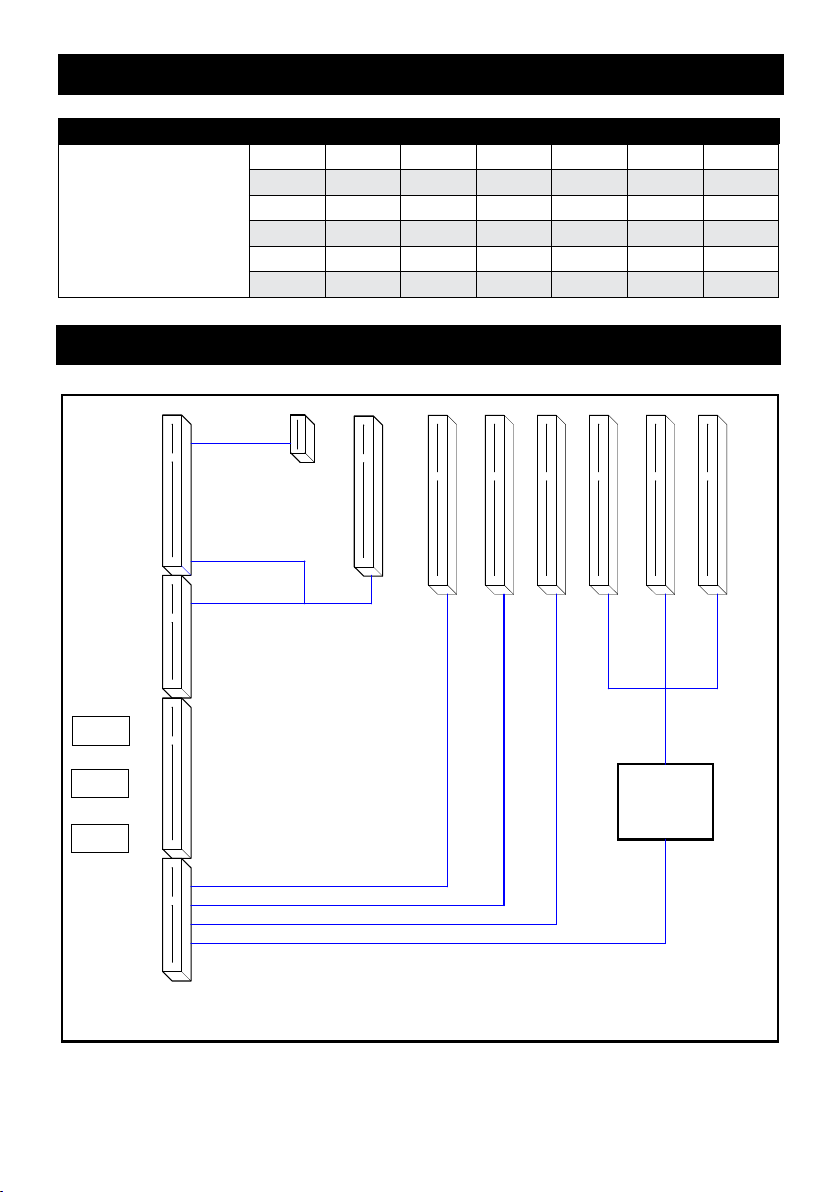

Board Diagram

Figure 3: Block Diagram

PCI Routing Tables

PCI 32-bit

PCI Interrupt Pin Route

PCI Slot PPCI1 PPCI2 PPCI3 P1PCI1 P1PCI2 P1PCI3

IDSEL AD 31 AD 30 AD 29 S_AD20 S_AD21 S_AD22

INT A INT B INT C INT D INT A INT B INT C

INT B INT C INT D INT A INT B INT C INT D

INT C INT D INT A INT B INT C INT D INT A

INT D INT A INT B INT C INT D INT A INT B

PICMG 1.3 CONNECTOR "C" PICMG 1.3 CONNECTOR "A"

PICMG 1.3 CONNECTOR "D" PICMG 1.3 CONNECTOR "B"

PCI 32-bit/33MHz P2PCI4

Pericom

PI7C8152B

PCI BUS USBX4, IPMI, POWER PCI-EXPRESS X8 PCI-EXPRESS X8, AND X4

32-bit/33MHz P1PCI

PCI-Ex16

PCI-Ex4

SHB

USB X4

SATA X2

IPMB X1

PICMG_v1.3 BACKPLANE

PPCI1

PPCIE1 PPCIE2 PPCI2 PPCI3 P1PCI1 P1PCI2 P1PCI3
