Advantech PCE-5B12-07 Installations- und Betriebshandbuch

PCE-5B12(7B13)-07 Startup Manual 1

Before you begin installing your card, please make sure that

the following materials have been shipped:

• One 2 ports USB cable

• PCE-5B12(7B13)-07 Startup Manual

• M4*6*0.7 Round Screws (20 pieces)

• 2-year quality warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Standard Functions

• PICMG 1.3 Slot:

- PCE-5B12-07 supports PCE-50XX/51XX/71XX CPU

Cards

-PCE-7B13-07 supports PCE-51XX/71XX CPU Cards

• PCIe Slots:

- PCE-5B12-07: 1 PCIe x16, 3 PCIe x4

- PCE-7B13-07: 2 PCIe x8, 3 PCIe x4

• 32-bit PCI Slots:

-PCE-5B12-07: 7 32-bit/33-MHz PCI

- PCE-7B13-07: 7 32-bit/33-MHz PCI

• USB (2.0) support: Four Universal Serial Bus ports to

Backplane

Note: Some add-on cards installed on this backplane

may cause CPU card BIOS resource allocation

problems, if this occurs please contact Advan-

techtechnicalsupportsta󰀨forhelpinsolvingthe

problems.

PCE-5B12(7B13)-07 Backplane: 12(13)-slot BP for 14-

Slot Chassis, 1 PICMIG 1.3, 4(5) PCIe, 7 32-bit PCI

Startup Manual

Mechanical and Environment

• Dimensions: 327.66 x 315.45 mm

• Power supply voltage: +12 V, +5 V, -12 V, -5 V, +5 V

SBY, +3.3 V

• Power requirements: Depends on the CPU board,

addon card & peripherals

• Operating temperature: 0 ~ 60°C

This table shows the function of each jumper and con-

nector:

Connectors

Label Function

SHBA1~SHBD1 PICMG1.3 CPU board slot

PPCIE2 PCIe x 16 slot (only on PCE-5B12-07)

PPCIE1, PPCIE2 PCIe x8 slots (only on PCE-7B13-07)

P1PCIE1~P1PCIE3 PCIe x4 slots

P1PCI1~ P1PCI3 32 Bit/33 MHz PCI bus slots

P2PCI1~P2PCI4 32 Bit, 33/66MHz PCI bus slots

EATXPWR1 ATX2.0 24-pin power connector

EATX12V1 ATX 12V Auxiliary 8-pin power con-

nector

ATX12V1 ATX 12V 4-pin power connector

PWR3V1 3.3V auxiliary power connector

PWR3V2 3.3V auxiliary power connector

VOLT1 Alarm board/CMM power connector

FAN1~7 FAN Connector

FANDEC1 FAN speed detector connector

(optional)

SMBUS1~SMBUS3 System management bus (optional)

JFP1 Power and reset button connector

IPMB1 IPMB connector (optional)

USB12 Two USB port pin header

USB34 Two USB port pin header

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

https://www.advantech.com/support

This manual is for the PCE-5B12-07(PCE-7B13-07)

series.

Part No. 200K5B1212

Printed in China

3rd Edition

February 2023

Specications

Specications(Cont.)

Connectors and Jumpers

2 PCE-5B12(7B13)-07 Startup Manual

Jumpers

Label Function

PSON1 ATX/AT mode selection

JPCICLK1 Primary 2 PCI bus freq. selection

EATXPWER1

Pin Name

1 3.3 V

2 3.3 V

3 GND

4 5 V

5 GND

65 V

7 GND

8 Power OK

95 V SBY

10 12 V

11 12 V

12 3.3 V

13 3.3 V

14 -12 V

15 GND

16 PSON#

17 GND

18 GND

19 GND

20 -5 V

21 -5 V

22 5 V

23 5 V

24 GND

ATX12V1

Pin Name

1 GND

2 GND

3 12 V

4 12 V

EATX12V1

Pin Name

1 GND

2 GND

3 GND

4 GND

5 12 V

612 V

7 12 V

8 12 V

PWR3V1 & PWR3V2

Pin Name

1 3.3V

2 3.3V

3 3.3V

4 GND

5 GND

6GND

VOLT1

Pin Name

1 5 V SBY

2 GND

3 GND

4 -5 V

5 5 V

63.3 V

7 -12 V

8 12 V

Connectors and Jumpers (Cont.) Connectors and Jumpers (Cont.)

PCE-5B12(7B13)-07 Startup Manual 3

FAN1~FAN7

Pin Name

1 GND

2 12 V

3 FANIO1~FANIO7

FANDEC1

Pin Name

1FANIO1

2 FANIO2

3 FANIO3

4 FANIO4

5 FANIO5

6FANIO6

7 FANIO7

SMBUS1~SMBUS3

Pin Name

15 V

2 C-SMBBUS

3 C-SMBDAT

4 GND

IPMB1

Pin Name

1IPMB_CLK

2 IPMB_DAT

3 GND

USB12

Pin Name

1USBV0

2 USBV0

3 USBD0-

4 USBD1-

5 USBD0+

6USBD1+

7 GND

8 GND

9Null

10 GND

USB34

Pin Name

1USBV2

2 USBV2

3 USBD2-

4 USBD3-

5 USBD2+

6USBD3+

7 GND

8 GND

9Null

10 GND

PSON1: ATX/AT Mode Selection

Setting Function

1-2 AT Mode

2-3* ATX Mode

* Default

JFP1

Pin Name

1VCC

2 PWRBTN

3 RESET#

4 GND

123

1 2 3

Connectors and Jumpers (Cont.) Connectors and Jumpers (Cont.)

4 PCE-5B12(7B13)-07 Startup Manual

JPCICLK1: Primary 2 PCI Bus freq. selection

Jumper setting Function LED

1-2 closed pins 33/36 MHz Auto Detect ON

2-3 closed pins 33 MHz OFF

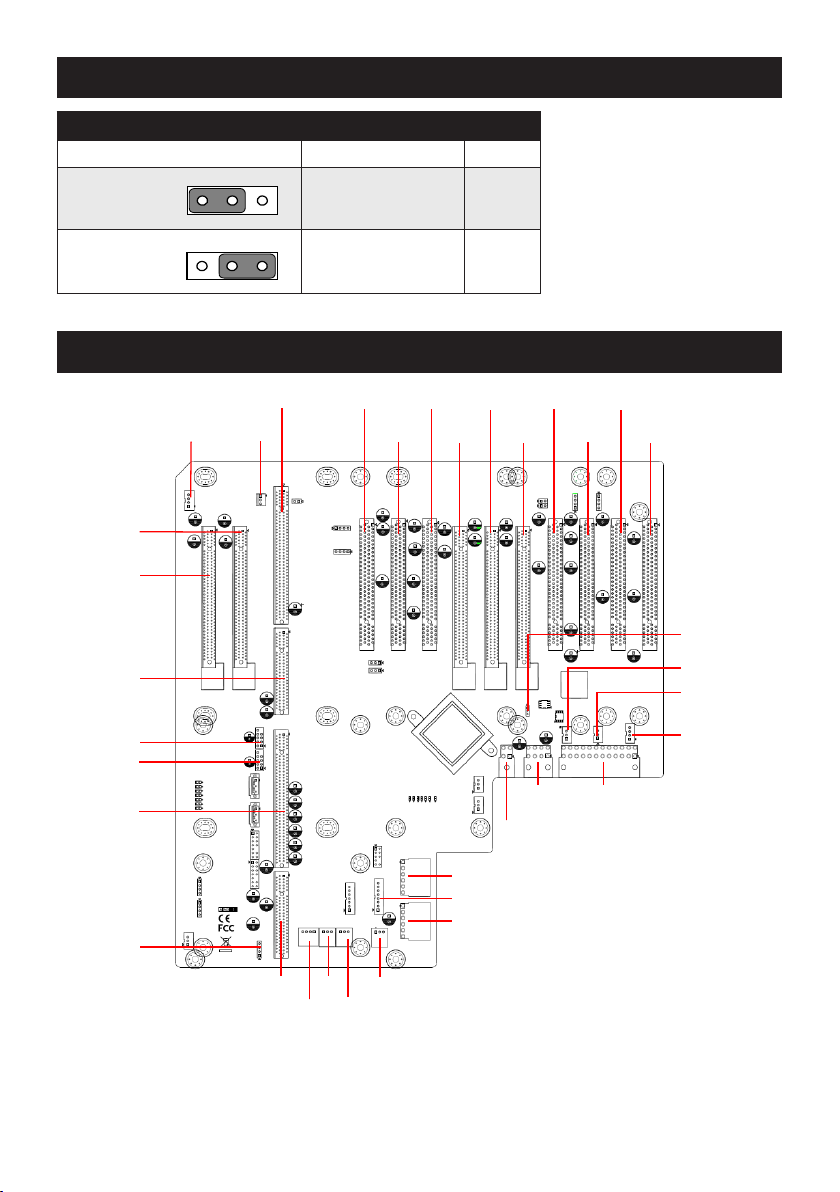

Figure 1: Board Layout

Note: Some add-on cards installed on this backplane may cause CPU card BIOS resource allocation problems, if this

occurspleasecontactAdvantechtechnicalsupportsta󰀨forhelpinsolvingtheproblems.

123

1 2 3

PPCIE1

PPCIE2

SHBB1

SHBA1

SMBUS2 FAN7

USB12

USB34

JFP1

SHBC1

SHBD1

SMBUS1

FAN1

FAN2

PSON1

VOLT1

PWR3V1

PWR3V2

FAN3

FAN4

ATX12V1

EATX12V1 EATXPWR1

FAN5

FAN6

SMBUS3

P1PCI1

P1PCI2

JPCICLK1

P1PCI3

P1PCIE1

P1PCIE2

P1PCIE3

P2PCI1

P2PCI2

P2PCI3

P2PCI4

Board Layout

Connectors and Jumpers (Cont.)

PCE-5B12(7B13)-07 Startup Manual 5

Figure 2: Board Dimensions

0.00 [0.000]

25.45 [1.002]

5.13 [0.202]

51.82 [2.040]

78.74 [3.100]

101.37 [3.991]

124.46 [4.900]

109.29 [4.303]

129.61 [5.103]

149.93 [5.903]

167.69 [6.602]

188.01 [7.402]

195.91 [7.713]

202.97 [7.991]

208.33 [8.202]

231.21 [9.103]

243.61 [9.591]

251.53 [9.903]

260.41 [10.252]

271.85 [10.703]

281.71 [11.091]

292.17 [11.503]

297.44 [11.710]

18.01 [0.709]

0.00 [0.000]

10.16 [0.400]

0.00 [0.000]

9.15 [0.360]

35.18 [1.385]

31.12 [1.225]

35.18 [1.385]

31.12 [1.225]

22.86 [0.900]

100.84 [3.970]

154.88 [6.098]

160.65 [6.325]

154.94 [6.100]

160.65 [6.325]

194.84 [7.671]

243.50 [9.587]

195.91 [7.713]

202.97 [7.991]

243.61 [9.591]

260.41 [10.252]

281.71 [11.091]

227.33 [8.950]

0.23 [0.009]

5.31 [0.209]

78.74 [3.100]

101.37 [3.991]

124.23 [4.891]

178.91 [7.044]

250.19 [9.850]

258.57 [10.180]

166.88 [6.570]

304.80 [12.000]

312.42 [12.300]

317.50 [12.500]

150.65 [5.931]

Board Dimensions

6 PCE-5B12(7B13)-07 Startup Manual

Figure 3: Board Diagram

Board Diagram

PCE-5B12(7B13)-07 Startup Manual 7

PCI 32-bit from ICH

PCI Interrupt

Pin Route

PCI Slot P1PCI1 P1PCI2 P1PCI3

IDSEL AD31 AD30 AD29

INTA INTB INTC INTD

INTB INTC INTD INTA

INTC INTD INTA INTB

INTD INTA INTB INTC

PCI 32-bit from PCI Bridge

PCI Interrupt

Pin Route

PCI Slot P2PCI1 P2PCI2 P2PCI3 P2PCI4

IDSEL AD20 AD21 AD22 AD23

INTA INTA INTB INTC INTD

INTB INTB INTC INTD INTA

INTC INTC INTD INTA INTB

INTD INTD INTA INTB INTC

PCI Routing Table
