Advantech USC-130 Series Installations- und Betriebshandbuch

USC-130

Series

Startup

Manual

*Please use only VESAcompatible mounting

–detailed table stand & wall mount datasheet available

to download at Advantech’s website.

Power On Computer

1. Connect an adaptor with input voltage rated 12V/3A for all USC-130 series.

2. Be sure to always handle power cords by holding plug ends only. Please refer to

I/O ports section above to find the DC/AC inlet and power switch.

3. Be sure screen light up and running process

RFID Embedded

(optional)

Appearance

Rear

V

iew

I/O Appearance

Front View

Power On Computer

Camera embedded (Optional )

Touch Panel &

LCD Display

Cable Cover

Please read these safety instructions carefully and follow these instructions for use.

Repair of the device may only be carried out by trained service personnel. Advantech

recommends that a service contract be obtained with Advantech service and that all

repairs also be carried out by them; otherwise the correct functioning of the device

may be compromised.

WARNING!

Because of the danger of electric shock, never remove the cover of a device while it

is in operation or connected to a power outlet.

If one of the following situations arise, have the equipment checked by service

personnel:

•The power cord or plug is damaged.

•Liquid has penetrated the equipment.

•The equipment has been exposed to moisture.

•The equipment does not work well, or you cannot get it to work according to the

user’s manual.

•The equipment has been dropped and damaged.

•The equipment has obvious signs of breakage. Disconnect this equipment from

any AC outlet before cleaning.

•Use a damp cloth. Do not use liquid or spray detergents for cleaning and keep

this equipment away from humidity

CAUTION! To avoid short-circuits and otherwise damaging the device, do not allow

fluids to come in contact with the device. If fluids are accidentally spilled on the

equipment, remove the affected unit from service as soon as possible and contact

service personnel to verify that patient safety is not compromised. If your computer

clock is unable to keep accurate time or the OS configuration resets to default,

please check the battery.

CAUTION! Do not replace the battery yourself. Please contact a qualified technician

or your retailer.

The computer is provided with a battery-powered real-time clock circuit. There is a

danger of explosion if battery is incorrectly replaced. Replace

Safety

Instructions

only with same or equivalent type recommended by the manufacturer. Discard used

batteries ac- cording to the manufacturer’s instructions.

VESA Mount Dimension

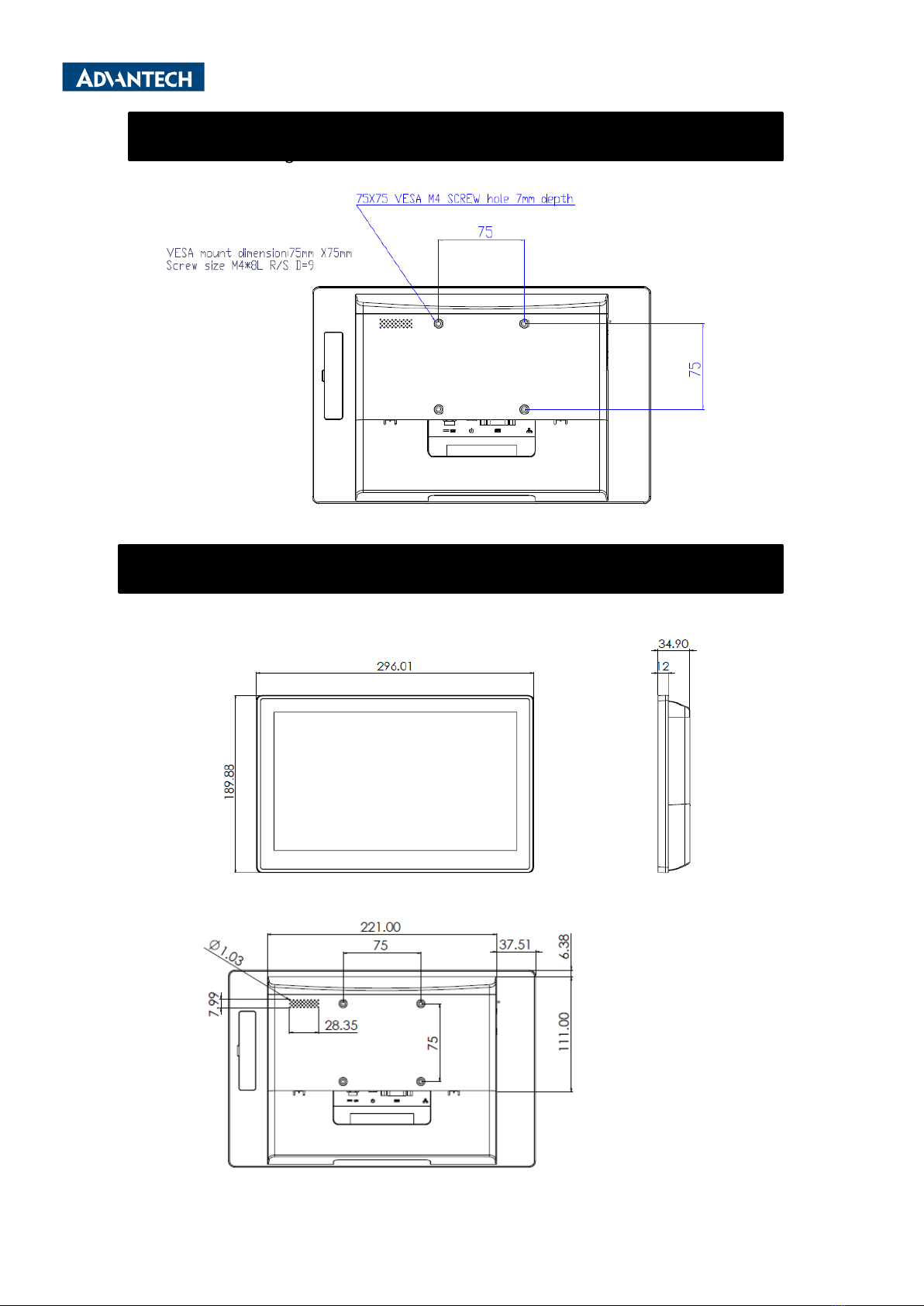

Mechanical Drawing & Opening Drawing

VESA mount dimension: 75mm x 75mm

Screw size: M4*8L R/S D=9
