Advantech AIMB-213 Installations- und Betriebshandbuch

AIMB-213 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. AIMB-213 Intel®Atom™ N455/D525 Mini-ITX

motherboard

2. SATA HDD cable x 3

3. SATA Power cable x 3

4. Serial port cable (1 to 4) x 1

5. I/O port bracket x 1

6. Startup manual x 1

7. Driver CD x 1

8. Warranty card x 1

9. CPU cooler (for Atom™ D525 only)

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader may be used to view any PDF le on

the CD. Acrobat Reader can be downloaded at:

www.adobe.com/Prodindex/acrobat/readstep.html (Acrobat

is a trademark of Adobe).

AIMB-213 (Intel

Atom™ N455/D525 1.66/1.8 GHz

Mini-ITX with VGA/DVI/LVDS, 6 COM, Dual LAN,

8 USB, Mini PCIe)

Startup Manual

Standard SBC functions

• CPU: Intel®Atom™ processor N455/D525 1.66/1.8 GHz

• BIOS: Award 16 Mbit SPI

• Chipset: ICH8M

• System Memory: Up to 2 GB/4 GB; 204-pin SODIMM x

2, Single-channel 800 MHz DDR3

• SATA2 Interface: Three onboard Serial ATA connectors

and data transfers up to 300 MB/s

• CF interface: Supports compact ash Type II

• Serial ports: Six serial ports, COM1, COM3, COM4,

COM5 and COM6 are RS-232; COM2 is RS-232/422/485

• Keyboard/mouse connector: Supports one standard

PS/2 keyboard, one standard PS/2 mouse(On board 6pin

wafer box)

• Watchdog timer: 1~255 level timer intervals

• USB 2.0: Supports up to eight USB 2.0 ports, four exter-

nal ports and four onboard pin headers

• GPIO: 8-bit general purpose Input/Output

Graphic Interface

• Controller: Embedded Gen3.5+ GFX Core, 200/400 MHz

render clock frequency for N455/D525

• Display memory: Dynamically shared system memory

up to 224 MB

• VGA: Supports resolution up to SXGA 1400 x 1050

pixels, 32bits, 60Hz refresh rate for Atom N455, supports

resolutions up to 2048 x 1536 @ 60 Hz for Atom D525

• DVI: Supports up to UXGA 1600 x 1200 @ 60Hz

• LVDS interface: Supports 18/24-bit single channel and

up to WXGA 1366 x 768

• LVDS port: Supports Single LVDS connector

Ethernet Interface

• LAN1: 10/100/1000 Mbps GbE LAN Intel 82567V

• LAN2: 10/100/1000 Mbps GbE LAN Intel 82583V

Mechanical and Environmental

• Dimensions (L x W): 170 x 170 mm

• Power supply voltage: 12 V

• Power requirements:

AIMB-213N SKU +12 V @ 3.09 A

AIMB-213D SKU +12 V @ 3.43 A

(Maximum measured current values with system under

maximum load)

• Operating temperature: 0 ~ 60° C

• Weight: 0.365 kg (weight of board)

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the AIMB-213 series Rev.A1.

Part No. 2002021310

Printed in Taiwan

1st Edition,

April, 2011

2 AIMB-213 Startup Manual

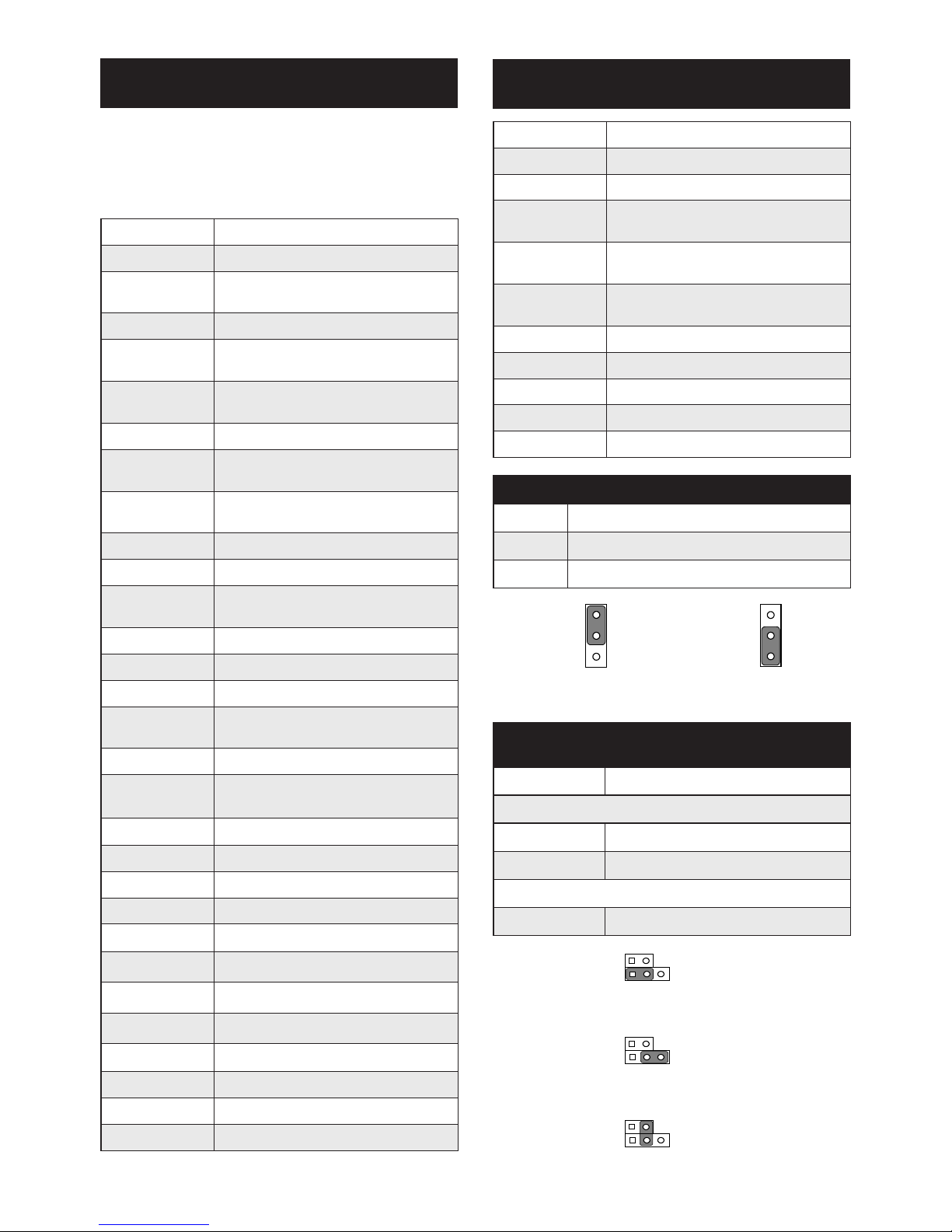

The board has a number of connectors and jumpers that

help congure the system to suit your application require-

ments. The tables below list the function of each of the

connectors and jumpers.

Label Function

JFP1 Power LED and Keyboard lock

JFP1+JFP2 Power switch/Reset switch/HDD LED/

SMBus/Speaker

CMOS1 CMOS clear ( Default 1-2 )

JLVDS1 Voltage 3.3 V / 5 V selector for LVDS1

connector(Default 1-2, 3.3 V)

JLVDS2 Voltage 12 V selector for LVDS1 and

LVDS2 connector

PSON1 AT(1-2) / ATX(2-3) ( Default 2-3 )

JSETCOM2 COM2 RS232/422/485 Jumper

Setting

JSETCOM6 COM6 support 5V/12V Jumper

Setting

JWDT1 Watchdog Reset

JOBS1 H/W Monitor Alarm

JVBR1 Brightness control selector for Analog

or Digital (Default 1-2, Analog)

USB56 USB port 5, 6 (on board)

USB78 USB port 7, 8 (on board)

VGA1+DVI1 VGA/DVI connector

COM12 Serial port: COM1 (RS232) and

COM2 (RS232, RS422 and RS485)

COM3456 Serial port connector: (RS232)

KBMS1

Internal PS/2 Keyboard and Mouse

connector

CPUFAN1

CPU FAN connector(3-pin)

SYSFAN1 System FAN connector(3-pin)

LAN1_USB12 LAN1 / USB port 1, 2

LAN2_USB34 LAN2 / USB port 3, 4

CF1 CF Socket

AUDIO1 Audio connector

HD1 HD Audio Front Panel Pin Header

GPIO1 GPIO Header

DC_JACK1 DC 12V connector

INV1 LVDS1 Inverter Power

LVDS1 LVDS1 connector (Internal)

PCI1 PCI Slot

SATA1 Serial ATA data connector 1

SATA2 Serial ATA data connector 2

SATA3 Serial ATA data connector 3

SATA_PWR_

CN1

Serial ATA power connector 1

SATA_PWR_

CN2

Serial ATA power connector 2

SATA_PWR_

CN3

Serial ATA power connector 3

DIMM1 Memory connector channel

DIMM2 Memory connector channel

SPI_CN1 SPI ash update connector.

MINIPCIE2 Mini PCI express connector

ATX12V_1 ATX 12V connector

CMOS1: Clear CMOS

Pins Result

1-2*

Keep CMOS data*

2-3 Clear CMOS data

* Default

Keep CMOS data Clear CMOS

Jumpers and Connectors

JLVDS1 and JLVDS2: Voltage 3.3 V / 5 V / 12 V selec-

tor connector

Closed Pins Result

JLVDS1

1-2* For 3.3 V LVDS Panel

2-3

For 5 V LVDS Panel

JLVDS1 and JLVDS2

2-2

For 12 V LVDS Panel

* Default JLVDS2

JLVDS1

JLVDS2

JLVDS1

JLVDS2

JLVDS1

for 3.3V LVDS panel

for 5V LVDS panel

for 12V LVDS panel

AIMB-213 Startup Manual 3

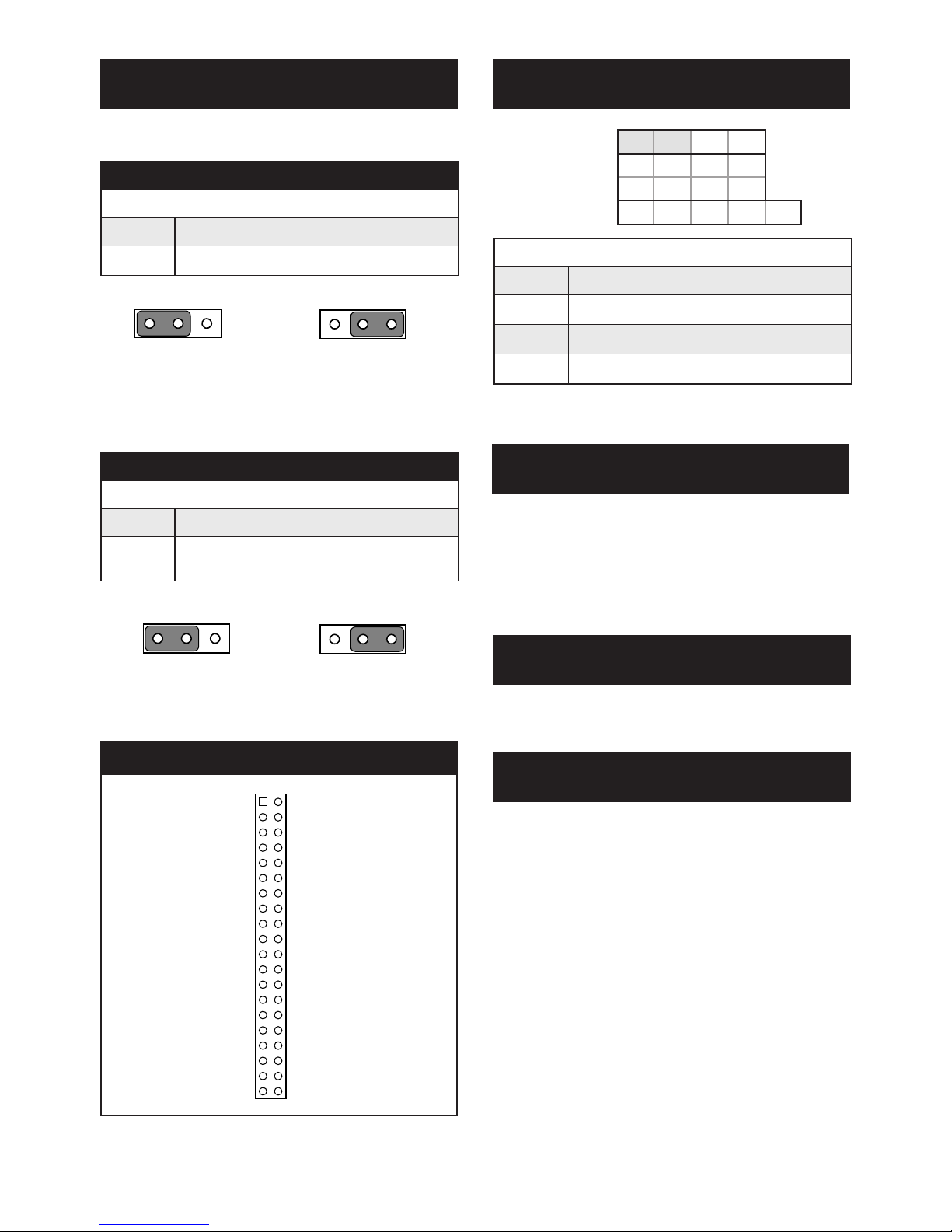

JPSON1: ATX, AT Mode Selector

Closed Pins Result

1-2

AT Mode

2-3* ATX Mode*

* Default

JWDT1: Watchdog Timer Output Option

Closed Pins Result

1-2

NC (Watchdog Timer Disabled)

2-3* System reset* (Reset System when Watch-

dog Timer Triggered)

* Default

LVDS Connector: LVDS1

Jumpers and Connectors

Installation Note

Declaration of Conformity

Software Installation

CAUTION

The device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference;

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

The CD disc contains a driver installer program that will lead

you through the installation as various device drivers are

needed to take full advantage of your motherboard.

The computer is supplied with a battery-powered real-time

clock circuit. There is a danger of explosion if the battery is

incorrectly replaced. Replace only wih same or equivalent

type recommended by the manufaturer. Discard used bat-

teries according to manufaturer’s instructions.

JFP1+JFP2

Pin.3

#PWR_SW

Pin.6 GND

Pin.9

#RST_SW

Pin.12 GND

*Power button function is located in pins 3 & 6 of front panel

connector.

123

1 2 3

NC 1-2 Closed System Reset 2-3 Closed

123

1 2 3

AT Mode ATX Mode

1-2 closed 2-3 closed

3 6 9 12

2 5 8 11

1 4 7 10

1 2 3 4 5

JFP1+JFP2

JFP1

VDDSAFE_1

GND_1

VDDSAFE_3

OD0-

OD0+

GND_2

OD1-

OD1+

GND_3

OD2-

OD2+

GND_4

OCK-

OCK+

GND_5

DDC_CLK

GND_6

OD3-

OD3+

HPLG

VDDSAFE_2

GND_7

VDDSAFE_4

GND_8

GND_9

GND_10

GND_11

DDC_DAT

GND_12

VCON

4 AIMB-213 Startup Manual

Board Diagram

GPIO1

SJETCOM6

SYSFAN1

HD1

LVDS1

JOBS1

SATA1 SATA2

SATA3

COM3456

USB56

MINIPCIE2

SPI_CN1

KBMS1

USB78

SATA

PWR

CN2

SATA

PWR

CN1

SATA

PWR

CN3

CF1

(BOTTOM)

DC_JACK1LAN2

USB34

LAN1

USB12

VGA1+DVI1

ATX12V_1

JLVDS1

JLVDS2

INV1

JSETCOM2

JFP1&2

JVBR1

DIMM1

DIMM2

(BOTTOM)

AUDIO1

COM12

CMOS1

PWRSW RESET

PWRLED & KEYLOCK

SPEAKER

HDDLED SM_BUS

JFP1

JFP2

JFP1

369 12

1 2 345

258 11

147 10

CPUFAN1

JWDT1

PCI1

PSON1
