AIMB-705 Startup Manual 1

AIMB-705 LGA1151 Intel® Core™ i7/i5/i3 ATX with

Dual Display, DDR4, SATA III

Startup Manual

Specications (Cont.)

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the AIMB-705 series Rev. A1.

Part No. 2001070511

Printed in China

2nd Edition

January 2017

Before you begin installing your card, please make sure

that the following items have been shipped:

• 1 Startup Manual

• 1 Driver CD (user’s manual is included)

• 2 Serial ATA HDD data cables

• 1 Serial ATA HDD power cable

• 1 I/O port bracket

• 1 Warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF

ﬁle. Acrobat Reader can be downloaded at:

www.adobe.com/Products/acrobat/readstep2.

html (Acrobat is a trademark of Adobe)

Standard Functions

• CPU: LGA1151 6th and 7th Generation Intel® Core™ i7/

i5/i3/Pentium/Celeron

Note: The Intel 7th generation processors only support

Windows 10 (64-bit).

• BIOS: AMI 128 Mb SPI BIOS

• Chipset: Intel® H110 chipset

• System memory: Up to 32 GB with two 288-pin

DIMM sockets. Supports dual channel non-ECC DDR4

1866/2133 MHz

Note: Due to the inherent limitations of PC

architecture, the system may not fully detect

32 GB RAM when 32 GB RAM is installed

Specications

• SATA interface: Four on-board Serial ATAIII connectors

support data transmission rates up to 600 MB/s. All four

SATAIII ports support Advanced Host Controller Interface

(AHCI) technology

• PCIe and PCI slot: 1 PCIe x16 expansion slot, 1 PCIe

x4 expansion slot, 5 PCI slots 32-bit/33 MHz PCI 2.2

compliant

• LPC interface: Advantech-designed LPC connector

supports TPM module

• Serial ports: Up to six serial ports: COM1, COM2 and

COM4 ~ 6 are RS-232; COM3 is RS-232/422/485 with

jumper and BIOS options

• Parallel port: One parallel port, which supports SPP/

EPP modes

• Keyboard/mouse connector: Supports standard PS/2

keyboard and mouse

• Watchdog timer: 255 sec timer level intervals

• USB 3.0: Up to 4 (2 x pin header, 2 x rear I/O)

• USB 2.0: Up to 5 (2 x pin header, 2 x rear I/O, 1 x vertical

type A)

Graphic Interface

• Chipset: CPU integrated Intel HD graphics controller

• Display Memory: 1 GB maximum shared memory with 2

GB and above system memory installed

• Resolution:

- Supports VGA up to 1920 x 1200 resolution @ 60 Hz

refresh rate

- Supports DVI up to 1920 x 1200 resolution @ 60 Hz

refresh rate

Ethernet interface

• Interface: 10/100/1000 Mbps

• Controller: LAN1: Intel

I219-V; LAN2: Intel

I211-AT

Mechanical and Environmental

• Dimensions (L x W): 304.8 x 244 mm (12” x 9.6”)

• Power supply voltage: +3.3 V, +5 V, +12 V, +5 Vsb

• Power Consumption:

Intel Core Intel I7-6700 @ 3.4 GHz; DDR4 8 G x 2

Maximum: +3.3 V at 0.49 A, +5 V at 3.13 A, +12 V at 7.88

A, +5 Vsb at 0.08 A, -5 V at -0.07 A, -12 V at -0.07 A

• Operating temperature: 0 ~ 60° C (depending on CPU)

• Weight: 0.5 kg (weight of board)

2 AIMB-705 Startup Manual

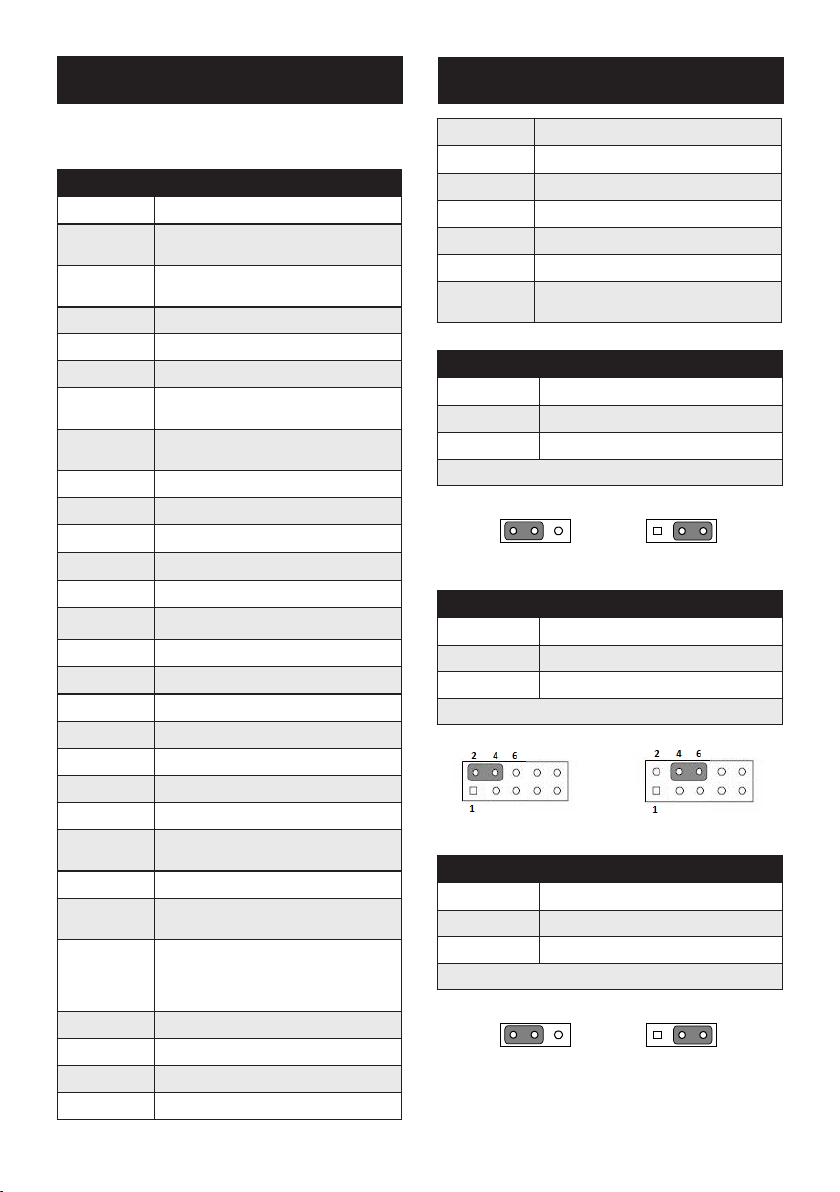

The board has a number of jumpers that allow you to con-

ﬁgure your system to suit your application. The table below

lists the function of each jumper and connector.

Connector / Jumper List

Label Function

EATXPWR1 ATX 24-pin main power connector (for

system)

ATX12V1 ATX 12 V auxiliary power connector

(for CPU)

DIMMA1 Channel A DIMM1

DIMMB1 Channel B DIMM1

SATA0 ~ 3 SATA III (Gen3)

LAN1_

USB3_34

LAN1 / USB 3.0 port 1, 2 stack

connector

LAN2_

USB34

LAN2 / USB 2.0 port 1, 2 stack

connector

USB3_12 USB 3.0 (pin header)

USB5 USB 2.0 (type A)

USB910 USB 2.0

PCIEX16_1 PCIe x16 slot (Gen3)

PCIEX4_1 PCIe x4 slot (Gen2)

PCI1 ~ 5 PCI slot (32-bit/33 MHz)

VGA1+DVI1 VGA connector / DVI connector

VGA1 VGA connector

COM12 Serial port: RS-232

COM3 Serial port: RS-232/422/485

COM4 ~ 6 Serial port: RS-232

LPT1 Parallel port supporting SPP/EPP mode

KBMS1 Keyboard and Mouse PS/2 connector

KBMS2 Keyboard and Mouse PS/2 connector

(box header)

JFP1 Power switch / reset connector

JFP2 External speaker / HDD LED connector

/ SM Bus connector

JFP3

Keyboard lock and power LED

Suspend: fast ash (ATX/AT)

System On: on (ATX/AT)

System Off: off (AT/ATX)

VOLT1 Voltage Display

CPUFAN1 CPU fan connector (4 pin)

SYSFAN1 ~2 System fan connector (4 pin)

LANLED1 Front panel LAN indicator connector

AUDIO1 Audio connector (Line-out, Mic-in)

FPAUD1

Front panel audio pin header

SPI_CN1 SPI ash card pin header

SPDIF_OUT1

SPDIF audio output pin header

GPIO1 8 bit GPIO from super I/O

SMBUS1

SM bus from PCH

LPC1 Low pin count connector for Advantech

TPM LPC and RS232 modules.

JCMOS1/JME1: CMOS clear/ME update function

Pins Result

1-2 Keep CMOS data/Enable ME update*

2-3

Clear CMOS data/Disable ME update

* Default

*Keep CMOS data/ *Clear CMOS data/

Enable ME update Disable ME update

JWDT1: Watchdog timer output option

Closed Pins

Result

2-4 NC

4-6 System reset*

* Default

NC 2-4 Closed *System Reset 4-6 Closed

PSON1: ATX, AT mode selector

Closed Pins

Result

1-2 AT Mode

2-3 ATX Mode*

* Default

AT Mode 1-2 closed *ATX Mode 2-3 closed

12 3

Jumpers and Connectors Jumpers and Connectors (Cont.)

AIMB-705 Startup Manual 3

JUSB_2: USB power source switch between +5V and

+5V_ DUAL for onboard USB ports

Closed Pins

Result

1-2 *USB +5V_DUAL Power

2-3 USB +5V Power

* Default

*USB +5 V_DUAL Power USB +5 V Power

12 3

The CD disc contains a driver installer program that will

lead you through the installation of various device drivers

needed to take full advantage of your motherboard.

Caution! The computer is supplied with a battery-pow-

ered realtime clock circuit. There is a danger

of explosion if battery is incorrectly replaced.

Replace only with same or equivalent type

recommended by the manufacturer. Discard

used batteries according to manufacturer’s

instructions.

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

Jumpers and Connectors (Cont.) Software Installation

Declaration of Conformity

Board Layout

KBMS1

DIMMB1

DIMMA1

SYSFAN1

VO LT1

EATXPWR1

PSON1

JWDT1+JOBS1

JFP3

JFP1+JFP2 SMBUS1

GPIO1

LPT1

SPI_CN1

SATA0 ~ SATA3

COM3

COM4

COM5

COM6

LP C1

USB5

USB910

USB3_12

CPU1

CPUFAN1

PCI1

PCI2

PCI3

PCI4

PCIEX4_1

PCI5

PCIEX16_1

FPAUD1

LANLE D1

SPDIF_OUT 1

AUDIO1

AUDIO2

LAN1_USB3_34

LAN2_USB34VGA1+DVI1

COM12

SYSFAN2

KBMS2

ATX12V1

JCASE1

JCMOS1

3 6 9 12

25811

PWRSW RESET

HDDLED

SNMP

JFP1

2 5 8 11

1 4 7 10

HDDLED

SM_BUS

SPEAKER

JFP2

PWRLED & KEYLOCK

12345

JFP3

Figure 1: Board Layout: Jumper and Connector Locations
