Advantech ICR-3211 Bedienungsanleitung

LTE Industrial Router

ICR-3211

USER MANUAL

ICR-3211

2022 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or

by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval

system without written consent. Information in this manual is subject to change without notice, and does not

represent a commitment on the part of Advantech.

Advantech Czech s.r.o. shall not be liable for incidental or consequential damages resulting from the furnish-

ing, performance, or use of this manual.

All brand names used in this manual are the registered trademarks of their respective owners. The use of

trademarks or other designations in this publication is for reference purposes only and does not constitute an

endorsement by the trademark holder.

ICR-3211

Used symbols

Danger – Information regarding user safety or potential damage to the router.

Attention – Problems that can arise in speciﬁc situations.

Information, notice – Useful tips or information of special interest.

GPL license

Source codes under GPL license are available at https://icr.advantech.cz/source-code

address.

Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic

Document No. MAN-0041-EN, revision from November 17, 2022. Released in the Czech Republic.

ICR-3211

Contents

1 Product Overview 2

1.1 Product Introduction ................................. 2

1.2 Product Usage Examples .............................. 3

1.3 Hardware Overview ................................. 5

1.4 Product Versions ................................... 6

1.5 Order Codes ..................................... 6

1.6 Package Contents .................................. 7

1.7 Product Dimensions ................................. 8

1.8 Mounting Recommendations ............................ 9

1.9 Wall Mounting ..................................... 10

1.10 DIN Rail Mounting .................................. 11

1.11 Product Label ..................................... 12

2 Hardware Functionality 13

2.1 SIM Card Slots .................................... 13

2.2 Antenna ........................................ 14

2.3 Ethernet Interfaces .................................. 14

2.4 Power Supply ..................................... 15

2.5 Low Power Mode ................................... 16

2.6 Serial Interfaces and I/O Port ............................ 17

2.7 LED Status Indication ................................ 19

2.8 Power Backup Feature ................................ 20

2.9 Reset Functions ................................... 23

3 First Use 24

3.1 Powering up the Router ............................... 24

3.2 Router Conﬁguration ................................. 24

4 Technical Parameters 26

4.1 Basic Parameters ................................... 26

4.2 Standards and Regulations ............................. 27

4.3 Type Tests and Environmental Conditions ..................... 28

4.4 Parameters of Cellular Module ........................... 29

4.5 Other Technical Parameters ............................. 30

Appendix A: Troubleshooting 31

Appendix B: Customer Support 34

iii

ICR-3211

Appendix C: Regulatory & Safety Information 35

Appendix D: Related Documents 37

ICR-3211

List of Figures

1 Access to the Internet from LAN .......................... 3

2 Backed up Access to the Internet .......................... 3

3 Using VPN Tunnel .................................. 4

4 Serial Gateway .................................... 4

5 Hardware Overview of the Router .......................... 5

6 Router Preview .................................... 6

7 Basic dimensions of the router box ......................... 8

8 Basic dimensions of the router box ......................... 8

9 Rotated Wall Mounting Clips ............................. 10

10 Removing from the DIN rail ............................. 11

11 Label Example .................................... 12

12 SIM Cards Insertion ................................. 13

13 Ethernet Connector Pinout .............................. 14

14 Power connector ................................... 15

15 Connection of power supply ............................. 15

16 Serial + I/O connector ................................ 17

17 Functional scheme of the binary interface ..................... 18

18 Resetting the Router ................................. 23

19 Router’s Web Interface ................................ 25

ICR-3211

List of Tables

1 Hardware Overview of the Router .......................... 5

2 Router versions .................................... 6

3 Order Codes Overview ................................ 6

4 Contents of package ................................. 7

5 Ethernet Connector Pinout Description ....................... 14

6 Connection of power connector ........................... 15

7 Connection of RS485 ................................ 17

8 Connection of I/O ................................... 17

9 Connection of RS232 ................................ 17

10 Status indication ................................... 19

11 Basic parameters ................................... 26

12 Standards and regulations .............................. 27

13 Type tests and environmental conditions ...................... 28

14 Technical parameters of cellular module ...................... 29

15 Other technical parameters ............................. 30

ICR-3211

1. Product Overview

1.1 Product Introduction

ICR-3211 is an industrial cellular router intended for the market in Europe, Middle East

and Africa (EMEA) area as well as for the North American market (NAM). The ICR-3211

router is designed for wireless communication in mobile networks that use traditional cellular

technologies. The primary purpose of this router is its use in the Category M1 (Cat M1) and

Narrowband Internet of Things (NB-IoT cat. NB1) services on the cellular LTE network.

LTE Cat M1 is a new cellular technology speciﬁcally designed for the needs of applications

targeting the Internet of Things (IoT) or machine-to-machine (M2M) communications. LTE Cat

M1 is a low-power wide-area (LPWA) air interface that lets you connect IoT and M2M devices

with medium data rate requirements (375 kbps upload and download speeds in half duplex

mode).

The standard conﬁguration includes two Ethernet 10/100 ports, serial line RS232,RS485,

one binary input and one binary output. The device also has two readers for 3 V and 1.8 V

SIM cards, which are located on the left panel of the router. The router can be provided only

in a metal casing.

The ICR-3211 router is equipped with a power backup feature. It is a short-term power

backup (maximum 15 seconds - depending on technology) which is used to complete the

running operation or to send the required data immediately after failure of power supply.

Conﬁguration of the router may be done via a password-protected Web interface. Web

interface provides detailed statistics about the router’s activities, signal strength, detailed sys-

tem log etc. The router supports the creation of VPN tunnels using IPSec,OpenVPN and

L2TP to ensure safe communication. DHCP,NAT,NAT-T,DynDNS,NTP,VRRP, control by

SMS, backup primary connection and many other functions are supported.

The router provides diagnostic functions which include automatically monitoring the PPP

connection, automatic restart in case of connection losses, Low Power Mode and a hardware

watchdog that monitors the router status. The user may insert Linux scripts which are started

on various actions. It is possible to create up to four different conﬁgurations for the same

router. These conﬁgurations can be switched whenever necessary via Web interface, SMS or

binary input status. The router can automatically upgrade its conﬁguration and ﬁrmware from

your central server. This allows for mass reconﬁguration of numerous routers at the same

time.

The router also supports additional software like R-SeeNet or WebAccess/VPN for per-

manent trafﬁc monitoring of routers.

Examples of possible applications

•mobile ofﬁce

•ﬂeet management

•security system

•telematic

•telemetric

•remote monitoring

•vending and dispatcher machines

ICR-3211

1.2 Product Usage Examples

The router is primarily intended for these four basic situations:

I. Access to the Internet from LAN

Figure 1: Access to the Internet from LAN

II. Backed up access to the Internet (from LAN)

Figure 2: Backed up Access to the Internet

ICR-3211

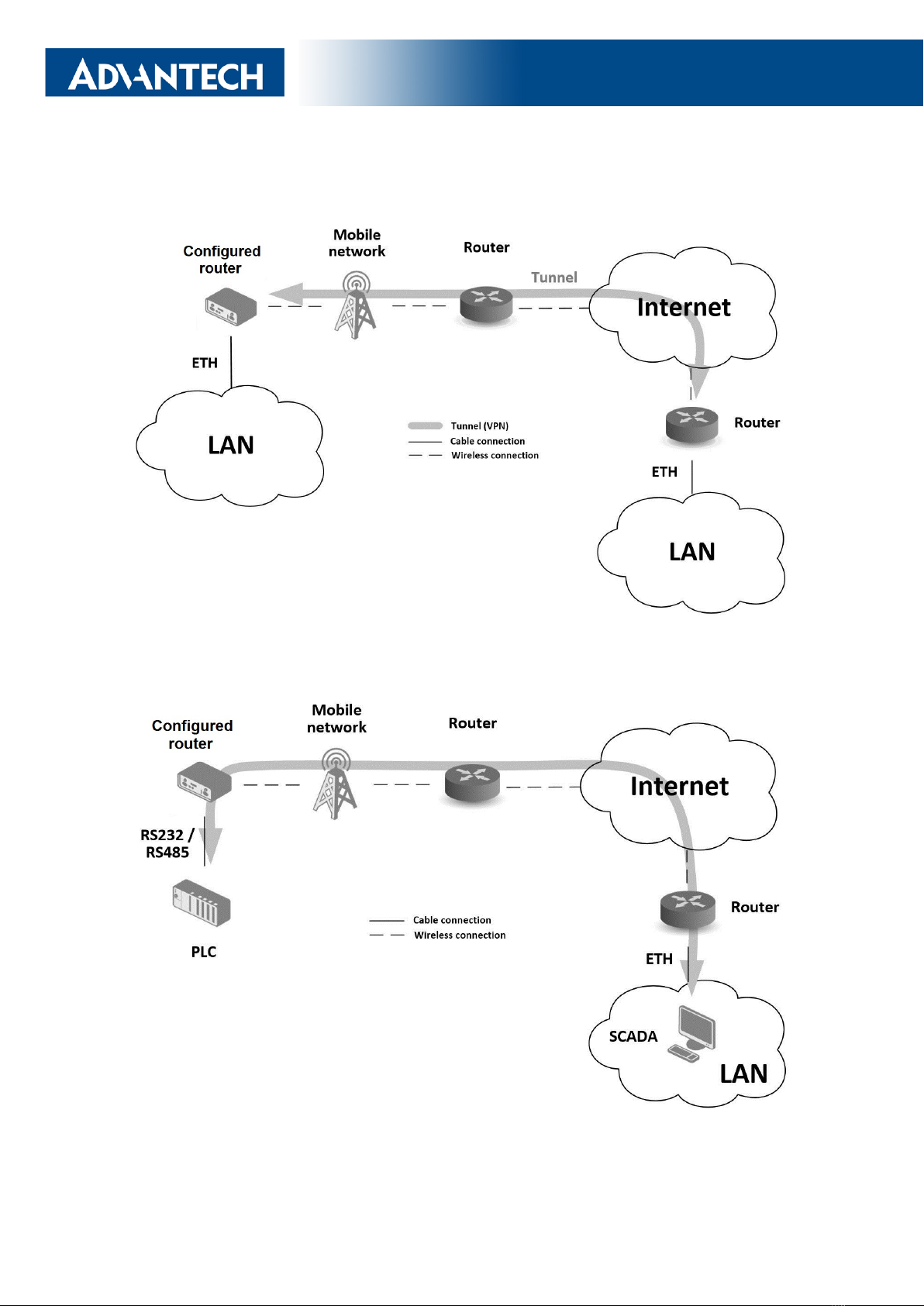

III. Secure networks interconnection or using VPN

Figure 3: Using VPN Tunnel

IV. Serial Gateway

Figure 4: Serial Gateway
