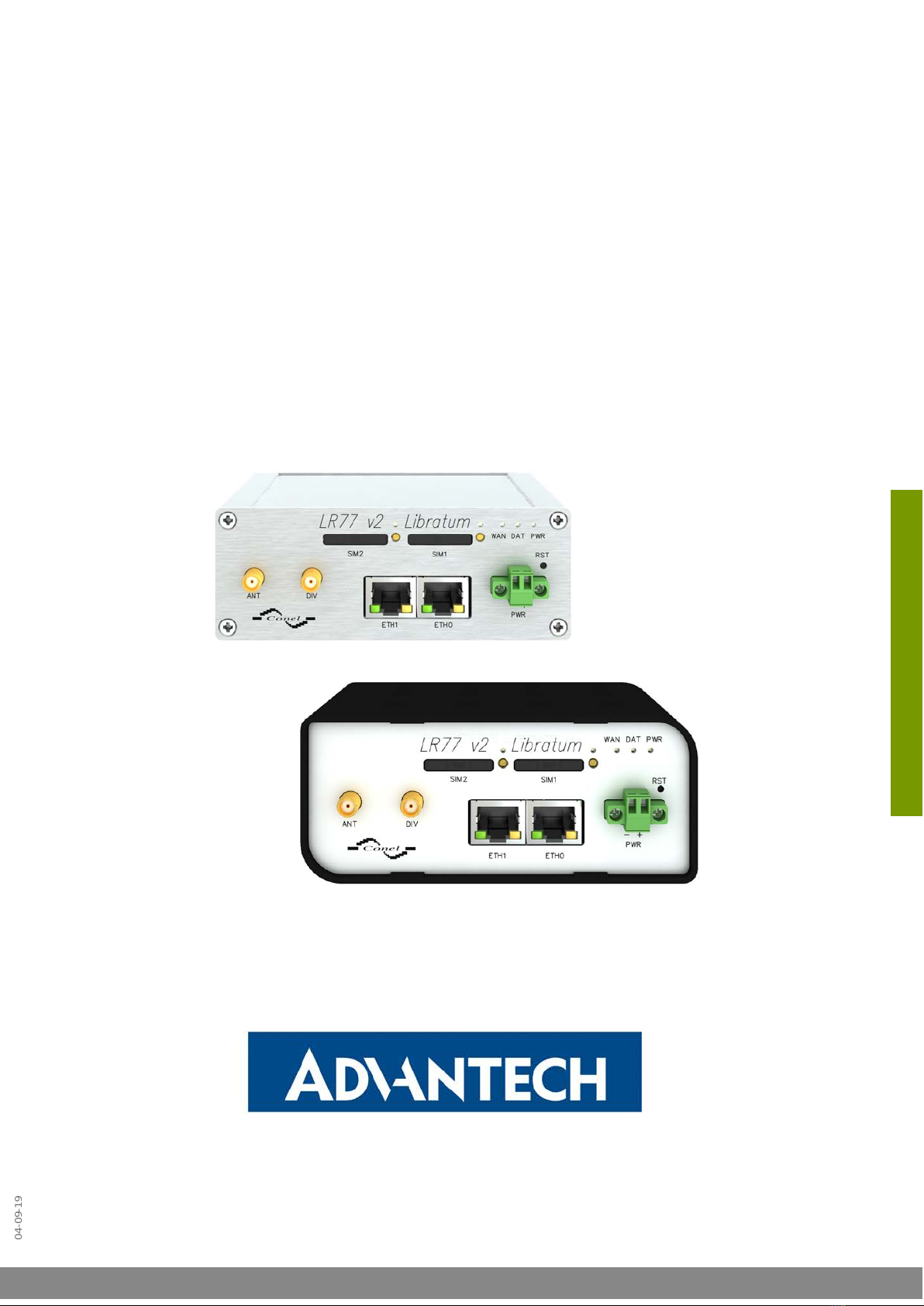

Advantech LR77 v2 Libratum Bedienungsanleitung

LTE Industrial Router

LR77 v2 Libratum

USER MANUAL

04-09-19

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

LR77 v2 Libratum

Advantech B+B SmartWorx – Americas

Advantech B+B SmartWorx

707 Dayton Road

Ottawa, IL 61350 USA

Website

www.advantech-bb.com

Advantech B+B SmartWorx – Europe

Advantech B+B SmartWorx s.r.o.

Sokolska 71

562 04, Usti nad Orlici,

Czech Republic

Website

www.advantech-bb.com

2019 Advantech B+B SmartWorx s.r.o. No part of this publication may be reproduced or transmitted in any

form or by any means, electronic or mechanical, including photography, recording, or any information storage and

retrieval system without written consent. Information in this manual is subject to change without notice, and does

not represent a commitment on the part of Advantech B+B SmartWorx.

Advantech B+B SmartWorx s.r.o. shall not be liable for incidental or consequential damages resulting from

the furnishing, performance, or use of this manual.

All brand names used in this manual are the registered trademarks of their respective owners. The use of

trademarks or other designations in this publication is for reference purposes only and does not constitute an

endorsement by the trademark holder.

04-09-19

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

LR77 v2 Libratum

Used symbols

Danger – Information regarding user safety or potential damage to the router.

Attention – Problems that can arise in speciﬁc situations.

Information, notice – Useful tips or information of special interest.

GPL licence

Source codes under GPL licence are available free of charge by sending an email to:

[email protected].

Please see http://ep.advantech-bb.cz/devzone for more information.

Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic

Document No. MAN-0015-EN, revision from April 4, 2019. Released in the Czech Republic.

04-09-19

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

LR77 v2 Libratum

Contents

1 Safety Instructions 2

2 WEEE directive 3

3 Router Description 4

4 Contents of Package 5

5 Router Design 6

5.1 Router versions .................................... 6

5.2 Delivery identiﬁcation ................................ 7

5.3 Order codes ...................................... 7

5.3.1 Order code structure ............................. 7

5.3.2 Order code examples ............................ 8

5.4 Basic dimensions of the router box ......................... 9

5.4.1 Plastic box .................................. 9

5.4.2 Metal box ................................... 9

5.5 Mounting recommendations ............................. 10

5.6 Removal from the DIN rail .............................. 12

5.7 Description of the front panel ............................ 13

5.7.1 Status indication ............................... 14

5.7.2 Power connector PWR ............................ 15

5.7.3 Antenna connector ANT, DIV (and WIFI) .................. 16

5.7.4 SIM card reader ............................... 17

5.7.5 Ethernet port (ETH0 and ETH1) ...................... 18

5.7.6 Reset ..................................... 19

6 First Use 20

6.1 Connecting the router before ﬁrst use ....................... 20

6.2 Start .......................................... 21

6.3 Conﬁguration ..................................... 21

6.3.1 Conﬁguration over web browser ....................... 21

6.3.2 Conﬁguration over Telnet .......................... 22

7 Technical Parameters 23

7.1 Basic parameters ................................... 23

7.2 Standards and regulations .............................. 23

7.3 Technical parameters of module .......................... 25

04-09-19

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

LR77 v2 Libratum

7.4 Technical Parameters of WiFi ............................ 26

7.5 Other Technical Parameters ............................. 26

8 Recommended Literature 27

9 Troubleshooting 28

9.1 FAQ .......................................... 28

10 Customers Support 31

10.1 Customer Support for NAM ............................. 31

10.2 Customer Support for Europe ............................ 31

10.3 Customer Support for Asia ............................. 31

iii

04-09-19

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

LR77 v2 Libratum

List of Figures

1 Contents of package ................................. 5

2 Front panel LR77 v2L ................................ 6

3 Front panel LR77 v2L with WiFi ........................... 6

4 Front panel LR77 v2L SL .............................. 6

5 Front panel LR77 v2L SL with WiFi ......................... 6

6 Label examples .................................... 7

7 Basic dimensions of plastic box (bottom and front view) ............. 9

8 Basic dimensions of metal box (bottom and front view) .............. 9

9 Space around antennas (plastic) .......................... 10

10 Space around antennas (metal) ........................... 10

11 Cable routing (plastic) ................................ 11

12 Cable routing (metal) ................................. 11

13 Space in front of connectors (plastic) ........................ 11

14 Space in front of connectors (metal) ........................ 11

15 Default position of plastic and metal DIN rail clip ................. 12

16 Removal from the DIN rail .............................. 12

17 Front panel LR77 v2 Libratum ............................ 13

18 Power connector ................................... 15

19 Connection of power supply ............................. 15

20 Connecting of the antenna .............................. 16

21 Ejected SIM holder .................................. 17

22 Ethernet connector .................................. 18

23 Connection of ethernet cable ............................ 18

24 Router reset ...................................... 19

25 Router connection .................................. 20

26 Entering the IP address of the router ........................ 21

27 Entering login information .............................. 21

28 Router web interface ................................. 22

04-09-19

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

LR77 v2 Libratum

List of Tables

1 Router versions .................................... 6

2 Delivery identiﬁcation ................................ 7

3 Type of port #2 .................................... 7

4 Type of router box .................................. 8

5 Type of power supply ................................. 8

6 Speciﬁc variation ................................... 8

7 Order code examples ................................ 8

8 Front panel description ................................ 13

9 Status indication ................................... 14

10 Connection of power connector ........................... 15

11 Connection of Ethernet connector .......................... 18

12 Description of reset and restart router ....................... 19

13 Basic parameters ................................... 23

14 Standards and regulations .............................. 24

15 Technical parameters of module .......................... 25

16 Technical parameters of WiFi ............................ 26

17 Other technical parameters ............................. 26

04-09-19

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

LR77 v2 Libratum

1. Safety Instructions

Please, observe the following instructions:

•The router must be used in compliance with all applicable international and national laws

and in compliance with any special restrictions regulating the utilization of the router in

prescribed applications and environments.

•To prevent possible injury and damage to appliances and to ensure compliance with

all relevant provisions, use only the original accessories. Unauthorized modiﬁcations or

the use of unapproved accessories may result in damage to the router and / or a breach

of applicable regulations. Unauthorized modiﬁcations or use of unapproved accessories

may void the warranty.

•The router can not be opened.

•Turn off the router and disconnect it from power supply before handling the SIM card.

•Caution! The SIM card could be swallowed by small children.

•Input voltage must not exceed 36 V DC max.

•Do not expose the router to extreme ambient conditions. Protect the router against dust,

moisture and high temperature.

•Only routers with appropriate certiﬁcation and labelling should be used in locations where

ﬂammable and explosive materials are present, including gas stations, chemical plants,

or locations in which explosives are used. We remind users of the duty to observe the

restrictions concerning the utilization of radio devices at such places.

•Switch off the router when traveling by plane. Utilization of the router on a plane may

endanger the operation of the plane or interfere with the mobile telephone network, and

may be unlawful. Failure to observe these instructions may result in the suspension or

cancellation of telephone services for the respective client and / or may result in legal

sanctions.

•When using the router in close proximity to personal medical devices, such as cardiac

pacemakers or hearing aids, you must proceed with heightened caution.

•The router may cause interference when used in close proximity to TV sets, radio re-

ceivers or personal computers.

•It is recommended that you create an appropriate copy or backup of all important settings

that are stored in the memory of the device.

04-09-19

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

LR77 v2 Libratum

2. Product Disposal Instructions

The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) directive was in-

troduced to ensure that electrical/electronic products are recycled using the best available

recovery techniques in order to minimize impact on the environment. This product contains

high quality materials and components which can be recycled. At the end of it’s life this pro-

duct MUST NOT be mixed with other commercial waste for disposal. The device contains the

battery. Remove the battery from the device before disposal. The battery in the device needs

to be disposed apart accordingly. Check the terms and conditions of your supplier for disposal

information.

04-09-19

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

LR77 v2 Libratum

3. Router Description

LTE router LR77 v2 Libratum is used to wireless connect various equipments and devices

via Ethernet interface 10/100 to the internet or intranet. Due to the high data transfer speed of

up to 14.4 Mbps (download) and up to 5.76 Mbps (upload) is this router an ideal wireless so-

lution for trafﬁc and security camera systems, individual computers, LAN networks, automatic

teller machines (ATM) and other self-service terminals, etc.

As a standard, LTE router LR77 v2 Libratum is equipped with two Ethernet 10/100 and two

SIM card holders. This cellular router is supplied either in a plastic or metal casing, based on

the requirements of the customer.

Conﬁguration is done via web interface protected by password. LR77 v2 Libratum sup-

ports creation of VPN tunnels using technologies IPsec, OpenVPN and L2TP to ensure safe

communication. Web interface provides detail statistics about the 3G router activities, signal

strength, detailed log, etc. Cellular router supports functions: DHCP, NAT, NAT-T, DynDNS,

NTP, VRRP, control by SMS and many other function.

Other diagnostic functions ensuring continuous communication include automatic inspec-

tion of PPP connection offering an automatic restart feature – in case of connection losses, or

hardware watchdog which monitors the status of the router. With the help of a special window

(start up script window) you may insert Linux scripts for various actions. For some applica-

tions the key option to create several different conﬁgurations for one LTE wireless router, the

so-called proﬁles (maximum of 4), and the option to switch between them (for example via

SMS, binary input status, etc.) is essential. Cellular routers LR77 v2 Libratum may automat-

ically upgrade conﬁguration and ﬁrmware from server. This allows mass reconﬁguration of

many routers in one time.

The router also supports additional software like R-SeeNet for permanent trafﬁc monitoring

of routers or communication VPN server Digicluster.

Examples of possible applications

•mobile ofﬁce

•ﬂeet management

•security system

•telematic

•telemetric

•remote monitoring

•vending and dispatcher machines

04-09-19

LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: [email protected] — www.lucom.de

www.lucom.de

Andere Handbücher für LR77 v2 Libratum

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Advantech Netzwerk-Router Handbücher

Advantech

Advantech ICR-4453W Leitfaden

Advantech

Advantech ICR-3231 Bedienungsanleitung

Advantech

Advantech ICR-2631 Bedienungsanleitung

Advantech

Advantech B+B SmartWorx SmartStart Leitfaden

Advantech

Advantech EKI-4524I Bedienungsanleitung

Advantech

Advantech XR5i v2 Leitfaden

Advantech

Advantech ICR-2441 Bedienungsanleitung

Advantech

Advantech SmartStart SL304 Bedienungsanleitung

Advantech

Advantech ICR-3231 Bedienungsanleitung

Advantech

Advantech ICR-2734P Bedienungsanleitung

Advantech

Advantech LR77 v2 Series Bedienungsanleitung

Advantech

Advantech UR5i v2 Libratum Bedienungsanleitung

Advantech

Advantech SmartMotion ST352 Bedienungsanleitung

Advantech

Advantech SL305 Bedienungsanleitung

Advantech

Advantech SmartStart Series Leitfaden

Advantech

Advantech ICR-2734 Bedienungsanleitung

Advantech

Advantech EKI-2726FHPI Series Installations- und Betriebshandbuch

Advantech

Advantech ICR-4434 Bedienungsanleitung

Advantech

Advantech ADAM-6520 Series Bedienungsanleitung

Advantech

Advantech ICR-2701 Bedienungsanleitung

Advantech

Advantech EDG-6528 Bedienungsanleitung

Advantech

Advantech B+B SmartWorx SmartMotion ST355 Bedienungsanleitung

Advantech

Advantech IMC-150LI Installations- und Betriebshandbuch

Advantech

Advantech SmartFlex SR310 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
