Advidia A-44 & A-54

Installation Manual

Installation Manual of Network Camera

Thank you for purchasing our product. If there are any questions, or requests, please do not

hesitate to contact the dealer.

This manual may contain inaccuracies or printing errors, and the content is subject to

change without notice. The updates will be added to the new version of this manual. We will

readily improve or update the products or procedures described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the

security or signaling aspects of this product. UL has only tested for fire, shock or casualty

hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not

cover the performance or reliability of the security or signaling aspects of this product. UL

MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER

REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR

SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

Installation Manual of Network Camera

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to

avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material

damage.

Warnings:

Please adopt the power adapter which can meet the safety extra low voltage (SELV)

standard. And source with DC 12V or AC 24V (depending on models) according to the

IEC60950-1 and Limited Power Source standard.

If the product does not work properly, please contact your dealer or the nearest service

center. Never attempt to disassemble the camera yourself. (We shall not assume any

responsibility for problems caused by unauthorized repair or maintenance.)

To reduce the risk of fire or electrical shock, do not expose this product to rain or

moisture.

This installation should be made by a qualified service person and should conform to all

the local codes.

Please install blackouts equipment into the power supply circuit for convenient supply

interruption.

Please make sure that the ceiling can support more than 50(N) Newton gravities if the

camera is fixed to the ceiling.

If the product does not work properly, please contact your dealer or the nearest service

center. Never attempt to disassemble the camera yourself. (We shall not assume any

responsibility for problems caused by unauthorized repair or maintenance.)

Installation Manual of Network Camera

Notice:

Make sure the power supply voltage is correct before using the camera.

Do not drop the camera or subject it to physical shock.

Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth

with a bit of ethanol and wipe it gently. If the camera will not be used for an extended

period of time, put on the lens cap to protect the sensor from dirt.

Do not aim the camera lens at the strong light such as sun or incandescent lamp. The

strong light can cause fatal damage to the camera.

The sensor may be burned out by a laser beam, so when any laser equipment is being

used, make sure that the surface of the sensor not be exposed to the laser beam.

Do not place the camera in extremely hot, cold temperatures (the operating temperature

should be between -10°C ~ 60°C), dusty or damp environment, and do not expose it to

high electromagnetic radiation.

To avoid heat accumulation, good ventilation is required for a proper operating

environment.

Keep out of water and any liquid.

While shipping, the camera should be packed in its original packing.

Improper use or replacement of the battery may result in hazard of explosion. Please

use the manufacturer recommended battery type.

Installation Manual of Network Camera

Table of Contents

CHAPTER 1 INTRODUCTION .......................................................................................................................... 1

1.1 APPLICATIONS ........................................................................................................................................ 1

1.2 PREPARATIONS....................................................................................................................................... 1

CHAPTER 2 DOME CAMERA INSTALLATION ............................................................................................... 2

2.1 DOME CAMERAA-44/A-54...................................................................................................................... 2

2.1.1 Appearance Description ................................................................................................................... 2

2.1.2 Installation......................................................................................................................................... 3

A-44 & A-54 Installation Manual

Chapter 1 Introduction

The network camera is an embedded digital surveillance product that combines the features

of both traditional analog cameras and built in web server. This built-in video server provides

the capability of providing real-time video stream compression, processing, video analysis

and transmission simultaneously. Applying the latest processing chip and hardware platform,

Advidia network cameras can be widely applied to various surveillance and image

processing systems with high reliability and stability.

1.1 Applications

This camera can be adopted for network video surveillance systems, e.g.:

Network surveillance for over-the-counter activities in banks, ATMs, supermarkets

and factories.

Remote surveillance systems for nursing homes, kindergartens and schools.

Artificial Intelligent access control systems .

Artificial Intelligent office building/residential compounds management systems.

Unguarded power station and telecommunication base station surveillance systems.

Pipelining and warehousing monitoring systems.

Surveillance systems for airports, railway stations, bus stops, etc.

1.2 Preparations

Before you start:

Verify the package contents are correct by checking the items against the packing

list.

Read the following contents carefully before installation.

Make sure that all the related equipment is power-off during installation.

Check whether the power supply is matched with your AC outlet to avoid damage.

Do not place the camera in extremely hot or damp environments. To avoid over

heating, proper ventilation is required.

If the product does not function properly, please contact your dealer or the nearest

service center. Do not disassemble the camera for repair or maintenance by

yourself.

A-44 & A-54 Installation Manual

Chapter 2 Dome Camera Installation

2.1 Dome Camera A-44, A-44IR & A-54

2.1.1 Appearance Description

Camera description:

Figure 2-1 Overview

Table 2-1 Description

No.

Description

10M/100M self-adaptive Ethernet interface

INITIAL SET: Reset button

AUDIO OUT: Audio output interface

MIC IN: Audio input interface

D+, D-: RS-485 interface

1A, 1B, 2A, 2B: Alarm output interface

IN1, GND, IN2, GND:Alarm input interface

Power supply interface

Note: To reset the default parameters to the camera, you need to press and hold the

RESET button and power on the camera. After the power on of the camera, you must still

press and hold the Reset button for about 20 seconds

Camera wiring Diagram:

A-44 & A-54 Installation Manual

Figure 2-2 Wiring Diagram

2.1.2 Installation

Ceiling mounting:

Note: If required, you can use a plier to remove the clip (one or two) on the side of the back

box and then route cables through the opening to secure the cables on the ceiling.

Figure 2-3 Remove the Clip

Steps:

1. Use the screws to fix the mounting base to the ceiling; rotate the back box

counterclockwise to secure it to the mounting base; use the lock screw to secure the

dome camera.

A-44 & A-54 Installation Manual

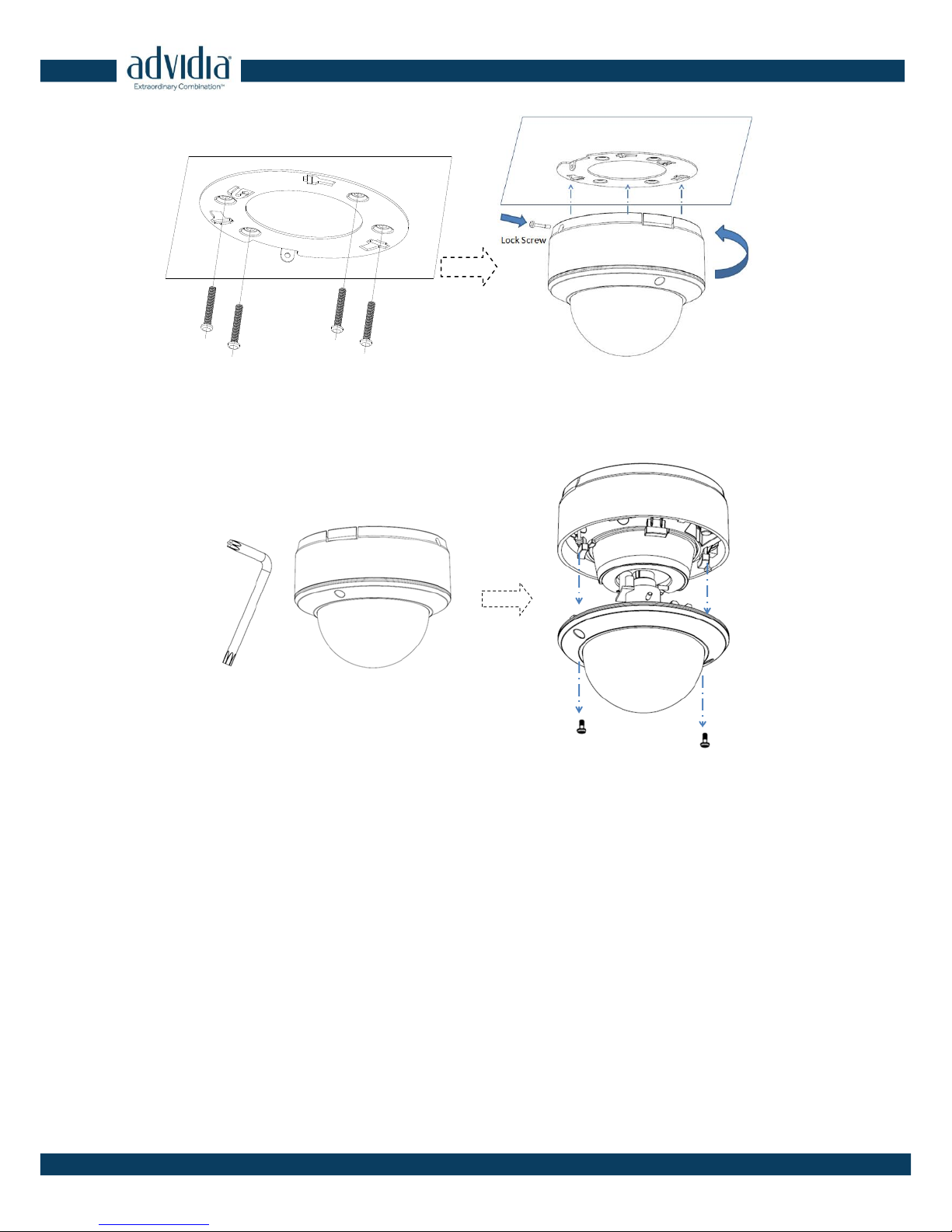

Figure 2-4 Mount the Camera

2. Loosen the set screws with the hex key (supplied) to remove the lower dome.

Figure 2-5 Remove the Lower Dome

3. Connect the RCA analog video output toa monitor to view the image of the camera.

Loosen the lens set screw and pan, tilt or rotate the lens to get a desired surveillance

angle. Adjust the lens focus to obtain a perfect image and then tighten the lens set screw.

A-44 & A-54 Installation Manual

Figure 2-6 Adjust the image

4. Reinstall the lower dome and tighten the screws.

Figure 2-7 Reinstall the Lower Dome

In-ceiling mounting:

Steps:

1. Secure the mounting base to the in-ceiling mounting base with screws.
