Advidia M-46-F Bedienungsanleitung

V1.01

Network Fixed Dome Cameras

Quick Guide

M-46-F

Waterproof Requirements

Please waterproof cables in accordance with the following instructions. User shall

assume all responsibility for device damage caused by water due to improper

waterproof measures.

NOTE!

l Before you start, connect all the needed cables and cut off the copper wires for

the cables that you don't use.

l Please use self-adhesive waterproof tape (supplied with some products) to

protect the cables.

l Use waterproof components to protect the network cable. Waterproof the

power cable separately if you don’t use it. The video cable does not need

waterproof treatment.

1. Use insulation tape (not included in the package) to insulate the connection part

of each cable.

2. Waterproof the cables with self-adhesive waterproof tape.

(1) Fully stretch the waterproof tape at both ends.

(2) Wrap the connection part and the cable ends tightly with waterproof tape.

Make sure the tape is fully stretched during the process.

(3) Tighten the tape at both ends to prevent water leakage.

Connection part

Insulation tape

3. Install the supplied waterproof components to the network cable in sequence.

CAUTION!

You need to mount the rubber ring onto the network cable interface first.

4. If your camera has a DC cable and you will not use it, insert the plug into the

interface.

5. (Optional) After the waterproof treatment is completed, put the cables into a

waterproof junction box (purchased separately).

CAUTION!

l The cable connector must not be exposed and must be kept away from water.

l Restore and fasten the device after dismounting.

l Place the power adapter in a power distribution box.

Wrap the unused cables together into a bundle

Tighten Tighten

Waterproof tape

Tighten

DC interface

Plug

1 Packing List

Contact your local dealer if the package is damaged or incomplete. The attachments

may vary with models, please see the actual model for details.

No.

Name

Qty

Unit

Camera

PCS

Waterproof components（1）

Set

Screw components（2）

Set

Mount accessory （3）

Set

User manual

Set

Remarks:

* means optional and supplied with certain models only.

(1)Including one or more waterproof components such as tape and plug.

(2)Including one or more accessories such as screws and hex key.

(3)Including one or more items from drilling template, bracket adapter, anti-static

gloves, etc.

2 Safety Instructions

Installation and removal of the unit and its accessories must be carried out by

qualified personnel. You must read all of the safety instructions before installation

and operation.

2.1 Precautions

l Use a power adapter or a PoE device that meets requirements. Otherwise, the

device may be damaged.

l Be careful not to blur, scratch, damage the dome cover or leave fingerprints on

it because this could decrease image quality. Keep the protective film on the

dome cover until installation is complete.

l Make sure the length of the power cable between the power adapter and the

camera is not too long, otherwise the voltage of the camera is lowered, causing

the camera to work abnormally. If it is required to lengthen the power cable,

lengthen the cable between the power adapter and the mains.

l Do not overbend the cables during the installation, otherwise, poor cable

contact may cause malfunction.

l When connecting to an external interface, use an existing connection terminal,

and ensure that the cable terminal (latch or clamp) is in good condition and

properly fastened. Ensure that the cable is not tense during mounting, with a

proper margin reserved to avoid poor port contact or loosening caused by shock

or shake.

l During transportation, special attention is required to protect the transparent

dome cover from friction, scratch and stain, etc. Do not remove the protective

film from the cover until mounting is finished. Remove the protective film before

powering on the device.

l Make sure the wall or ceiling is strong enough to support the weight of the

camera. If dust falls during mounting, take off the dome cover and keep it away

from dust. Install the dome cover after the base is installed.

l Contact professionals for maintenance information. Do not attempt to

dismantle the device by yourself. We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.

2.2 Maintenance

l If there is dust on the front glass surface, remove the dust gently using an oil-

free brush or a rubber dust blowing ball.

l If there is grease or a dust stain on the front glass surface, clean the glass surface

gently from the center outward using anti-static gloves or an oil-free cloth. If the

grease or the stain still remains, use anti-static gloves or an oil-free cloth dipped

with detergent and clean the glass surface gently until it is clean.

l Do not use organic solvents (such as benzene and alcohol) to clean the

transparent dome cover.

3 Appearance

3.1 Dimensions

The following figure shows device dimensions. The appearance may vary with device

model.

Type A Type B

3.2 Cable Connection

The appearance and tail cable may vary with device model.

4 Mount Your Camera

4.1 (Optional) Insert Micro SD Card

Insert a SD card into the slot to use the local storage function. For detailed

specifications of recommended SD cards, contact your dealer or technical support.

Hot plugging is not recommended.

79.4mm

(3.1'')

81.0mm

(3.1'')

79.4mm

(3.1'')

81.0mm

(3.1'')

Audio input

(Sound pickup)

Audio output

(Outdoor sound

box)

Alarm input

(Voice

activated

switch)

Alarm

output

(Alarm

indicator) Power

adapter

Network access

device

connected

through copper

interface

Network

4.2 Ceiling Mount

You can adopt wall mount or pendant mount and purchase hardware accessories

separately. The following part takes wall mount as an example. Pendant mount is

similar to wall mount and therefore is omitted here.

1. Locate the positions of the holes. Paste installation positioning stickers on the

ceiling and lead the cables through the hole on the wall.

2. Drill holes on the wall. Use a Ø6-6.5mm drill bit to drill 30 mm-depth guide holes

according to the positions marked by stickers.

3. Mount the plastic rivets of self-tapping screws. Knock the plastic rivets into the

guide holes and ensure that they are tightened up.

Mi cr o SD car d

sl ot

Plastic model

Explosion-proof model

4. Mount the camera. Connect all cables of the ceiling and the camera, lead self-

tapping screws through the guide holes in the camera base, and fix the camera

on the ceiling by using a screwdriver.

5. Adjust the monitoring direction of the lens (tighten screws after vertically

adjusting the lens). The lens can horizontally turn by rotating the lens base, as

shown by ! in the following figure. After loosening the fastening screws, you

can vertically turn the lens, as shown by " in the following figure.

6. Attach the lining and lock it into the buckle on the base. The following shows the

installation instructions of cameras 2-Axis and 3-Axis. The linings are different.

Please see the actual products for the differences.

2-Axis:

3-Axis:

For 3-Axis, after adjusting the lens horizontally and vertically (see step 5), you can

also rotate the lens clockwise or counterclockwise to get the desired monitoring

direction. Please stop rotating the camera when the lens is blocked, otherwise the

camera lens might be damaged.

1Lens

base

Fastening

screw

Buckle on the base

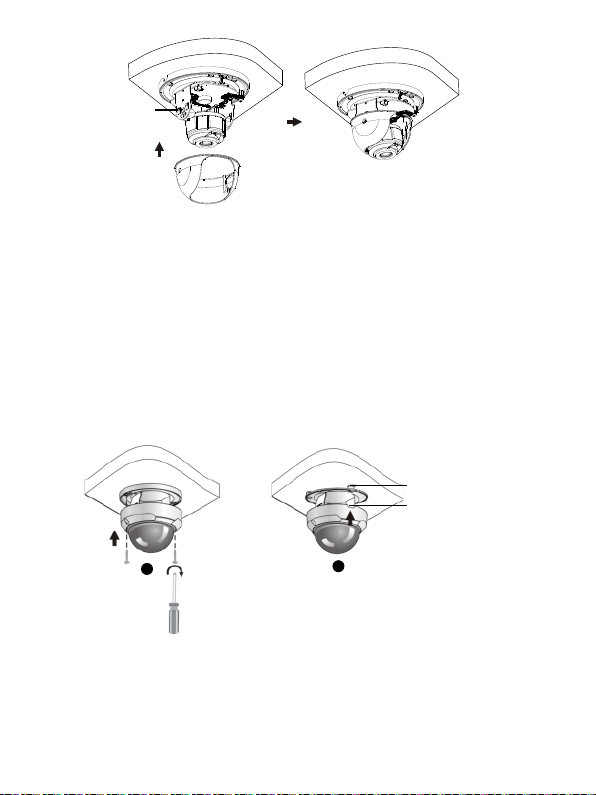

7. Mount the transparent dome housing.

(1) Align the screw holes in the base, and tighten the two cross-recessed pan-

head screws on the edge of the transparent dome housing to fix it, as shown

by ! in the following figure.

(2) Align the grooves (non-tail cable grooves) of the transparent dome housing

to the buckle of the base, and push up the dome housing to fix it, as shown

by " in the following figure.

Buckle on the base

Base buckle

Groove
