SIMPLE LOGGER®

DATA LOGGERS

AC Current • AC Voltage • DC Voltage

Thermistor • Thermocouple • 4 to 20mA

➤Complete line of loggers that include

AC current, AC voltage, DC voltage,

thermistor, thermocouple and

4 to 20mA

➤Low cost data loggers require

no user setup

➤Automatically adjusts both its

scale range and sample rate

➤Windows®based software that can plot,

analyze recorded data and print graphs

and data listings

www.aemc.com

Technical Assistance (800) 343-1391

DATA LOGGING

MADE SIMPLE …

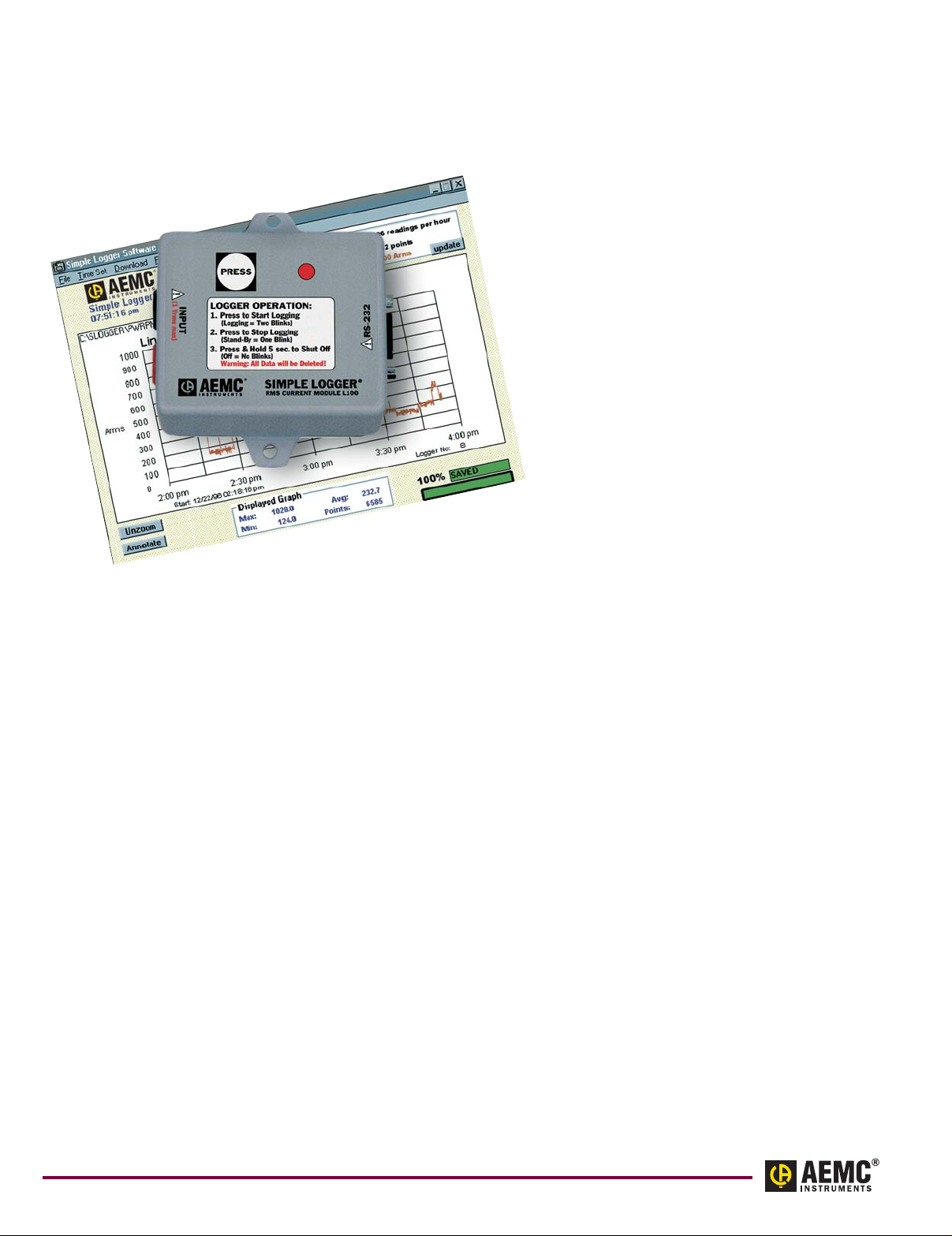

Simple Logger®

Simple Logger®is a single channel, low cost data logger that requires no

user setup. It has the ability to automatically adjust both its scale range

and its sample rate to optimize the recording session. Simple Logger®

includes a Windows®based software package that can plot and analyze

recorded data and print graphs and data listings.

Simple Logger®offers three modes of operation: LOGGING, STANDBY

and OFF. A red LED indicates the mode of operation. In the LOGGING

mode, the logger records information into memory; in the STANDBY

mode, it retains the recorded information for transfer to a computer; in the

OFF mode, the memory is cleared. However, if Simple Logger®is turned

off by mistake, the cleared data can be easily recovered.

The main advantage of the Simple Logger®is its ability to perform a wide

variety of recording tasks with high resolution and accuracy without the

need for user setup. It achieves this by means of automatic scaling and

Time Extension Recording™(TXR™) along with a flexible input design.

Simple Logger®is easy to use. It is designed to record data on-site and

download it to your computer for analysis. For the user who is monitoring

a machine load or voltage line, troubleshooting HVAC, profiling a process

loop or monitoring temperature, it’s the perfect tool to give you the

information you need, when you need it. Simply connect the Logger

to the signal to be recorded and press the button to begin recording.

When the session is complete, press the button to stop. It is that simple!

FEATURES

➤No user setup required

➤One button operation — start and

stop recordings and turn the logger

on and off

➤Log and measure Arms, Vrms,

Temperature, DC Volts, DC Amps

(model dependent)

➤Innovative Time Extension Recording™

(TXR™) technique provides continuous

recording for any length of time without

user setup

➤Auto-Sampling up to 4096/hr — provides

for maximum information

➤Auto-Scaling — provides for optimum

resolution for the recording session

➤Small size — mount it anywhere

➤Low power — records for up to

one year using a 9V Alkaline battery

➤Stores up to 73,000 readings

(model dependent)

➤Includes Windows®based graphing

and analysis software

APPLICATIONS

➤Machine load monitoring

➤Metering CT re-sizing

➤Temperature monitoring

➤HVAC troubleshooting

➤Line voltage/stray voltage monitoring

➤Computer room monitoring

➤Food storage/refrigerated freight

➤Load profiling

➤Process control monitoring

➤Railroad signal monitoring

➤Surge/Sag monitoring

➤Wave soldering

➤Flow monitoring

➤Level monitoring

➤And many more

Technical Assistance (800) 343-1391 www.aemc.com 3

Plot graphs and view statistics quickly and

easily when you download data from Simple

Logger®to your computer. Scale and time

axis update automatically.

Click and drag your mouse to zoom up the

desired area of the graph for better viewing.

The Min, Max and Average statistics at the

bottom of the graph update automatically

when the graph is zoomed.

Click the Annotate button to add a title and

descriptive information to your graph. This

information can be stored and printed with

the graph.

FEATURES

➤Very easy to set up and use — no

programming required

➤Statistics appear on screen:

Max, Min, Avg, Date and Time

➤On-Line display of data logger values

➤Zoom capability with automatic

statistics update

➤User keyed text annotations

➤Automatically displays values at

the cursor position

➤Export data to spreadsheet and

database software

➤Print both graphs and tabular listings

➤Paste graphs into other applications

➤Programmable scale and units for all DC

loggers. Automatic selection for AC loggers

➤User programmable High and Low limits

(Model L215)

➤User programmable record modes —

inside or outside of limits (Model L215)

MINIMUM SYSTEM

REQUIREMENTS

➤Windows®98, Windows®2000/ME or

Windows®XP

➤8MB of RAM

➤One serial port not in use by

any other device

➤8MB hard drive space for

program and 400K max

per file stored

Plot area with value and

time data shown on the

X andY axis

Click the Annotate

button to add a title

and descriptive

information to

your graph.This

information can

be stored and

printed with a graph.

On-line display of data

Annotate

button

Annotate

button

Automatic

update of

time, date

and value

at cursor

position

Graph

statistics

Click and drag your mouse to zoom up

the desired area of the graph for better

viewing.The Min, Max and Average

statistics at the bottom of the graph update

automatically when the graph is zoomed.

Click the scale button in the file menu to

create custom scales and engineering units

for DC voltage (Models L410 and L430)

and DC current loggers (Model L320).

Simple Logger®Model 215 Software

User programmable

High and Low limits

Each captured exception is displayed at its time

of occurrence on the graph. Individual exceptions

can be zoomed up for more detailed analysis.

User selectable mode allows for data

storage inside or outside the limits

Simple Logger®Software

AC CURRENT

SIMPLE LOGGER®

Models L100 & L110

Model L100

SPECIFICATIONS

MODELS L100 L110

ELECTRICAL

Number of Channels One One

Measurement Range 0 to 10,000Arms 0 to 3000Arms

(based on probe) (based on probe)

Input 0 to 1Vrms 0 to 1Arms

Input Connection Recessed safety banana jacks on 3/4" (19mm) centers

Resolution 8 bit (Max resolution depends on probe)

Accuracy ±1% of Reading + Resolution + probe accuracy

Sample Rate 4096/hr max, decreases by 50% each time memory is full

Storage Technique Time Extension Recording™(TXR™)

Data Storage 8192 readings

Output RS-232 via DB9 connector

Indicators Red LED double flashes in LOGGING,

single flashes in STANDBY, and is off in OFF mode

Controls One button used to start and stop recording sessions

and to turn the data logger on and off

Power Source 9V Alkaline battery

Battery Life Up to one year of recording @ 77°F (25°C)

MECHANICAL

Dimensions 2.88 x 2.32 x 1.62" (73 x 59 x 41mm)

Weight 5 oz (140g) including battery

Case Material Polystyrene UL VO

Mounting Base plate mounting holes or Velcro®pads

ENVIRONMENTAL

Operating Temperature -4° to 158°F (-20° to 70°C)

Storage Temperature -4° to 174°F (-20° to 80°C)

Relative Humidity 5 to 95% non-condensing

SAFETY

Safety Rating EN 61010, 600V Cat. III

Double Insulation Yes Model L110 with 200A AC Current Probe Model MN213

The Simple Logger®Models L100 and L110

are single channel, low cost data loggers

that require no user setup. They have the

ability to automatically adjust both their

scale range and their sample rate to optimize

the recording session.

The AC current logger measurement range

is 0 to 1Vrms and 0 to 10,000Arms (based

on probe) for Model L100, and 0 to 1Arms

and 0 to 3000Arms (based on probe) for

Model L110.

Both models are compatible with numerous

AEMC current probes.

FEATURES

➤Supports wide range of current probes

with voltage or current outputs

➤Two input types to choose from:

Model L100

Use current probes with VAC output

0 to 1Vrms input

0 to 10,000Arms (based on probe)

Model L110

Use current probe with AAC output

0 to 1Arms input

0 to 3000Arms (based on probe)

➤True RMS measurements

➤Input via color-coded safety

banana jacks

➤Select scale via software to

match probe

➤RS-232 output

➤One button operation

➤Accuracy: ±1% of Reading + Resolution

APPLICATIONS

➤Machine load monitoring

➤Metering CT re-sizing

➤Load profiling

➤Fault finding

➤And many more

www.aemc.com

Technical Assistance (800) 343-1391

Technical Assistance (800) 343-1391 www.aemc.com 5

CLAMP-ON AC CURRENT

SIMPLE LOGGER®

Model CL600

The Clamp-On Simple Logger®Model

CL600 is a self-contained data logging AC

current probe. The logger requires no user

setup and has the ability to automatically

adjust its scale and sample rate to optimize

the recording. One button operation makes

the clamp-on logger extremely easy and

quick to use. The Model CL600 has true

RMS measurements with 0 to 600Arms input

and storage of over 8000 data points with

a built-in RS-232 port for downloading data.

It also provides one year operation from a

single 9V Alkaline battery. A Windows®based

software package is included which allows

plotting, statistical analysis, text annotation

and zoom capability.

FEATURES

➤0 to 600Arms

➤True RMS measurements

➤Self-contained, no exposed connections

➤Overload indication

➤RS-232 output

➤One button operation

APPLICATIONS

➤Machine load monitoring

➤HVAC troubleshooting

➤Load profiling

➤Electrical troubleshooting

➤And many more

SPECIFICATIONS

MODEL CL600

ELECTRICAL

Number of Channels One

Measurement Range 0 to 600Arms

Input Connection Split jaw internal current sensor

Resolution 8 bit (0.5A)

Accuracy 2% of Reading + Resolution (0 to 400A)

5% of Reading + Resolution (400 to 600A)

Sample Rate 4096/hr max

Storage Technique Time Extension Recording™(TXR™)

Data Storage 8192 readings

Output RS-232 via DB9 connector

Indicators Red LED flashes once every two seconds in STANDBY mode,

twice every two seconds in LOGGING mode,

and if off in OFF mode

Controls One button used to start and stop recording sessions

and to turn the data logger on and off

Power Source 9V Alkaline battery

Battery Life Up to one year of recording @ 77°F (25°C)

MECHANICAL

Dimensions 9.25 x 4 x 1.62" (235 x 102 x 41mm)

Jaw Opening 1.65" (42mm) max

Weight 1.07 lbs (484.79g)

Case Material Polycarbonate UL VO

ENVIRONMENTAL

Operating Temperature -4° to 158°F (-20° to 70°C)

Storage Temperature -4° to 174°F (-20° to 80°C)

Relative Humidity 5 to 95% non-condensing

SAFETY

Safety Rating EN 61010, 600V Cat. III

Double Insulation Yes

Model CL600 recording current draw on a VSD

www.aemc.com

Technical Assistance (800) 343-1391

Model L260 setting up to log voltage in a

distribution panel.

AC VOLTAGE

SIMPLE LOGGER®

Models L205, L230

& L260

Model L230

The Simple Logger®Models L205, L230

and L260 are single channel, low cost data

loggers that require no user setup. They

have the ability to automatically adjust both

their scale range and their sample rate to

optimize the recording session.

The Model L205 has an AC voltage

measurement range of 0 to 25Vrms (stray

voltage). The Model L230 has an AC voltage

measurement range of 0 to 300Vrms,

and the Model L260 has an AC voltage

measurement range of 0 to 600Vrms.

FEATURES

➤Three input types to choose from:

Model L205

0 to 25Vrms input (stray voltage)

Model L230

0 to 300Vrms input

Model L260

0 to 600Vrms input

➤True RMS measurements

➤Input via color-coded safety

banana jacks

➤Scale automatically selected

by software

➤RS-232 output

➤One button operation

➤Accuracy: ±1% of Reading + Resolution

APPLICATIONS

➤HVAC troubleshooting

➤Line voltage monitoring

➤Surge/Sag monitoring

➤Stray voltage monitoring

➤Dropout monitoring

➤And many more

SPECIFICATIONS

MODELS L205 L230 L260

ELECTRICAL

Number of Channels One One One

Measurement Range 0 to 25Vrms 0 to 300Vrms 0 to 600Vrms

Input 0 to 25Vrms 0 to 300Vrms 0 to 600Vrms

Input Impedance 1MΩ2MΩ2MΩ

Input Connection Recessed safety banana jacks on 3/4" (19mm) centers

Resolution 8 bit 12.5mV max 8 bit 250mV max 8 bit 500mV max

Accuracy ±1% of Reading + Resolution

Sample Rate 4096/hr max, decreases by 50% each time memory is full

Storage Technique Time Extension Recording™(TXR™)

Data Storage 8192 readings

Output RS-232 via DB9 connector

Indicators Red LED double flashes in LOGGING, single flashes

in STANDBY, and is off in OFF mode

Controls One button used to start and stop recording

sessions and to turn the data logger on and off

Power Source 9V Alkaline battery

Battery Life Up to one year of recording @ 77°F (25°C)

MECHANICAL

Dimensions 2.88 x 2.32 x 1.62" (73 x 59 x 41mm)

Weight 5 oz (140g) including battery

Case Material Polystyrene UL VO

Mounting Base plate mounting holes or Velcro®pads

ENVIRONMENTAL

Operating Temperature -4° to 158°F (-20° to 70°C)

Storage Temperature -4° to 174°F (-20° to 80°C)

Relative Humidity 5 to 95% non-condensing

SAFETY

Safety Rating EN 61010, 600V Cat. III

Double Insulation Yes

Technical Assistance (800) 343-1391 www.aemc.com 7

AC EXCEPTION VOLTAGE

SIMPLE LOGGER®

Model L215

SPECIFICATIONS

MODEL L215

ELECTRICAL

Number of Channels One

Measurement Range 0 to 250Vrms

Input 250V, Programmable event window

Input Connection Recessed safety banana jacks on 3/4" (19mm) centers

Resolution 10 bit, 250mV max

Accuracy ±1% of Reading + 250mV

Sample Rate 36,000/hr (10 samples per sec)

Storage Technique Exception recording in FIFO mode; 60 samples stored

when alarm is tripped. Each 60 second sample recording

is considered to be a packet. When memory is full, data

will be overwritten one packet at a time beginning with

the oldest. Recording only occurs during alarm conditions.

Data Storage 73,620 readings

Output RS-232 via DB9 connector (@ 4800 baud)

Indicators Red LED double flashes in LOGGING, single flashes

in STANDBY, and is off in OFF mode. Amber LED single

flashes for Exception and can only be reset

by stopping the recording and downloading the data.

Controls One button used to start and stop recording sessions

and to turn the data logger on and off

Power Source Powered from measured signal with 9V Alkaline battery backup

Battery Life Up to one year of recording @ 77°F (25°C)

MECHANICAL

Dimensions 2.88 x 2.32 x 1.62" (73 x 59 x 41mm)

Weight 5 oz (140g) including battery

Case Material Polystyrene UL VO

Mounting Base plate mounting holes or Velcro®pads

ENVIRONMENTAL

Operating Temperature -4° to 158°F (-20° to 70°C)

Storage Temperature -4° to 174°F (-20° to 80°C)

Relative Humidity 5 to 95% non-condensing

SAFETY

Safety Rating EN 61010, 300V Cat. III

Double Insulation Yes

The AC Exception Voltage Simple Logger®

Model L215 is the ideal product to capture

short-term events such as sags and swells.

This logger samples the input 10 times per

second and only stores the data when an

alarm threshold is crossed, thus maximizing

its use of memory. The 73,000-point storage

capacity provides enough memory to store

more than 1000 events, each containing

60 data points. The Model L215 is powered

by the AC voltage signal it is monitoring

and incorporates a backup battery to

provide up to one year of additional

operation and data storage protection.

FEATURES

➤0 to 250Vrms measurement range

➤10 samples per second

➤Stores data when alarm level is tripped

➤True RMS measurements

➤Stores over 73,000 readings

➤10 bit resolution (250mV)

➤Detect sags and swells

➤Scale automatically selected by software

➤Software programmable High and Low

alarm levels

➤RS-232 output

➤One button operation

➤Alarm trip LED indicator

APPLICATIONS

➤Surge/Sag monitoring

➤Computer room monitoring

➤Residential monitoring

➤Machine monitoring

➤Marine power monitoring

➤And many more

Model L215 monitoring a control panel looking for

dropouts and spikes in the line voltage

www.aemc.com

Technical Assistance (800) 343-1391

DC VOLTAGE

SIMPLE LOGGER®

Models L410 & L430

Model L430

The Simple Logger®Models L410 and L430

are single channel, low cost data loggers that

require no user setup. They have the ability to

automatically adjust both their scale range

and sample rates to optimize the recording

session. The Model L410 DC voltage logger's

measurement range is 0 to 100mVDC

and the Model L430 has a DC voltage

measurement range of 0 to 10VDC.

FEATURES

➤Two models to choose from:

Model L410

0 to 100mVDC

Model L430

0 to 10VDC

➤Input impedance: 1MΩ

➤Programmable scales via software

➤Programmable units via software

➤Inputs via color-coded safety

banana jacks

➤RS-232 output

➤One button operation

➤Accuracy: ±1% of Reading + Resolution

APPLICATIONS

➤Circuit design troubleshooting

➤Sensor monitoring

➤Battery monitoring

➤Power supply profiling

SPECIFICATIONS

MODELS L410 L430

ELECTRICAL

Number of Channels One One

Measurement Range 0 to 100mVDC 0 to 10VDC

Input Impedance 1MΩ1MΩ

Input Connection Recessed safety banana jacks on 3/4" (19mm) centers Recessed safety banana jacks on 3/4" (19mm) centers

Resolution 50µV max 5mV max

Accuracy 1% of Reading + Resolution

Sample Rate 4096/hr max

Storage Technique Time Extension Recording™(TXR™)

Data Storage 8192 readings

Output RS-232 9 pin via DB9 connector

Indicators Red LED double flashes once every two seconds in STANDBY mode, twice every two seconds

in LOGGING mode, and is off in OFF mode

Controls One button used to start and stop recording sessions and to turn the data logger on and off

Power Source 9V Alkaline battery

Battery Life Up to one year of recording @ 77°F (25°C)

MECHANICAL

Dimensions 2.88 x 2.32 x 1.62" (73 x 59 x 41mm)

Weight 5 oz (140g) including battery

Case Material Polystyrene UL VO

Mounting Base plate mounting holes or Velcro®pads

ENVIRONMENTAL

Operating Temperature -4° to 158°F (-20° to 70°C)

Storage Temperature -4° to 174°F (-20° to 80°C)

Relative Humidity 5 to 95% non-condensing

SAFETY

Safety Rating EN 61010, 30V Cat. III

Double Insulation Yes

Technical Assistance (800) 343-1391 www.aemc.com 9

THERMISTOR

SIMPLE LOGGER®

Model L605

The Simple Logger®Thermistor Logger

Model L605 is a single channel, low cost

data logger that requires no user setup. It

is directly compatible with industry standard

10kΩthermistor probes. The Model L605

has both an internal and external thermistor

with a measurement range of -4° to 212°F

(-20° to 100°C).

FEATURES

➤Internal or external thermistor

➤Thermistor type 10KΩ@ 77°F (25°C)

➤Measurement Range:

(Internal)

-4° to 158°F (-20° to 70°C)

(External)

-4° to 212°F (-20° to 100°C)

➤RS-232 output

➤One button operation

➤Accuracy: ±1% of Reading + 0.25°C

APPLICATIONS

➤Ambient temperature monitoring

➤HVAC troubleshooting

➤Computer room monitoring

➤Food storage

➤Wave soldering temperature profiling

➤Process control monitoring

➤Refrigerated freight

➤And many more

SPECIFICATIONS

MODEL L605

ELECTRICAL

Number of Channels One

Measurement Range Temperature °F and °C

Input Impedance Thermistor type 10KΩ@ 77°F (25°C)

Input Connection In-line 3.5mm connector

Resolution 8 bit

Accuracy 1% of Reading ± 0.25°C

Sample Rate 4096/hr max, decreases by 50% each time memory is full

Storage Technique Time Extension Recording™(TXR™)

Data Storage 8192 readings

Output RS-232 via DB9 connector

Indicators Red LED double flashes in LOGGING, single flashes in

STANDBY, and is off in OFF mode

Controls One button used to start and stop recording sessions

and to turn the data logger on and off

Power Source 9V Alkaline battery

Battery Life Up to one year of recording @ 77°F (25°C)

MECHANICAL

Dimensions 2.88 x 2.32 x 1.62" (73 x 59 x 41mm)

Weight 5 oz (140g) including battery

Case Material Polystyrene UL VO

Mounting Base plate mounting holes or Velcro®pads

ENVIRONMENTAL

Operating Temperature -4° to 158°F (-20° to 70°C)

Storage Temperature -4° to 174°F (-20° to 80°C)

Relative Humidity 5 to 95% non-condensing

SAFETY

Safety Rating EN 61010, 30V Cat. III

Double Insulation Yes

Model L605 monitoring the temperature in a

communications cabinet

www.aemc.com

Technical Assistance (800) 343-1391

THERMOCOUPLE

SIMPLE LOGGER®

Models L610, L620 & L630

Model L630

SPECIFICATIONS

MODELS L610 L620 L630

ELECTRICAL

Number of Channels One One One

Measurement Range 32° to 1382°F (0° to 750°C) -328° to 2282°F (-200° to 1250°C) -328° to 662°F (-200° to 350°C)

Input J thermocouple K thermocouple T thermocouple

Input Connection Miniature black thermocouple jacks Miniature yellow thermocouple jacks Miniature blue thermocouple jacks

Resolution 12 bit 12 bit 12 bit

Accuracy 0.5% of Reading + T/C Accuracy

Sample Rate 4096/hr max

Storage Technique Time Extension Recording™(TXR™)

Data Storage 16,384 readings

Output RS-232 via DB9 connector

Indicators Red LED flashes once every two seconds in STANDBY mode, twice every two seconds

in LOGGING mode, and is off in OFF mode

Controls One button used to start and stop recording sessions and to turn the data logger on and off

Power Source 9V Alkaline battery

Battery Life Up to one year of recording @ 77°F (25°C)

MECHANICAL

Dimensions 2.88 x 2.32 x 1.62" (73 x 59 x 41mm)

Weight 5 oz (140g) including battery

Case Material Polystyrene UL VO

Mounting Base plate mounting holes or Velcro®pads

ENVIRONMENTAL

Operating Temperature -4° to 158°F (-20° to 70°C)

Storage Temperature -4° to 174°F (-20° to 80°C)

Relative Humidity 5 to 95% non-condensing

SAFETY

Safety Rating EN 61010, 30V Cat. III

Double Insulation Yes

The Simple Logger®Models L610, L620

and L630 are single channel, low cost

thermocouple data loggers that require

no user setup. They have the ability to

automatically adjust both their scale range

and their sample rate to optimize the

recording session.

FEATURES

➤Three models to choose from:

Model L610 (Type J)

32° to 1382°F (0° to 750°C)

Model L620 (Type K)

-328° to 2282°F (-200° to 1250°C)

Model L630 (Type T)

-328° to 662°F (-200° to 350°C)

➤Inputs via color-coded miniature

thermocouple jacks

➤Open thermocouple

➤RS-232 output

➤One button operation

➤Internal cold junction compensation

➤Accuracy: ±0.5% of Reading + T/CAccuracy

APPLICATIONS

➤Process control monitoring

➤Wave soldering

➤Refrigeration monitoring

➤HVAC

➤And many more

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere AEMC instruments Messgerät Handbücher

AEMC instruments

AEMC instruments MN01 Bedienungsanleitung

AEMC instruments

AEMC instruments 5050 Bedienungsanleitung

AEMC instruments

AEMC instruments MN312 Bedienungsanleitung

AEMC instruments

AEMC instruments DIGITAL FLEXPROBE 400D-6 Bedienungsanleitung

AEMC instruments

AEMC instruments MN379T Bedienungsanleitung

AEMC instruments

AEMC instruments MN261 Bedienungsanleitung

AEMC instruments

AEMC instruments 6550 Bedienungsanleitung

AEMC instruments

AEMC instruments MN213 Bedienungsanleitung

AEMC instruments

AEMC instruments 403 Bedienungsanleitung

AEMC instruments

AEMC instruments 5050 Bedienungs- und Sicherheitshinweise

AEMC instruments

AEMC instruments MN134 Bedienungsanleitung

AEMC instruments

AEMC instruments Clamp-On 3705 Bedienungsanleitung

AEMC instruments

AEMC instruments Measure Up PowerPad III Bedienungsanleitung

AEMC instruments

AEMC instruments Chauvin Arnoux 6412 Bedienungsanleitung

AEMC instruments

AEMC instruments 300-24-2-10 Bedienungsanleitung

AEMC instruments

AEMC instruments 1035 Bedienungsanleitung

AEMC instruments

AEMC instruments 6536 Bedienungsanleitung

AEMC instruments

AEMC instruments MN09 Bedienungsanleitung

AEMC instruments

AEMC instruments SL261 Bedienungsanleitung

AEMC instruments

AEMC instruments MA194-24-BK Bedienungsanleitung

AEMC instruments

AEMC instruments MN103 Bedienungsanleitung

AEMC instruments

AEMC instruments JM865A Bedienungsanleitung

AEMC instruments

AEMC instruments 6527 Bedienungsanleitung

AEMC instruments

AEMC instruments 407 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
