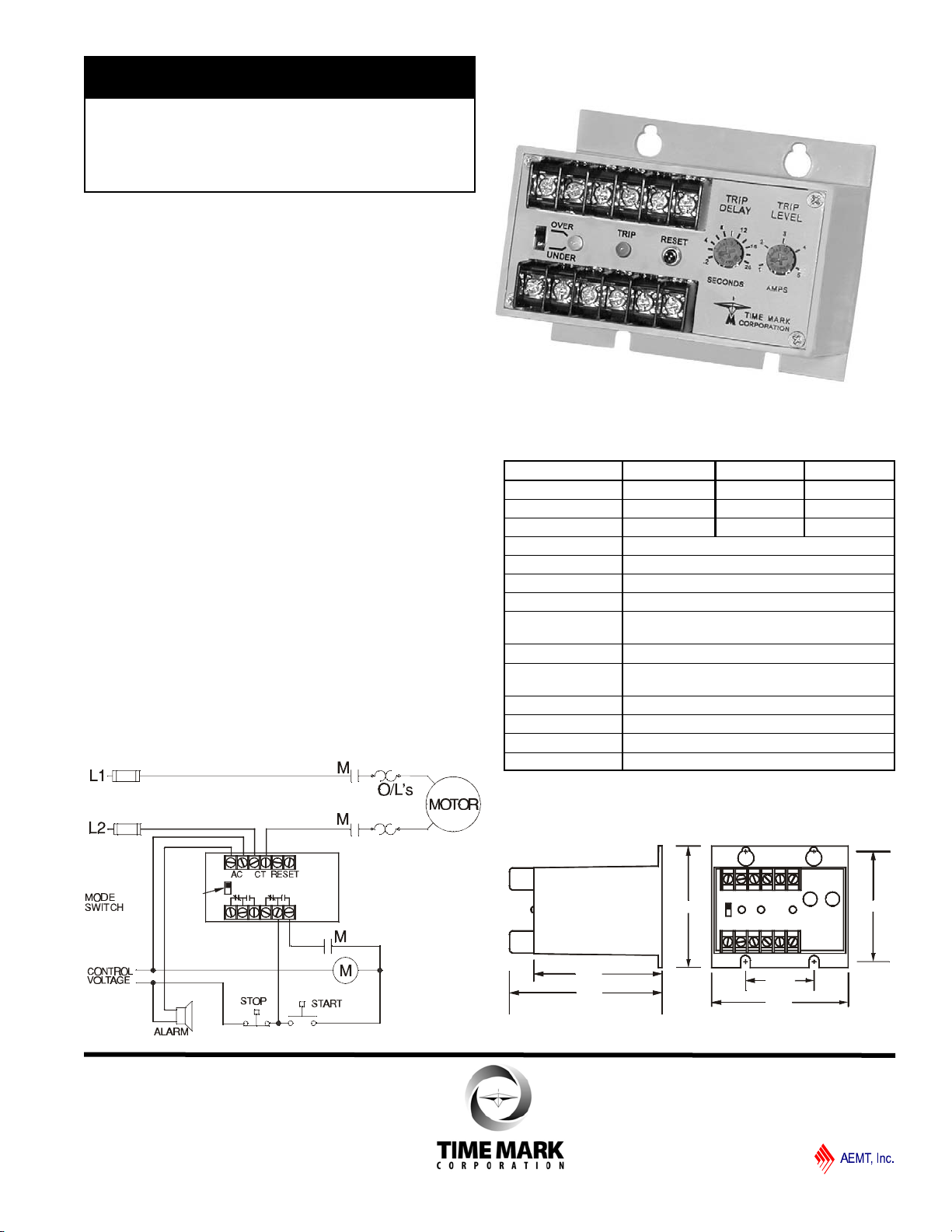

AEMT TIME MARK 2732 Bedienungsanleitung
DESCRIPTION
The Model 2732 Single-Phase Current Monitor is
designed to continuously monitor single-phase AC current.
It consists of a solid-state sensing circuit driving an internal
electromechanical relay. The Model 2732 has two
operating modes; over-current sensing or under-current
sensing. The operating mode is selected by means of a
slide switch on the monitor.
When operating voltage is applied, and the current level is
correct according to the operating mode, the relay will
energize. A fault condition will cause the OVER/UNDER
LED on the monitor to illuminate, and the trip delay will
begin. If correct current is restored, the relay remains
energized. If current is not restored during the delay
period, the relay will de-energize and the red TRIP
indicator will illuminate.
The Model 2732 has three reset configurations: automatic,
manual (add jumper), or manual remote (add NC switch).
The standard model, as provided, will reset automatically.
SPECIFICATIONS
Model A2732 B2732 C2732
Input Voltage 24 VAC 120 VAC 230 VAC
Voltage Range 20-28 VAC 100-130 VAC 190-250 VAC
Max. Voltage 30 VAC 140 VAC 260 VAC
Frequency 50-400 Hz
Input Current 1 -5 Amps
Transient Protection 2500V for 10 msec
Contact Rating DPDT 10A at 240 VAC resistive
Expected Relay Life Mech: 10 million operations
Elec: 100,000 operations at rated load
Trip Delay Adjustable 0.2 to 20 seconds
Reset Automatic, Manual (reset button on case)
or Remote Manual
Operating Temp -40º to +131º F
Humidity Tolerance 0-97% w/o condensation
Enclosure Material ABS Plastic
Weight 15 oz.
DIMENSIONS
3.5"
2.25"
4.5"
3.125"
4.0"
4.8"
TYPICAL APPLICATION
Over-Current with Alarm; Auto Reset
ll Detects Over or Under Current
ll Adjustable Trip Delay
ll Automatic or Manual Reset
MODEL 2732
Single-Phase
Current Monitor
TIME MARK is a division of
Telephone: Main -(918) 438-1220
Sales -(800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet:http://www.time-mark.com
Doc No. 87A209 12/00
© 2000 TIME MARK CORPORATION
11440 East Pine Street
Tulsa, Oklahoma 74116
Shows No Power Applied
INSTALLATION
Connect the control wiring to the terminals with the contact
markings (refer to the diagram on the unit). Apply power.
For manual reset, a jumper connection is added on the reset
terminals and the reset button on the top of the monitor is
used.
For remote reset, a remote normally-closed button can be
added (both manual reset buttons can be used in this
configuration).
ADJUSTMENT
Set the time delay to the required amount of delay. If the
desired trip level is known, set the trip adjustment to that point.
A slight adjustment up or down may be necessary to allow for
tolerance variations.
Usually a trip is desired only if the current changes from the
present nominal. For calibration, turn the TRIP DELAY
clockwise to the maximum delay.
Turn the TRIP LEVEL slowly up (or down) until the yellow
TRIP indicator comes on. Turn the adjustment back until the
LED just goes out (if the manual reset is used, press and hold
the reset button during this step).
Reset the time delay to the previous setting.
TROUBLESHOOTING
Should the Model 2732 Single Phase Current Monitor fail to
operate, check all connections. Verify that power is present,
and check all fuses. Should problems persist, contact the
factory at 800-862-2875 for assistance.
WARRANTY
The Model 2732 Single Phase Current Monitor is warranted
to be free from defects in materials and workmanship for one
year. Should this device fail to operate, we will repair or
replace it for one year from the date of purchase. For
complete warranty details, see the Terms and Conditions of
Sales page in the front section of the Time Mark catalog.
TYPICAL APPLICATION
Under-Current with Alarm; Manual Reset
TYPICAL APPLICATION
Over-Current with Alarm; Remote Manual Reset
MODEL 2732 Single-Phase Current Monitor
Read All Instructions Before Installing, Operating or Servicing This Device.
KEEP THIS DATA SHEET FOR FUTURE REFERENCE.
GENERAL SAFETY
POTENTIALLY HAZARDOUS VOLTAGES ARE PRESENT AT THE TERMINALS OF THE MODEL 2732.
ALL ELECTRICAL POWER SHOULD BE REMOVED WHEN CONNECTING OR DISCONNECTING WIRING.
THIS DEVICE SHOULD BE INSTALLED AND SERVICED BY QUALIFIED PERSONNEL.
Installation Instructions
TIME MARK is a division of
Telephone: Main -(918) 438-1220
Sales -(800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet:http://www.time-mark.com
Doc No. 87A209 12/00
© 2000 TIME MARK CORPORATION
11440 East Pine Street
Tulsa, Oklahoma 74116
Shows No Power Applied
Shows No Power Applied
