Aerotech A3200 Series Bedienungsanleitung

Revision: 1.03.00

A3200 Automation Controller

Hardware Manual

Global Technical Support

Go to www.aerotech.com/global-technical-support for information and support about your Aerotech, Inc. products. The

website supplies software, product manuals, Help files, training schedules, and PC-to-PC remote technical support. If

necessary, you can complete Product Return (RMA) forms and get information about repairs and spare or replacement parts.

To get help immediately, contact a service office or your sales representative. Include your customer order number in your

email or have it available before you call.

United States (World Headquarters)

Email: Support@aerotech.com

Phone: +1-412-967-6440

Fax: +1-412-967-6870

101 Zeta Drive

Pittsburgh, PA 15238-2811

www.aerotech.com

United Kingdom Japan

Email: Support@aerotech.com

Phone: +44 (0)1256 855055

Fax: +44 (0)1256 855649

Email: Support@aerotech.com

Phone: +81 (0)50 5830 6814

Fax: +81 (0)43 306 3773

Germany China

Email: Support@aerotech.com

Phone: +49 (0)911 967 9370

Fax: +49 (0)911 967 93720

Email: Support@aerotech.com

Phone: +86 (21) 5508 6731

France Taiwan

Email: Support@aerotech.com

Phone: +33 2 37 21 87 65

Email: Support@aerotech.com

Phone: +886 (0)2 8751 6690

This manual contains proprietary information and may not be reproduced, disclosed, or used in whole or in part without the

express written permission of Aerotech, Inc. Product names mentioned herein are used for identification purposes only and

may be trademarks of their respective companies.

Declaration of Conformity A3200 Automation Controller Hardware Manual

EU Declaration of Conformity

Manufacturer

Aerotech, Inc.

Address

101 Zeta Drive

Pittsburgh, PA 15238-2811

USA

Product

A3200 Automation Controller

Model/Types

A3200-PC-1U RACK, A3200-PC-4U RACK, A3200-PPC

This is to certify that the aforementioned product is in accordance with the applicable requirements of the

following Directive(s):

2014/35/EU Low Voltage Directive

2014/30/EU EMC Directive

2011/65/EU RoHS2 Directive

and has been designed to be in conformity with the applicable requirements of the following Standard(s)

when installed and used in accordance with the manufacturer’s supplied installation instructions.

Panel Mount (PPC) -1URack -4URack

EN 60950-1:2006 /A11:2009

/A1:2010 /A12:2011 /A2:2013

EN 55022-2010

EN 61000-3-2:2006 /A1:2009

/A2:2009

EN 61000-3-3:2008

EN 61000-4-2:2009

EN 61000-4-4:2012

EN 61000-4-5:2006

EN 61000-4-3:2006 /A1:2008

/A2:2010

EN 61000-4-6:2009

EN 61000-4-11:2004

EN 55022-2010

EN 55024:2010

EN 61000-3-2:2006

EN 61000-3-3:2008

IEC 60950-1:2005

EN 60950-1:2006 /A11:2009

UL 60950-1 CSA/CAN-C22.2 /NO.

60950-1-07 FCC PART 15 AS/NZS

CISPR 22/24 VCCI V-3

EN 55022-2010 +AC:2011,Class A

EN61000-3-2:2006

+A1:2009+A2:2009

EN 61000-3-3:2013

EN 55024:2010

IEC 61000-4-2:2008

IEC 61000-4-3:2008

IEC 61000-4-4:2012

IEC 61000-4-5:2005

IEC 61000-4-6:2013

IEC 61000-4-8:2009

IEC 61000-4-11:2004

Authorized Representative:

Simon Smith, European Director

Address:

Aerotech Ltd

The Old Brick Kiln, Ramsdell, Tadley

Hampshire RG26 5PR

Name

/ Alex Weibel

Position

Engineer Verifying Compliance

Location

Pittsburgh, PA

Date

1/15/2019

www.aerotech.com 3

A3200 Automation Controller Hardware Manual Declaration of Conformity

4 www.aerotech.com

This page intentionally left blank.

Introduction A3200 Automation Controller Hardware Manual

Chapter 1: A3200 Automation Controller

The A3200 Automation Controller provides a rugged, compact panel-mount computer, or rack-mount

configuration (1U or 4U), designed for industrial environments. The A3200 Automation Controller offers easy

front and top connections to simplify installation with panel-mount devices, while the compact enclosure

offers a convenient space-saving package. A variety of optional peripherals can enhance operation including

FireWire®ports, USB and serial ports, dual Ethernet and solid state storage.

Figure 1-1: A3200 Automation Controller Configuration Options

www.aerotech.com Chapter 1 5

A3200 Automation Controller Hardware Manual Introduction

1.1. Order Information

N O T E : PC specifications subject to change without notice. Please contact factory for most up to date

information. Reference your third-party motherboard to determine your current specifications.

Table 1-1: Ordering Options

Controller

-PPC-i7 A3200 panel-mounted machine controller

-1U RACK A3200 1U rack-mount machine controller

-1U RACK SSD A3200 1U rack-mount machine controller with solid state drive

-4U RACK A3200 4U rack-mount machine controller

Operating System (Required)

-Win 7 64 Windows 7 64-bit SP1 operating system

-Win 8.x 64 Windows 8.1 (minimum) 64-bit operating system

-Win 10 64 Windows 10 64-bit operating system

Drive Interface (Required)

-FIREWIRE-PCI IEEE-1394 Interface PCI Card

-FIREWIRE-PCIE IEEE-1394 Interface PCIe Card

-HYPERWIRE HyperWire Interface PCIe Card

I/O Expansion (Optional)

-ETHERNET I/O Real-time compatible Ethernet card

-HILSCHER Dual port Ethernet card

-I/O 1 Dual port real-time Ethernet for EtherCat and PROFINET

NOTE:These options are not available for panel-mounted models

Keyboard and Mouse (Optional)

-KB/MOUSE Keyboard with mouse

-KB/TOUCHPAD Keyboard with touchpad

Monitor (Optional)

-LED-17 17" LED monitor

Remote Server (Optional)

-REMOTE SERVER Configure A3200 as remote server

Line Cord (Required for 1U and 4U Models)

-US115VAC US 115 VAC line cord

-US230VAC US 230 VAC line cord

-ENGLAND UK compatible line cord

-GERMANY German compatible line cord

-ISRAEL Israel compatible line cord

-INDIA India compatible line cord

-AUSTRALIA Australia compatible line cord

6 Chapter 1 www.aerotech.com

Introduction A3200 Automation Controller Hardware Manual

Figure 1-2: Panel Mount PCConnector View (typical)

Table 1-2: Power Supply Mating Connector Part Number for the -PPC

Description Aerotech P/N Phoenix P/N

Tightening

Torque (Nm)

Wire Size:

AWG [mm2]

5-Pin Terminal Block ECK02221 1841912 0.22 - 0.25 28-16 [0.14 - 1.5]

www.aerotech.com Chapter 1 7

A3200 Automation Controller Hardware Manual Introduction

Figure 1-3: 1U PCConnector View (Typical)

Figure 1-4: 4U PCConnector View (Typical)

8 Chapter 1 www.aerotech.com

Introduction A3200 Automation Controller Hardware Manual

1.2. Dimensions

N O T E : Aerotech continually improves its product offerings; listed options may be superseded at any

time. All drawings and illustrations are for reference only and were complete and accurate as of this

manual’s release. Refer to www.aerotech.com for the most up-to-date information.

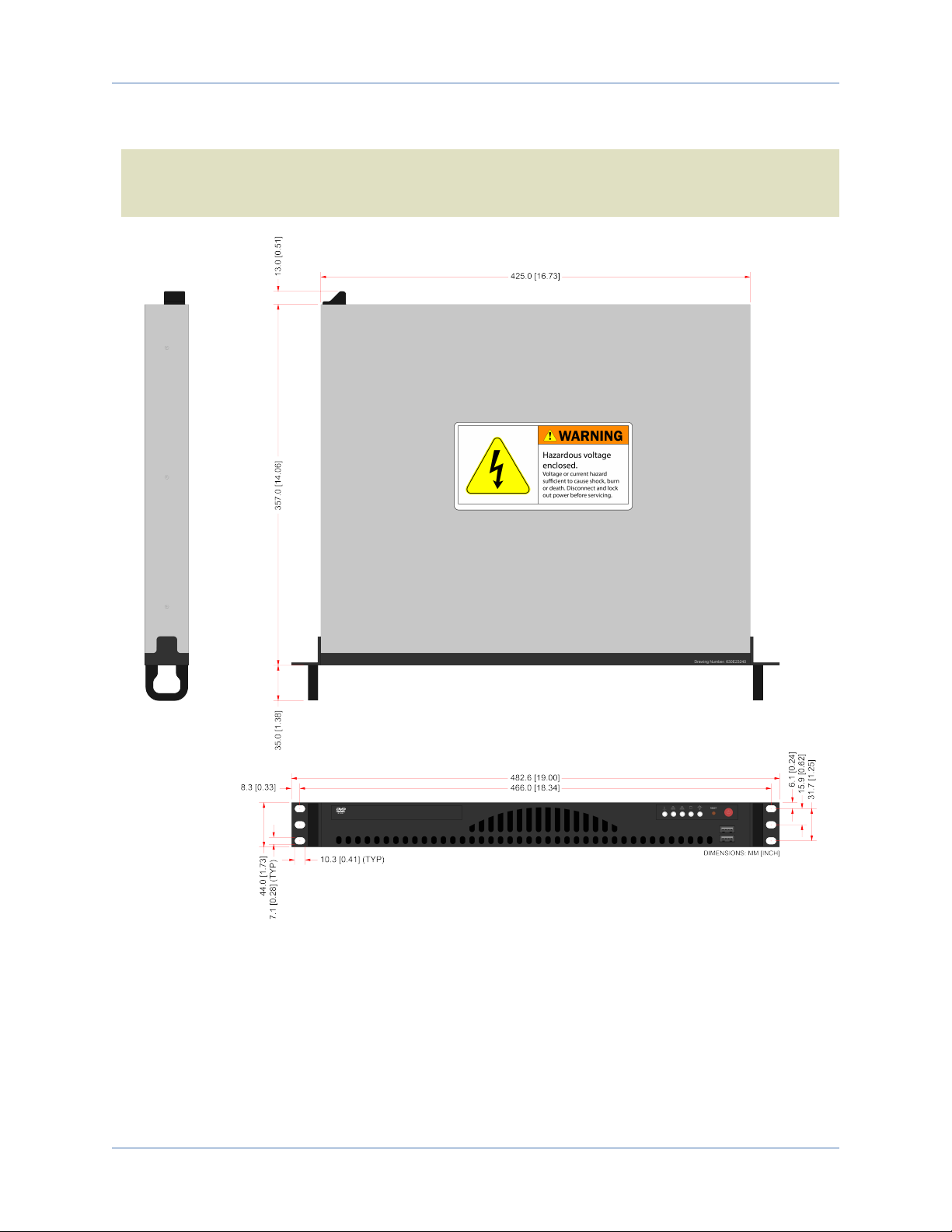

Figure 1-5: 1U Dimensions

www.aerotech.com Chapter 1 9

A3200 Automation Controller Hardware Manual Introduction

Figure 1-6: 1U with Chassis Slide Dimensions

10 Chapter 1 www.aerotech.com
