Agri-Fab 45-0187 Bedienungsanleitung

Assembly

Operation

Maintenance

Repair Parts

CAUTION:

Read Rules for

Safe Operation

and Instructions

Carefully

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxx



xxxxx



xxxxxx



xxx

xxxxx



xxxxx



xxxxxx



xxx

xxxxxxxxxxxxxxxx



xxxxx xxxxxx



xxxxxx xxxxx



xxx xxxxxx

LOW

RATE

Model No.

45-0187

OWNERS

MANUAL

303 WEST RAYMOND SULLIVAN, ILLINOIS 61951

BROADCAST SPREADER 160

PRINTED IN USA

Exercise caution at all times when using power equipment.

1. Read the owners manual and know how to operate your tractor, before using the spreader attachment.

2. Never operate tractor and spreader attachment without wearing substantial footwear, and do not allow anyone

to ride or sit on spreader attachment frame.

3. Never allow children to operate the tractor or spreader attachment, and do not allow adults to operate without

proper instructions.

4. Always begin with the transmission in first (low) gear and engine at low speed, and gradually increase speed

as conditions permit.

5. When towing broadcast spreader do not drive too close to a creek or ditch and be alert for holes and other

hazards which could cause you to loose control of the broadcast spreader and tractor.

6. Before operating vehicle on any grade (hill) refer to the safety rules in the vehicle owner's manual concerning

safe operation on slopes. Stay off steep slopes.

7. Read instructions and caution notes for handling/spreading of materials purchased for spreading.

8. ollow maintenance and lubrication instructions as outlined in this manual.

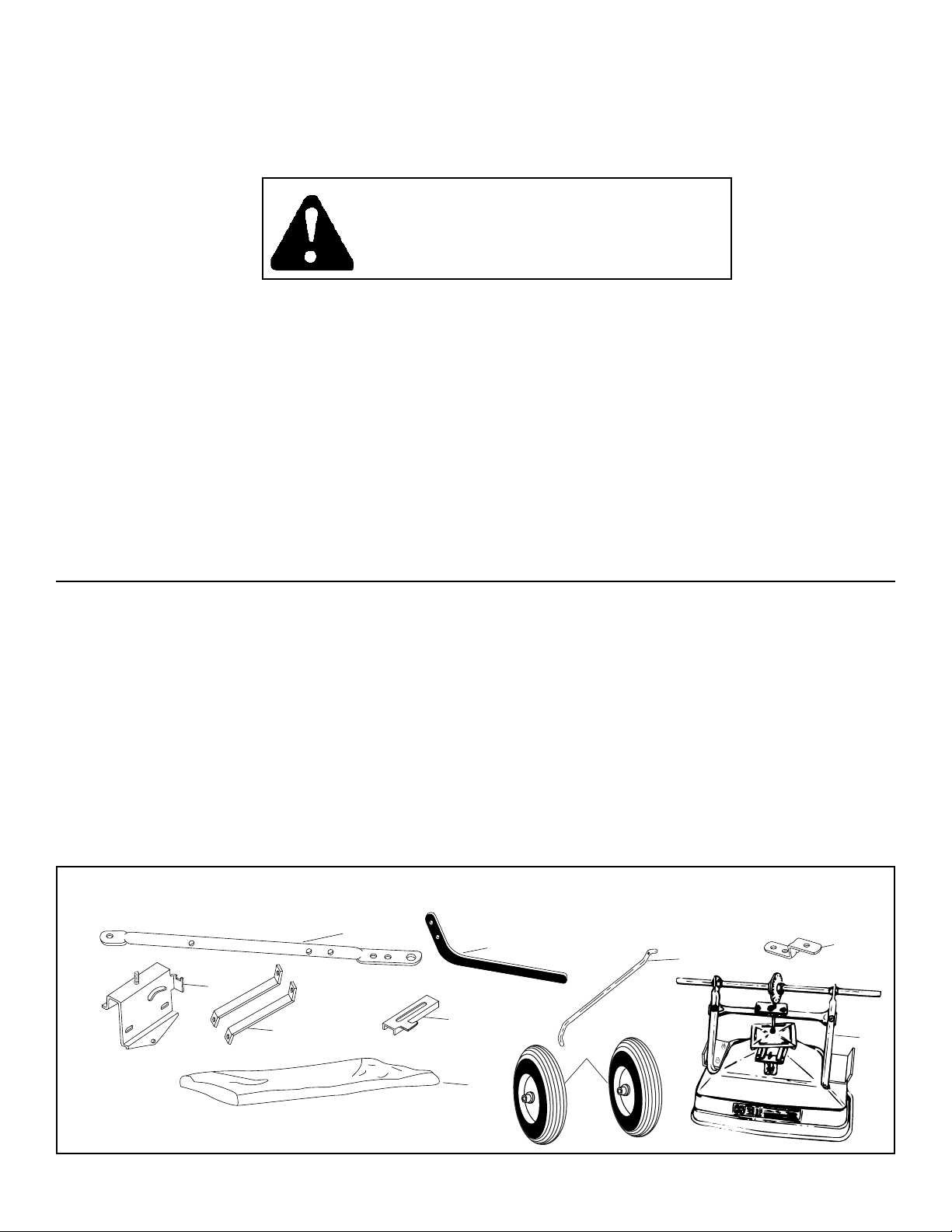

Your broadcast spreader carton contains parts as

shown in figure 1. The hardware package contains

parts shown in figure 2 on page 3. Identify all parts

and layout as shown in figures 1 and 2.

FIGURE 1

CARTON CONTENTS

LOOSE PARTS IN CARTON

1. Hitch Tube

2. Braces

3. low Control Mount Bracket

4. low Control Gauge

5. low Control Arm

6. low Control Rod

7. Hitch Bracket

8. Wheels (R.H. and L.H.)

9. Hopper Assembly

10. Hopper Cover

11. Hardware Packeage (not shown)

LOOK OR THIS SYMBOL TO POINT OUT

IMPORTANT SA ETY PRECAUTIONS. IT

MEANS -- ATTENTION! BECOME ALERT! YOUR

SA ETY IS INVOLVED.

RULES FOR SAFE OPERATIONS

Remember, any power equipment can cause injury if operated improperly or if the user does not understand how

to operate the equipment.

FGI

FIGURE 2 - HARDWARE PACK

FULL SIZE HARDWARE REFERENCE CHART

3/8" x 1-1/4"

25/32" WASHER

1/4" WASHER

1/4" LOCK NUT

G



A



1/4"x 1-3/4"

NYLON WASHER

1/4"x 5/8"

3/8" LOCK NUT

3/8" LOCK WASHER

I 2 Hex Lock Nuts 3/8-16 Thread

J 2 Spacers

K 4 lat Washers 1-5/8" O.D.

L 1 Grip

M 2 Hex Bolt 1/4-20 x 5/8" Long

N 1 low Control Link

O 1 Extension Spring

P 1 Cotter Pin 1/8 x 1-1/2" Long

KEY QTY. DESCRIPTION

A 6 Hex Bolt 1/4-20 x 1-3/4" Long

B 8 Hex Lock Nuts 1/4-20 Thread

C 1 Hand Knob

D 1 Nylon Washer

E 1 Cotter Pin 3/32" x 3/4" Long

3 lat Washer 1/4" Standard

G 2 Hex Bolts 3/8-16 x 1-1/4" Long

H 2 Lock Washers 3/8" I.D.

KEY QTY. DESCRIPTION

FIGURE 4

HTICH

TUBE

3/8" LOCK

NUT

3/8" x 2"

HEX BOLT

CROSSOVER

TUBE

3/8" FLAT

WASHER

FIGURE 5

NOTE

4. Place the hitch tube up against the crossover

tube, align the holes in the hitch tube, crossover

tube and shaft support plate, assemble with 3/8"

hex bolt, 3/8" flat washer and 3/8" hex lock nut,

removed in step 3. See figures 3 and 4. MAKE

ONLY INGER TIGHT AT THIS TIME.

FIGURE 3

ASSEMBLY INSTRUCTIONS

TOOLS REQUIRED FOR ASSEMBLY

(1) Pliers

(2) Open or Boxed End Wrench

(2) 9/16" Open or Boxed End Wrench

1. Remove the spreader, loose parts and hardware

package from the carton. See figures 1 and 2.

2. Turn the spreader upside down as shown in figure

3, so that it rests on the hopper.

3. Remove the 3/8" hex bolt, flat washer and hex lock

nut from the center of the crossover tube and shaft

support plate. See figure 3.

3/8" HEX BOLT,

FLAT WASHER

AND HEX NUT CROSSOVER

TUBE

SHAFT

SUPPORT

PLATE HOPPER

FRAME

WHEN SPREADER IS UP SIDE DOWN,

AS SHOWN IN FIGURE 4, HITCH TUBE

IS UNDERNEATH CROSSOVER TUBE

5. Assemble two hitch braces to the inside of the

hopper frame, one on each side, using two 1/4" x

1-3/4" and two 1/4" hex lock nuts. See figure 5.

DO NOT TIGHTEN AT THIS TIME.

6. Align the holes in the ends of the two hitch braces

with the nearest hole in the hitch tube, secure with

1/4" x 1-3/4" hex bolt and 1/4" hex lock nut. See

figure 5.

7. Tighten all hex nuts and bolts, following same

sequence as assembled in steps 4, 5 and 6. DO

NOT COLLAPSE TUBE WHEN TIGHTENING.

8. Assemble one spacer, and one 1-5/8" dia. flat

washer to each side of axle. See figure 5.

SPACER

AXLE 1-5/8" DIA.

FLAT

WASHER

1/4" x 1-3/4"

HEX BOLT

1/4" LOCK

NUT

11. Turn the broadcast spreader over so that it rests

on its wheels.

12. Assemble the hitch bracket to the hitch tube. See

figure 8. Secure with two 3/8" x 1-1/4" hex bolts,

3/8" lock washers and 3/8" lock nuts. See figure

13. Assemble the flow control link (the end with the

smallest hole) to the flow control arm using one

1/4" x 5/8" hex bolt and one 1/4" hex lock nut. See

figure 9. DO NOT OVER TIGHTEN, FLOW CON-

TROL LINK MUST PIVOT FREELY.

14. Place the vinyl grip on the flow control arm. See

figure 9.

FIGURE 8

FIGURE 9

VINYL GRIP

FLOW

CONTROL

ARM

1/4" x 5/8"

HEX BOLT

SMALLEST HOLE

FLOW

CONTROL

LINK

1/4" HEX

LOCK

NUT

FIGURE 7

3/8" x 1-1/4" HEX BOLT

HITCH TUBE

3/8" LOCK WASHERS

3/8" HEX LOCK NUTS

HITCH BRACKET

FIGURE 6

AXLE

1-5/8" DIA.

FLAT WASHER

AIR

VALVE

COTTER

10. Place the drive wheel onto the axle (air valve to

the outside) and secure with 1/4" 1-3/4" hex bolt

and 1/4" hex lock nut. See figure 7.

9. Place wheel assembly without hole through hub

(air valve to the outside) onto axle end having the

smallest and secure with 1-5/8" dia. flat washer

and 1/8" x 1-1/2" cotter pin. See figure 6. Use

extra 1-5/8" diameter flat washer if needed to take

up play.

1/4" x 1-3/4" HEX BOLT

AIR VALVE

1/4" HEX LOCK NUT

DRIVE WHEEL

FIGURE 13

15. Assemble the flow control arm to the flow control

mounting bracket using one 1/4" x 5/8" hex bolt

and one 1/4" hex lock nut. See figure 10. DO NOT

OVER TIGHTEN FLOW CONTROL ARM MUST

PIVOT FREELY.

16. Hook one end of extension spring through small

hole near bend in flow control rod and the other

end through the hole in flow control mounting

bracket. See figure 10.

1/4" x 5/8"

HEX BOLT1/4" LOCK NUT

FLOW

CONTROL

LINK

EXTENSION

SPRING

FLOW

CONTROL

ROD

FLOW CONTROL

MOUNTING

BRACKET

FLOW CONTROL ARM

FIGURE 10

17. Place 1/4" flat washer on end of flow control link,

align with slot in flow control mounting bracket

and insert end of flow control rod through slot and

hole in flow control link. Secure with 3/32" cotter

pin. See figure 11.

FIGURE 11

HOPPER

SLIDE

GATE

BRACKET

FLOW

CONTROL

ROD

FIGURE 12

FLOW CONTROL

MOUNTING BRACKET

1/4" x 3/4"

HEX BOLTS

1/4" FLAT

WASHERS

1/4" HEX

LOCK NUTS

19. Assemble flow control mounting bracket to the

hitch tube using two 1/4" x 1-3/4" hex bolts, two 1/

4" flat washers and two 1/4" hex lock nuts. See

figure 13. DO NOT TIGHTEN AT THIS TIME.

1/4" FLAT

WASHER

FLOW CONTROL

ROD FLOW CONTROL

MOUNTING BRACKET

3/32" COTTER

FLOW CONTROL LINK

18. Hook free end of flow control rod through hole in

slide gate bracket located near bottom of hopper.

See figure 12.

FIGURE 14

20. Assemble the flow control gauge onto the flow

control mounting bracket as shown in figure 14.

Secure with nylon washer and hand knob.

FLOW CONTROL

MOUNTING BRACKET

PLASTIC KNOB

NYLON

WASHER

FLOW

CONTROL

GAUGE

OFF

FLOW

CONTROL

ARM

21. Move flow control arm to off position and slide flow

control mounting bracket toward hopper until clo-

sure plate (located in bottom of hopper) is com-

pletely closed. Tighten 1/4" hex lock nuts as-

sembled in step 19. See figure 14.

22. Pre-lubricate per lubrication section on page 9

before operating spreader.

1. Determine approximate square footage of area to

be covered and estimate amount of material re-

quired.

2. With flow control arm in the off position, set flow

rate gauge at the number indicated in flow rate

chart - light or heavy application rate. Also refer

to the bag instructions for manufacturers recom-

mended settings.

3. Break up lumpy fertilizer as you fill hopper.

4. To broadcast, always start tractor in motion be-

fore opening closure plate. Do not allow tractor

to sit stationary with flow control arm in the on

position. If fertilizer is accidentally deposited to

heavily in a small area, soak down thoroughly with

garden hose or sprinkler to prevent burning of

lawn.

IMPORTANT: Application rates (shown on

chart) are affected by humidity and moisture

content of material (granular and pellet); there-

fore, minor setting adjustments may be neces-

sary to compensate for this condition. The

rate chart is calculated for light and heavy

application. The faster you drive, the wider the

broadcast width. A variation in speed will

determine the flow rates and width of broad-

cast.

When broadcasting weed control fer-

tilizers make sure broadcast pattern

does not hit evergreen trees, flowers

or shrubs.

CAUTION

FIGRUE 15

FIGURE 16

MATERIAL TYPE Flow Rate Setting

At 3 M.P.H.

Light Heavy

ERTILIZER Granular 3 5

Pelleted 5 7

GRASS SEED ine 2 4

Coarse 6 8

ICE MELTER Granular 6 8

Pelleted 6 8

OPERATION

The application spray pattern should overlap to insure

uniform coverage at the edges. The approximate

distance between each pass is shown in the applica-

tion diagram. See figure 15.

APPLICATION DIAGRAM

FLOW RATE ADJUSTMENT

(SEE FIGURE 16)

1. Push back on the flow control arm to the off

position and pull forward to the on position. The

higher the number on the flow rate gauge the

larger the opening in the bottom of the hopper.

2. REFER TO FLOW RATE CHART AND INSTRUC-

TIONS ON FERTILIZER BAG TO SELECT

PROPER FLOW RATE SETTING.

3. Loosen the hand knob to set the flow gauge to the

desired flow setting and tighten the hand knob.

4. Always move flow control arm to off position be-

fore stopping or turning spreader.

5. The spreader should be moving before you move

the flow control arm to the on position.

12345678910

OFF

FLOW CONTROL ARM

FLOW RATE GAUGE

HAND KNOB

OVERLAP

8' to

10'

SPROCKET

SHAFT

AGITATOR

WIRE

3/8" LOCKNUT

AGITATOR

SLEEVE

FIGURE 17

5. Keep tires inflated to 15-20 P.S.I. Do not over

inflate.

FIGURE 18

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxx



xxxxx



xxxxxx



xxx

xxxxx



xxxxx



xxxxxx



xxx

xxxxxxxxxxxxxxxx



xxxxx xxxxxx



xxxxxx xxxxx



xxx xxxxxx

LOW

RATE

VINYL

COVER

FIGURE 19

LUBRICATION

(SEE FIGURE 19)

1. Apply a little automotive grease to the sprocket

and gear.

2. Oil nylon bushings on sprocket shaft as shown in

figure 19.

3. Oil axle/shaft bushing on axle as shown in figure

19.

4. Oil right hand wheel bearing as needed.

MAXIMUM TIRE PRESSURE 30 PSI

GREASE

OIL

SPROCKET

SHAFT

6. Heavy moisture conditions may require a cover

over the hopper to keep contents dry. The vinyl

cover acts as a wind and moisture shield, but

should not be used as a rain cover. See figure 18.

MAINTENANCE & STORAGE

1. Do not store spreader with any material in hopper.

2. Clean your spreader after use. lush thoroughly

with water.

3. If for any reason the axle, gear and sprocket

assembly is disassembled, be sure to mark posi-

tion of parts as they are removed. Drive wheel

and sprocket position determine relation direction

of spreader plate. With reassembly of gear and

sprocket use shim washers as needed for mini-

mum backlash. Add grease to gear and sprocket.

4. If agitator wire becomes damaged or worn it can

be replaced. Loosen 3/8" lock nut on the top of

sprocket shaft until agitator wire is free. Remove

old agitator wire from hole in agitator sleeve and

replace with new agitator wire. Position agitator

wire so that sprocket shaft turns freely and tighten

3/8" lock nut on top of sprocket shaft. See figure

17.

11 10

24 23

50 51

21 20 21 22

15 37

33 61

957

24 51

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxx



xxxxx



xxxxxx



xxx

xxxxx



xxxxx



xxxxxx



xxx

xxxxxxxxxxxxxxxx



xxxxx xxxxxx



xxxxxx xxxxx



xxx xxxxxx

LOWRATE

40 39 60

OFF

REPAIR PARTS BROADCAST SPREADER MODEL 45-0187

Inhaltsverzeichnis

Andere Agri-Fab Streuer Handbücher

Agri-Fab

Agri-Fab 45-02112 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-03642 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02103-101 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02153-131 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02113 Bedienungsanleitung

Agri-Fab

Agri-Fab PRO 125 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0309 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0388 Bedienungsanleitung

Agri-Fab

Agri-Fab 175 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0410 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-03295 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02102-101 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02142 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0301 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02102 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02101-101 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0329 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0364 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-05321 Bedienungsanleitung

Agri-Fab

Agri-Fab SpeedEPart 45-0463 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02881 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-03121 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-03641 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02104 Bedienungsanleitung

Beliebte Streuer Handbücher anderer Marken

PEQUEA

PEQUEA GT-100 Bedienungsanleitung

Herculano

Herculano H2RS9 Bedienungsanleitung

Epoke

Epoke SKE8 Bedienungsanleitung

GEA

GEA EL44 Technisches Datenblatt

Boss Snowplow

Boss Snowplow TGS 800 Bedienungsanleitung

Fisher

Fisher EMERSON 168 Series Bedienungsanleitung

Fisher

Fisher POLY-CASTER 78601 Bedienungsanleitung

TurfEx

TurfEx RS7200 Betriebsanleitung

Ferris

Ferris Pathfinder Series Bedienungsanleitung

Fayat Group

Fayat Group DYNAPAC S100 Fehlerbehebungshandbuch

Art's-Way Manufacturing

Art's-Way Manufacturing X700 Installations- und Betriebshandbuch

EASTMAN

EASTMAN CR 500 Bedienungsanleitung

Nogueira

Nogueira RoyalFlow-600 Bedienungsanleitung

Buyers

Buyers TGS05B Bedienungsanleitung

Magnum

Magnum V-BOX PV Series Beilage

Meyer's

Meyer's VB280 Bedienungsanleitung

SnowEx

SnowEx VX-4210 Bedienungsanleitung

Kramer

Kramer VM-400HDCP Bedienungsanleitung
