UNOhab Unit

Filter Maintenance Guide

MVHR (Mechanical Ventilation with Heat Recovery) units require regular filter maintenance (cleaning or

replacement). The Airflow MVHR units have been designed to facilitate convenient access to the filters with easy

maintenance in mind. The Airflow filters are tested and compliant with ISO 16890.

This filter replacement guide is specific for the following products:

Product no

Description

90001177

UNOhab unit

90001178

UNOhab external wall insulation vent kit

Filter replacement indication

The safety switch automatically turns off the power when the upper door of the unit is opened

Always disconnect the power plug before starting the ventilation unit maintenance.

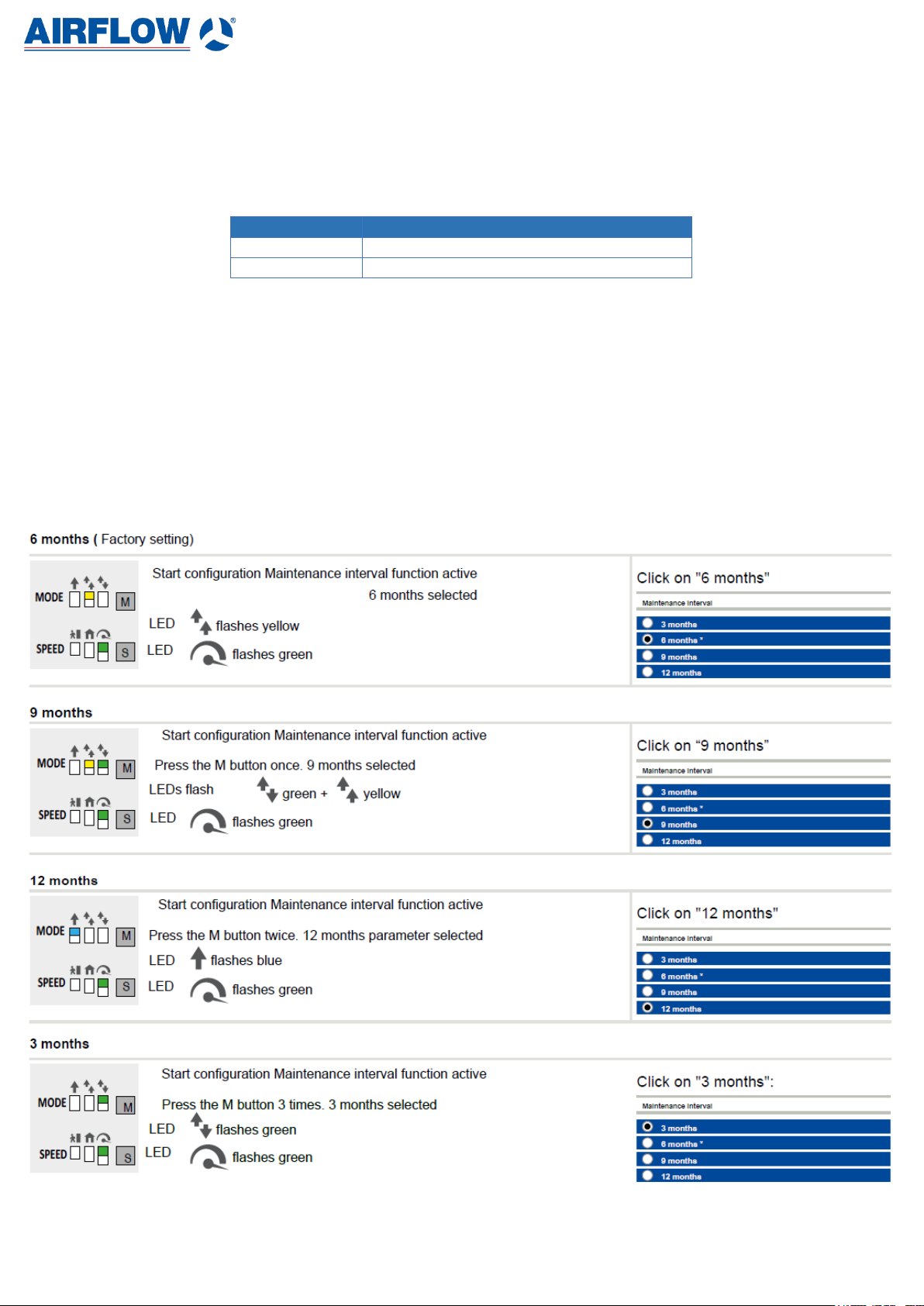

The reminder of the filter change interval is indicated by flashing LEDs depending upon the chosen interval time (3,

6, 9 or 12 months).

To reset the filter display: Press the S (Speed) button and M (Mode) button simultaneously for 2 seconds to start

configuration:

Press the S button and M button for 8 seconds.

Page 1/2

80001443 Issue 1 10/23

The upcoming filter change will be indicated on the controller by the “flashing” LEDs. Proceed as follows:

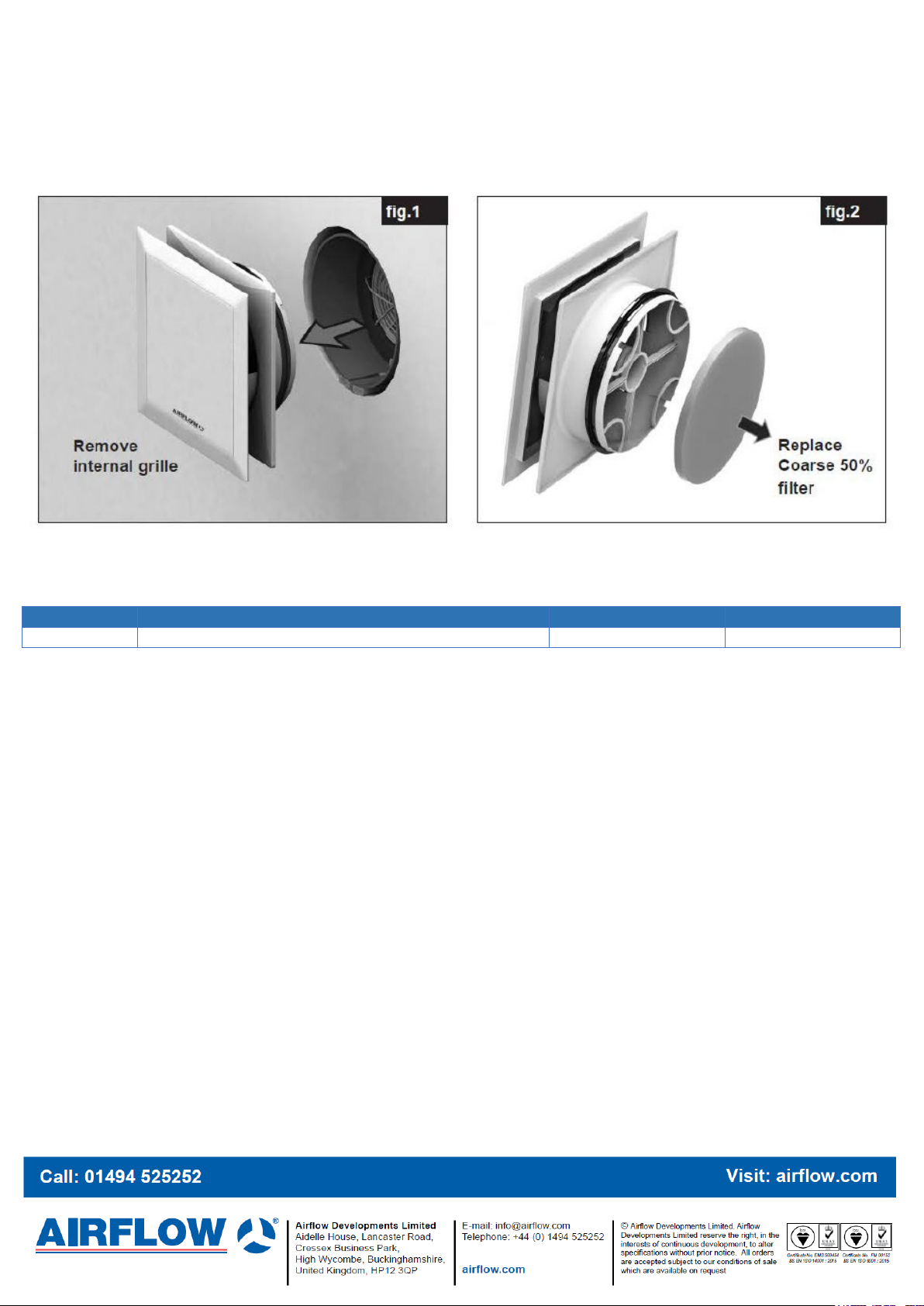

1. Remove internal grille (fig.1).

2. Replace the Coarse 50% filter (fig.2)

3. The internal grille is re-inserted after the filter has been changed. Ensure that the internal grille is re-inserted with

the opening at the top.

4. Hold down both buttons on the controller for longer than two seconds and confirm the filter change. This will

confirm the filter replacement process and reset the filter reminder.

Using original filters ensures that the ventilation unit has high performance. Record the date of filters replacement

appropriately e.g. in the operational logbook.

Product no

Description

Dimensions (mm)

Pcs required/unit

90001014

UNOhab ISO Coarse 50% (G3) Filters Set (2 pcs)

Ø160

Page 2/2
