AIS MAZMOD2 Bedienungsanleitung
4
For TECH SUPPORT call 1-833-AIS-TECH
1
MAZMOD2
MAZDA CONNECT REAR
CAMERA INTERFACE
2
Parts inside the box
Applications
CX-3 2015-17
CX-5 2015-17
MAZDA3 2014-17
MAZDA6 2015-17
MX-5 MIATA 2015-17
MAZMOD2
MUST have the
MAZDA Connect
System w/center
console control
Installation
Step 1) Remove the touch assembly from the dash and locate the 18 pin and 24 pin
connectors on the back side.
Step 2) Unplug the 28 pin connector from the screen. Release the terminal lock by
pulling up with a pry tool. The lock does not completely come o the terminal.
Step 3) Insert the BLUE wire (video +) into PIN 1 of the 28 pin connector. Insert the
GREEN wire (video - ) into pin 15. (see wiring diagram) Once both wires are fully in-
serted into the connector, lock the locking tab.
Step 4) Unplug the 18 pin connector from the screen. Connect the YELLOW wire
(recommend solder) from the harness (+12v) to the 18 pin connector. Connect the
solid PINK wire from the harness (CAN high) to the WHITE wire on the 18 pin connect-
or. Connect the PINK with BLACK trace wire from the harness (CAN low) to the RED
wire of the 18 pin connector. Connect the BLACK wire (ground) from the harness to
the BLACK wire of the 18 pin connector.
Step 5) Connect the +12v and ground for the camera to the RED (+12v out for camera)
and BLACK (camera ground) wires. DO NOT CONNECT CAMERA POWER OR GROUND
TO ANY OTHER SOURCE. Connect RCA from camera to camera input.
3
MAZMOD2
Step 6) Reinstall the screen assembly and test.
Step 7) Start the vehicle and put into reverse. Camera image will appear.
MAZMOD2

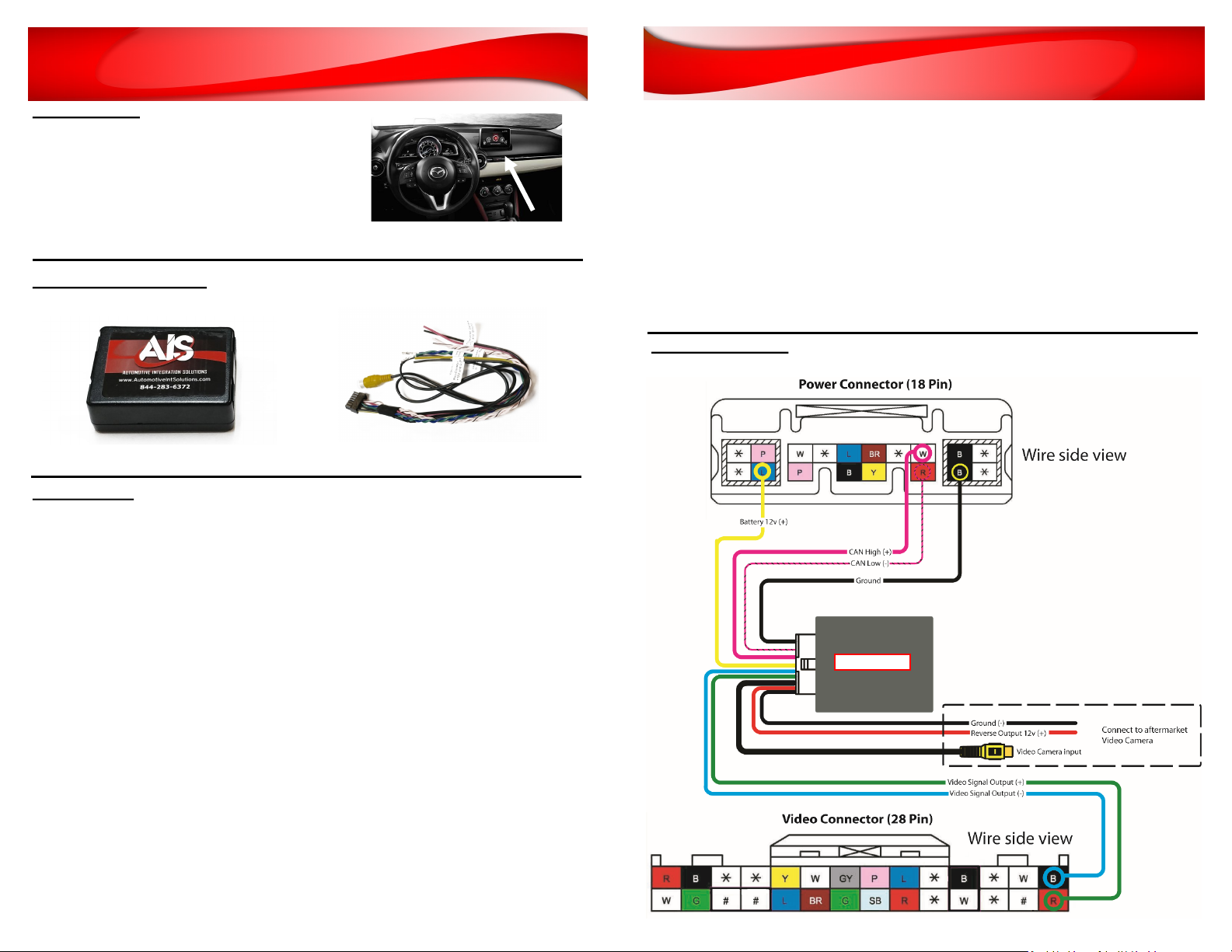

Wiring Diagram
