Aries 203015 Bedienungsanleitung

PAGE 1 • 203015-INS-RB • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended to

add a protective layer over the ﬁnish. Do not use any type of polish or wax that may

contain abrasives that could damage the ﬁnish.

For gloss black ﬁnishes, mild soap may be used to clean the product.

Level of Difﬁculty

Easy

Tools Required

Rachet Tape measure

Socket, 17mm Wrench, 17mm

Level Hex bit, 6mm

Scan

for helpful

install tips

INSTALLATION MANUAL 203015

Parts List

1Driver / left side bar

1Passenger / right side bar

2Mounting bracket, front

2Mounting bracket, rear

8Clip on nut, 10mm

8Button head bolts, 10mm x 25mm

8Lock washer, 10mm

32 Flat washer, 10mm

8Nylock nut, 10mm

16 Hex bolt, 10mm x 30mm

Product Image

Brackets

Front

Rear

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 203015-INS-RB • PAGE 2

Step 1

Starting on the driver side of the vehicle,

locate the three mounting locations along

the rocker panel.

This installation will use the

front and rear mounting locations.

The mounting brackets are speciﬁc

to a front or rear mounting location.

When mounting the brackets have

the cradle facing towards the middle

of the truck for proper placement.

Step 2

Starting at the front of the driver side,

remove the factory tape covering the

mounting holes.

On the inner rocker panel, insert a 10mm

clip-nut onto each mounting location.

Step 3

Attach the top of the bracket by

threading two 10mm hex bolts and

ﬂat washers into the 10mm clip nuts

from step 2.

Insert a 10mm hex bolt and ﬂat washer

into the bottom mounting holes and

secure with a second ﬂat washer

and nylock nut.

Snug the hardware,

but do not fully tighten.

Step 4

Repeat steps 1 through 3 for installing

the rear mounting bracket.

PAGE 3 • 203015-INS-RB • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

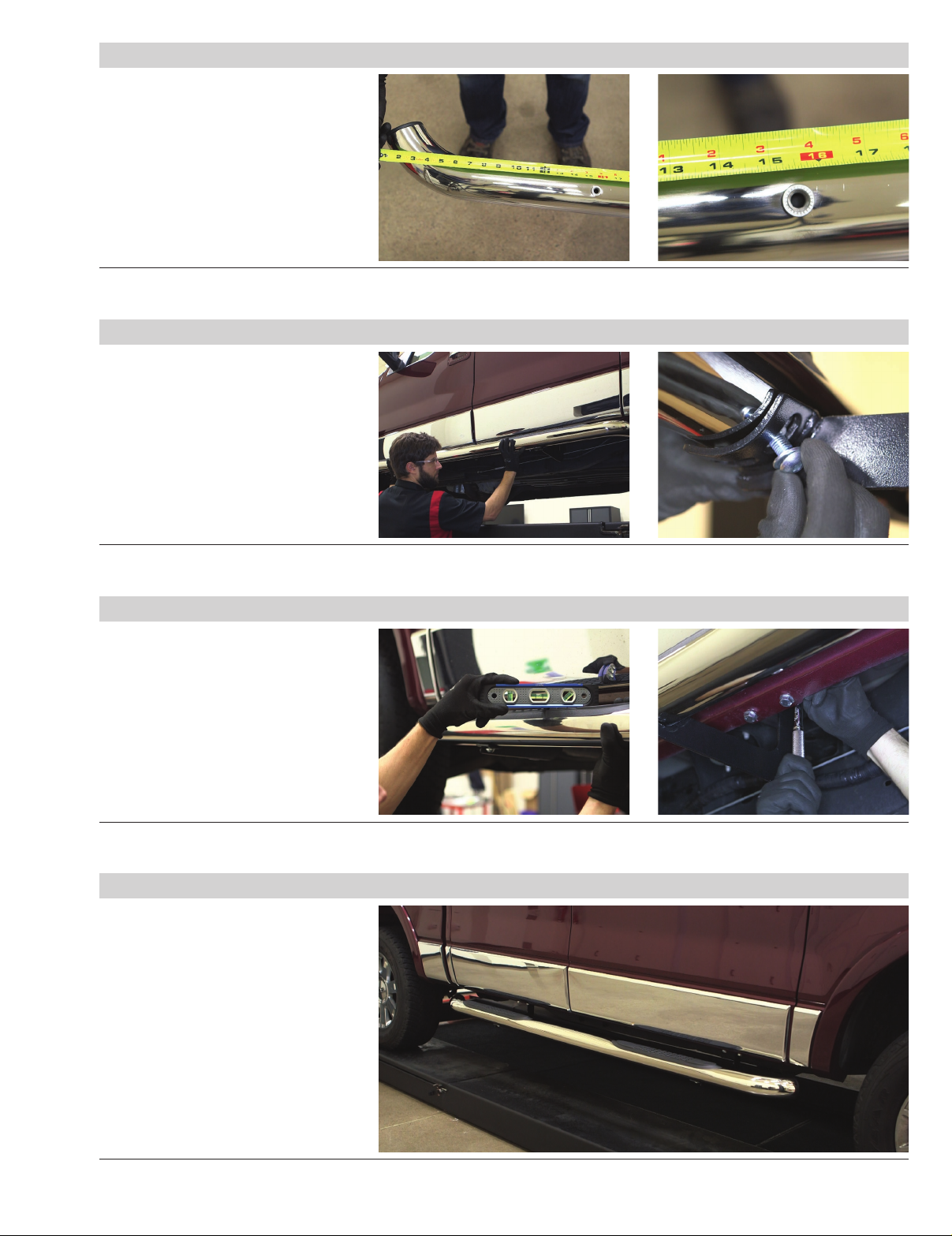

Step 5

To determine the front of a side bar, the

measurement from the end of the side

bar to the center of the rivet nut should

be 15 1/2".

Step 6

Carefully mount the driver side bar into

place.

Attach the side bar to the mounting

bracket using a 10mm button head bolt

and ﬂat washer.

Snug the hardware,

but do not fully tighten.

Step 7

Finish the passenger side bar installation

by repeating the installation process used

on steps 5 and 6 on the driver side.

Level and adjust the side bars to the

desired position and tighten all hardware.

Step 8

Congratulations on the installation of

your new ARIES 3" round side bars.

With the side bars installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.
