DoorProtect User Manual
Updated January 24, 2022
DoorProtect is a wireless door and window opening detector designed for
indoor use. It can operate up to 7 years from a pre-installed battery and capable
to detect more than 2 millions openings. DoorProtect has a socket for
connecting an external detector.
The functional element of DoorProtect is a sealed contact reed relay. It consists of
ferromagnetic contacts placed in a bulb that form a continuous circuit under the effect
of a constant magnet.
DoorProtect operates within the Ajax security system, connecting via the
protected radio protocol. Communication range is up to 1,200 m in the
line of sight. Using the or integration modules,
DoorProtect can be used as part of third party security systems.
The detector is set up via for iOS, Android, macOS and Windows. The
app noties user of all events through push notications, SMS and calls (if
activated).
Jeweller
uartBridge ocBridge Plus
Ajax apps
The Ajax security system is self-sustaining, but the user can connect it to the
central monitoring station of a private security company.
Functional Elements
Operating Principle
Buy opening detector DoorProtect

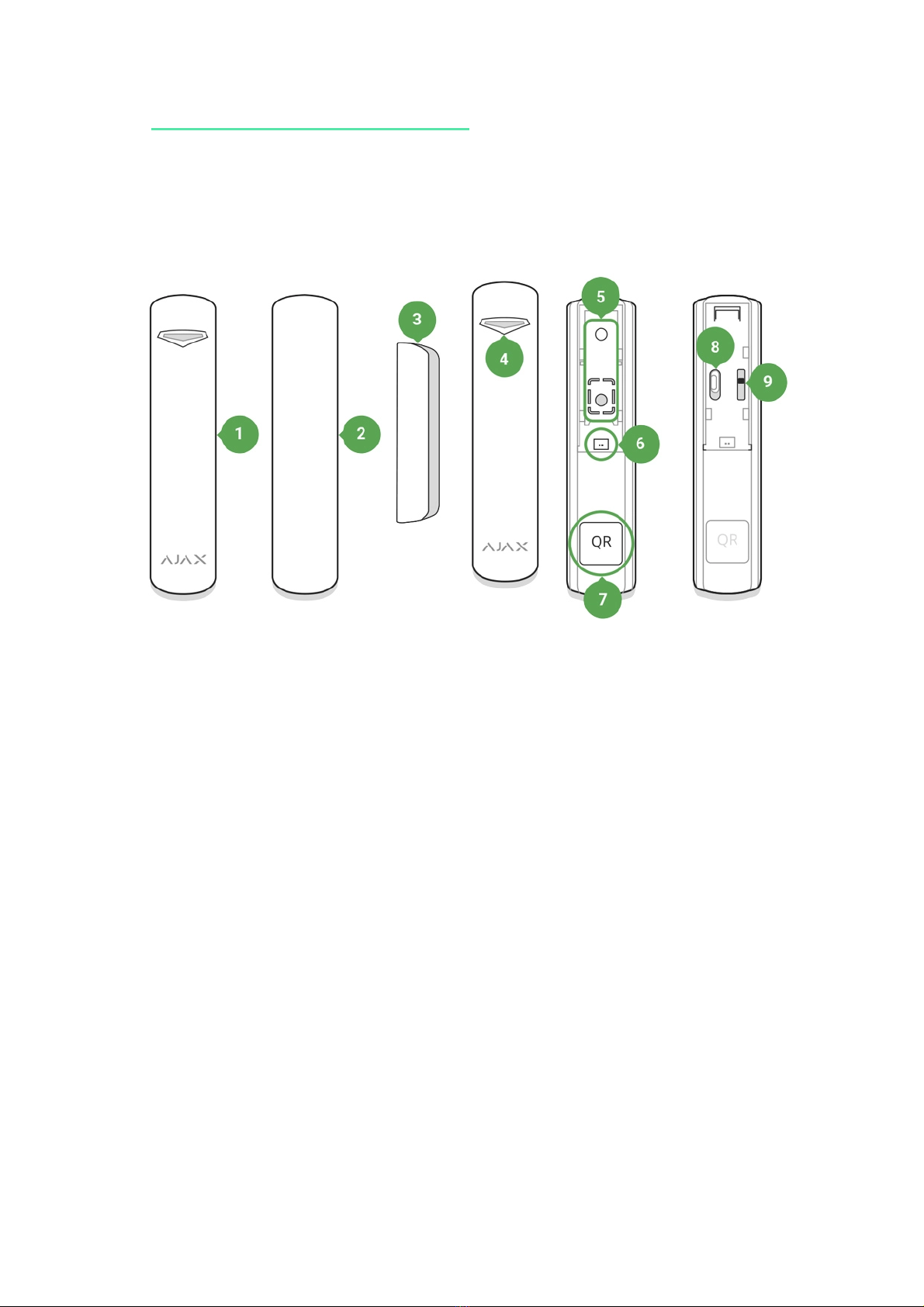

1. DoorProtect
2. Big magnet (should be placed to the right of the detector)
3. Small magnet (should be placed to the right of the detector)
4. LED indicator
5. SmartBracket attachment panel (perforated part is required for actuating
the tamper in case of any attempt to dismantle the detector. Don’t break it
out!)
6. External detector connection socket
7. QR code
8. Device switch
9. Tamper button
DoorProtect consists of two parts: the detector with a sealed contact reed relay,
and the constant magnet. Attach the detector to the door frame, while the
magnet can be attached to the moving wing or sliding part of the door. If the
sealed contact reed relay is within the coverage area of the magnetic eld, it
closes the circuit, which means that the detector is closed. The opening of the
door pushes out the magnet from the sealed contact reed relay and opening the
circuit. In such a way, the detector recognizes the opening.
Attach the magnet to the RIGHT of the detector.
A small magnet works at a distance of 1 cm, and the big one — up to 2 cm.
After actuation, DoorProtect immediately transmits the alarm signal to the hub,
activating the sirens and notifying the user and security company.
Pairing the Detector
Before starting pairing:
Only users with administrator rights can add the device to the hub.
How to pair the detector with the hub:
1. Following the hub instruction recommendations, install the on your
smartphone. Create an account, add the hub to the app, and create at least
one room.
Ajax app
2. Switch on the hub and check the internet connection (via Ethernet cable
and/or GSM network).
3. Make sure that the hub is disarmed and does not update by checking its
status in the app.
For detection and pairing to occur, the detector should be located within the
coverage area of the wireless network of the hub (at the same facility).
1. Select theAdd Device option in the Ajax app.
2. Name the device, scan/write manually the QR Code (located on the body
and packaging), and select the location room.
3. SelectAdd— the countdown will begin.
4. Switch on the device.
The request for connection to the hub is transmitted for a short period of time at
the moment of switching on the device.
If pairing with the hub failed, switch off the detector for 5 seconds and retry it.
If the detector has paired with the hub, it will appear in the list of devices in the
Ajax app. The update of the detectors statuses in the list depends on the
detector ping interval set in the hub settings. The default value is 36 seconds.
Connecting to Third-Party Systems
To connect the detector to a third-party security central unit using the
or integration modules, follow the recommendations in the user
manual of the respective device.
States
The states screen contains information about the device and its current
parameters. Find the DoorProtect states in the Ajax app:
Parameter Value
Temperature
Device temperature. It is measured on the
processor and changes gradually. Displayed in
1°C increment.
Acceptable error between the value in the app
and temperature at the installation site: 2–4°C
Jeweller Signal Strength
Signal strength between the hub/range
extender and the opening detector.
We recommend installing the detector in places
where the signal strength is 2–3 bars
Connection Connection status between the hub/range
extender and the detector:
uartBridge
ocBridge Plus
1. Go to the Devices tab.
2. Select DoorProtect from the list.
ReX range extender name
Radio signal range extender connection status.
Displayed when the detector works via
Battery Charge
Battery level of the device. Displayed as a
percentage
Lid The tamper state, which reacts to detachment
or damaging of the detector body
Delay When Entering, sec
Entry delay (alarm activation delay) is the time
you have to disarm the security system after
entering the room
Delay When Leaving, sec
Delay time when exiting. Delay when exiting
(alarm activation delay) is the time you have to
exit the room after arming the security system
Night Mode Delay When Entering, sec
The time of Delay When Entering in the Night
mode. Delay when entering (alarm activation
delay) is the time you have to disarm the
security system after entering the premises.
Night Mode Delay When Leaving, sec The time of Delay When Leaving in the Night
mode. Delay when leaving (alarm activation
delay) is the time you have to exit the premises
after the security system is armed.
Online — the detector is connected with the
hub/range extender
Oine — the detector has lost connection
with the hub/range extender
radio
signal range extender
How battery charge is displayed in
Ajax apps
What is delay when entering
What is delay when leaving
What is delay when entering
What is delay when leaving
Primary Detector The primary detector status
External Contact The status of the external detector connected
to DoorProtect
Always Active
If the option is active, the detector is always in
armed mode and noties about alarms
Chime
When enabled, a siren noties about opening
detectors triggering in the Disarmed system
mode
Temporary Deactivation
Shows the status of the device temporary
deactivation function:
Firmware The detector rmware version
Device ID The device identier
Device No. Number of the device loop (zone)
Learn more
What is chime and how it works
No — the device operates normally and
transmits all events.
Lid only — the hub administrator has
disabled notications about triggering on
the device body.
Entirely — the device is completely excluded
from the system operation by the hub
administrator. The device does not follow
system commands and does not report
alarms or other events.
By number of alarms — the device is
automatically disabled by the system when
the number of alarms is exceeded (specied
in the settings for Devices Auto
Deactivation). The feature is congured in
the Ajax PRO app.
By timer — the device is automatically
disabled by the system when the recovery
timer expires (specied in the settings for
Devices Auto Deactivation). The feature is
congured in the Ajax PRO app.
Settings
To change the detector settings in the Ajax app:
Setting Value
First eld
Detector name that can be changed. The name
is displayed in the text of SMS and notications
in the event feed.
The name can contain up to 12 Cyrillic
characters or up to 24 Latin characters
Room
Selecting the virtual room to which DoorProtect
is assigned. The name of the room is displayed
in the text of SMS and notications in the event
feed
Delay When Entering, sec
Selecting delay time when entering. Delay when
entering (alarm activation delay) is the time you
have to disarm the security system after
entering the room
Delay When Leaving, sec
Selecting the delay time when exiting. Delay
when exiting (alarm activation delay) is the time
you have to exit the room after arming the
security system
Arm in Night Mode If active, the detector will switch to the armed
mode when using the night mode
Night Mode Delay When Entering, sec The time of Delay When Entering in the Night
1. Select the hub if you have several of them or if you are using the PRO app.
2. Go to the Devices tab.
3. Select DoorProtect from the list.
4. Go to Settings by clicking on the .
5. Set the required parameters.
6. Click Back to save the new settings.
What is delay when entering
What is delay when leaving
mode. Delay when entering (alarm activation
delay) is the time you have to disarm the
security system after entering the premises.
Night Mode Delay When Leaving, sec
The time of Delay When Leaving in the Night
mode. Delay when leaving (alarm activation
delay) is the time you have to exit the premises
after the security system is armed.
Alarm LED indication
Allows you to disable the ashing of the LED
indicator during an alarm. Available for devices
with rmware version 5.55.0.0 or higher
Primary Detector If active, DoorProtect primarily reacts to
opening/closing
External contact If active, DoorProtect registers external detector
alarms
Always Active
If the option is active, the detector is always in
armed mode and noties about alarms
Alert with a siren if opening detected If active, added to the systemare
activated when the opening detected
Activate the siren if an external contact opened If active, added to the systemare
activated during an external detector alarm
Chime settings
Opens the settings of Chime.
Jeweller Signal Strength Test Switches the detector to the Jeweller signal
strength test mode. The test allows you to
check the signal strength between the hub and
DoorProtect and determine the optimal
installation site
What is delay when entering
What is delay when leaving
How to nd the rmware version or
the ID of the detector or device?
Learn more
sirens
sirens
How to set Chime
What is Chime
Detection Zone Test
Switches the detector to the detection area test
Signal Attenuation Test
Switches the detector to the signal fade test
mode (available in detectors with rmware
version 3.50 and later)
User Guide Opens DoorProtect User Guide in the Ajax app
Temporary Deactivation
Allows the user to disconnect the device
without removing it from the system.
Three options are available:
The system can also automatically deactivate
devices when the set number of alarms is
exceeded or when the recovery timer expires.
Unpair Device Disconnects the detector from the hub and
deletes its settings
What is Jeweller Signal Strength
Test
What is Detection Zone Test
What is Attenuation Test
No — the device operates normally and
transmits all alarms and events
Entirely— the device will not execute
system commands or participate in
automation scenarios, and the system will
ignore device alarms and other notications
Lid only— the system will ignore only
notications about the triggering of the
device tamper button
Learn more about temporary
deactivation of devices
Learn more about auto deactivation
of devices
Andere Handbücher für DoorProtect
6
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere AJAX Sicherheitssensor Handbücher
AJAX
AJAX MotionProtect Bedienungsanleitung
AJAX
AJAX MotionCam Bedienungsanleitung
AJAX
AJAX ReX Bedienungsanleitung
AJAX
AJAX GlassProtect Bedienungsanleitung
AJAX
AJAX MotionProtect Bedienungsanleitung
AJAX
AJAX LeaksProtect Bedienungsanleitung
AJAX
AJAX MotionProtect Bedienungsanleitung
AJAX
AJAX DualCurtain Outdoor Bedienungsanleitung
AJAX
AJAX DoorProtect Bedienungsanleitung
AJAX
AJAX DoorProtect Bedienungsanleitung
AJAX
AJAX CombiProtect Bedienungsanleitung
AJAX
AJAX GlassProtect Bedienungsanleitung
AJAX
AJAX MotionProtect Bedienungsanleitung
AJAX
AJAX LeaksProtect Bedienungsanleitung
AJAX
AJAX MotionCam PhOD Jeweller Bedienungsanleitung
AJAX
AJAX DoorProtect Plus Bedienungsanleitung
AJAX
AJAX GlassProtect Bedienungsanleitung
AJAX
AJAX GlassProtect Bedienungsanleitung
AJAX
AJAX DoorProtect Plus Jeweller Bedienungsanleitung
AJAX
AJAX LeaksProtect Bedienungsanleitung
