MotionProtect Outdoor User Manual
Updated June 24, 2020
MotionProtect Outdoor is a wireless outdoor motion detector for the Ajax
security system. The detector communicates with the hub via protected
radio protocol at a distance up to 1,700 meters in the line of sight.
MotionProtect Outdoor features protection against blocking the detector view
(anti-masking system) and triggering by pets (pet immunity). The motion
detection distance is adjustable: from 3 up to 15 meters.
MotionProtect Outdoor can operate both on pre-installed batteries or use an
external power supply. Depending on the detector settings, the batteries’ life is
up to 5 years.
MotionProtect Outdoor does not support connection via the and
integration modules.
The user can congure the detector via the for iOS, Android, macOS,
and Windows. The security system noties users of all events through push
notications, SMS, and calls (if activated).
Jeweller
ocBridge Plus
uartBridge
Ajax app
The Ajax security system can be connected to a central monitoring station of a
security company.

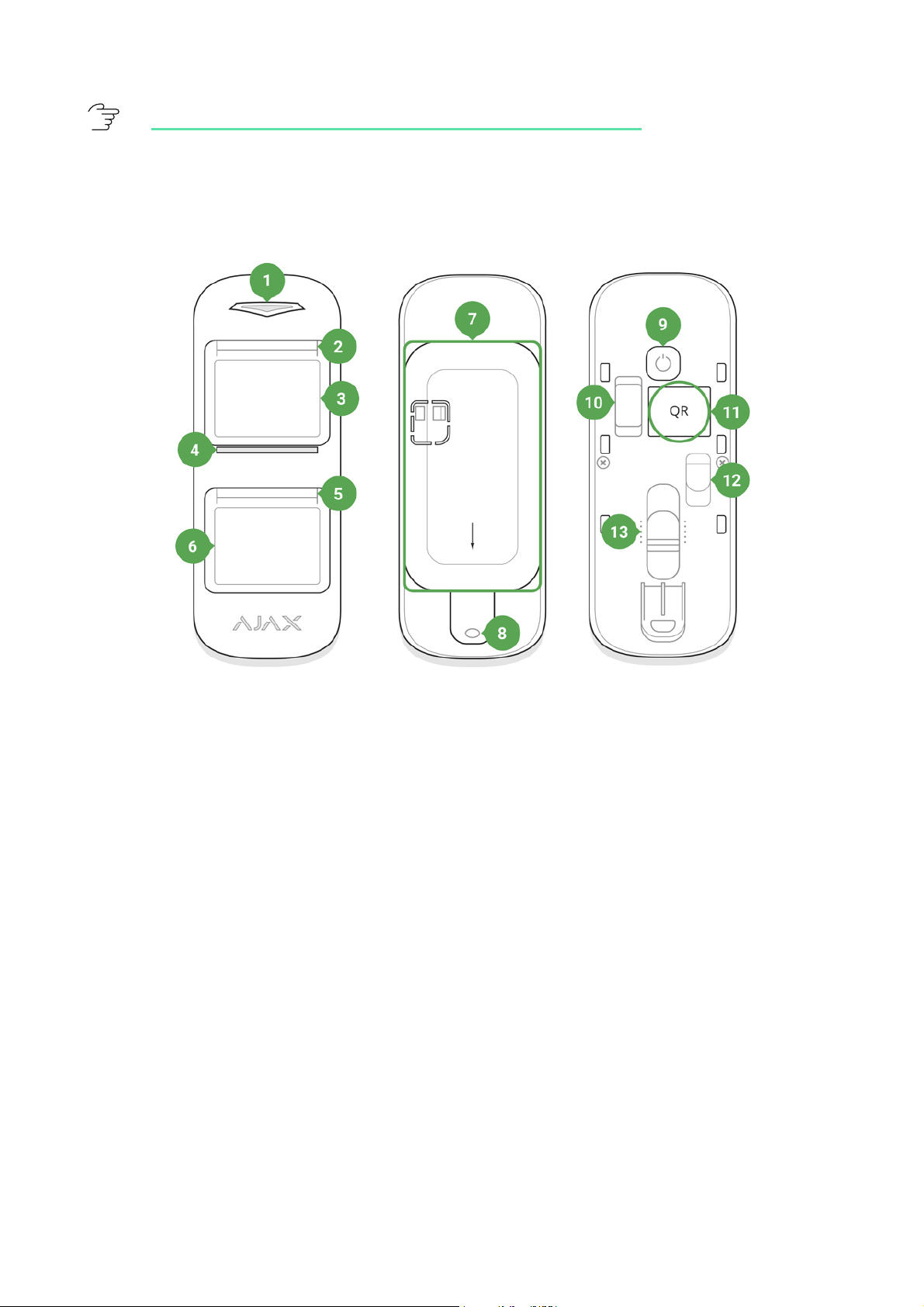

Functional Elements
Buy outdoor motion detector MotionProtect Outdoor
1. Main light indicator
2. Upper light indicator and masking sensor
3. Upper motion sensor lens
4. Masking sensor
5. Lower light indicator and masking sensor
6. Lower motion sensor lens
7. SmartBracket attachment panel (perforated part is required for actuating
the tamper button in case of any attempt to dismantle the detector)
8. The hole for attaching SmartBracket panel with a screw
9. “On” button
10. Tamper button
11. QR Code
Operating Principle
When the system is armed, the detector continuously receives signals from two
PIR sensors. If both sensors detect identical motion, MotionProtect Outdoor
instantly transmits an alarm signal to the hub and blinks with a green LED.
MotionProtect Outdoor ignores animals, birds, insects, as well as swaying plants
and trees.
By a motion alarm, the security system also can activate sirens and notify a security
company if connected.
The detector recognizes motion and sends the rst alarm immediately, but next alarms
until disarming are transmitted no more than once in 5 seconds.
If a motion is detected before the system is armed, the detector will be armed
not immediately, but during the next polling by the hub.
12. Connector for external power supply cable outlet
13. Scrollbar for adjusting the motion detection range
Learn more about the algorithm of the detector operation
Anti-masking system
Masking is an attempt to block in any way the view of the detector’s lens.
MotionProtect Outdoor detects the following types of masking:
If one or more types of masking are detected, the detector generates a masking
alarm and lights up a green LED for 1 second.
MotionProtect Outdoor detects masking regardless of the security state: armed
or disarmed.
Response time to masking
Masking type
Active mode (detector is armed) Passive mode (detector is disarmed)
Time to alarm, s Time to restore,
sTime to alarm, s Time to restore,
s
An obstacle in
front of both
lenses
2 5,4 300 18
An obstacle in
front of any of
the lenses
150 13 150 5,4
Pasting or
painting any of
the lenses
150 13 150 5,4
Pasting the
detector front
side
150 9 300 18
An obstacle in front of both lenses (an object on the height of the detector
and at a distance of up to 20 cm in front of it)
An obstacle in front of any of the lenses (an object at a distance of up to 10
cm in front of one of the lenses)
Painting or pasting any of the lenses with an opaque substance
Pasting the detector front side with an opaque substance
Applying an aerosol or painting the detector front side with lacquer/paint
Applying aerosol
or painting the
detector front
side with
lacquer/paint
150 9 150 9
Connecting
Before starting connection:
Only users with administrator rights can add the device to the hub
How to connect the device to the hub:
1. Following the hub user guide, install the . Create the account, add
the hub, and create at least one room.
Ajax app
2. Switch on the hub and check the internet connection (via Ethernet cable
and/or GSM network).
3. Make sure that the hub is disarmed and does not update by checking its
status in the Ajax app.
1. Select theAdd Deviceoption in the Ajax application.
2. Name the device, scan/write manually the QR Code (located on the body
and packaging), and select the location room.
For the detection and interfacing to occur, the detector should be located within
the coverage area of the wireless network of the hub (at a single protected
object). Request for connection to the hub is transmitted for a short time at the
time of switching on the device.
MotionProtect Outdoor turns off automatically after 6 seconds, if it failed to
connect to the hub. To retry the connection, you do not need to switch off the
device. If the detector has already been assigned to another hub, turn off
MotionProtect Outdoor, and then follow the standard addition procedure.
3. SelectAdd— the countdown will begin.
4. Switch on the device by pressing the on/off button for 3 seconds.
If the connection to the hub failed, repeat the connection attempt after 30
seconds.
The device connected to the hub will appear in the list of devices of the hub in
the app. The update of the detector statuses in the list depends on the device
ping interval set in the hub settings (the default value is 36 seconds).
To avoid masking alarms, switch off anti-masking in the device settings before the
installation!
States
1. Devices
2. MotionProtect Outdoor
Parameter Value
Temperature Temperature of the Detector. Measured on the
processor and changes gradually
Jeweller Signal Strength Signal strength between the hub and the
detector
Connection Connection status between the hub and the
detector
Battery Charge Battery level of the detector, displayed in
increments of 25%
Lid The tamper mode of the detector, which reacts
to the detachment of or damage to the body
Delay when entering, sec Delay time when entering
Delay when leaving, sec Delay period after the security system is armed
Routed Through ReX Displays the status of using the ReX range
extender
External Power Displays the status of using the external power
supply
Sensitivity Sensitivity level of the motion detector: low,
normal, high
Anti-masking Has the anti-masking option been enabled
Always Active When turned on, the motion detector always
detects movement
Firmware Detector rmware version
Device ID Device identier
Settings
1. Devices
2. MotionProtect Outdoor
3. Settings
Setting Value
First eld Detector name, can be edited
Room Selecting the virtual room to which the device is
assigned
Delay when entering, sec Selecting delay time when entering
Delay when leaving, sec Delay period after the security system is armed
Delays in night mode When enabled, the detector will experience a
delay in the night mode
Arm in night mode When turned on, the detector will switch to
armed mode when using night mode
Sensitivity
Choosing the sensitivity level of the motion
sensor:
Anti-masking If active, sensor will always detect masking
Always active When turned on, the detector always registers
motion
Alert with a siren if motion detected If active, and are
activated when the motion detected
Jeweller Signal Strength Test Switches the detector to the Jeweller signal
strength test mode
Detection Zone Test
Switches the detector to the detection area test:
Attenuation test Switches the detector to the signal fade test
High
Normal
Low
HomeSiren StreetSiren
General motion detector test
Upper motion detector test
Lower motion detector test
Masking sensor test (if anti-masking function is
enabled)
