Technical Data Sheet: FireProtect 2 (Heat) Jeweller

Jeweller

FireProtect 2 ( eat)

Jeweller

Wireless re detector with heat sensor.

Features a built-in siren for alarms

and events notication. Operates as part

of the Ajax system or without pairing

with an Ajax hub.

Find the detailed information

on the device at:

support.ajax.systems/en/manuals/reprotect-2-heat/

The device is available in two versions: with replaceable or sealed batteries. The name

of a detector with replaceable batteries contains the RB mark, and with sealed batteries — SB

FireProtect 2 RB (Heat) Jewelle

FireProtect 2 SB (Heat) Jeweller

Key features

Advanced hardware and software

 An interconnected alarm of all re detectors at the facility in 20 second

 Built-in siren with a volume of 85 dB at a distance of 3 meters

 Ability to operate autonomously without an Ajax hu

 10 years of operation with sealed batteries, and up to 7 years — with replaceable batteries

Easy to install and congure

 SmartBrac

et mounting panel with the ability to align the detector after installatio



emote control and conguring via Ajax app

 Pairing with the Ajax hub via

code

Technical Data Sheet: FireProtect 2 (Heat) Jeweller

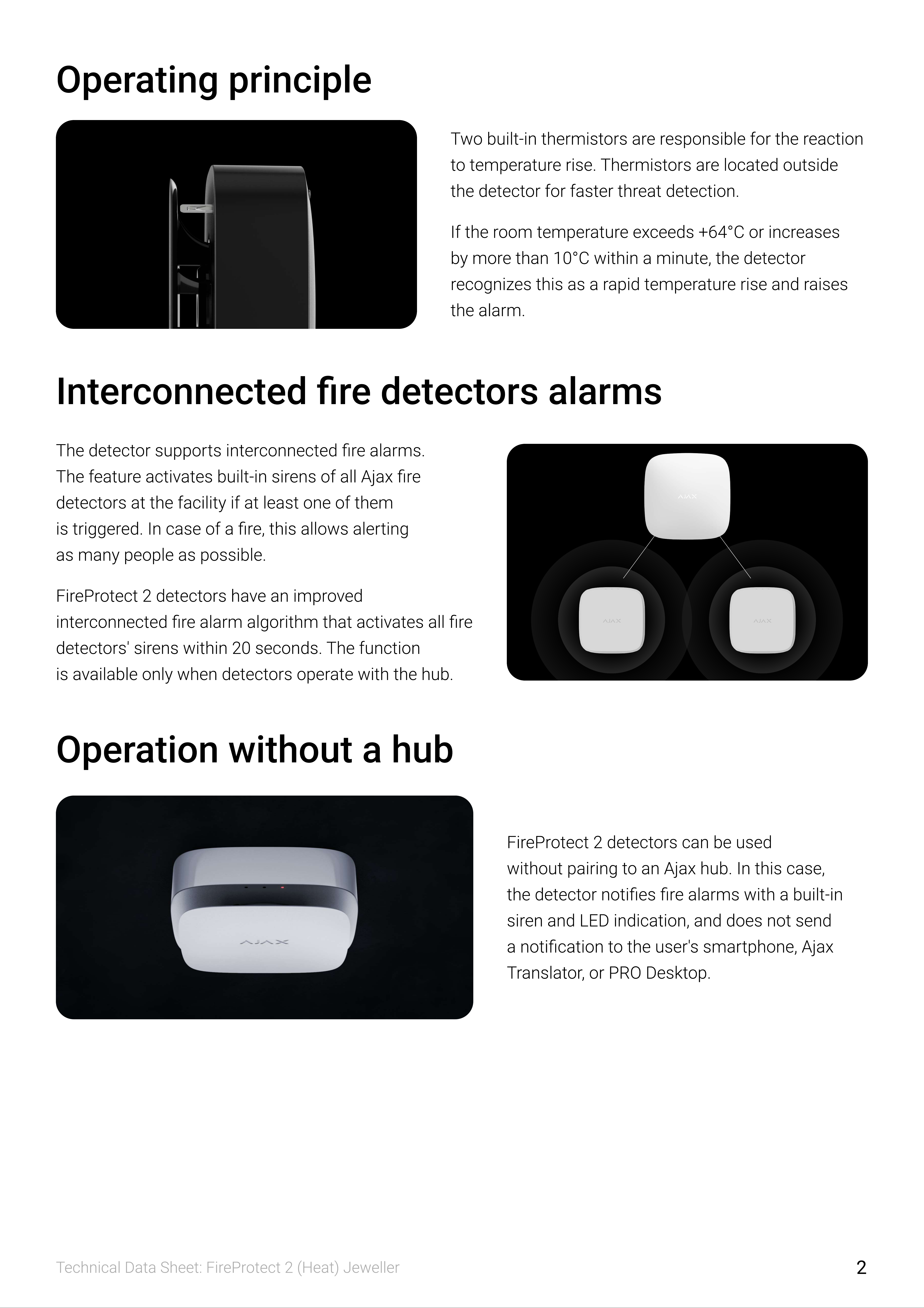

Ope ating p inciple

Two built-in thermistors are responsible for the reaction

to temperature rise. Thermistors are located outside

the detector for faster threat detection.

If the room temperature exceeds +64°C or increases

by more than 10°C within a minute, the detector

recognizes this as a rapid temperature rise and raises

the alarm.

Inte connected  e detecto s ala ms

The detector supports interconnected re alarms.

The feature activates built-in sirens of all Ajax re

detectors at the facility if at least one of them

is triggered. In case of a re, this allows alerting

as many people as possible.

FireProtect 2 detectors have an improved

interconnected re alarm algorithm that activates all re

detectors' sirens within 20 seconds. The function

is available only when detectors operate with the hub.

Ope ation without a hub

FireProtect 2 detectors can be used

without pairing to an Ajax hub. In this case,

the detector noties re alarms with a built-in

siren and LED indication, and does not send

a notication to the user's smartphone, Ajax

Translator, or PRO Desktop.

Technical Data Sheet: FireProtect 2 (Heat) Jeweller

Manual and automatic testing

FireProtect 2 regularly checks the status of batteries and built-in sensors. If a malfunction is detected,

the hub will notify users and the monitoring station instantly. And the detector will turn on the light

and sound alert by the built-in siren and LEDs. All detector states can be checked at any time in Ajax apps.

The detector supports manual testing mode. It is activated by pressing the device's front panel.

The front panel has a mechanical button, which can be pressed either manually or with a oor mop. During

the test, the built-in siren and testing of sensors are run. This allows the installer to test the device at any time

and to demonstrate to the customer the light and sound indication of the detector for various types

of alarms.

Autonomous operation

FireProtect 2 (Heat) is available in two versions:

with replaceable or sealed batteries. Detectors

with replaceable batteries operate for up to 7 years

with pre-installed CR123A batteries. After discharge,

the batteries can be replaced with new ones. The model

with sealed lithium batteries operates for at least 10

years. After the batteries are discharged, the detector

should be replaced with a new one.

Jeweller

communication technology

Jeweller is a radio protocol for fast and reliable two-way communication between hubs and connected

devices. The protocol provides a wireless radio communication range with FireProtect 2 up to 1,700 meters.

This communication range allows you to install detectors even on large-scale objects.

Jeweller is responsible for transmitting alarms and events. The radio protocol also provides an interconnected

re detectors alarm activation within 20 seconds in a system with any number of FireProtect 2.

Thanks to Jeweller, users and the monitoring station can always see the current status of detectors

in Ajax apps.

Technical Data Sheet: FireProtect 2 (Heat) Jeweller

Quick pairing and installation

There is no need to disassemble the detector

during installation. With an improved

SmartBracket panel, an installer can effortlessly

x the detector on ceilings and level it at 90°

angles after mounting. The Ajax apps help

quickly make the device a part of the system.

And it can always be recongured remotely

without site visits.

Technical specications

Communication with

the hub or range

extender

Jeweller

communication

technolog

Frequency band

866.0–866.5 MH

868.0–868.6 MH

868.7–869.2 MH

905.0–926.5 MH

915.85–926.5 MH

921.0–922.0 MH

Maximum effective

radiated power (ERP

up to 20 m

Communication rang

up to 1,700 

Depends on the region

of sales

In an open space.

Compatibility Hubs

Hub Plus

Hub 2 (2G)

Hub 2 (4G)

Hub 2 Plus

Hub Hybrid (2G)

Hub Hybrid (4G)



Range extenders

ReX

ReX 2

Technical Data Sheet: FireProtect 2 (Heat) Jeweller

ompliance with

regulations

EN 54-5:2017+A1:201

Additional features Built-in sire

volume of 85 dB

at a distance of 3 meter

Interconnected re alar

All re detectors

in the system turn

on built-in sirens if at least

one of the detectors

registers an alarm.

LED indicatio

green is a power

indicatio

yellow is an indication

of malfunction

The interconnected alarm

is activated after no more

than 20 seconds

Lights up once every

minute

Lights

up when malfunctions

are detected. For example,

in the case of discharged

batteries.

Heat detection Sensitive elemen

two thermistor

Heat alar

 10°C increase

in temperature

within 1 minut

 exceeding +64°C

According

to the requirements

for heat A1R- class

detectors of EN 54-5

standard

Anti

otage

protection

Tam

erin

alar



rotection a

ainst

oon



device authenticatio



Detection



of communication failur



within 15 minute

he time to detect

communication loss

depends on the number

of undelivered data

pac

ages setting

(

specied

in the

eweller or

eweller

Fibra settings

)

he polling

interval is xed at 300

seconds



Technical Data Sheet: FireProtect 2 (Heat) Jeweller

Additional features red is an indication of re

alarm

Button on the front panel

of the detecto

In normal mode,

when pressed, it starts

the detector test

In the event of an alarm

or malfunction,

the pressing turns

off the detector sound

notication.

Lights

up when the detector

detects a re alarm

Enclosure and

installation

Dimension

43.5 х 86 х 86 m

Weigh

146 

142 

Operating temperature

rang

from 0°С to +50°

Operating humidit

up to 80

Protection clas

IP2

Colour

Blac

White

For RB version

For SB version

Power supply RB versio

2 replaceable CR123A

batterie

SB versio

2 sealed lithium batterie

p to

7y

ears of batter

life

ears of batter

life



plete set RB versio

FireProtect 2 RB

eat

)

ewelle



SmartBrac

et mounting

pane



Installation



CR123A batteries

uic

start guid



SB versio

FireProtect 2 SB

eat

)

ewelle



SmartBrac

et mounting

pane



Installation



uic

start guid



Pre

installed


