Quick Guide
A01X/A02X
Before you begin using the device, please check the version you got and ensure
that the following items are included in the shipped box:
Unpacking
Universal Accessories:
A01/A02 x 1
M2.5X4 Screw x 4
Plastic wall anchor x 4
Rope x 1
ST4X20 screw x 4
M4X30 screw x 2
Pry tool x 1
M3X4 Set screw x 1
Allen wrench x 1 Rubber Plug(S,M,L) x 3
Silicone Foam Seal Strip x 1
RJ45 Coupler Ethernet Extension Connector x 1
RJ45 Ethernet Patch Cable x 1
Embedded Junction Box Mounting Bracket x 1
Cable Locking Plate x 1
Product Overview
Card Reader
Keypad
Card Reader
A01 A02
Quick Guide
A01X/A02X
The 86 junction box is a standard purchased item for the installation and
is not included in the packing list, please prepare it before the installation.
Installaon Warning
Step1: Bracket Installaon

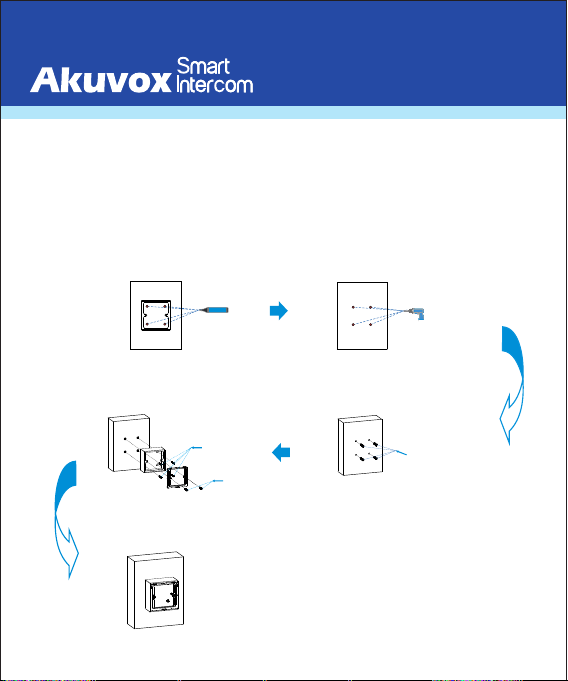

Wall-mounng Installaon
Mark the positions of the four holes of
the Junction box at the hole center.
Note: The junction box shall be at least
50 mm in height.
Installaon
Drill the four marked holes using 5mm
drill bit hand drill. The drilled hole depth
should be 30mm.
Junction box installation is completed
Fix the the junction box on to the wall
using 4 ST4x20 screws, then fix the
junction box component on to the
junction box using 2 M4x30 screws.
Inserting the plastic wall anchors into
the drilled holes.
2
Quick Guide
A01X/A02X

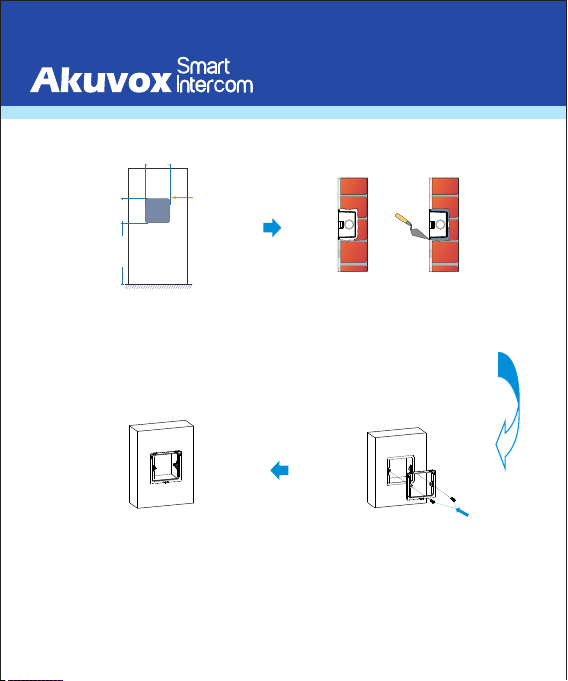

Cut out a square hole with the dimension
(height*width*depth = 86*86*50mm).
And lead a cable from the square hole
in to the junction box .
Note: Skip this step is the junction box
is already embedded in the wall .
Fill in the gap between the square hole
and the junction box with cement or other
non-corrosive construction adhesive.
Wait until the cement or the adhesive
become hardened before proceeding
to the next step.
Note: Skip this step is the junction box
is already embedded in the wall .
Fix the junction box component on to
the junction box using 2 M4x30 Screws.
The junction box installation is completed.
3
Flush Mounng Installaon
GROUND
1100 mm
86mm
86 mm
Quick Guide
A01X/A02X
For the convenience of the
installation, it is advised
that you lead the rope we
provided through the rope
hole at the back of the device,
then fill in the grove using the
silicone foam strip.
Hang the rope onto the
hook hanger on the
junction box.
Insert RJ45 cable (with no sleeve attached) and press down the
terminal slot using the pry tool to secure all the signal wires in
their corresponding slot.
Note:
1.M ake sure that all the connection wires are organized under the
wire organizer.
2.I f the RJ45 extension cable is with a sleeve, then you
should insert RJ45 Ethernet patch cable instead and connect it to
the RJ45 coupler Ethernet connector before connecting the R J45
cable (with sleeve) to the connector otherwise it can not be
properly sealed against the water.
4
Step2:Back Cover Installaon
Plug the rubber plug into the corresponding plug opening in the
direction as indicated.
Note: When there is only one Ethernet cable,you should select small
size rubber plug if the signal wire is less than 6 in quantity. Select
medium size rubber plug if the signal wire is 7-10 in quantity. Select
large rubber plug, if the signal wire is 11 or more in quantity.
Insert the cable locking
plate and tighten it using
4 M2.5x4 screws.
Make all cables go through
the groove of the cable locking
plate, then hang the device
onto the junction box mounting
bracket while pushing it down
against the corresponding hook
hanger.
Wire organizer
RJ45 Ethernet Patch Cable
RJ45 Coupler Ethernet
RJ45 Cable with sleeve
Extension Connector
Quick Guide
A01X/A02X
Push the device against the
hook hanger and tighten the
device with a M3x4 screw
sing Allen wrench as indicated
in the drawing.
Installation completed.
5
Step3: Device Mounng
Applicaon Network Topology
Configuraon
1. Obtain IP address: While A01/A02 starts up normally, click Search key in the IP Scanner tool to Search
the IP address.(Please consult Akuvox Technical Team for IP Scanner tool).
2. Access the Web UI: Enter the device IP address and press Enter, then enter the username and login
password. The default user name and password are all “ admin”.
3. Add User: Navigate to Directly > User on the web interface, where you enter the user’s information and
click Submit for the confirmation.
.......
PC
LAN
PoE PoE PoE PoE
A01/A02 A01/A02 A01/A02 A01/A02
Quick Guide
A01X/A02X
6
Operaon
Unlock by RF Card
Place the predefined RF Card in the R F reader area to open the door.
Device Wiring
AKUVOX (XIAMEN) NETWORKS CO., LTD.
ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA
www.akuvox.com
YS01000015
+12V
GND
Voltage
Transformer
WG_D1
WG_D0
GND
Relay_IN2
GND
Relay_IN1
GND
NC
NO
COM
Wiegand
Card Reader
Exit
Exit
Door Lock
Wiegand
Input/Output
Doorbell 2
Input
Doorbell 1
Input
Relay
Output
Power
Input
Right
Left
Ethernet
