C315X

Quick Guide

Unpacking

Please make sure the package contains the following items:

Screw ﬁxing seat x 2 ST4X20 screw x 2 M4X30 screw x 2

11 Pin cable x 1

C315X x 1

Wall bracket x 1 10 Pin cable x 1

Product Overview

Front Panel

Touch Screen

MIC

C315X

Rear Panel

Loudspeaker RJ45 Interface

Network Interface（Power in）

10 Pin Terminals

11 Pin Terminals

（Except C315N）

（Except C315N）

（Except C315N）

Installa

Without 86 embedded box in the wall

Mark two ﬁxation holes through wall bracket

on the wall,the distance between which is

60mm. Make sure the all cables can be

passed from the middle of wall bracket.

Take down the bracket, then using a

5mm hand drill to make the two ﬁxation

holes on the wall you marked before.

Use two ST4X20 screws to ﬁx the wall

bracket on the wall.

Once the ﬁxation holes are made, insert

the two screw ﬁxing seats provided.

With 86 embedded box in the wall

Make sure all cables in the 86 embedded box. Fix the wall bracket on the 86 embedded

box with two M4X30 screws.

C315X

Quick Guide

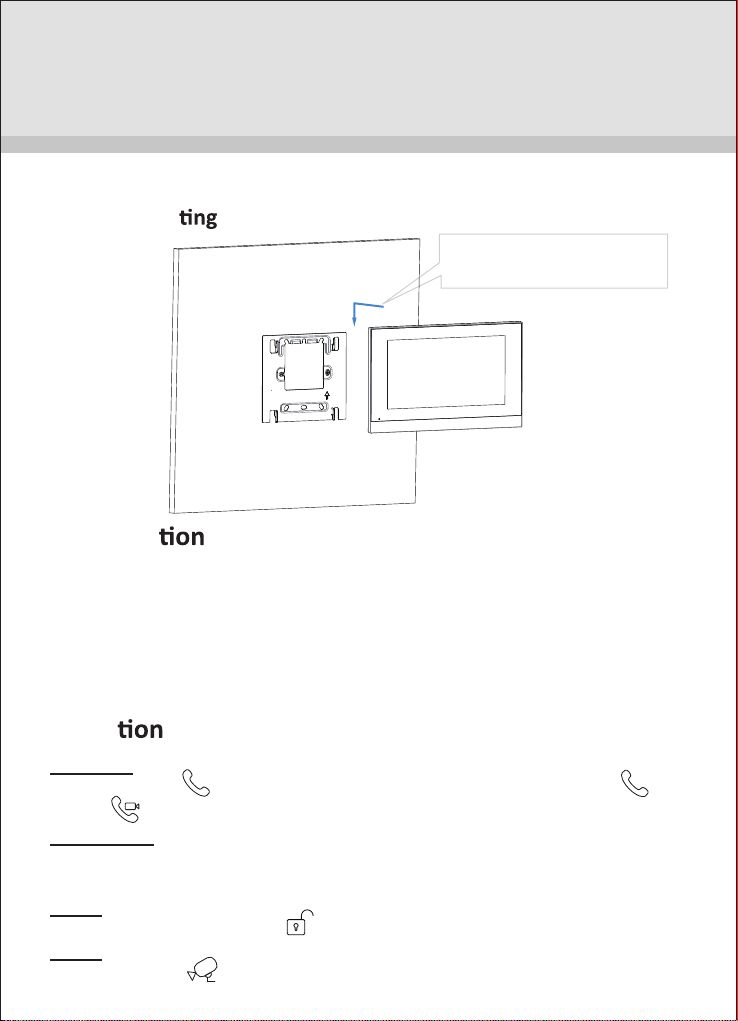

Device Moun

Push down to ﬁx the device securely.

Conﬁgura

1.After setting up network and power, press Settings icon , enter System Info , then choose Network

to check IP address (DHCP by default).

2.Launch web browser and type in the IP address to access web interface, login with username and

password.(admin by default)

3.Press Account to Register the device with your SIP account.(please refer to user manual for more

information)

Opera

Make a call

Press Intercom icon to enter the callee's number or room address , then choose Audio

or Video mode to call out.

Receive a call

When receiving a video call, users can choose Audio or Video key to answer. However, if there is an

audio call, users can only press Audio key to pick up.

Unlock

Monitor

During the talk, press the unlock icon in talking interface to unlock the door.

Press Live View icon to receive the video from indoor IPC or community IPC any time.

C315X

Quick Guide

AKUVOX (XIAMEN) NETWORKS CO., LTD.

ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA

www.akuvox.com

Device Wiring

Power

Input
