MODEL RT-1
WIRELESS TRANSMITTER
AND RECEIVER
Alarm Controls Corporation
19 Brandywine Drive
Deer Park, New York 11729
(800) 645-5538
www.alarmcontrols.com
RECEIVER OPERATES ON 12 OR 24 VOLTS AC OR DC. CURRENT DRAW IS 50 mA MAX.
S.P.D.T. RELAY WITH 1 AMPERE @ 30 VDC OR 120 VAC CONTACTS
RECEIVER HAS A BUILT-IN FIVE SECOND DELAY ON RELEASE
WORKING FREQUENCY IS 433.92 MHz
ROLLING CODE WITH ONE BILLION COMBINATIONS
RECEIVER OPERATING TEMPERATURE RANGE IS –20°C TO +60°C
RECEIVER WILL ACCEPT UP TO 30 TRANSMITTERS
RECEIVER HAS A SMALL SIZE (2.5”L x 1.25”W x 0.75”D)
RECIEVER IS IN AN ATTRACTIVE OFF-WHITE CASE
RECEIVER SCREW TERMINALS ARE HIDDEN BY COVER
BI-COLOR LED ON RECEIVER INDICATES RELAY STATUS
TRANSMITTER TO RECEIVER RANGE IS A MAXIMUM OF 300 FEET
TWO TRANSMITTERS ARE SUPPLIED. ONE HAS A KEY CHAIN
A UNIQUE TRANSMITTER HOLDER CAN BE MOUNTED UNDER A DESK OR ON THE WALL
ADDITIONAL TRANSMITTERS ARE AVAILABLE (PART NUMBER RT-1T).
+
MODEL RT-1
RECEIVER/TRANSMITTER
USER GUIDE
LED Indicator
Green = Power On
(Unit shown with cover removed)
LED Indicator
Red = Relay Activated
(Unit shown with cover removed)
The RT-1 Receiver is packaged with a set of paired Transmitters.
To pair additional Transmitters with the Receiver -
1. Press the Learning Button on the Receiver. The LED on the Receiver will turn from green to red.
2. Press the button on the Transmitter two times. The LED on the Receiver will flash four times indicating that
the Transmitter has been paired to the Receiver. If the LED on the Receiver flashes once and changes to
green, pairing has failed. The Transmitter button must be pressed within 8 seconds or the Receiver will exit
the learning mode.
To remove all learned Transmitters from the Receiver -
1. Press and hold the Learning Button on the Receiver. The LED on the Receiver will turn from green to red
and then back to green.
2. Release the Learning Button and the LED will turn red.
3. Wait approximately 10 seconds and the LED will turn green again.
Learning
Button

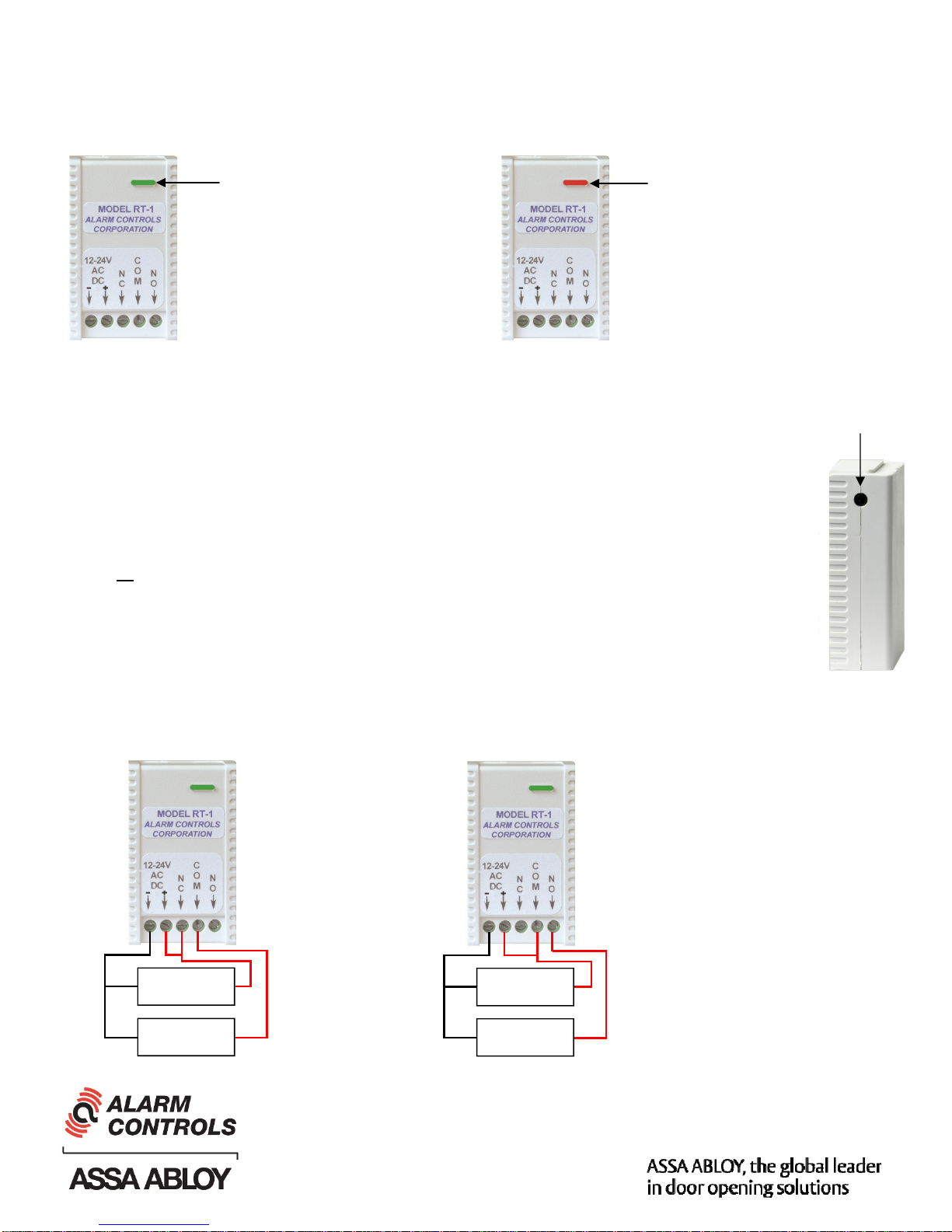

TYPICAL WIRING FOR
RELEASING A MAGNETIC LOCK
Alarm Controls Corporation
19 Brandywine Drive
Deer Park, New York 11729
(800) 645-5538
www.alarmcontrols.com
-
- POWER
SUPPLY
MAGNETIC
LOCK
+
+
TYPICAL WIRING FOR
RELEASING AN ELECTRIC STRIKE
-
- POWER
SUPPLY
ELECTRIC
STRIKE +

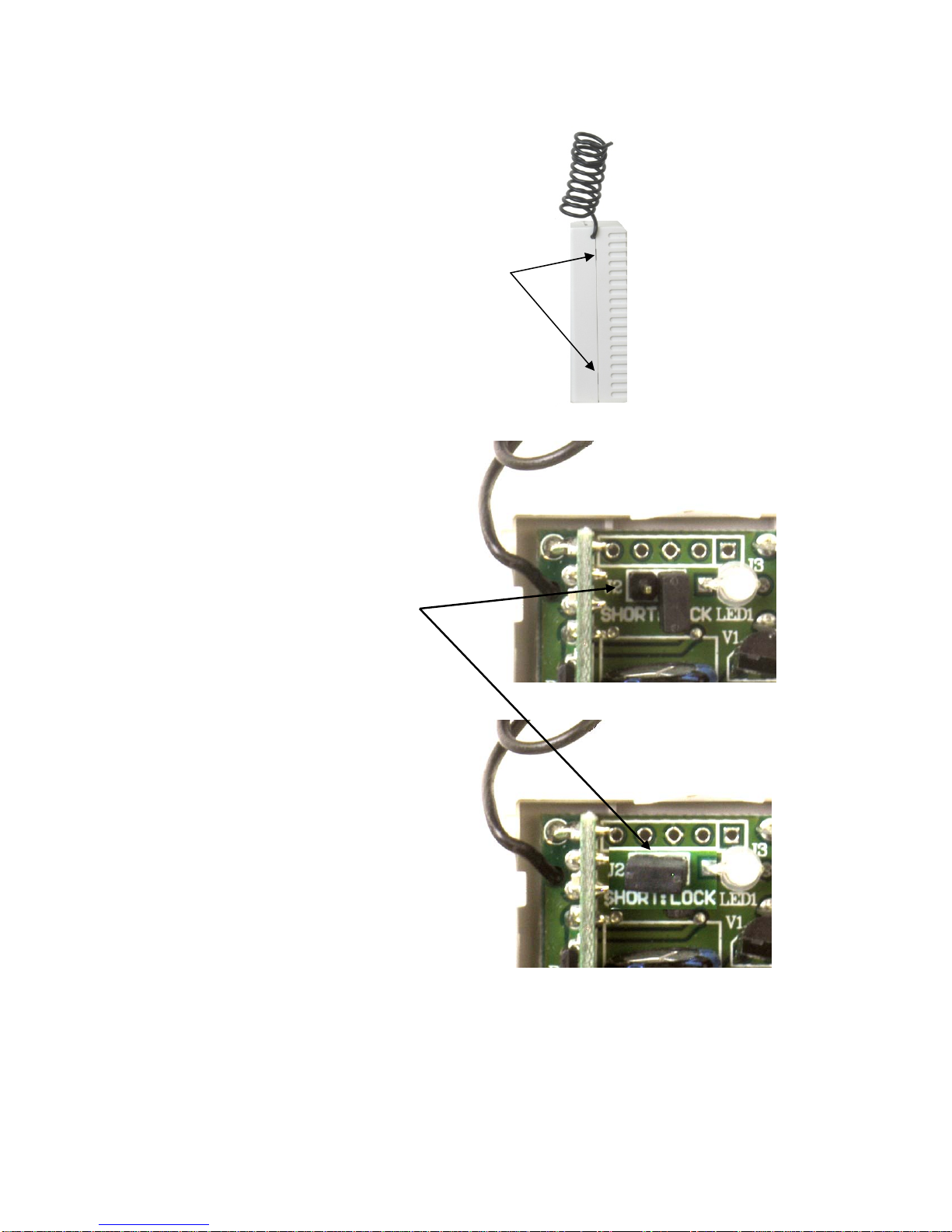

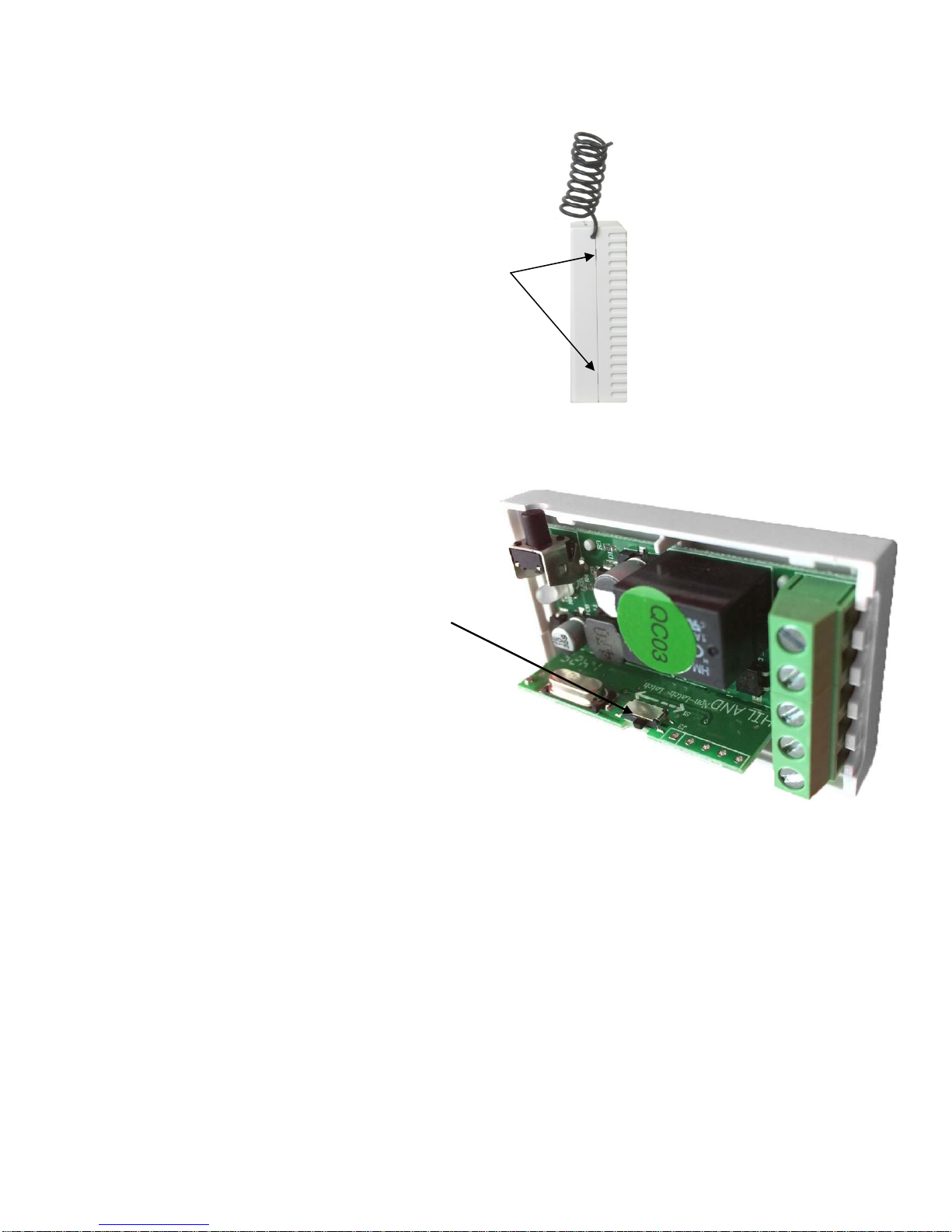

INSTRUCTIONS FOR CONVERTING MODEL RT-1
FROM MOMENTARY TO LATCHING OPERATION
Open Receiver case.
Pry open case where shown
Using a knife blade.
Locate the Jumper installed at J2
and use it to short together the two pins.
Transmitter replacement battery type is CR2016. Each Transmitter requires 2 batteries.
INSTRUCTIONS FOR CONVERTING MODEL RT-1
FROM MOMENTARY TO LATCHING OPERATION
Open Receiver case.
Pry open case where shown
Using a knife blade.
Locate the slide switch and move
it into the “Latch” position
Transmitter replacement battery type is CR2016. Each Transmitter requires 2 batteries.
