Alarm Lock TRILOGY DL2700 Bedienungsanleitung

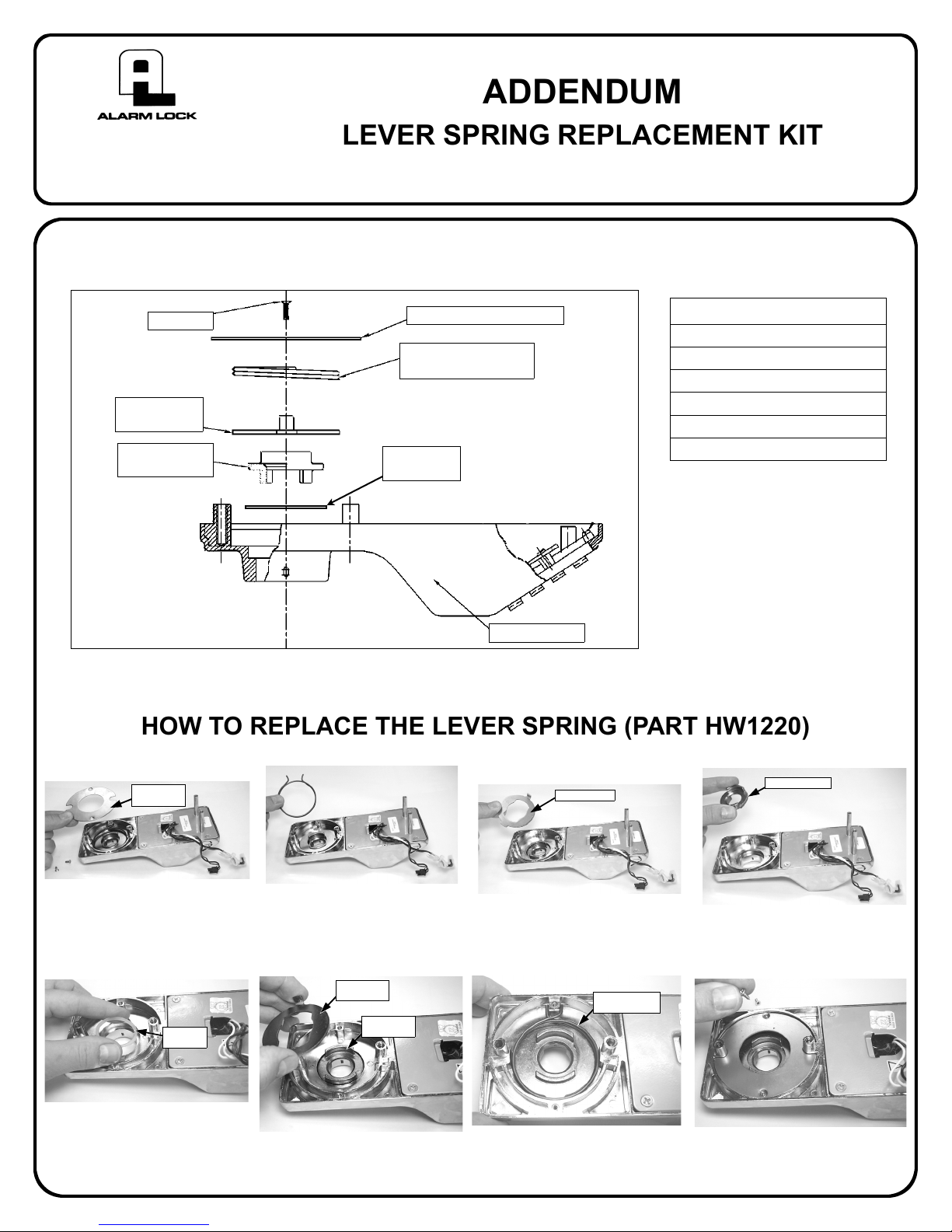

ADDENDUM

LEVER SPRING REPLACEMENT KIT

WI1368B 2/06

345 Bayview Avenue

Amityville, New York 11701

For Sales and Repairs 1-800-ALA-LOCK

For Technical Service 1-800-645-9440

Publicly traded on NASDAQ Symbol: NSSC

HOW TO REPLACE THE LEVER SPRING (PART HW1220)

2. Remove the broken Lever Han-

dle Spring (HW1220).

1. With outside housing removed

from door, unscrew two screws

and remove the Spring Cover Plate

(HW565) as shown.

3. Remove Connector Plate (HW570).

5. If Lever Connector has a gold finish,

insert Plastic Ring (HW573). If

Lever Connector has a silver

finish, DO NOT insert Plastic

Ring.

4. Remove Lever Connector (HW572).

Make note of the Lever Connector

finish--either gold or silver.

8. Replace the Spring Cover Plate

(HW565) and secure with two screws.

APPLICABLE MODELS

DL2700

DL3000

PDL3000

DL4100

PDL4100

DL2800

Spring Cover Plate (HW565)

Screws (2)

Connector

Plate (HW570)

Lever Connector

(HW572)

Outside Housing

Lever Handle Spring

(HW1220)

Plastic Ring

(HW573)

Spring Cover

Plate

Lever Connector

6. Replace Lever Connector (HW572)

and Connector Plate (HW570).

7. Install new Lever Handle Spring

(HW1220) in place of broken spring.

Connector Plate

Plastic Ring

(HW573)

Connector Plate

(HW570)

Lever Connector

(HW572)

Lever Handle Spring

(HW1220)
