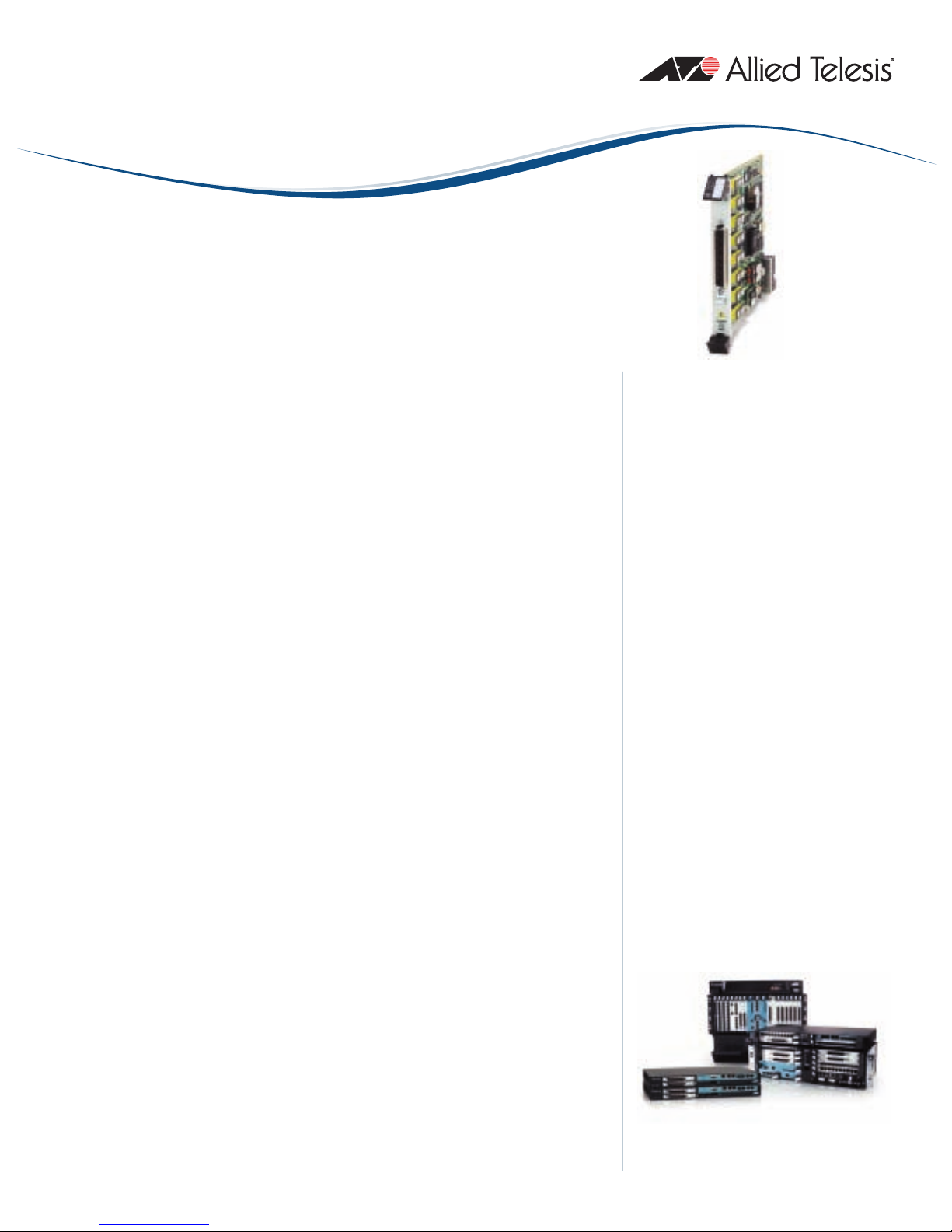

Allied Telesis AT-TN127-A Bedienungsanleitung

Allied Telesis www.alliedtelesis.com

Datasheet | integrated Multiservice Access Platform

SHDSL24

AT-TN127-A 24 Port SHDSL Service Module

Allied T

elesis’ iMAP familyof integrated

Multiservice Access Platforms

Address Business Customer

needs with the new SHDSL24

Service Module

Allied Telesis has utilized the latest in SHDSL

technology to deliver a new 24-portSHDSL

service module for the iMAP product family.

The SHDSL module is ideal for business

customers where symmetric bandwidth is

required over long or short distances. SHDSL

enables the service provider to utilizeexisting

copper infrastructure for Internet access,TLS

or inter-office connectivity.

The requirements of business users are

different than those of residential customers.

In manycases, abroadband connection is

required to maintain data communications

between two or more offices with an equal

amount of bandwidth demanded for upstream

and downstream applications.With the new

SHDSL24 module, a service provider can

also bond two copper pairs together for a

symmetrical 4.6Mbps connection.

The new SHDSL24 module has been designed

with the capabilities of SHDSL.bis in mind.

This includes processing power and backplane

connectivity engineered for the higher speeds

associated with SHDSL.bis. As new business

applications are envisioned, the iMAP with

SHDSL24 is positioned as an ideal solution

that can supportany network application.

Continuing the delivery

of Ethernet based services

Adding to the broad portfolio of Ethernet

based access technologies offered by Allied

Telesis, the recent implementation of SHDSL

is designed for data transport over one or

two copper pairs. As SHDSL based services

continue to grow, service providerscan offer

cost effective and reliable services with the

SHDSL24 using single or multiple copper pairs.

Combined with the growing family of Allied

Telesis' iMAP product family, the SHDSL24

is a vital partof anysolution aimed at

delivering Business Ethernet services. Service

providers can rely on Allied Telesis to continue

to develop innovative, cost competitiveand

reliable products focused on access

infrastructures - Residential or Business.

Part of Allied Telesis’ IP Broadband

Access Family

Whether it is broadband ADSL2+,VDSL2,

SHDSL, FTTH or POTS, the iMAP product

familymakes the ideal platform for last mile

service delivery.The SHDSL24 line cards can

be used with any of the iMAP family of carrier

grade, IP Multiservice Access platforms:

•iMAP 9700 (9RU, 17 service slots)

•iMAP 9400 (3RU,7service slots)

•MiniMAP 9100 (1RU,3service slots)

Provisioning, management, and diagnostics of

subscriber ports can be accomplished from

either the iMAP command line interface or

the AlliedView NMS.The SHDSL24 service

module supports 2-wire (2.3Mbps) mode or

4-wire (4.6Mbps) mode on a per-port basis.

The SHDSL24 service module has been designed

to survivethe most rugged environmental

conditions. It can be confidently deployed in

either a central office or in outdoor enclosures

withstanding extremes of heat, cold, and light

exposure.

Key Features

•24 ports of SHDSL

•2.3Mbps per port

•Port Bonding

•SHDSL.bis*

•Hardened for OSP designs

QoS

•Eight Queues

•Strict Priority Scheduling

•VLAN Stacking

Security

•Upstream Forwarding Only

•ExtensiveACL Support

•VC-VLAN mapping

•Ethernet based technology

Services Supported

•High Speed Internet

•VoIP

•Business VPN

*Future

USA Headquarters |19800 North Creek Parkway |Suite 200 |Bothell |WA 98011 |USA |T: +1 800 424 4284 |F: +1 425 481 3895

Asia-Pacific Headquarters |11 Tai Seng Link |Singapore |534182 |T: +65 6383 3832 |F: +65 6383 3830

www.alliedtelesis.com

©2006 AlliedTelesis Inc.All rights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the property of their respective owners. 617-000123 Rev. C

SHDSL24 |AT-TN127-A 24 Port SHDSL Service Module

SHDSL24

Model Description Part #

SHDSL24 24 ports, SHDSL Service Module AT-TN-127-A

SHDSL24 |AT-TN127-A 24 Port SHDSL Service Module

Ordering Information

Interface Specifications

Number of ports: 24

Connector: RJ-21 (Female)

SHDSL Standards and Specifications

ITU-T G.991.2 (g.shdsl)

ATM/1483 Transport of Ethernet

ITU-T G.994.1 Hand Shake Protocol

TC PAM line coding

Protocols and Specifications

IEEE 802.1Q VLAN Bridging

IEEE 802.1p Prioritization

Power Requirements

Maximum power: 53W

Environmental Specifications

Operating Temp: -40C to 65C

Storage Temp: -40C to 75C

Relative Humidity: 5% to 95%, non-condensing

Regulatory Approvals

FCC Part 15 Class A/ANSI C63.4

EN 300 386 V1.3.1:2001-09/EN 55022:1998, Class A

VCCI Class A; ITE/ CISPR 22:1997 Class A

EN 300 386 V1.3.1:2001-09/EN 55022:1998, Class A

EN 300 386 V1.3.1:2001-09/EN 61000-4-3:1998

EN 300 386 V1.3.1:2001-09/EN 6100-4-6:1996

EN 300 386 V1.3.1:2001-09/EN 61000-4-4:1995

EN 300 386 V1.3.1:2001-09/EN 61000-4-5:1995

EN 300 386 V1.3.1:2001-09/EN 61000-4-2:1999

UL/cUL 60950: IEC60950

NEBS Level 3, GR-1089 Issue 3, GR63 Issue 2

USDA RUS

GR-57-CORE

iMAP 9x00 Chassis

Model Description Part #

iMAP 9700 17-slot chassis with DC power without filler plates AT-TN-250G

iMAP 9400 7-slot chassis with DC power without filler plates AT-TN-251G

MiniMAP 9101 3-slot mini chassis with DC power AT-TN-9101-A-80

MiniMAP 9102 3-slot mini chassis with AC power AT-TN-9102-A-XX*

iMAP Common Control and Network

Model Description Part #

CFC24 24GbE switch controller module AT-TN-401-B

CFC12 12GbE switch controller module AT-TN-408-A

CFC56 56GbE switch controller module AT-TN-407-A

GE3 3x GbE WAN interface module AT-TN-301-A

XE1 10GbE WAN interface module AT-TN-308-A

*Where XX = 10 for U.S. power cord

=30 for U.K. power cord

=40 for Australia power cord

=50 for Europe power cord

Related iMAP Line Cards and Accessories

Model Description Part #

ADSL24A 24-port, ADSL2+ Annex A Service Module AT-TN-121-A

ADSL24B 24-port, ADSL2+ Annex B Service Module AT-TN-124-B

VDSL2B 24-port, VDSL2/ADSL2+ Annex B Service Module AT-TN-128-A

VDSL2A 24-port, VDSL2/ADSL2+ AnnexAService Module AT-TN-130-A

Filler Full size service slot filler plate AT-TN-M000-A
