RAPIER SWITCH

QUICK INSTALL GUIDE

Rapier Switch Quick Install Guide

Document Number C613-04017-01 REV G.

19800 North Creek Parkway, Suite 200, Bothell, WA 98011, USA.

permission from Allied Telesyn.

Allied Telesyn International, Corp. reserves the right to make changes in specifications

and other information contained in this document without prior written notice. The

information provided herein is subject to change without notice. In no event shall Allied

Telesyn be liable for any incidental, special, indirect, or consequential damages

whatsoever, including but not limited to lost profits, arising out of or related to this

manual or the information contained herein, even if Allied Telesyn has been advised of,

known, or should have known, the possibility of such damages.

All trademarks are the property of their respective owners.

Quick Install Guide 3

C613-04017-01 REV G

Models Covered By This Guide

This Quick Install Guide includes information on the following models:

■Rapier G6

■Rapier G6F-LX/SC

■Rapier G6F-SX/SC

■Rapier G6F-SX/MT

■Rapier 8/8MT

■Rapier 8/8SC

■Rapier 16F-FX/MT

■Rapier 16Fi-FX/MT

■Rapier 16F-FX/SC

■Rapier 16Fi-FX/SC

■Rapier 24

■Rapier 24i

■Rapier 48

■Rapier 48i

Quick Install Guide updates can be downloaded from

www.alliedtelesyn.co.nz/support/rapier/.

Rapier Switch

Safety and Statutory Information

Quick Install Guide

Hardware Reference

Software Reference

Network Service Module

NSM Quick Install Guide

NSM Hardware Reference

Port Interface Card

PIC Quick Install Guide

PIC Hardware Reference

General Customer Support

Visit www.alliedtelesyn.co.nz for

the latest documentation, FAQ,

and support information

Uplink Module

Uplink Module Quick Install Guide

Uplink Module Hardware Reference

Printed Acrobat PDF Website

Documentation Roadmap

User Guide

4Rapier Switch

C613-04017-01 REV G

Package Contents

The following items are included with each Rapier Switch. Contact your sales

representative if any items are damaged or missing.

■One Rapier Switch.

■One AC power cord (AC models only).

■One serial cable for connecting the switch to a terminal or PC.

■One 19 inch rack-mount kit.

■One Rapier Switch Quick Install Guide.

■One Safety and Statutory Information booklet.

■One Rapier Switch Documentation and Tools CD-ROM (which includes

the complete Rapier Document Set and utilities).

■One warranty card.

Selecting a Site

The switch can be installed in a standard 19-inch rack or on a level surface such

as a desktop or bench. When installing the switch, choose a site that:

■Allows adequate airflow around the switch and its vents.

■Is free of dust and moisture.

■Will maintain an ambient temperature range of 0-40º C (32-104º F) and a

humidity range of 5-95% non-condensing.

■Has a reliable and earthed (grounded) power supply circuit, preferably

dedicated and filtered.

■Does not expose cabling to sources of electrical noise, such as radio

transmitters, broadband amplifiers, power lines, electric motors, and

fluorescent fixtures.

■Allows easy access to the switch’s power and cable connections.

■Will allow all related network devices to be connected to the switch

without exceeding maximum cable length limitations. See the Rapier Switch

Hardware Reference for cable length specifications.

Quick Install Guide 5

C613-04017-01 REV G

Installing the Switch

All AC and DC versions of this equipment must be earthed.

Follow these steps to install the switch:

1. Before installing the switch, read the safety information

For safety information, see the Safety and Statutory Information booklet. A

copy of this booklet is supplied with each switch, and can also be found on

the Documentation and Tools CD-ROM or at www.alliedtelesyn.co.nz/

support/rapier/.

2. Gather the tools and equipment you will need

If installing a DC version of the switch, you will need a DC power source,

DC supply cable, and wire strippers (see step 7).

If the switch is to be connected to a redundant power supply, you will need

a redundant power supply unit and cable (see step 9).

3. Unpack the switch

Verify the package contents. If any items are damaged or missing, contact

your sales representative.

4. Install expansion options

If you purchased optional Uplink Modules, a Network Service Module

(NSM), or Port Interface Cards (PICs), install them now by following their

individual installation guides. These guides can be found on the

Documentation and Tools CD-ROM.

5. Place the switch in its operating location

See the previous "Selecting a Site" section for guidelines on choosing a

suitable location. If installing the switch in a rack:

• Remove the rubber feet.

• Attach the rack-mounting brackets.

• Mount the switch in the rack.

6. Apply AC power to the switch (for AC models)

Plug the power cord into the AC power connector on the switch’s rear

panel (see Figure 1). The Fault LED should flash for approximately 10

seconds as the switch runs internal tests. If the LED continues to flash or

remains lit, refer to the Rapier Switch Hardware Reference for troubleshooting

information.

6Rapier Switch

C613-04017-01 REV G

Figure 1: Rapier front panel and rear panel with AC power inlet.

7. Apply DC power to the switch (for DC models)

Read the Safety and Statutory Information booklet before connecting a DC

power supply. A copy of this booklet is included with each switch. It is also

included on the Documentation and Tools CD-ROM, or can be

downloaded from www.alliedtelesyn.co.nz/support/rapier/.

Only trained and qualified personnel should connect a DC power supply. Due

to exposed terminals, DC powered switches should be installed only in

Restricted Access Areas.

DC supply cable specifications:

• Number of wires (cores): 3

• Minimum size: 2.1mm2(14 AWG)

• Minimum cable rating: 600V, 90 degrees Celsius

DC power supply specifications:

• 48 VDC (39-60 VDC is acceptable)

• Either positive grounded or negative grounded

Circuit protection:

• Use a 10 Amp circuit breaker

To connect the DC supply:

a) Ensure the supply cable is not live

b) Strip the supply cable wires to expose 8mm (0.31 in.) of bare conductor

c) At the switch, connect the ground wire to the ground terminal. These

terminals can be identified by the diagram on the switch’s rear panel

(see Figure 2). Tighten the terminal to between 0.6 and 0.8 Nm (0.041 to

0.055 pound-force per foot)

STATUS

RESET

FAULT

PWR

RPS

10BASE-T / 100BASE-TX

1X3X5X7X

2X4X6X8X

9X11X13X15X

10X12X14X16X

17X19X21X23X

18X20X22X24X

RS-232

TERMINAL PORT

100M LINK / ACTIVITY 10M LINK / ACTIVITY

HALF DUP/

COL

FULL DUP

PORT ACTIVITY

L/A

D/C

L/A

D/C

ASYN0

Layer 3 Fast Ethernet Switch

NSM 0

Hot Swap

In Use

Swap

Front panel

Uplink Module Bays 10/100 BASE Ports Port LEDs System

LEDs

RS-232 Terminal Port

Rear panel

100-240 VAC

Power Inlet

RPS Inlet for

AT-PWR8000

NSM BAY NSM Hot Swap

Button and LEDs

Quick Install Guide 7

C613-04017-01 REV G

d) At the switch, connect the positive feed to the + (positive) terminal and

the negative feed to the - (negative) terminal. Tighten the terminals to

between 0.6 and 0.8 Nm (0.041 to 0.055 pound-force per foot)

e) Ensure there are no exposed conductor strands

f) Secure the supply cable (to the rack framework or similar object) so the

connections are isolated from any force applied to the cable

g) Ensure the circuit breaker is in the Off position

h) Connect the supply-cable wires to the circuit breaker

i) Energise the circuit breaker

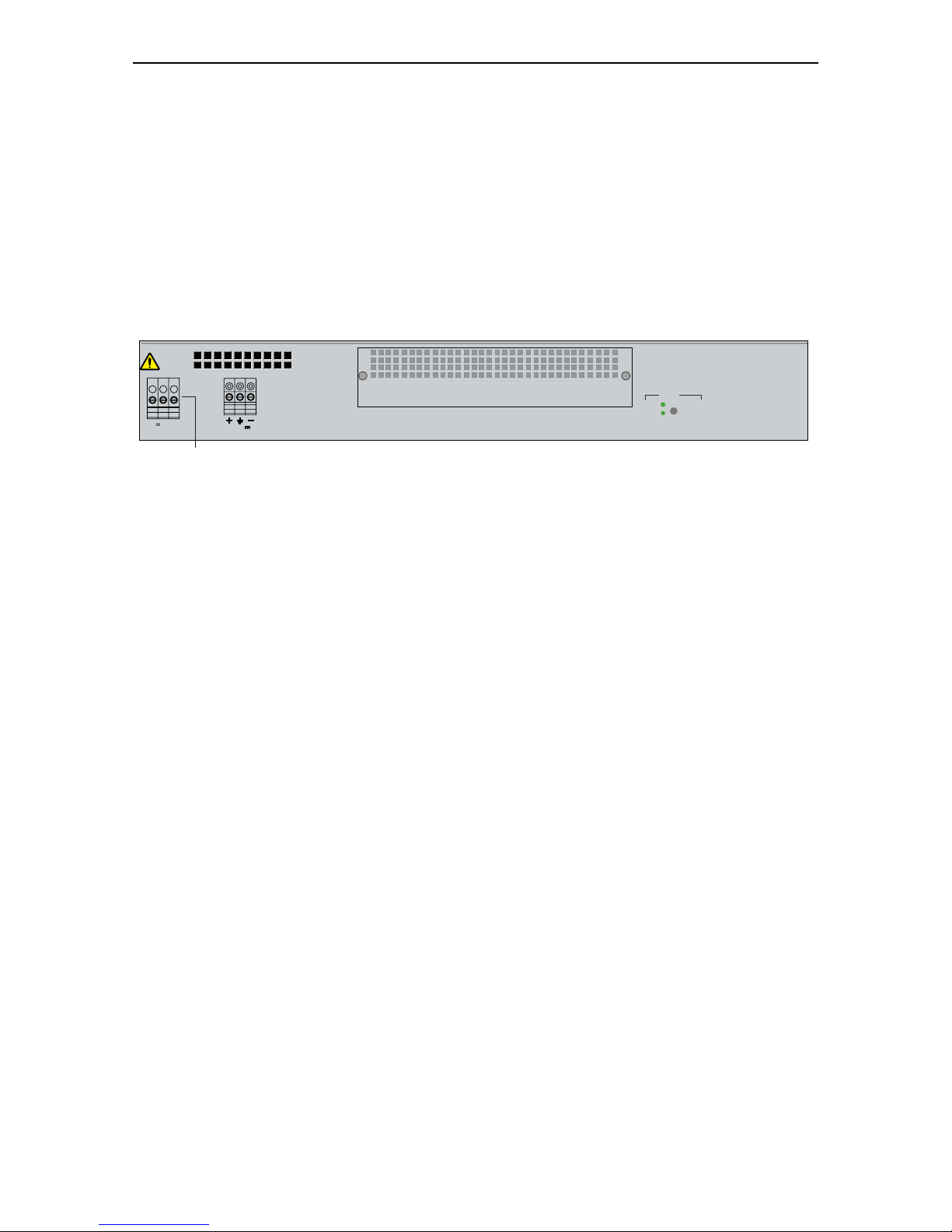

Figure 2: DC Power inlet terminals on a Rapier 24.

The Fault LED should flash for approximately 10 seconds as the switch

runs internal tests. If the LED continues to flash or remains lit, refer to the

Rapier Switch Hardware Reference for troubleshooting information.

8. Check that the Power LED on the switch’s front panel lights green

If the LED fails to light, refer to the Rapier Switch Hardware Reference for

troubleshooting information.

9. Connect the Redundant Power Supply (Optional)

AC models of Rapier Switches have a Redundant Power Supply (RPS)

connector on their rear panel (see Figure 1).

The Switch is designed to operate with the AT-RPS8000 RPS, which can be

purchased separately. Contact your authorised Allied Telesyn distributer

or reseller for more information.

10. Connect the data cables

Use straight-through or cross-over Ethernet patch cables to connect the

required device(s) to the switch’s ports. Make sure each cable connection is

secure. The switch will now perform basic Layer 2 switching functions. By

default, all switch ports are members of VLAN1.

NSM 0

Hot Swap

In Use

Swap

38-75VDC , 2A

FOR CENTRALIZED DC

POWER CONNECTION,

INSTALL ONLY IN A

RESTRICTED AREA

DC Power inlet

DC INPUT

8Rapier Switch

C613-04017-01 REV G

Configuring the Switch

Some configuration is necessary if you wish to enable the switch’s advanced

switching capabilities. The switch can be configured by using the Command

Line Interface (CLI) or Graphical User Interface (GUI).

Using the CLI to configure a switch

1. Connect a terminal or PC to the Terminal Port (ASYN0)

Using the supplied RS-232 DB9 straight-through cable, connect a VT100-

compatible terminal or the COM port of a PC running a terminal

emulation program such as Windows Terminal, to the RS-232 Terminal

Port on the switch’s front panel.

2. Set the communication parameters

Set the communication parameters on your terminal or terminal emulation

program to:

• Baud rate: 9600

• Data bits: 8

•Parity:None

•Stopbits:1

• Flow control: Hardware

3. Log in and set the password

After the switch has booted, the log-in prompt appears. If the log-in

prompt doesn’t appear, press [Enter] two or three times.

When the switch boots for the first time it automatically creates an account

with manager privileges. The account has the log in name “manager” and

the password is “friend”.

At the log in prompt, enter the log in name and password.

Password: friend

The switch’s command prompt appears and you can now configure the

switch using the command line interface.

Change the password as soon as possible. Leaving the manager account with

the default password is a serious security risk. Make sure you remember the

new password as there is no way to retrieve it if it is lost.

Use the following command to change the account password:

set password

The Command Help lists available commands for each protocol, and their

syntax. To display a list of help topics, enter:

help

To display help on a specific topic, enter:

help topic

Alternatively, type a question mark (?) at the end of a partially completed

command to see a list of valid options.

Quick Install Guide 9

C613-04017-01 REV G

See the Rapier Switch Software Reference for more information on start-up

and configuration procedures (including a list of message definitions).

Using the GUI to configure a switch

This section describes how to access the GUI from a PC via VLAN1, in

order to configure the switch. It assumes that the PC and the switch are in

the same subnet. By default, all switch ports are members of VLAN1.

The GUI requires a PC and web browser. Supported browsers are Internet

Explorer 5.0 and greater, or Netscape 6.2.2 or 6.2.3, with JavaScript enabled.

Internet Explorer can be found on the Documentation and Tools CD-ROM

that is bundled with your switch.

1. Connect the PC to a switch port.

The PC can be connected directly, or through your LAN.

To connect the PC directly to the switch, use a straight-through Ethernet

cable to connect an Ethernet card on the PC to any one of the switch ports.

Note the PC’s IP address and mask.

To connect via a LAN, use an Ethernet cable to connect the switch port(s) to

the device(s) on the LAN. Select the LAN PC from which you wish to

configure the switch. The PC should be in the same subnet as the part of

the LAN that contains the switch (for example, the PC could be connected

to a hub or Layer 2 switch that is directly connected to one of the switch’s

ports). Note the PC’s IP address and mask.

2. Access the CLI on the switch.

Follow the instructions in the previous "Using the CLI to configure a

switch" section.

3. Enable IP.

At the CLI, enter the command:

ENABLE IP

4. Assign an IP address to VLAN1.

Assign the VLAN1 interface an IP address in the subnet that the PC uses,

using the command:

ADD IP INTERFACE=vlan1 IP=ipaddress MASK=mask

Rapier

10 Rapier Switch

C613-04017-01 REV G

5. Browse to the GUI.

If you access the Internet through a proxy server, set your browser to

bypass the proxy for the IP address you just assigned to the VLAN1

interface.

Point your web browser at the IP address of the VLAN interface.

6. Log in and set the password.

At the log in prompt, enter the log in name and password. Passwords are

case sensitive.

User Name: manager

Password: friend

The system status page appears and you can now use the GUI to configure

the switch.

To ensure configuration settings are saved correctly, use the GUI menus and buttons to

navigate, not your browser’s buttons.

As a security precaution, change the password as soon as possible.

To change the password, select Management > Users from the sidebar

menu. Select the Manager account and click Modify.

7. To access context-sensitive help in the GUI.

Click on the Help Button [Help]. The Help button is located at the top of

the sidebar menu or on any popup page.

System LEDs

LED State Function

Power Green The switch is receiving power and the voltage

is within the acceptable range

Fault Red The switch or management software is

malfunctioning

1 flash A switch fan has failed. (The LEDs will not

indicate an RPS fan failure.)

3 flashes If an RPS is connected, the switch’s PSU (Power

Supply Unit) has failed

4 flashes If RPS monitoring is enabled, the RPS PSU has

failed

5 flashes If RPS monitoring is enabled, an RPS is not

connected or is not operational

Andere Handbücher für Rapier G6

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Allied Telesis Schalten Handbücher

Allied Telesis

Allied Telesis AT-9424Ts/XP AC Bedienungsanleitung

Allied Telesis

Allied Telesis AT-x230L-17GT Bedienungsanleitung

Allied Telesis

Allied Telesis AT-GS950/16PS Bedienungsanleitung

Allied Telesis

Allied Telesis AT FS708LE AT-FS708LE AT-FS708LE Bedienungsanleitung

Allied Telesis

Allied Telesis AT-9000/24 Bedienungsanleitung

Allied Telesis

Allied Telesis 4000 Series Bedienungsanleitung

Allied Telesis

Allied Telesis AT-8012M Bedienungsanleitung

Allied Telesis

Allied Telesis AlliedWare Plus x220 Series Bedienungsanleitung

Allied Telesis

Allied Telesis AlliedWare Plus x530DP Series Bedienungsanleitung

Allied Telesis

Allied Telesis AT-9724TS Bedienungsanleitung

Allied Telesis

Allied Telesis AlliedWare Plus x530DP Series Bedienungsanleitung

Allied Telesis

Allied Telesis CentreCOM FS980M/9 Installationshandbuch

Allied Telesis

Allied Telesis AT-x510-28GTX Bedienungsanleitung

Allied Telesis

Allied Telesis Series Bedienungsanleitung

Allied Telesis

Allied Telesis AT-8624T/2M, AT-8624PoE Installations- und Betriebsanleitung

Allied Telesis

Allied Telesis x530 Series Bedienungsanleitung

Allied Telesis

Allied Telesis AT-8000S/24POE Bedienungsanleitung

Allied Telesis

Allied Telesis AT-9812T Bedienungsanleitung

Allied Telesis

Allied Telesis x510-28GTX Installationshandbuch

Allied Telesis

Allied Telesis AT-FS905E Bedienungsanleitung

Allied Telesis

Allied Telesis AT-9812T V2 Anwendungshandbuch

Allied Telesis

Allied Telesis SWITCH AND SWITCHBLADE X900 Handbuch

Allied Telesis

Allied Telesis AT-GS924MX Bedienungsanleitung

Allied Telesis

Allied Telesis AT-8316F/MT Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
