TQ6000 GEN2 Wireless Access Points

The access point models included in this Quick Installation guide are:

TQ6702 GEN2 802.11ax Dual-radio 5G/2.4GHz 8x8+4x4 access point

TQm6702 GEN2 802.11ax Dual-radio 5G/2.4GHz 8x8+4x4 access point

TQ6602 GEN2 802.11ax Dual-radio 5G/2.4GHz 4x4+4x4 access point

TQm6602 GEN2 802.11ax Dual-radio 5G/2.4GHz 4x4+4x4 access point

Installation and User’s Guides

This document contains an abbreviated version of the installation instructions for the

TQ6000 GEN2 Wireless Access Point. For complete installation and management

instructions, see the TQ6000 GEN2 Wireless Access Point Installation Guide and TQ6000

GEN2 Management Software User’s Guide on the Allied Telesis web site at

www.alliedtelesis.com/library.

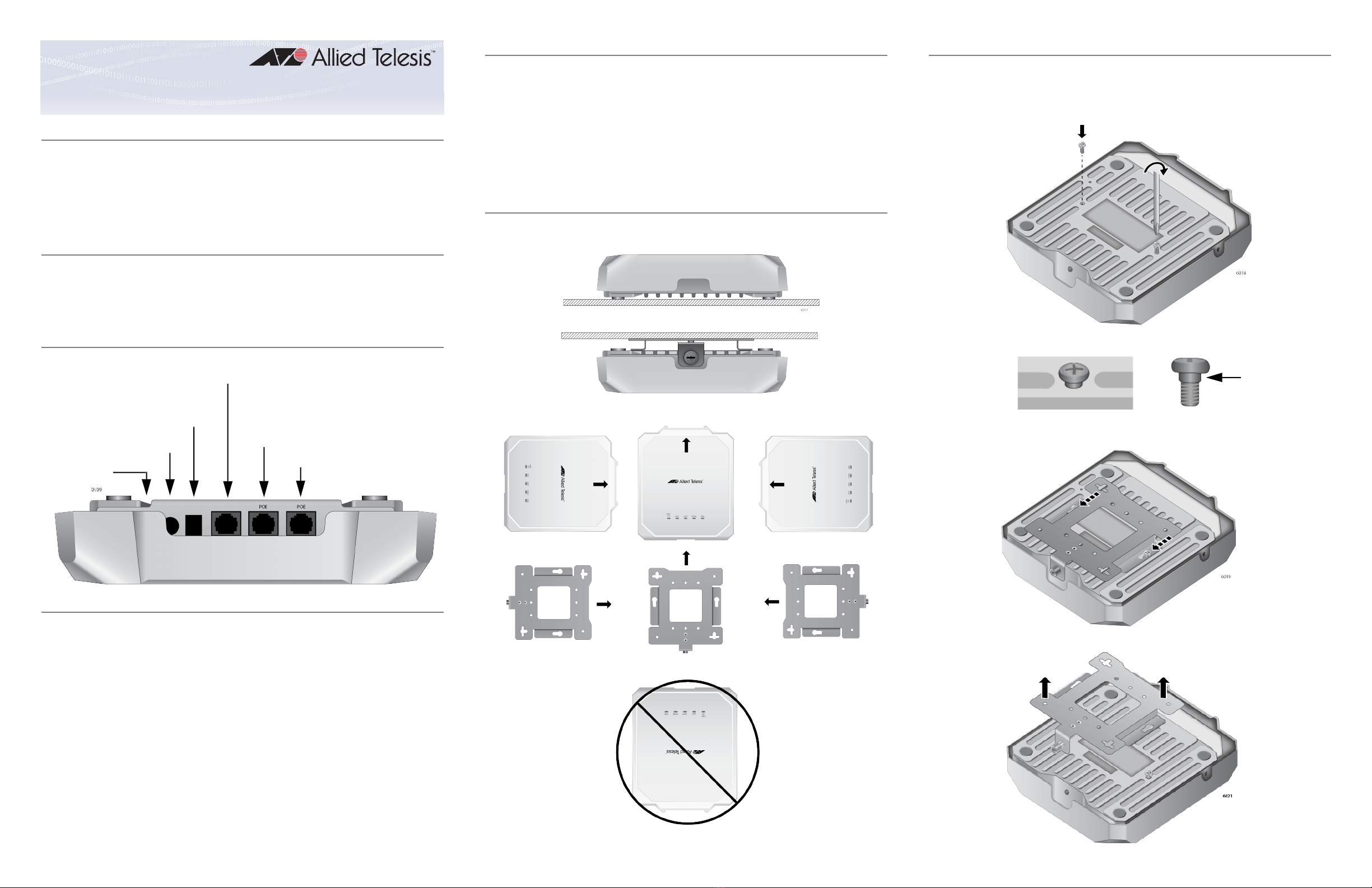

Physical Description

Safety Precautions and Site Requirements

Review the safety precautions and site requirements in the TQ6000 GEN2 Wireless

Access Point Installation Guide before installing the device.

Package Contents

The wireless access points come with the following items in the shipping container:

One TQ6000 GEN2 Wireless Access Point

This Quick Installation Guide

One mounting bracket

Two M5 x4.5 mm pan-head screws for the mounting bracket

If any item is missing or damaged, contact your Allied Telesis sales representative for

assistance. You should retain the original shipping material in case you need to return the

unit to Allied Telesis.

Installation Options

You can install the access point on a desktop, celling, or wall. See the correct access point

orientations:

Do not install the access point facing down.

Pre-fitting the Mounting Bracket

Before installing the mounting bracket on a wall or ceiling, pre-fit the bracket to the

access point.

1. Place the access point upside down on a table.

2. Install the two screws (provided) fully into the bottom panel of the access point.

The screw collar provides the proper spacing for the mounting bracket beneath the

screw head.

3. Make sure that the mounting bracket fits to the access point by sliding the bracket

beneath the screws.

4. Slide the mounting bracket forward and remove it from the access point.

Quick Installation Guide

TQ6000 GEN2 Wireless Access Point

LAN2 POE+ Port

Console Port

(For manufacturing purpose only)

Power Switch LAN1 POE+ Port

Reset Button

DC IN Connector

for AC/DC Adapter

613-003030 Rev C

*613-003030 Rev C*

Desktop

Ceiling

Wall

Collar

1 2 3

Installing the Mounting Bracket on a Wall or Ceiling

1. Choose a location and orientation for the access point on the wall or ceiling.

2. Position the mounting bracket at the selected location for the access point. With a

pencil, mark the two key-hole slots on the wall or ceiling.

3. If necessary, pre-drill on the wall or ceiling the two marked locations of the key-hole

slots for the screws.

4. Install two M4 screws and anchors (if required) into the wall or ceiling. Leave the

screws loose enough so that you can slide the bracket under the screw heads.

For wooden walls or ceiling, Allied Telesis recommends M4 25 mm flat-head wood

screws and anchors (if required). The screws and anchors are not provided.

5. Install the openings of the bracket key-hole slots to the two screw heads and slide

the bracket into the narrow end of the key-hole slot openings.

6. Tighten the screws snugly onto the bracket.

7. To secure the mounting bracket, pre-drill holes through the two bracket mounting

holes opposite the key-hole slots.

8. Install and tighten two M4 screws (not provided).

Cabling the Wireless Access Point

Perform the following procedure to cable the Ethernet LAN port and to power the device:

1. Connect an Ethernet cable to LAN1 (POE) port.

2. Connect the other end of the Ethernet cable to a network device, such as a switch or

router.

Note

When LAN1 port is connected to PoE+ power sourcing equipment, the TQ6000

GEN2 access point powers on and begins to initialize its management software.

3. To use LAN2 port in the static LAG or Cascade mode, connect a second Ethernet

cable to LAN2 port.

4. Connect the other end of a network device.

To use LAN2 port as a static LAG with LAN1 port, connect LAN2 to the same switch

or router as LAN1 port. To use it in the Cascade mode, connect LAN2 to a different

device.

Note

The default setting for LAN2 port is disabled. To enable the port, use the web

management interface. For more details, see the TQ6000 GEN2 Management

Software User’s Guide.

Note

Do not enable the LAN2 port until you have configured the other network device

for the static LAG.

Powering the Wireless Access Point

The access point can be powered with PoE+ on the LAN1 or/and LAN2 ports, an external

AC/DC power adapter, or both. The access point is powered by both PoE and an external

power adapter uses the adapter as its primary power and PoE as redundant power.

Allied Telesis recommends the PWRADP-01 (DA-48Z12) AC/DC Power Adapter. The

power adapter is ordered separately.

1. Plug the DC connector into the DC IN jack on the access point.

2. Connect the power adapter into an appropriate AC power source.

3. Turn on the Power Switch on the panel.

Note

The power switch on the access point controls power from the AC power supply. It

does not control PoE+ on the LAN1 and LAN2 ports.

4 5 6

Installing the Access Point on the Wall Mounting Bracket

1. Align the bottom of the access point over the bracket so that the two screws on the

bottom of the device fit into the bracket keyholes.

2. Slide the access point forward until its screws are seated in the bracket keyhole slots

and the bracket thumbscrew is aligned with the screw hole on the front panel.

3. Tighten the thumbscrew to secure the access point to the wall mounting bracket.

4. Place the Ethernet cable(s) and power cable (if any) along the cable guides inside of

the top cover in the cable hiding space.

Installing an Anti-theft Device

Installation of an anti-theft cable/lock is optional.

Note

Anti-theft devices are not available from Allied Telesis.

1. Follow the instructions provided with the vendor’s anti-theft device for the

installation.

Starting the Initial Management Session

The access point firmware includes a DHCP client. The default setting for the client is

enabled. When you power on the access point for the first time, it queries the subnet on the

LAN port for a DHCP server. If a DHCP server responds to its query, the unit uses the IP

address the server assigns to it.

If there is no DHCP server, the access point uses the default IP address:

192.168.1.230.

To start the initial management session, perform the following procedure:

1. Start the web browser on your management workstation.

2. Enter the IP address of the wireless access point in the URL field of the web

browser. The address is one of the following:

If your network does not have a DHCP server, enter the default address

192.168.1.230.

If your network has a DHCP server, enter the IP address the DHCP server

assigned to the access point.

The wireless access point displays the logon prompt.

3. Enter “manager” for the username and “friend” for the password. The username and

password are case-sensitive.

Setting the Country Setting

The non-US model of this product has a country code setting that must be set during the

initial management session of the unit. The setting ensures that the unit operates in

compliance with the laws and regulations of your country or region.

The country code for the US model is preset and cannot be changed. Per FCC

regulations, the country code setting for all WiFi products marketed in the US must be

fixed to US operational channels only.

LEDs

The top panel LEDs are described in this table.

Kensington

Lock Port

LED Status Information

LED State Description

PWR/

SYS

Green The access point is powered on and operating normally.

Blinking Green The access point is booting up.

Red The access point has encountered a fault condition.

Blinking Red The access point is updating its firmware.

OFF The access point is not receiving power.

LAN 1

and

LAN 2

Green The port has established a valid link to a network

device.

Blinking Green The port is transmitting or receiving data.

Amber The port is connected to a PoE+ power sourcing

equipment.

OFF The port has not established a link to a network device.

2.4GHz

Green The 2.4GHz radio is enabled.

OFF The 2.4GHz radio is disabled.

5GHz

Solid Green The 5GHz radio is enabled.

OFF The 5GHz radio is disabled.

7 8 9

Product Specifications

The product specifications are listed in the following tables.

Safety and Electromagnetic Emissions Certificates

This device complies with Part 15 of FCC Rules, Directive 2014/53/EU issued by the

Commission of the European Community, some other safety, electromagnetic emission,

and radio certificates.

The operating frequencies and maximum transmission power levels for wireless devices

operated in the EU & UK are listed below:

Note

Contact Allied Telesis for the EU conformity statement. To contact Allied Telesis,

visit the web site at www.alliedtelesis.com/contact.

เครื่องวิทยุคมนาคมนี้มีระดับการแผคลื่นแมเหล็กไฟฟาสอดคลองตามมาตรฐาน

ความปลอดภัยตอสุขภาพของมนุษยจากการใชเครื่องวิทยุคมนาคมที่คณะกรรมการกิจการ

โทรคมนาคมแหงชาติประกาศกําหนด

No part of this publication may be reproduced without prior written permission from Allied

Telesis, Inc.

Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated.

All other product names, company names, logos or other designations mentioned herein

are trademarks or registered trademarks of their respective owners.

Allied Telesis, Inc. reserves the right to make changes in specifications and other

information contained in this document without prior written notice. The information

provided herein is subject to change without notice. In no event shall Allied Telesis, Inc.

be liable for any incidental, special, indirect, or consequential damages whatsoever,

including but not limited to lost profits, arising out of or related to this manual or the

information contained herein, even if Allied Telesis, Inc. has been advised of, known, or

should have known, the possibility of such damages.

Physical Specifications

Parameter Specification

Dimensions (W x D x H) 200 mm X 240 mm X 45 mm

(7.9 in. x 9.4 in. x 1.8 in.)

Weight without mounting bracket 1.2 kg (2.6 lbs)

Weight with mounting bracket 1.4 kg (3.1 lbs)

Environmental Specifications

Parameter Specification

Operating Temperature 0° C to 50° C (32° F to 122° F)

Storage Temperature - 25° C to 70° C (- 13° F to 158° F)

Operating Humidity 0 % to 90% non-condensing

Storage Humidity 0 % to 95% non-condensing

Maximum Operating Altitude 3000 m (9843 ft)

Power Specifications on LAN Ports

Parameter Specification

Maximum Power Consumption 25.5 watts

Rated Voltage DC 48 A

Rated Current 0.67 A

External AC/DC Power Adapter Specifications

Parameter Specification

Input Voltage Range 100~240 VAC

Input Frequency 50 - 60 Hz

Rated Output Voltage +12 VDC

Rated Output Current 4 A

Temperature Ranges 0° C to 50° C (32° F to 122° F)

Maximum Operating Altitude 3000 m (9843 ft)

Model: TQ6702 GEN2; TQm6702 GEN2

2412-2472 MHz 5150-5250 MHz 5250-5350 MHz 5470-5725 MHz

Beamforming 19.87 dBm 22.87 dBm 22.99 dBm 29.97 dBm

Non-Beamforming 19.94 dBm 22.99 dBm 22.96 dBm 29.83 dBm

Model: TQ6602 GEN2; TQm6602 GEN2

2412-2472 MHz 5150-5250 MHz 5250-5350 MHz 5470-5725 MHz

Beamforming 19.87 dBm 21.42 dBm 20.20 dBm 28.45 dBm

Non-Beamforming 19.94 dBm 22.93 dBm 22.83 dBm 29.88 dBm

* This equipment should be installed and operated with a minimum distance of 20 cm

between the radiator and your body.

10 11 12

Andere Allied Telesis Drahtloser Zugangspunkt Handbücher

Allied Telesis

Allied Telesis AT-TQ3600 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-WA7500 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TQ2450 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TQ6602 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TQ Series Bedienungsanleitung

Allied Telesis

Allied Telesis AT-WA7400 Bedienungsanleitung

Allied Telesis

Allied Telesis TQ6602 Bedienungsanleitung

Allied Telesis

Allied Telesis TQ6702e GEN2 Bedienungsanleitung

Allied Telesis

Allied Telesis TQ6000 GEN2 Bedienungsanleitung

Allied Telesis

Allied Telesis TQ6602 GEN2 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TQ4600-OF13 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TQ5403e-00 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TQ5403e Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TQ4400e Bedienungsanleitung

Allied Telesis

Allied Telesis AT-WA7400 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-WA7500 Benutzerhandbuch

Allied Telesis

Allied Telesis AT-TQ1402 Series Bedienungsanleitung

Allied Telesis

Allied Telesis AT-WL2411 Bedienungsanleitung

Allied Telesis

Allied Telesis TQ6602 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-WA7400 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TQ4600 Bedienungsanleitung

Allied Telesis

Allied Telesis TQ6702 GEN2 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-AP500 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TQ Series Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung
