ALLPOWER APG3201 Bedienungsanleitung

6500WATTAIR-COOLED

DIESELGENERATOR

AIR-COOLED DIESEL GENERATOR

TABLE OF CONTENTS

Page number

Chapter 1 Technical Specifications and Data .......................................... 3

1-1 Technical specifications and data.................................................3

1-2 Basic operating instruction,s............................................................5

1-3 General dimensions and overview of generator ....................5

Chapter 2 Operating the Diesel Generator. .............................................7

2-1 Main points of safety during operation of the generator ...... 7

2-2 Preparation before operation .........................................................9

2-3 Checking the operation of the diesel engine ............................12

2-4 Starting the generator ......................................................................12

2-5 Procedures for starting the generator .......................................15

2-6 Proper operation of the generator ...............................................17

2-7 Loading ................................................................................................17

2-8 Stopping the generator ....................................................................19

Chapter 3 Maintenance ...................................................................................20

3-1 Maintenance schedules ...................................................................20

3-2 Storing for a long period of time ................................................22

Chapter 4 Troubleshooting .............................................................................23

4-1 troubleshooting procedures ...........................................................23

4-2 Questions and concerns .................................................................24

Chapter 5 Generator Parts Diagrams and Listings ............................24

Limited Warranty ...................................................................... 31

AIR-COOLED DIESEL GENERATOR

CHAPTER 1. TECHNICAL SPECIFICATIONS AND DATA

1-1 Technical specifications and data

CHANGFA Single-cylinder diesel generator

CFA6500CL_E_/CF

Rated frequency (Hz)

Rated voltage (V)

Rated output power

(kVA)

Max output power

(kVA)

Rated rotation speed

(rpm)

Power factor cos

Phase number

Pole number

Excitation

Transistorized

ATS type

Structure type

Fuel

consumption(g/kw.h)

Fuel tank capacity(L)

Continuour running

time(hr)(at rated

power)

Noise level

[dBA/7m](zero

load_full load)

Net weight (kg)

Overall dimension

(L_W_H)

A6500CX_E_

220_230_240_110

/220_115/230_120/2

4.5

3600

Single

self-excitation,

Brushless

without ATS

Open-frame

CFA6500CL_E_S

/CFA6500CX_E_S

380/220_400/230_420/240

4.5

3600

12.5 12.5

7.5 7.5

75 -79 75 -79

L_X:95; E:100 L_X:95_ E3:100

29" 19" 26.25" 29" 19" 26.25"

340340

Three

self-excitation constant voltage

(AVR)

without ATS

Open-frame

OWNER'S MANUAL

Starter system

Fuel type

Lube oil

Engine model

Engine type

Bore stroke(mm)

Displacement(cm3)

Compression ratio

Rated power [kW/rpm]

Rotation direction(from

the flywheel)

C: recoil starter

E: recoil starter/electric

0# (summer),_l 0#

(winter), _35#(chill

cold) diesel

SAE 15W 40

L_X:CFA186F

E:CFA186FE

Single-cylinder,4-

stroke,air-

cooled,vertical,diesel

engine 86 72

0.418

19_1

6.3/3600

clockwise

C: recoil starter

E: recoil starter/electric starter

0# (summer),_10# (winter),

_35#(chill cold) diesel

SAE 15W 40

L_X3:CFA186F

E3:CFA186FE

Single-cylinder,4 -stroke, air-

cooled,vertical,diesel engine

86 72

0.418

19_1

6.3/3600

clockwise

OWNER'S MANUAL

1-2 Basic operating instructions

1-2.1 Under the given conditions, the generator will output the specified power in the table

listed below.

Table 1.

Height above sea level (ft) Ambient temperature (F) RH

0 +60 (+20 C) 60%

1-2.1 Under the given conditions, the generator will output the approximate

power in the table listed below.

Table 2

Height above sea level (ft) Ambient temperature (F) RH

<3280.8 (<1000 m) 41-104 (5-40 °C) 90%

1-3 General dimensions and overview of the generators

1-3.1 G CFA6500CL(X)E/CFA6500CL(X)ES

dimensions of the series generators

OWNER'S MANUAL

CHAPTER 2 OPERATING THE DIESEL GENERATOR

2-1 General main points of safety during operation of the generator set.

In order to operate the generator set safely, please follow all the instructions provided

in this manual carefully. Doing so otherwise may lead to accidents and or equipment

damage.

2-1.1 Fire prevention

The proper fuel for the diesel generator set is light diesel fuel. Do not use gasoline,

kerosene and or other fuels other than light diesel fuel. Keep all flammable fuels

away from the generator as the generator may spark and ignite these gases. In order

to prevent fires from occurring and to provide enough ventilation for people and the

machine, keep the diesel generator at least 1.5 meters away from buildings and or

other equipment. Always operate your diesel generator on a level site. If the

generator is operated on an incline, the lubricating system within the engine will not

perform well and may lead to failure of the engine.

2-1.2 Prevention from inhaling exhaust gases

Never inhale exhaust gases emitted by the engine. The exhaust gases contain toxic

carbon monoxide. Never operate your generator in places with poor ventilation. In

order to operate this machinery indoors, a suitable ventilation system for the building

is required to draw the poisonous exhaust gases out.

2-1.3 Prevention from accidental burns

Never touch the muffler and its cover when the diesel engine is running. Never touch

the muffler and cover after the diesel engine has been used, as the muffler remains hot

for a long period of time.

2-1.4 Electric shock and short circuits

Never touch the generator if the generator is wet. Also never touch the generator if

your hand is wet. Never operate your generator if the weather conditions call for any

type of precipitation such as rain, snow, or fog. To prevent electrical shocks, the

generator should be grounded. Use a lead to connect the grounding end of the

generator to the grounding surface of choice. Please refer to Fig. 2-1 before

beginning to use the electric generator.

OWNER'S MANUAL

Note: When connecting devices to the generator, make sure all other devices are

rated lower than the generators output. Any generator socket should not be

overloaded over its regulated limit

2-1.5 Other safety points

Before operating this generator, all operators should have a good knowledge of how

to break the circuit if any accidents occur. Also, all operators should be familiar with

all the switches and functions of the generator before using this machine. While

operating the generator, wear safe shoes and suitable clothes during operation.

Always keep children and animals away from the generator.

2-1.6 Battery

The electrolytic liquid of the battery also known as battery acid contains sulfuric acid.

In order to protect your eyes, skin, and clothing, wear protective gear when working

with the battery. If you come in contact with the electrolytic liquid, wash it

immediately with clean water. Also, if the electrolytic liquid comes in contact with

your eyes, see a doctor immediately.

OWNER'S MANUAL

2-2 Preparation before operation

2-2.1 Fuel choices and fuel treatment

Fuel tank

Use only light diesel fuel. The fuel should be filtered clean. Never let dust and

water mix with fuel in the fuel tank. Otherwise it will clog the fuel lines and oil

nozzles. It may also damage your pressure pump.

Note: It is dangerous to overfill the fuel tank. Never exceed the red piston in the

filter.

Type

The effective volume

tank:(L)

(US gal)

CFA6500

APG3201 CXES

of fuel 12.5

3.3 12.5

3.3

a. After purchasing fuel, put it into a

drum and let it sit for 3-4 days.

b. 3-4 days later, insert half of the fuel

siphon into the drum, (water and

impurities stay in the lower portion

of the drum) b

Air filter element

Do not wash the air filter. The element is made of dry material, which does not

permit washing. When the output of the diesel engine is bad or the color of the

exhaust gas is abnormal, replace the air filter element. Never start the diesel engine

without the air filter.

staR:/run

Note:

Never smoke near the opening of the fuel tank.

Do not let sparks get near the fuel or fuel tank

and do not overfill tank. After filling, tighten the

fuel cap.

OWNER'S MANUAL

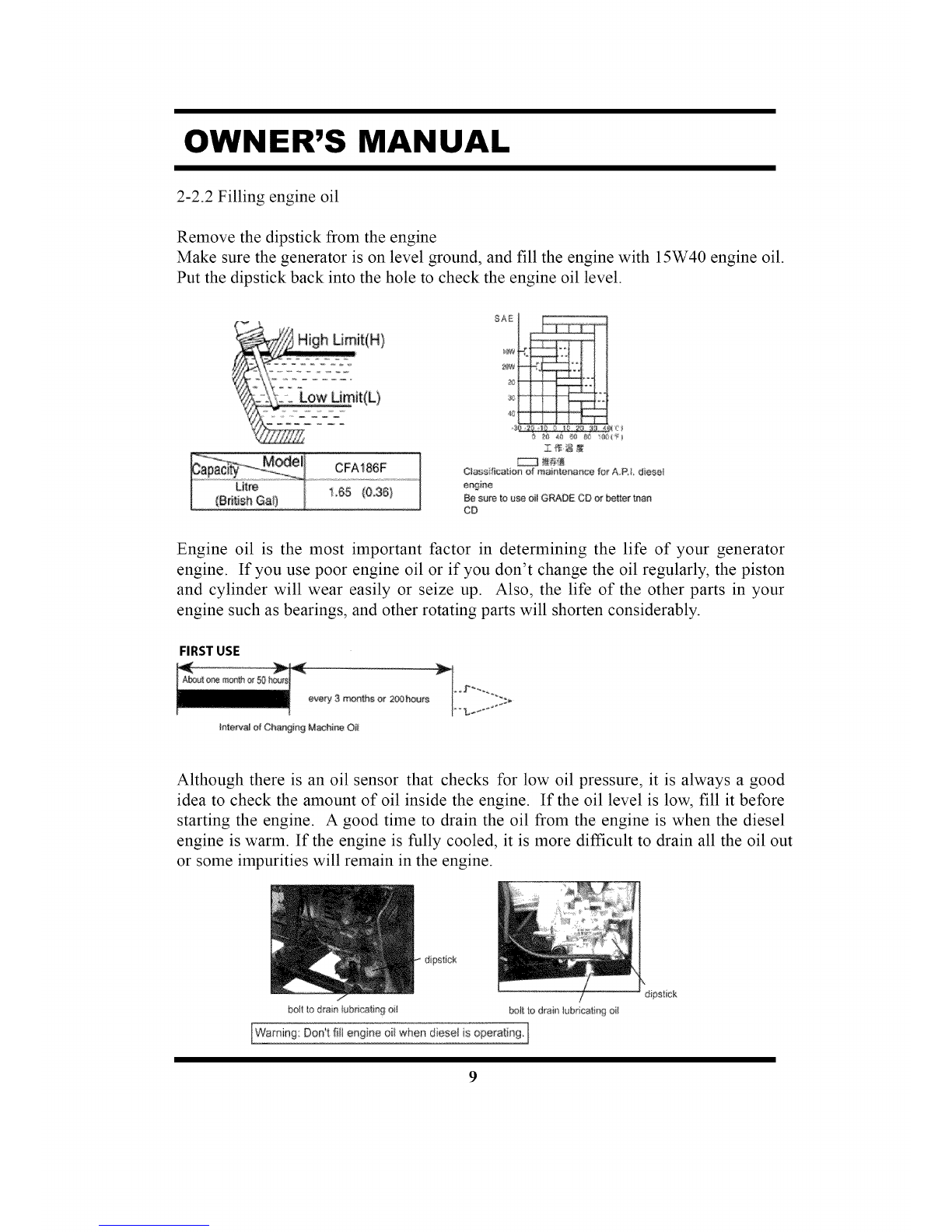

2-2.2 Filling engine oil

Remove the dipstick from the engine

Make sure the generator is on level ground, and fill the engine with 15W40 engine oil.

Put the dipstick back into the hole to check the engine oil level.

it(H)

_t(L)

_ 45 _ _ _8_ii'_

2_NN

CFA186F Ciass fication of ma*n_e_mr_ce ![o ARk diesel

en_{_e

I_r,_'_v_oW Be sure _o u_ oil GRADE CD or be_ter tnar_

Engine oil is the most important factor in determining the life of your generator

engine. If you use poor engine oil or if you don't change the oil regularly, the piston

and cylinder will wear easily or seize up. Also, the life of the other parts in your

engine such as bearings, and other rotating parts will shorten considerably.

FIRST USE

eve_ 3 r_hs o_ 2_]houts

IntervsI of Oha_i_g Machine Oi_

Although there is an oil sensor that checks for low oil pressure, it is always a good

idea to check the amount of oil inside the engine. If the oil level is low, fill it before

starting the engine. A good time to drain the oil from the engine is when the diesel

engine is warm. If the engine is fully cooled, it is more difficult to drain all the oil out

or some impurities will remain in the engine.

bot[ 1odrain abrica_ing oil bol_ to drain tubricatir_g o,il

[Warning: Don't fill engine oi_when diese_ is operating, ]

OWNER'S MANUAL

2-2.3 Checking the air filter

fiRercore

(1) Loosen the butterfly nut, take the cover of the air

filter off and take the air filter element out.

Do not wash the air filter element.

When the performance of the engine decreases or

when the color of the exhaust gases is bad, exchange

the filter element. Never start the engine without the

air filter as foreign objects may enter the intake and damage the engine.

Use dry compressed air (with pressure about 28 PSI to blow the dust out in

the electric control cabinet and at the surface of the generator. Check to see

how clean the surface of the sliding ring is. Check the pressure of the carbon

brush. Also, check whether the position of the carbon brush at the slide rig is

correct and the fixture is reliable with a good contact.

2-2.5 The fuel and oil in a new engine is drained before sold. Before you start the

engine, please fill the fuel tank and engine oil first.

2-3 Checking the operation of the diesel engine

2-3.1 Low-pressure oil switch.

CF diesel engines have a low-pressure sensor system where if the oil pressure

drops too low, the sensor will shut the engine off. The purpose of having this

system is to ensure that the engine does not seize up. If there is not enough oil

in the engine, the temperature of the oil will be raised too high. On the

contrary, if there is too much oil in the engine, the engine oil can slow the

engine down considerably.

Andere Handbücher für APG3201

Inhaltsverzeichnis

Andere ALLPOWER Tragbarer Generator Handbücher

ALLPOWER

ALLPOWER APG3303 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3535 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3201N Bedienungsanleitung

ALLPOWER

ALLPOWER APG3304 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3005 Bedienungsanleitung

ALLPOWER

ALLPOWER APGG12000GLCS Bedienungsanleitung

ALLPOWER

ALLPOWER All-Power APG3004A Bedienungsanleitung

ALLPOWER

ALLPOWER APG3009 Bedienungsanleitung

ALLPOWER

ALLPOWER AP G3102 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3101 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3535CN Bedienungsanleitung

ALLPOWER

ALLPOWER APG3535 Bedienungsanleitung

ALLPOWER

ALLPOWER APGG4000 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3012 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3009N Bedienungsanleitung

ALLPOWER

ALLPOWER APG3014 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3009 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3009 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3008 Bedienungsanleitung

ALLPOWER

ALLPOWER 1350 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3202 Bedienungsanleitung

ALLPOWER

ALLPOWER APGG10000 Bedienungsanleitung

ALLPOWER

ALLPOWER APG3560CSA Bedienungsanleitung

ALLPOWER

ALLPOWER APG3302 Bedienungsanleitung

Beliebte Tragbarer Generator Handbücher anderer Marken

Kohler

Kohler 20EORZ Bedienungsanleitung

Powerhorse

Powerhorse 83171 Bedienungsanleitung

HURST

HURST ML-630-SI Bedienungsanleitung

ETQ

ETQ TG4000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 40265 Einrichtungshandbuch

ConMed

ConMed 7550 Bedienungsanleitung

Owon

Owon Waveform Generator Bedienungsanleitung

evertz

evertz 7700 Series Bedienungsanleitung

Power Stroke

Power Stroke PS906025 Bedienungsanleitung

Firefly

Firefly Cygnus CYG2400/460/24 Bedienungsanleitung

Draper

Draper PG950S Firmware-Update

PowerBoss

PowerBoss PowerBoss Bedienungsanleitung

SDMO

SDMO SH 4000 Bedienungsanleitung

EINHELL

EINHELL STE 5500 Bedienungsanleitung

Wanco

Wanco WI3000P Bedienungsanleitung

Full Boar

Full Boar FBT-3300 Bedienungsanleitung

Dwyer Instruments

Dwyer Instruments ASG Bedienungsanleitung

Westinghouse

Westinghouse WH1000i Series Bedienungsanleitung
