AMANA®FOUR BURNER GAS GRILL
Assembly/Installation Instructions and Use & Care Guide
For questions about features, operation/performance, parts, accessories or service,
call: 1-800-229-5647 or visit our website at www.sureheat.com
IMPOR AN :
Save for local inspector's use.
Installer: eave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
AM30LP-P
DPCI 009 07 0292
FOR OUTDOOR USE ONLY
TABLE OF CONTENTS
2
OUTDOOR GR LL SAFETY............................................................................................................3-4
UNPACK NG NSTRUCT ONS...........................................................................................................5
ASSEMBLY REQU REMENTS.......................................................................................................5-6
Parts Supplied...........................................................................................................................6
Tools Needed............................................................................................................................6
Assembled Grill View.................................................................................................................7
ASSEMBLY NSTRUCT ONS.......................................................................................................8-26
Step 1: Assemble Wheel Channels...........................................................................................8
Step 2: Assemble Grill Cart..................................................................................................9-12
Step 3: Assemble Grill Head....................................................................................................13
Step 4: Assemble Drawers.................................................................................................14-16
Step 5: Assemble Cart Door....................................................................................................17
Step 6: Assemble Side Shelf Left............................................................................................18
Step 7: Assemble Side Burner Shelf Right..............................................................................19
Step 8: Assemble Side Burner Valve & gniter Module..........................................................20
Step 9: Assemble Side Burner Casting..............................................................................21-22
Step 10: Assemble gniter Wires.............................................................................................23
Step 11: Assemble the Side Burner Accessories....................................................................24
Step 12: Assemble the Drip Pan..............................................................................................25
Step 13: Complete the grill assembly......................................................................................26
NSTALLAT ON REQU REMENTS.............................................................................................27-29
Location Requirements............................................................................................................27
Product Dimensions.................................................................................................................28
Gas Supply Requirements.......................................................................................................28
Gas Pressure Regulator..........................................................................................................28
Burner Requirements for High Altitude....................................................................................28
Gas Supply Line Pressure Testing..........................................................................................29
NSTALLAT ON NSTRUCT ONS....................................................................................................29
20 lb LP Gas Fuel Cylinder......................................................................................................29
Make Gas Connection.............................................................................................................29
Check and Adjust the Burners.................................................................................................29
Burner Flame Characteristics..................................................................................................29
OUTDOOR GR LL USE...............................................................................................................30-31
Using Your Outdoor Grill..........................................................................................................30
Using Your Side Burner...........................................................................................................31
T PS FOR OUTDOOR GR LL NG....................................................................................................32
Cooking Methods.....................................................................................................................32
OUTDOOR GR LL CARE............................................................................................................33-35
Replacing the gniter Battery...................................................................................................33
General Cleaning................................................................................................................33-35
TROUBLESHOOT NG......................................................................................................................36
ASS STANCE...................................................................................................................................36
REPLACEMENT PARTS.............................................................................................................37-39
WARRANTY.....................................................................................................................................40
OUTDOOR GRILL SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARN NG.”
These words mean:
You can be killed or seriously injured if you don’t immediately
follow instructions.
You can be killed or seriously injured if you don’t follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or your fire department.
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances
known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires businesses to warn of
potential exposure to such substances.
WARN NG: This product contains a chemical known to the State of California to cause cancer, birth defects, or other
reproductive harm.
This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde, carbon
monoxide, toluene, and soot.
n the State of Massachusetts, the following installation instructions apply:
■nstallations and repairs must be performed by a qualified or licensed contractor, plumber, or gas fitter qualified or licensed by the
State of Massachusetts.
■f using a ball valve, it shall be a T-handle type.
■A flexible gas connector, when used, must not exceed 3 feet.
3
IM ORTANT SAFETY INSTRUCTIONS
IMP RTANT: This grill is manufactured for outdoor use only. For grills that are to be used at
elevations above 2000 ft (609.6 m) orifice conversion is required. See “Gas Supply Requirements”
section. t is the responsibility of the installer to comply with the minimum installation clearances
specified on the model/serial rating plate. The model/serial rating plate for freestanding models can
be found on inside of the right cart door.
WARNING: To reduce the risk of fire, electrical shock,
injury to persons, or damage when using the outdoor
cooking gas appliance, follow basic precautions, including
the following:
■Do not install portable or built-in outdoor cooking gas
appliances in or on a recreational vehicle, portable
trailer, boat or in any other moving installation.
■Always maintain minimum clearances from combustible
construction, see “Location Requirements” section.
■The outdoor cooking gas appliance shall not be located
under overhead unprotected combustible construction.
■This outdoor cooking gas appliance shall be used only
outdoors and shall not be used in a building, garage, or
any other enclosed area.
■Keep any electrical supply cord and fuel supply hose
away from any heated surfaces.
■Keep outdoor cooking gas appliance area clear and free
from combustible materials, gasoline and other
flammable vapors and liquids.
■Do not obstruct the flow of combustion and ventilation
air. Keep the ventilation openings of the cylinder
enclosure free and clear from debris.
■nspect the gas cylinder supply hose before each use of
the outdoor cooking gas appliance. f the hose shows
excessive abrasion or wear, or is cut, it MUST be
replaced before using the outdoor cooking gas
appliance. Contact your dealer and use only
replacement hoses specified for use with the outdoor
cooking gas appliance.
■Visually check the burner flames. They should be blue.
Slight yellow tipping is normal for LP gas.
■Check and clean burner/venturi tube for insects and
insect nest. A clogged tube can lead to fire under the
outdoor cooking gas appliance.
■The LP gas supply cylinder to be used must be:
- constructed and marked in accordance with the
Specification for LP Gas Cylinders of the U.S.
Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres, and Tubes for Transportation of Dangerous
Goods; and Commission.
- provided with a listed overfilling prevention device.
- provided with a cylinder connection device compatible
with the connection for outdoor cooking gas
appliances.
■Always check connections for leaks each time you
connect and disconnect the LP gas supply cylinder.
See “ nstallation nstructions” section.
■When the outdoor cooking gas appliance is not in use,
the gas must be turned off at the supply cylinder.
■Storage of an outdoor cooking gas appliance indoors is
permissible only if the cylinder is disconnected and
removed from the outdoor cooking gas appliance.
■Cylinders must be stored outdoors and out of the reach
of children and must not be stored in a building, garage,
or any other enclosed area.
■The pressure regulator and hose assembly supplied
with the outdoor cooking gas appliance must be used. A
replacement pressure regulator and hose assembly
specific to your model is available from your outdoor
cooking gas appliance dealer.
■Gas cylinder must include a collar to protect the cylinder
valve.
■For appliances designed to use a CGA791 Connection:
Place a dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on
the cylinder valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result in
leakage of propane.
f the following information is not followed exactly, a fire
causing death or serious injury may occur.
■Do not store a spare LP gas cylinder under or near this
outdoor cooking gas appliance.
■Never fill the cylinder beyond 80 percent full.
SAVE THESE INSTRUCTIONS
4
1. Using a utility knife, cut the tape to open top flaps of
carton.
2. Remove Assembly/ nstallation nstructions and Use and
Care Guide.
3. Remove the large cardboard panels on the top and each
side of the inside of the carton.
4. Remove the cart base on the top of the inside of the
carton.
5. Remove the cart side panels located in front of the grill
head assembly.
6. Using a utility knife, vertivally cut at the side corner of
the carton, lay the box sides flat.
7. Remove foam packaging and plastic wrap from top of
grill.
8. Remove the hood locking bolts and open hood and re-
move parts carton and interior packaging.
9. Remove warming shelf and set aside.
10. Using 2 or more people, remove grill head assembly
and set aside.
11. Dispose of/recycle all packaging materials.
5
UN ACKING INSTRUCTIONS

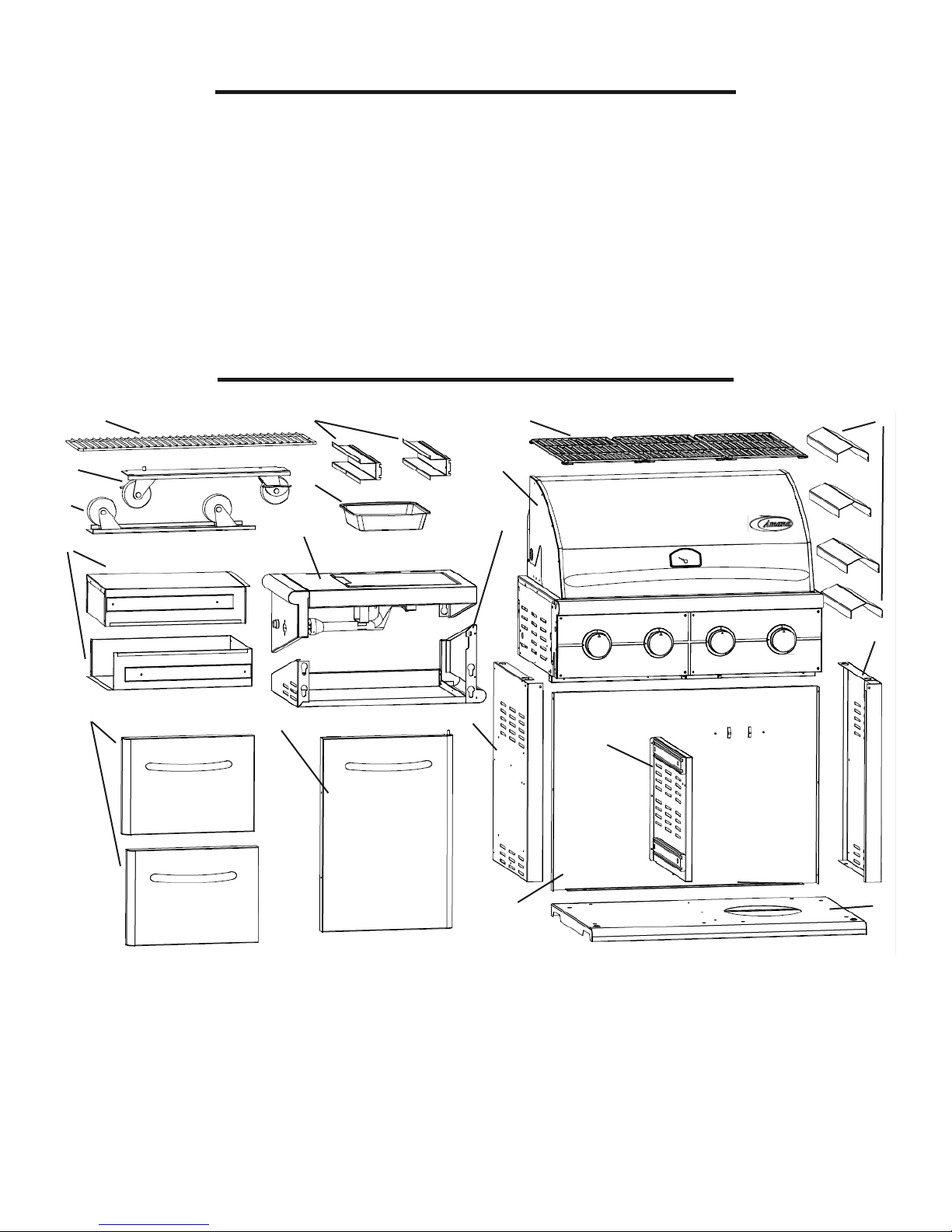

A. Bread warming rack
B. Main cooking grates
C. Flavor grids
D. Wheel channel rightr
E. Wheel channel left
F. Drawer slide rail brackets
G. Drip pan
H. Drawer trays
I. Side burner shelf right
J. Side shelf left
K. Drawer front faces
. Cart door right
M. Grill head assembly
N. Cart side left
O. Cart side right
P. Cart back
Q. Cart middle
R. Cart base
Not Shown but included in the box:
Small components package
Tank securing ring
Middle bracket
A
D
E
F
G
HIJ
Q
K
M
BC
N
O
PR
ASSEMBLY REQUIREMENTS
Assembly Hardware Supplied
■38 - self-tapping screws
■1 - Side burner knob with bezel
■1 - “AA” battery
N TE: Other hardware required is attached to the grill where needed.
Tools Needed
arts Supplied
■Gas pressure regulator/hose assembly set for 11" WCP LP gas (attached to manifold).
arts Needed
■20 lb LP gas fuel cylinder
■#2 Phillips screwdriver
■Adjustable wrench
■ ½" wrench or socket
■ ¼" nut driver or socket
■Tape measure
■Level
■Non-corrosive leak detection
solution
ASSEMBLY REQUIREMENTS
6
ASSEMBLED GRILL VIEW
A
B
C
F
DE
G
H
I
J
A. Control knob: main burners
B. Side shelf
C. Grilling/cooking surface
D. Roll top grill hood
E. Hood handle
F. Bread warming rack
G. Side burner
H. Control knob: side burner
. Electronic igniter: main burners and
side burner
J. Drawers
K. Cart door
K
7
ASSEMBLY INSTRUCTIONS
Step 1: Assemble Wheel Channels
1. Remove the four (4) caster assembly nuts and two (2) bolts from the wheel channel assemblies.
Note: he nuts and bolts are hand tightened to the wheel channels.
2. Set the cart base on the floor and then lay the wheel channel left on the left side and the wheel
channel right on the right side of the cart base. (The large hole in the cart base should be on the
right side.)
3. Pick up the left side of the cart base and set the wheel channel left in place by inserting the
attached bolts through the two (2) holes in the cart base.
4. Pick up the right side of the cart base and set the wheel channel right in place by inserting the
attached bolts through the two (2) holes in the cart base.
A. Cart base
B. Wheel channel left
C. Wheel channel right
A
B
C
8
Step 2: Assemble Grill Cart
1. Place the cart side left onto the two (2) outer caster assembly bolts, make sure the large
flange is toward the front of the cart base.
2. Secure the cart side left in place by tightening the caster assembly nuts onto the caster
assembly bolts.
3. Use six (6) self-tapping screws to secure the two drawer slide rail brackets onto the cart
side left as shown.
Note: Install the self-tapping screws from outside of cart so that the point of screw
is in the inside of the cart.
A. Cart base
B. Cart side left
C. Drawer rail brackets
D. Wheel channel assembly bolt
E. Wheel channel assembly nut
A
B
C
D
E
ASSEMBLY INSTRUCTIONS
9
4. Repeat step 1-2 to install the cart side right in position.
5. Place the cart back onto the grill cart base. Place two wheel channel assembly bolts through the
holes on the bracket and cart base, then tighten the bolts to the thread hole on the wheel channel.
Make sure that the cart back flanges wrap and cover the cart sides. Use six (6) self-tapping
screws to secure the cart back in position.
Note: Install the self-tapping screws from outside of cart so that the point of screw is in the
inside of the cart.
A. Cart side right
B. Cart back
C. Wheel channel assembly bolt
D. Self-tapping screws
B
D
C
Step 2: Assemble Grill Cart (Cont.)
ASSEMBLY INSTRUCTIONS
A
10
Andere Handbücher für AM30LP-P
1
Inhaltsverzeichnis
Andere Amana Grill Handbücher
Amana
Amana SS 4 Bedienungsanleitung
Amana
Amana AM27LP Bedienungsanleitung
Amana
Amana SS 5 Bedienungsanleitung
Amana
Amana AM30LP-P Bedienungsanleitung
Amana
Amana SS 4 Bedienungsanleitung
Amana
Amana AM26LP-P Bedienungsanleitung
Amana
Amana AM33LP-P Bedienungsanleitung
Amana
Amana AM27 Bedienungsanleitung
Amana
Amana AM26LP Bedienungsanleitung
Amana
Amana SS 5 Bedienungsanleitung
