Amana A2RXNMFWW00 Fehlerbehebungshandbuch
CABINET PARTS
1
For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00
(White) (Black) (Stainless Steel)
11−09 Litho In U.S.A. (mjb) (bay) Part No. W10246526 Rev. B
REFRIGERATOR
CABINET PARTS
2
For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00
(White) (Black) (Stainless Steel)
W10246526
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10142142
Service &
Wiring Sheet
W10233125
Energy Label
Use & Care Guide
W10208848
Bilingual
W10208847
Trilingual
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
Manual, Ref./Fzr.
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
4 549193 Clamp−Service Cord
5 489427 Screw
6 489341 Washer
7 2179826 Rivet
8 3400504 Screw
9 8281265 Screw
10 489497 Screw
11 2254618 Hinge, Center
12 2183852 Shim, Hinge
Center
13 2254473 Hinge Butt
14 Fitting, Water Tube
(Not Serviced)
15 Hole Plug (6)
2201012 White
2183998 Black
16 Seal, Front
(Not Serviced)
17 Seal, Rear
(Not Serviced)
18 Corner Filler (2)
2201014 White
2201017 Black
19 Grille
(Includes
Illus. 20)
2254313 White
2254315 Black
20 2189356 Clip, Grille (2)
21 487576 Washer
22 Cover, Hinge
2213360 White
2213363 Black
23 Rail, Center
(Not Serviced)
24 2254576 Cover, Unit
25 Cabinet (Not a
Serviceable Part)
27 489385 Tube Clamp

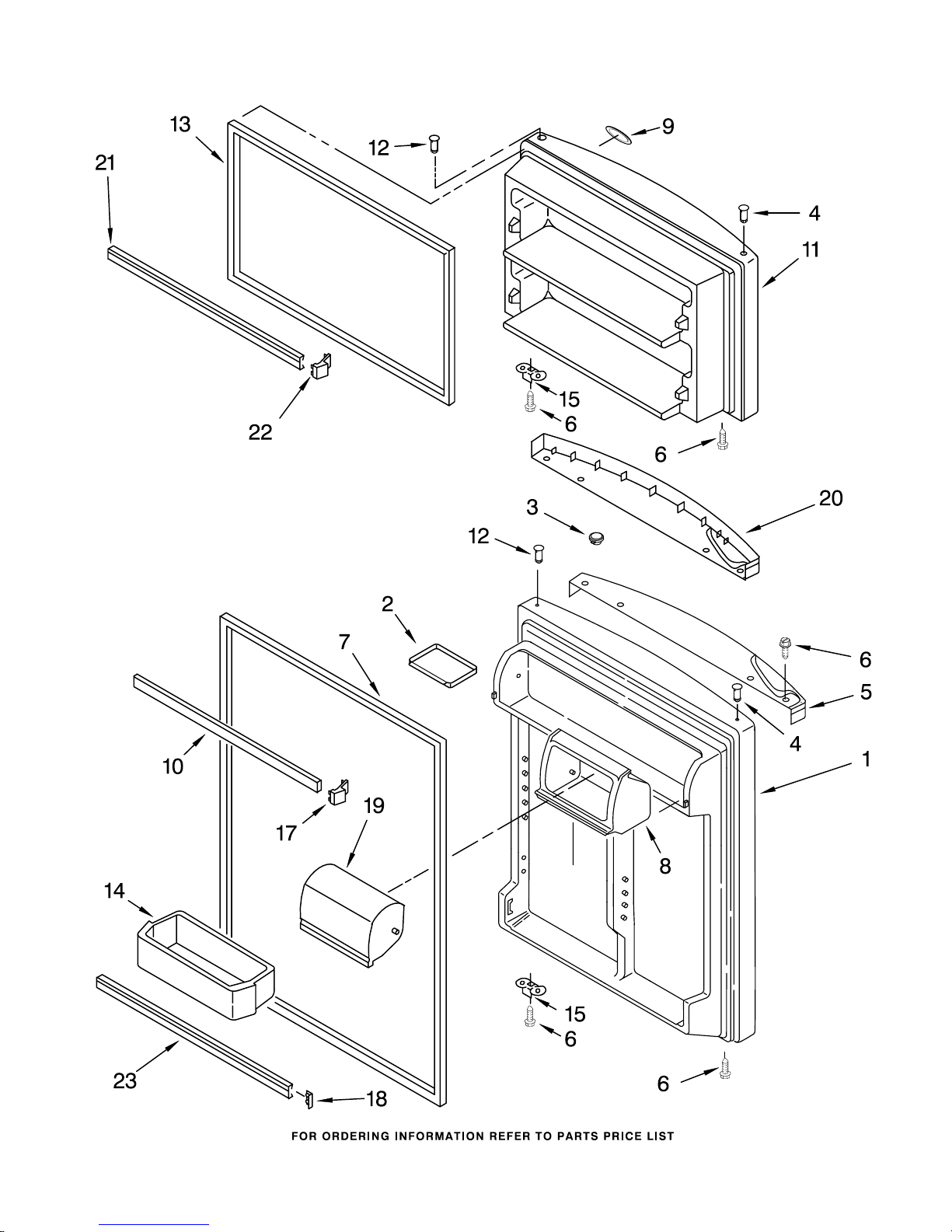

DOOR PARTS
3
For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00
(White) (Black) (Stainless Steel)
W10246526
DOOR PARTS
4
For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00
(White) (Black) (Stainless Steel)
W10246526
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes
Illus. 7 & 12)
2202519 White
2204867 Black
W10271888
Stainless Steel
2 2195388 Tray, Door
3 Hole Plug, Endcap
2204837 White
2204840 Black
4 2314293 Thimble
5 Endcap, Handle
(Refrigerator)
2300571W White
2300571B Black
6 489276 Screw
7 Door Gasket,
Magnetic
2202875 Mist Beige
2202882 Black
8 2210566 Housing
Compartment
9 12528501 Nameplate
10 2159306 Trim, Door Shelf
11 Freezer Door
(Includes
Illus. 12 & 13)
2202520 White
2204856 Black
W10271891
Stainless Steel
12 2183003 Thimble
13 Door Gasket,
Magnetic
2214967 Mist Beige
2214969 Black
14 2204813 Bin, Door Shelf
15 2189202 Bracket, Door
Stop (2)
17 2177340 Endcap, Trim (2)
18 2156006 Plug, Trim
19 2218109 Compartment Door
20 Endcap, Handle
(Freezer)
2300575W White
2300575B Black
21 2195947 Trim, Door (2)
22 2195916 Endcap, Trim (4)
23 2195948 Trim, Door
LINER PARTS
5
For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00
(White) (Black) (Stainless Steel)
W10246526
LINER PARTS
6
For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00
(White) (Black) (Stainless Steel)
W10246526
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2197380 Grommet (2)
3 2254360 Gasket, Evaporator
Cover (2)
4 2314156 Adaptive, Defrost
Control
5 2204640 Thermostat Tube
Barrier
6 941839 Hole Plug
7 2310078 Wire Assy.
Control Box
8 2162085 Socket, Light (3)
9 98129 Screw
10
W10189703
Fan Motor
11 2163777 Fan Blade
12 2218381 Control Box
13 2225460 Thermostat
16 2320194 Cover−Evaporator
17 2160708 Light Bulb (2)
19 1118894 Rocker Arm (2)
Switch
20
W10129803
Wire Assembly,
Freezer Compartment
(Includes Item 35)
21 2176281 Cover, Air
Diffuser
22 2202885 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
Bottom
25 488208 Screw
26 2212439 Air Seperator Assy
27 2205003 Cover, Hole
28 2254454 Bracket,
Fan Back
29 2254453 Bracket,
Fan Motor
30 2320183 Retainer−Screw
31 2204639 Shield, Heat
32 487996 Cap
33 489478 Screw
35 2321800 Defrost, BI−Metal
47 2210509 Valve, Release

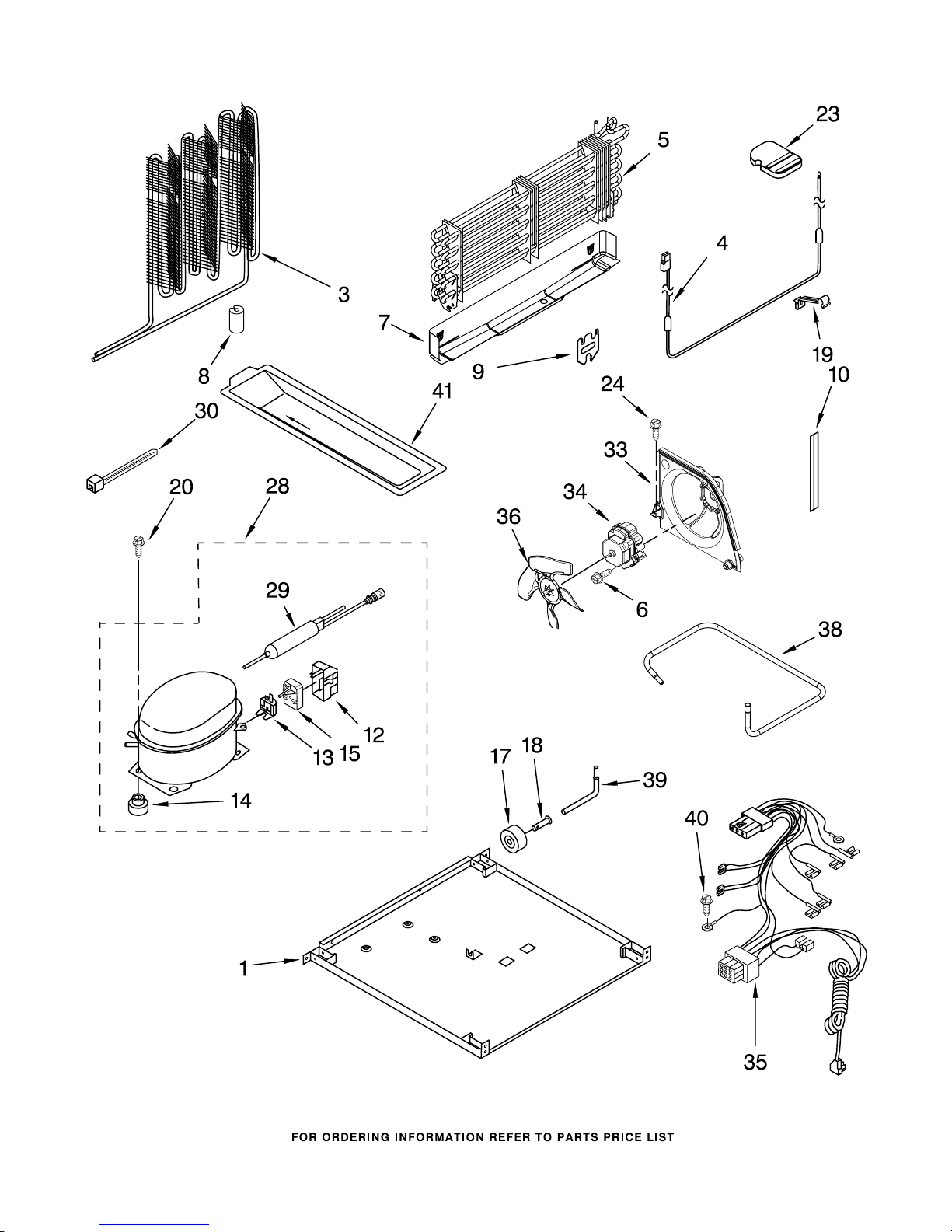

UNIT PARTS
7
For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00
(White) (Black) (Stainless Steel)
W10246526
UNIT PARTS
8
For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00
(White) (Black) (Stainless Steel)
W10246526
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 2320187 Plate, Unit
Mounting
3
W10159808
Condenser
4 2314157 Heater, Defrost
5 2254249 Evaporator Assy.
6 8533961 Screw
7 2254295 Drain Pan
8 2319835 Grommet,Cond.(4)
9 2176301 Bracket, Heater
10 2300638 Extension, Air
Baffle
12 4387731 Cover
(Service Only)
13 4387938 Overload
(Service Only)
14 Grommet (4)
1100826 Production
4387558 Service
15 2225929 Start−Device
17 2150304 Roller (2)
18 2221797 Rivet
19 2182338 Clip, Heater
20 489373 Screw
23 2201185 Support Block
24 3400518 Screw
28
W10175729
Compressor
(Includes Items
12,13,14,29
29 Drier
2319825 Production
W10177049
Service
30 2155774 Clamp
33 2315541 Air Baffle
34 2188728 Motor, Condenser
35 2310433 Wire Assy, Unit
36 2225834 Fan Blade
38 2225237 Tube, Suction
39 2154109 Tube, Process
40 488500 Screw
41 2254574 Tray, Evaporator
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
4.00 Ozs.
(R134A)
SHELF PARTS
9
For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00
(White) (Black) (Stainless Steel)
W10246526
Illus. Part
No. No. DESCRIPTION
1 2210522 Shelf, Ladder (2)
2 2300520 Shelf, Ladder
Center
3 2174693 Glass, Shelf Full
4 2163762 Cup, Shelf Mtg.
5 489478 Screw
6 2188687 Trim Shelf, Rear
7 2201102E Shelf,
Cantilever
8 2188685 Trim, Shelf Front
9
W10221200
Crisper Cover
10 2201104E Frame Assy
11 2210573 Insert, Crisper
Cover
12 2201106 Pan Shelf,
Cantilever
13 2188691 Trim, Shelf Front
14 2174694 Glass, Shelf
15 2314478 Crisper Support
Cantilever
17 2189454 Shelf, Freezer
20 2218132K Pan, Meat
21 2188689 Trim, Shelf Rear
22 2218130 Crisper Pan
(Includes 23 & 24)
23 2212446 Body, Humidity
Control
24 2176222 Slide, Humidity
Control
OPTIONAL PARTS (NOT INCLUDED)
10
For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00
(White) (Black) (Stainless Steel)
W10246526
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
x 2−5/8")
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4" x 108")
876305 Kit, Insulation
(14 Pcs.
3" x 24" x 48")
876370 Kit, Insulation
(2 Pcs.
3" x 24 " x 48")
876029 Kit, Foam Slab
(30" x 32−1/2" x
1−1/2")
505587 Sealer, Mastic
(1 Qt.)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
799832 Kit, Porcelain
Repair (White)
503695 Cork Sealer
(1/4 Pound)
Customer Touch−Up Material
350942 Primer, White
(12 Oz. Spray Can)
350939 Enamel, Black
(12 Oz. Spray Can)
350930 Enamel, White
(12 Oz. Spray Can)
4392901 Enamel, Biscuit
(12 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−Up Kit
(Black)
4392899 Brush Touch−Up Kit
(Biscuit)
Refinishing Material
799340 Enamel, Black
(1 Qt. Uncut)
799344 Enamel, White
(1 Qt. Uncut)
4392900 Enamel, Biscuit
(1 Qt. Uncut)
833938 Kit, Terminal
Connector
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
FIELD INSTALLABLE
ICE MAKER
2155469 ECKMF94
TORX SCREW WRENCH
1117510 Torx Key
