Amana A9RXNMFWW01 Fehlerbehebungshandbuch

CABINET PARTS

For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01

(White) (Black) (Stainless Steel)

12−09 Litho In U.S.A. (mjb)(bay) Part No. W10259042 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01

(White) (Black) (Stainless Steel)

W10259042

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142142

Service &

Wiring Sheet

W10251538

Energy Label

Use & Care Guide

W10208848

Bilingual

W10208847

Trilingual

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 2189356 Clip, Grille

6 2221797 Rivet

7 3400504 Screw

8 489385 Tube Clamp

9 489427 Screw

10 549193 Clamp, Cord

11 489497 Screw

12 2254618 Hinge, Center

13 2183852 Shim, Hinge

Center

14 8281265 Screw

15 2254473 Hinge Butt

16 Fitting, Water Tube

(NOT SERVICED)

17 Hole Plug (6)

2201012 White

2183998 Black

18 Corner Filler (2)

2201014 White

2201017 Black

19 Grille

(Includes

Illus. 4 & 22)

2254386 White

2254388 Black

20 489341 Washer, Plain

21 487576 Washer, Nylon

22 2254385 Clip, Grille

23 Cover, Hinge

2213360 White

2213363 Black

24 Rail, Center

(NOT SERVICED)

25 2254578 Cover, Unit

26 Cabinet (Not a

Serviceable Part)

LINER PARTS

For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01

(White) (Black) (Stainless Steel)

W10259042

LINER PARTS

For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01

(White) (Black) (Stainless Steel)

W10259042

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254359 Gasket, Evaporator

Cover (2)

4 2314156 Timer, Defrost

5 2204640 Thermostat Tube

Barrier

7 2310078 Wire Assembly,

Control Box

8 2162085 Socket, Light

W10189703

Fan Motor

11 2163777 Fan Blade

12 2218381 Control Box

13 2225460 Thermostat Assembly

(Includes

Illus. 5 & 18)

15 487996 Cap

16 2320192 Cover, Evaporator

17 2160708 Light Bulb (2)

19 1118894 Rocker Arm

Switch

W10129799

Wire Assembly,

Frzr. Compartment

(Includes

Illus. 28)

21 2176281 Cover, Air

Diffuser

22 2202885 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

25 2205003 Cover, Hole

26 2210390 Air Separator,

Assembly

27 488208 Screw

28 2321800 Defrost, BI−Metal

29 2254453 Bracket,

30 2320183 Retainer−Screw

Fan Motor

31 2204639 Shield, Heat

33 489478 Screw

35 2254454 Bracket

Evap. Fan, Rear

37 941839 Hole Plug

(Icemaker)

47 2210509 Valve

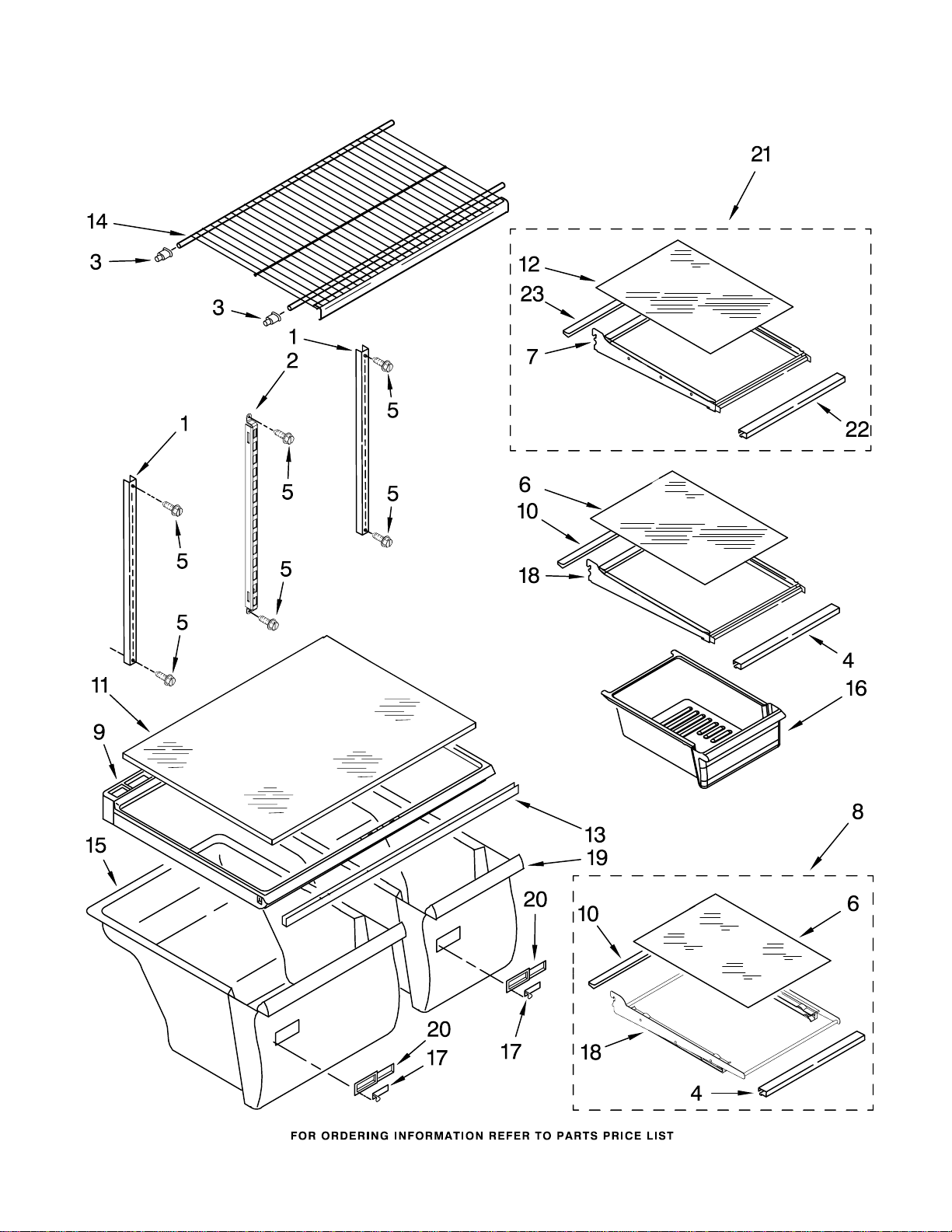

SHELF PARTS

For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01

(White) (Black) (Stainless Steel)

W10259042

SHELF PARTS

For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01

(White) (Black) (Stainless Steel)

W10259042

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

3 2163762 Cup, Shelf Mounting

4 2188684 Trim−Shelf, Front

5 489478 Screw

6 2169917 Glass, Shelf

7 2201103E Shelf−Cantilever

Meat Pan

8 2201105 Shelf Assy

W10221199

Crisper Cover

10 2188686 Trim−Shelf, Rear

11 2221693 Glass, Crisper

Cover

12 2177824 Glass, Half Shelf

13 2314477 Support, Crisper

14 2189453 Shelf, Freezer

15 2218130 Pan, Crisper

(13−Inch)

(Includes 17,20)

16 2218127K Pan, Meat

17 2176222 Slide, Humidity

Control

18 2201101E Shelf−Cantilever

19 2218129 Pan, Crisper

(10−Inch)

(Includes 17, 20)

20 2212446 Body, Humidity

Control

21 2201137 Shelf Assembly

22 2188690 Trim,Shelf Front

23 2188688 Trim,Shelf Rear

REFRIGERATOR DOOR PARTS

For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01

(White) (Black) (Stainless Steel)

W10259042

REFRIGERATOR DOOR PARTS

For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01

(White) (Black) (Stainless Steel)

W10259042

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 6 & 8)

2205395 White

2205398 Black

W10141742

Stainless Steel

4 2189202 Bracket, Door

Stop

5 489276 Screw, 8 x 1/2

6 2183003 Thimble

8 Door Gasket,

Magnetic

2202874 Mist Beige

2202881 Black

9 2210566 Housing Compartment

10 2159302 Tray, Door

11 Handle, Endcap

2300579W White

2300579B Black

12 2204811 Bin, Door (3)

13 2195949 Trim, Door Shelf

14 2218109 Door Compartment

15 2159312 Trim, Door Shelf

16 Hole Plug,

EndCap

2204837 White

2204840 Black

17 2177340 Endcap, Door Trim

18 2156006 Plug, Trim

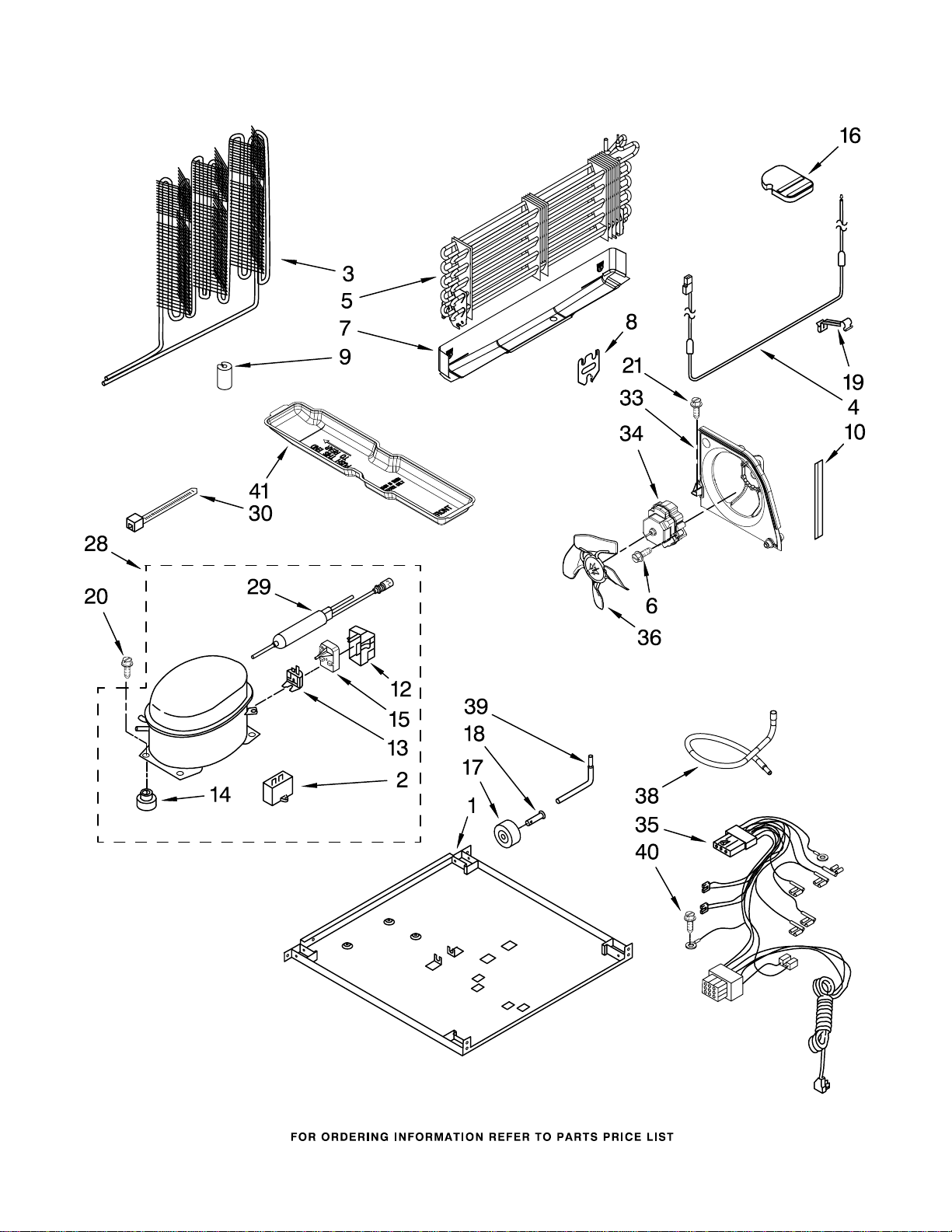

UNIT PARTS

For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01

(White) (Black) (Stainless Steel)

W10259042

UNIT PARTS

For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01

(White) (Black) (Stainless Steel)

W10259042

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320188 Plate, Unit

Mounting

2 2264017 Capacitor

W10159808

Condenser

4 2315531 Heater, Defrost

5 2254250 Evaporator Assy.

6 8533961 Screw

7 2254294 Drain Pan

8 2176301 Bracket, Heater

9 2319835 Grommet−Cond(4)

10 2300638 Extension, Air

Baffle

12 Cover

4387731 (Service Only)

2162358 Production

13 Overload

4390624 (Service Only)

2302290 Production

14 Grommet (4)

1100826 Production

4387558 Service

15 2225930 Relay−Combo Device

Combination

(Start Relay and

Overload For

Production

Compressor Only)

16 2201184 Support Block

17 2150304 Roller (2)

18 2179826 Rivet

19 2182338 Clip, Heater

20 489373 Screw

21 3400518 Screw

W10237272

Compressor

(Includes Items

12,13,14,29)

29 Drier

W10177049

Service

30 2155774 Clamp

33 2315541 Air Baffle

34 2188874 Motor, Condenser

35 2187382 Wire Assembly

Unit

36 2225834 Fan Blade

38 2205293 Tube, Suction

39 2212848 Tube, Process

40 488500 Screw

41 2254574 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
