Amana ABB2222FED10 Fehlerbehebungshandbuch

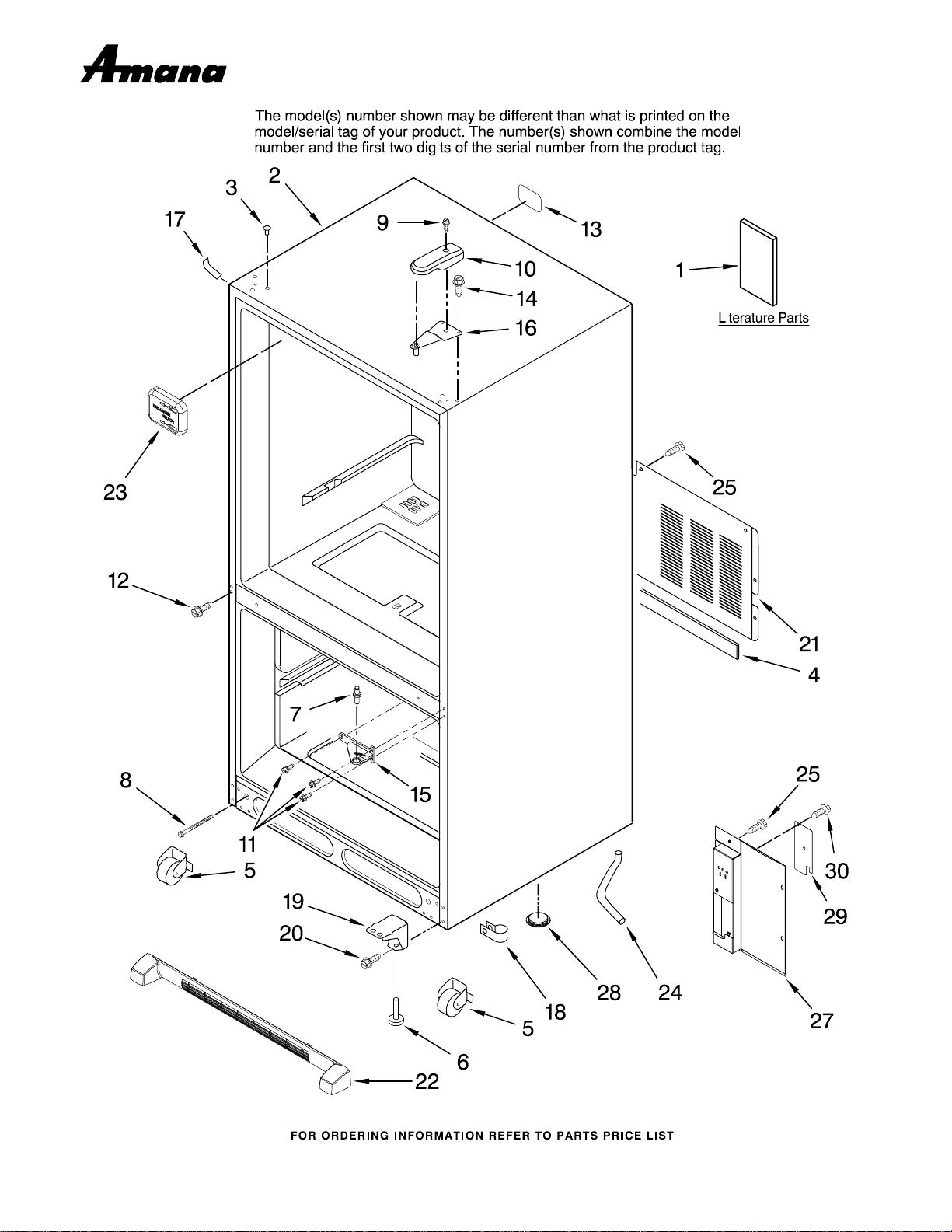

CABINET PARTS
1
For Models: ABB2222FED10
(Universal Silver)
10−08 Litho In U.S.A (mat) (psw) Part No. W10234657 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Models: ABB2222FED10
(Universal Silver)
W10234657
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10175445
Use & Care Guide
W10184250
Energy Guide
W10165418
Tech Sheet
2 Cabinet (Not a
Servicable Part)
3 Plug, Button (3)
67001131 Black
4 B5759649 Gasket
5 12580304 Roller Assembly
6 67003868 Foot, Brake
7 67006642 Pin, Center Hinge
8 67006611 Bolt, Adjusting
(Front Roller)
9 67006521 Screw
10 Cover, Hinge
67001012 Black
11 67005822 Screw
12 67006380 Screw
13 67005064 Label, Fl Tb
Plug
14 67006303 Screw
15 Hinge, Center
12607104ED
Black
16
12566606ED
Hinge, Top
17 Cover, Corner
67003485 Black
18
W10157973
Clip, Drain
19
W10208641
Foot, Cabinet
20 67006564 Screw
21 67006102 Cover, Unit
22 Grille Assembly
(Includes Clips)
67006954 Black
23 67001098 Cover, Fl Tb
24
W10164397
Tube, Drain
25 67006425 Screw (9)
27 67001097 Cover, Water Valve
28 A3076901 Plug Button
29 12479901 Plate, Cover
30 67006662 Screw
FREEZER LINER PARTS
3
For Models: ABB2222FED10
(Universal Silver)
W10234657
FREEZER LINER PARTS
4
For Models: ABB2222FED10
(Universal Silver)
W10234657
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 67001291 Gasket, Foam
3 12002497 Gear
4 67003905 Cover, Light
5 67004261 Shaft
6
Y12570701
Socket, Light
7 12002497 Gear
8 67006475 Screw
9 A0282812 Bulb, Light
10 67001035 Housing, Fz Light
11 67005872 Cover, Evaporator
12 67006425 Screw
13 Bracket, Door
W10122147
Left
W10122148
Right
14 67003906 Housing, Light
15 10623002 Clip, Evaporator
16 67005653 Switch, Light
17 67006530 Screw
18 Bracket
W10187668
Left
W10187667
Right
19
W10120018
Slide, Drawer (2)
20 67003731 Gasket, Bottom
21 Bracket, Slide
W10128119
Right
W10128118
Left
22
W10175909
Grille, Fz
23
W10167023
Shroud
24 2169142 Blade, Fan
25
W10121318
Grommet
26
W10128551
Motor, Evap
27 D7753903 Funnel, Drier
28 M0500703 Seal
29 B8381501 Gasket
30 12002355 Thermistor
31 67003924 Cover, Thermistor
Following Parts Not Illustrated
67006095 Harness, Lights
(Freezer)
FREEZER DOOR PARTS
5
For Models: ABB2222FED10
(Universal Silver)
W10234657
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(w/ Insulation)
13092241DQ
Universal Silver
2 Handle
W10179169
Black
3 Door Gasket,
Magnetic
W10164037
Black
4 Screw, Handle Hole
12992902 White
5 Plug, Button (2)
67004838 Black

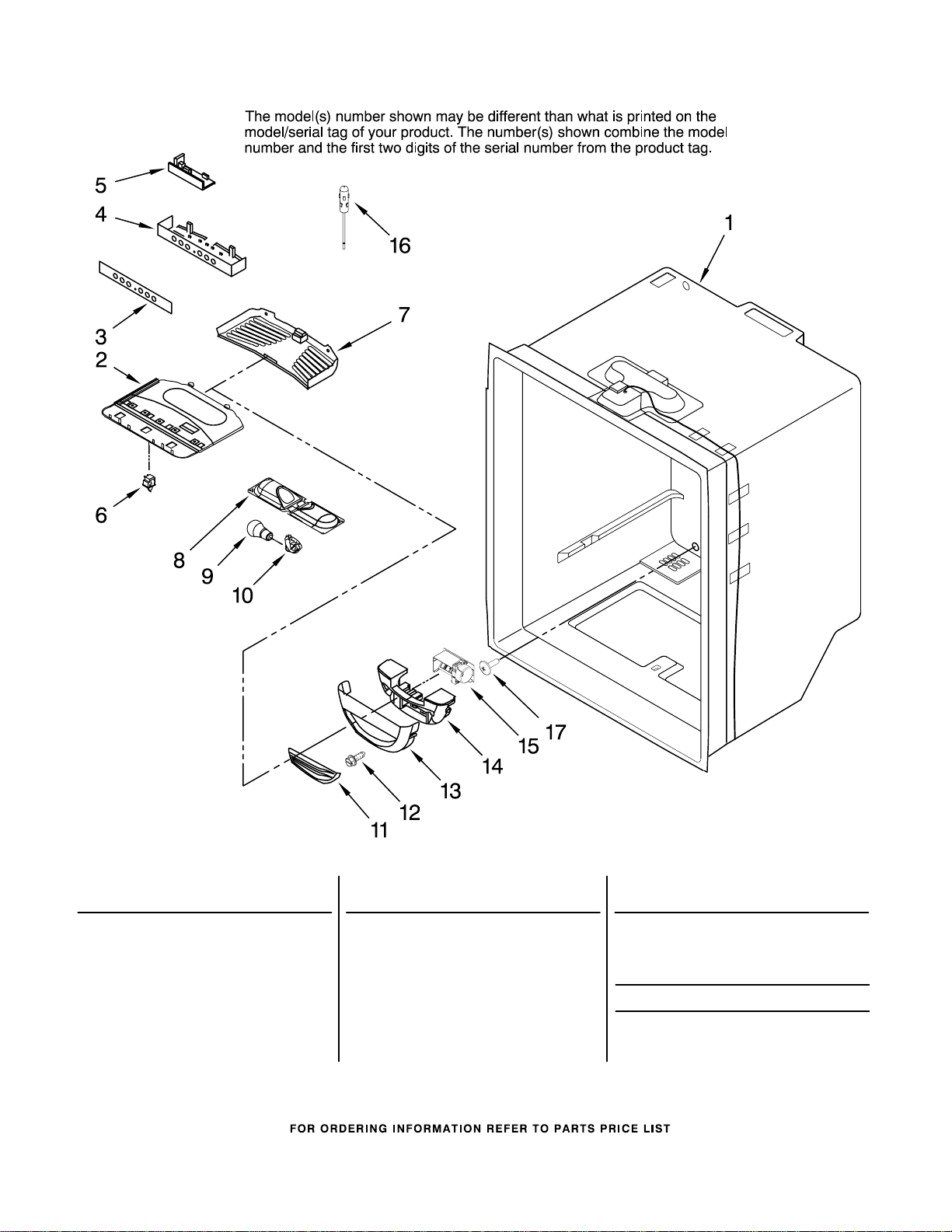

REFRIGERATOR LINER PARTS
6
For Models: ABB2222FED10
(Universal Silver)
W10234657
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
Y67003896
Module, Light
3 67004279 Overlay
4
W10185244
Housing
5
W10165748
Board, Control
6 C3680310 Switch, Light
7 67003897 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light (2)
10
Y12570701
Socket, Light (2)
11 67003900 Insert, Damper
Cover
12 67006602 Screw (2)
13 67003899 Cover, Damper
14 67006604 Insulation
15
W10127429
Control, Damper
16 12002355 Thermistor
17 M0310343 Plug, Button
Following Parts Not Illustrated
67004033 Harness, Controls
(Refrigerator)
REFRIGERATOR DOOR PARTS
7
For Models: ABB2222FED10
(Universal Silver)
W10234657
REFRIGERATOR DOOR PARTS
8
For Models: ABB2222FED10
(Universal Silver)
W10234657
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(w/Liner)
12658579DQ
Universal Silver
2 67006806 Screw
3 67003819 Door, Dairy
4 67001279 Tray, Dairy
5 67001021 Bucket, Medium (4)
6 Screw, Handle Hole
67007166 Black
7 Plug, Button
67004838 Black
8 Door Gasket,
Magnetic
W10164035
Black
9 Door Handle
67006805 Black
10 12528501 Nameplate
11 67001019 Retainer, Ref Door
12 67006287 Screw
13 Bushing
67004978 Black
14 Stop, Door
67003780 Black
15 Closure, Door
67003639 Black

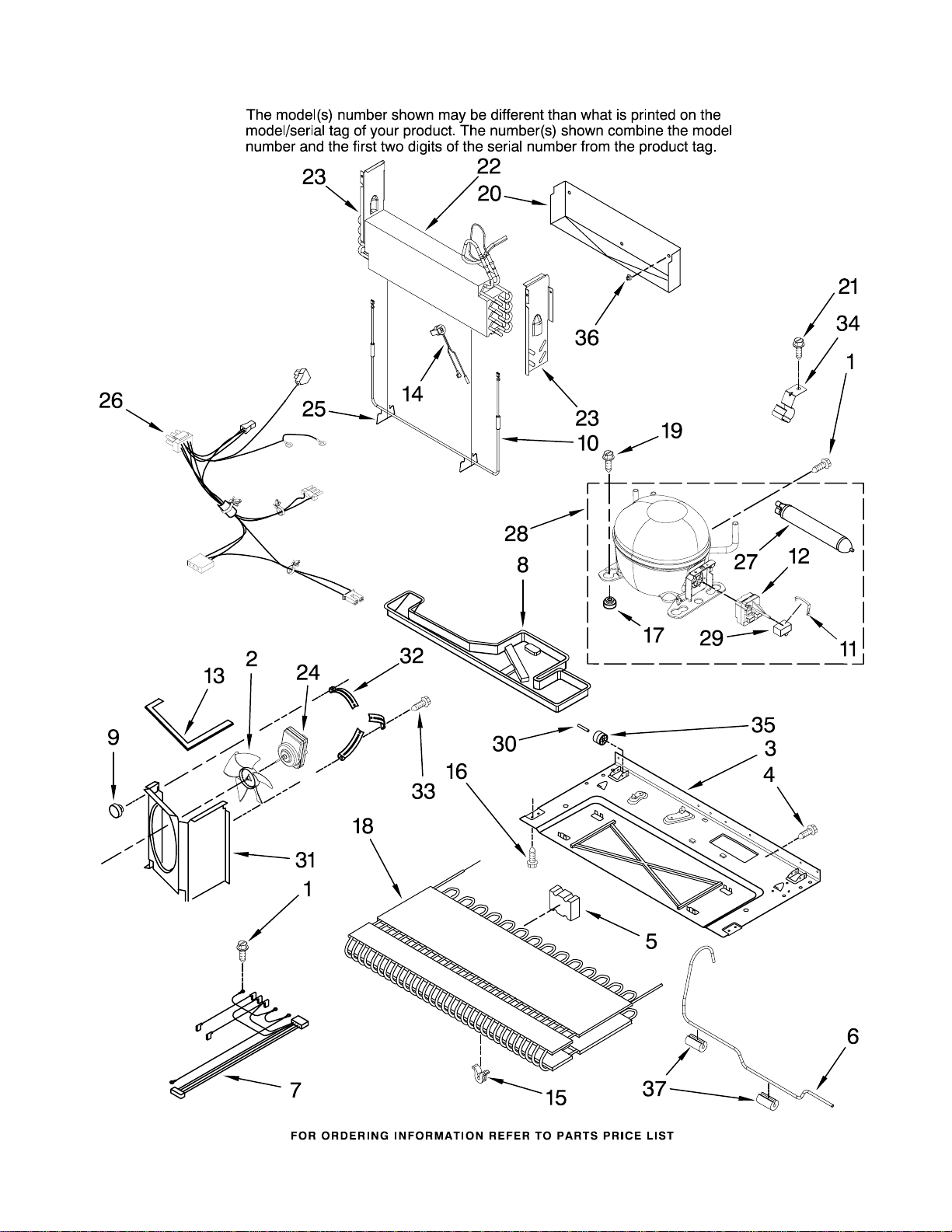

UNIT PARTS
9
For Models: ABB2222FED10
(Universal Silver)
W10234657
UNIT PARTS
10
For Models: ABB2222FED10
(Universal Silver)
W10234657
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 67006433 Screw
2 12825802 Blade, Fan
3 12591404 Basepan
4 67006425 Screw
5 67005491 Block, Condenser
6
W10183706
Tube, Discharge
7
W10119856
Harness, Evap.
Heater
8 67004713 Drain Pan
9 61004743 Grommet (3)
10 67001794 Evaporator Heater
11
W10136415
Clip, Capacitor
12
W10136414
Overload
(Includes Relay)
13 61003210 Gasket
14
W10165425
Thermostat
15
W10137529
Grommet
16 67006573 Screw
17
W10169124
Grommet (4)
18
W10135027
Condenser
19 67006432 Screw
20 67001080 Tray, Drip
21 67006737 Screw
22 67003719 Evaporator
23 Dam
67001084 Right Side
67001083 Left Side
24 67004432 Motor, Fan
25 10428101 Clip, Heater
26 13060302 Harness, MC
(Includes
Power Cord)
27
W10143759
Drier (Service)
28
W10130129
Compressor
29 2264017 Capacitor
30 67006434 Axle, Roller
31 12575309 Shroud
32 67004953 Bracket, Fan Motor
33 67004954 Screw
34 10547003 Clip, Drier
35 67005149 Roller
36 10623002 Clip, Evap
37 67005680 Grommet
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 Ozs.
(R−134A)
