Amazone EasyCheck Montageanleitung

Original operating manual

Measuring method for the lateral distribution

EasyCheck

SmartLearning

www.amazone.de

TABLE OF CONTENTS

1 Product description 1

2 Checking the lateral distribution 2

3 Cleaning the mats 8

TABLE OF CONTENTS

MG6126-EN-II | F.1 | 30.05.2022 I

Product description 1

EasyCheck is part of the mySpreader app.

With EasyCheck, the lateral distribution of the

fertiliser is measured and setting recommendations

are given to improve the lateral distribution. The

fertiliser is collected on 16 rubber mats. The rubber

mats are photographed with a smartphone or tablet,

and the pictures are evaluated. Depending on the

selected fertiliser spreader, the EasyCheck app

calculates the correct values for the spreading disc

speed, the delivery system or the spreading vane

position.

CMS-T-00000641-B.1

1 | Product description

MG6126-EN-II | F.1 | 30.05.2022 1

Checking the lateral distribution 2

16 mats are placed on the field at specific intervals.

The distances between the mats depend on the

working width of the fertiliser spreader and are

displayed in the EasyCheck app. While spreading, the

fertiliser is collected on 16 mats. In the EasyCheck

app, there is a symbol for each of the 16 mats.

Using the mat symbols, a picture can be taken and

evaluated for each corresponding mat.

The exact procedure is described in the following.

NOTE

With transparent, very fine or dark fertiliser, the

pictures might not be evaluated correctly in some

cases.

REQUIREMENTS

Spreader profile and spreading procedure are

created in the mySpreader app

1. In the mySpreader app, tap on "Optimisation".

2. Select the desired spreading procedure.

3. Tap on EasyCheck.

CMS-T-00000630-E.1

2 | Checking the lateral distribution

MG6126-EN-II | F.1 | 30.05.2022

4. Check spreader settings.

Spreader

Working width

Speed

Spread rate

Calibration factor

Shutter position

CMS-I-00006103

5. Place 16 mats at the distances specified in the

app.

NOTE

The first row of mats must be placed in a tramline.

The mat spacing specified in the EasyCheck app

is based on the centre of the mats.

In the direction of travel, the mats must be spaced

at least 1 m apart.

CMS-I-00000537

2 | Checking the lateral distribution

MG6126-EN-II | F.1 | 30.05.2022 3

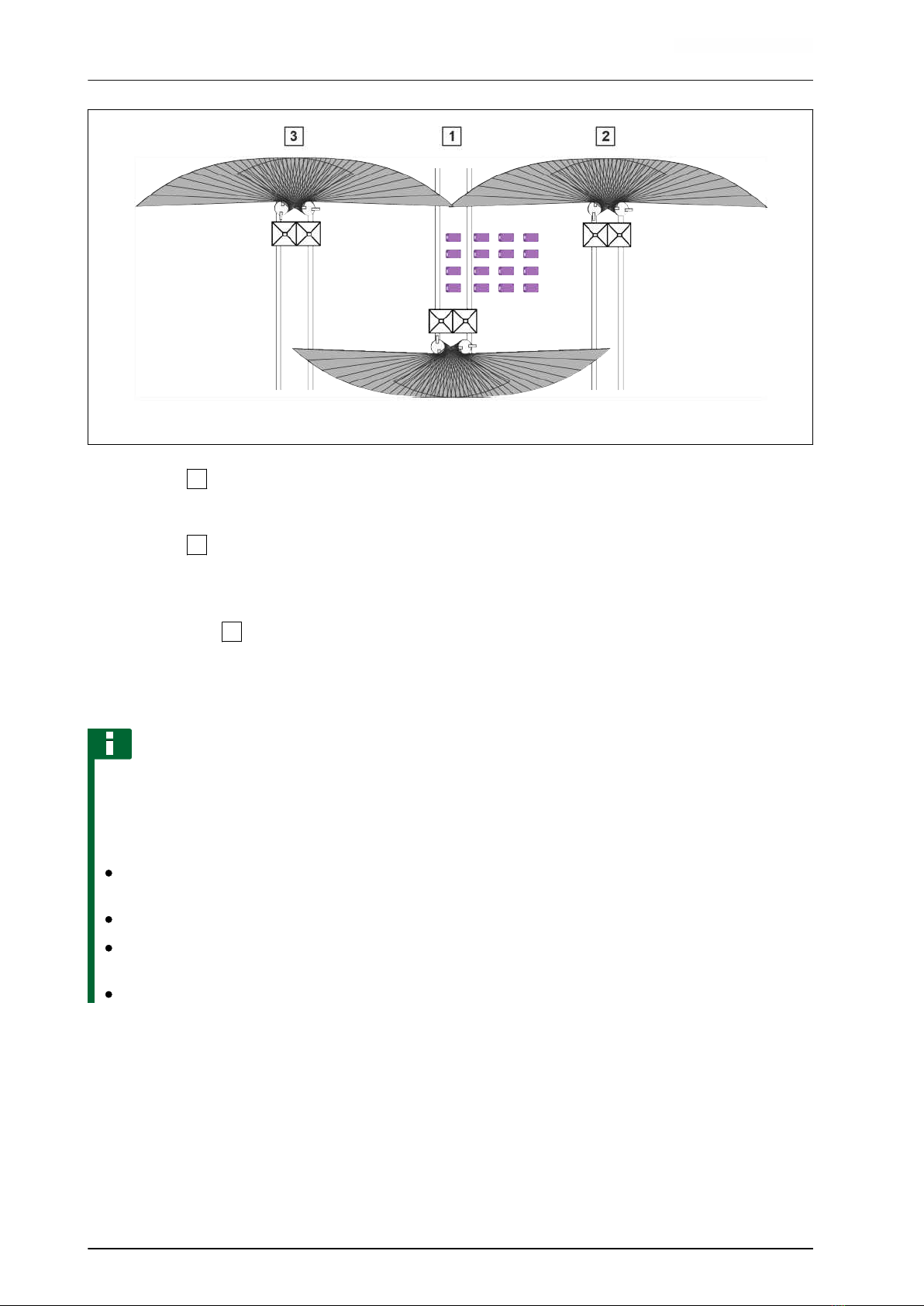

6. In tramline

, drive over the row of mats while

spreading.

7. In tramline

, drive and spread.

8. If the fertiliser spreader spreads beyond the

next tramline,

drive in tramline

and spread.

9. To take a picture of a mat,

tap on a mat symbol in the EasyCheck app.

NOTE

The following table shows a correct example and

a negative example for the picture.

Rules for the picture:

The white squares must be loacted in the

notches on the mats.

They may not be any shadows on the mat.

The mat may not be covered by plants or

objects.

The mat must be clean and free of dust.

2 | Checking the lateral distribution

MG6126-EN-II | F.1 | 30.05.2022

Correct Shadow Soiled Too close Too far Crooked

10. Take a correct picture of the mat corresponding to

the mat symbol.

The results of the evaluation is shown.

NOTE

Each white spot on the figure represents a grain

of fertiliser. Only the area between the inner

corner points of the notches are evaluated.

CMS-I-00000536

11. If the results match with the distribution on the

mat,

Confirm the determined value with "OK"

If the results do not match with the distribution

on the mat,

select "DISCARD".

2 | Checking the lateral distribution

MG6126-EN-II | F.1 | 30.05.2022 5

12. Take a valid picture of each mat using the

corresponding mat symbol.

13. Select "CONTINUE".

CMS-I-00000538

2 | Checking the lateral distribution

MG6126-EN-II | F.1 | 30.05.2022
